Blustream HEX70ARC-KIT HDBaseT HDMI Extender Kit - 70m (4K 40m) w/ARC

HEX70ARC-KIT - Overview

• Features:

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
  • Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
  • Bi-directional IR pass-through
  • Supplied with Blustream IR receiver and emitter
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • HDCP 2.2 compliant with smart EDID management


• Specifications:

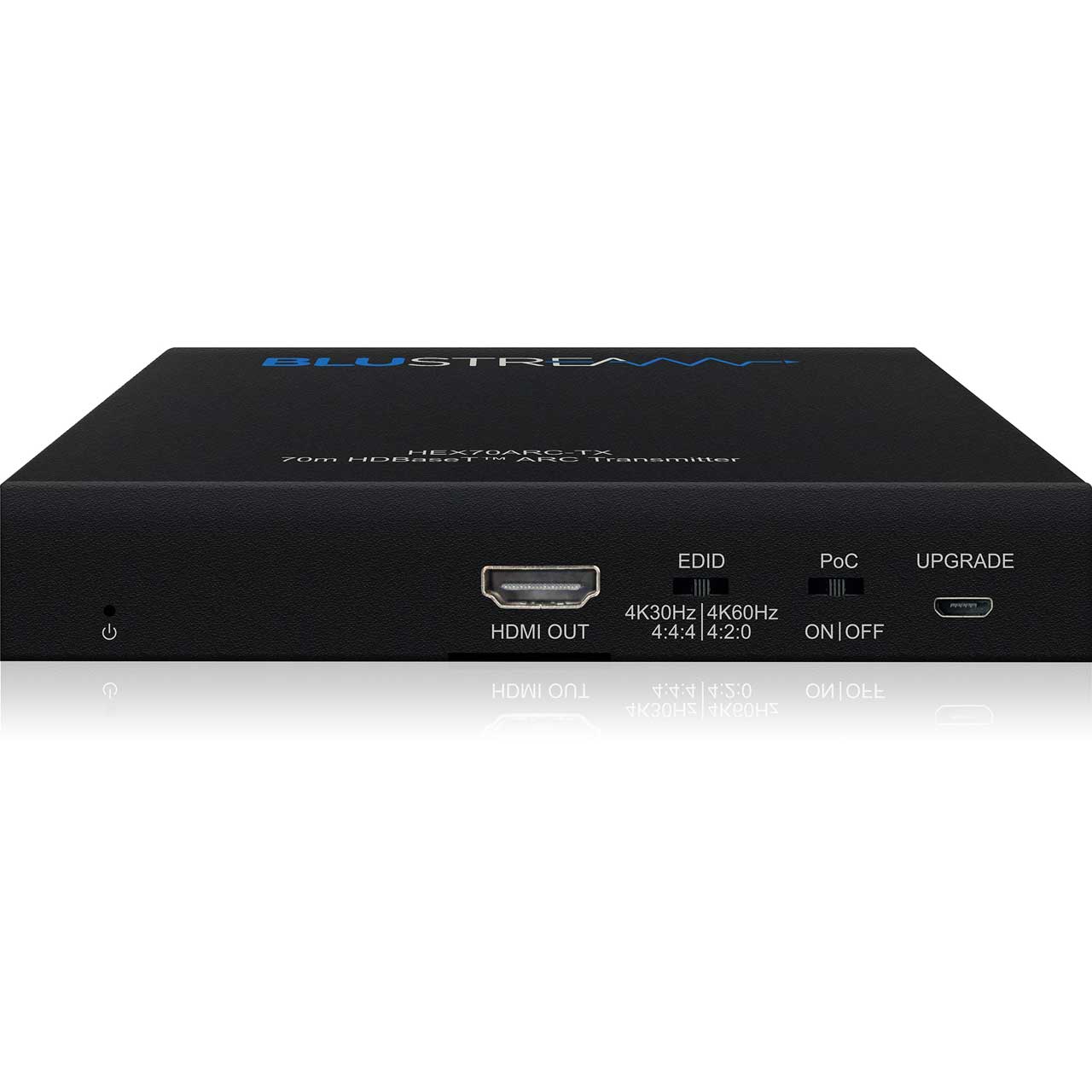

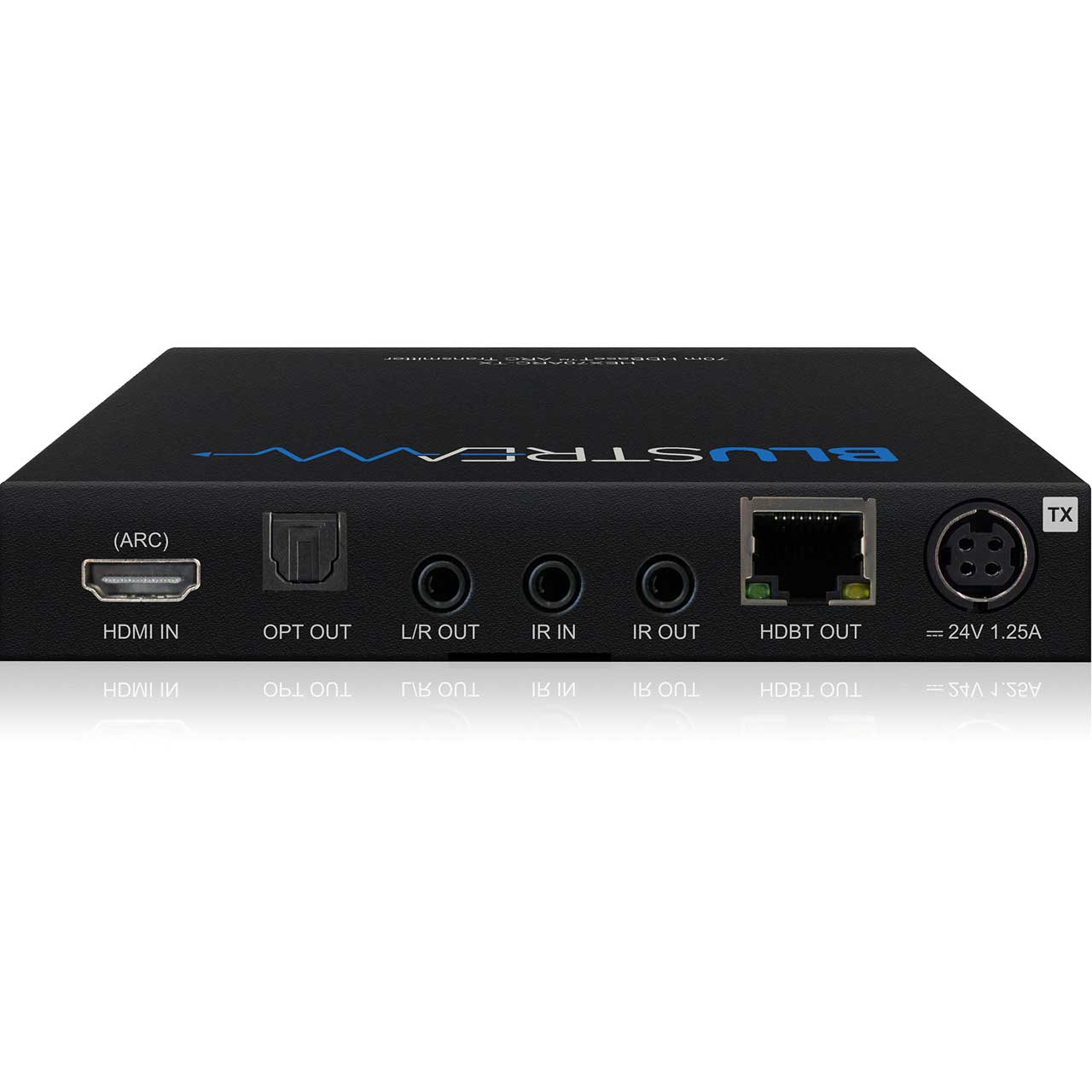

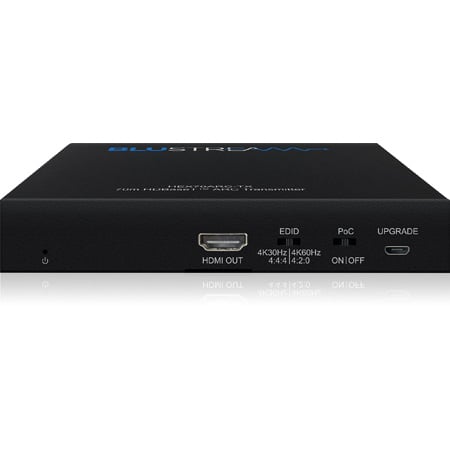

  • HEX70ARC-TX Transmitter
    Video Input Connectors: 1 x HDMI Type A, female
    Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
    Audio Output Ports: 1 x Optical (S/PDIF), 1 x 3.5mm L/R analogue audio
    IR Input Port: 1 x 3.5mm stereo jack
    IR Output Port: 1 x 3.5mm mono jack
    Product Upgrade: 1 x Micro-USB, female
    Casing Dimensions (W x D x H): 135 x 84 x 21mm

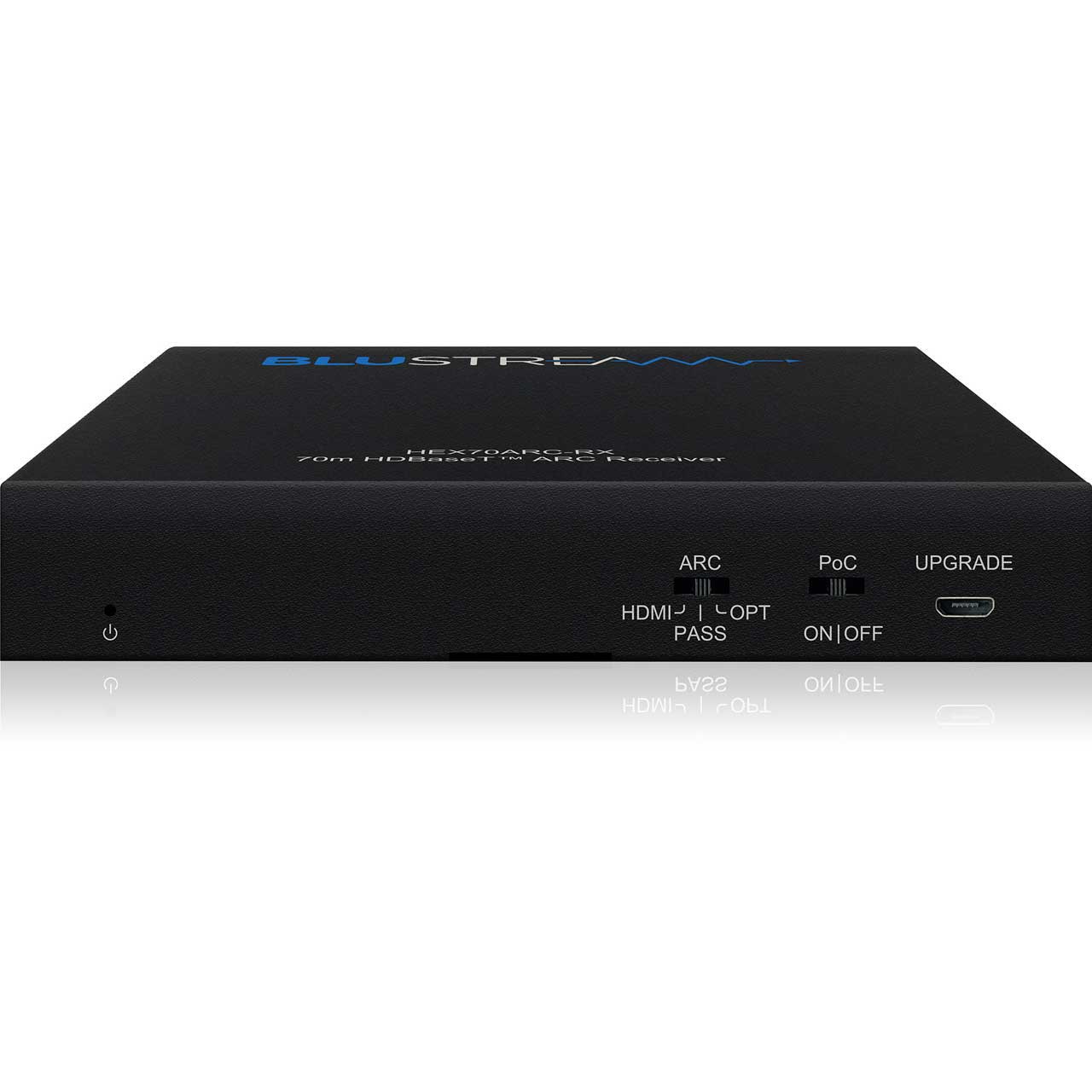

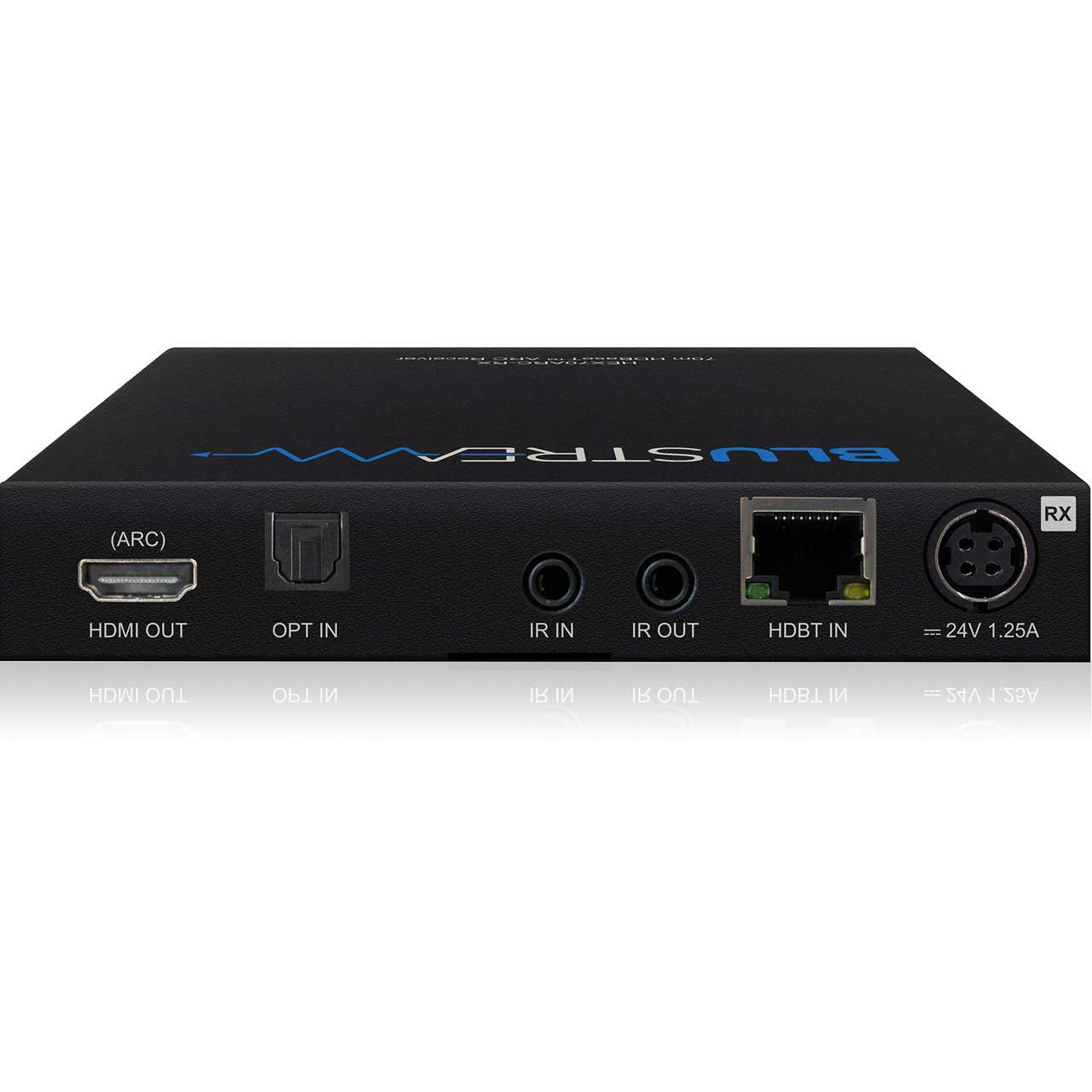

  • HEX70ARC-RX Receiver
    Video Input Connectors: 1 x HDBaseT™ RJ45 connector
    Video Output Connectors: 1 x HDMI Type A, female
    Audio Input Port: 1 x Optical (S/PDIF)
    IR Input Port: 1 x 3.5mm stereo jack
    IR Output Port: 1 x 3.5mm mono jack
  • Product Upgrade: 1 x Micro-USB, female
  • Casing Dimensions (W x D x H): 135 x 84 x 21mm
  • Power Supply: 1 x 24V/1.25A DC, 4-pin DIN connector
  • Box Dimensions (W x D x H): 248 x 151 x 103mm
  • Shipping Weight: 1kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)


• Item Includes:

  • 1x HEX70ARC-TX
  • 1x HEX70ARC-RX
  • 1x 24V/1.25A DC Power Supply
  • 1x IR Emitter
  • 1x IR Receiver
  • 2x Mounting Bracket Sets
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003621
