Blustream HEX70SL 70 Meter (40m 4k) HDMI HDBaseT Extender Slimline Kit

HEX70SL-KIT - Overview

• Features:

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Enhanced slimline chassis
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Bi-directional IR pass-through
  • Supplied with Blustream IR Receiver and Emitter
  • Supports Bi-directional PoC to power extenders from either Transmitter or Receiver end
  • HDCP 2.2 Compliant with Smart EDID management


• Specifications:

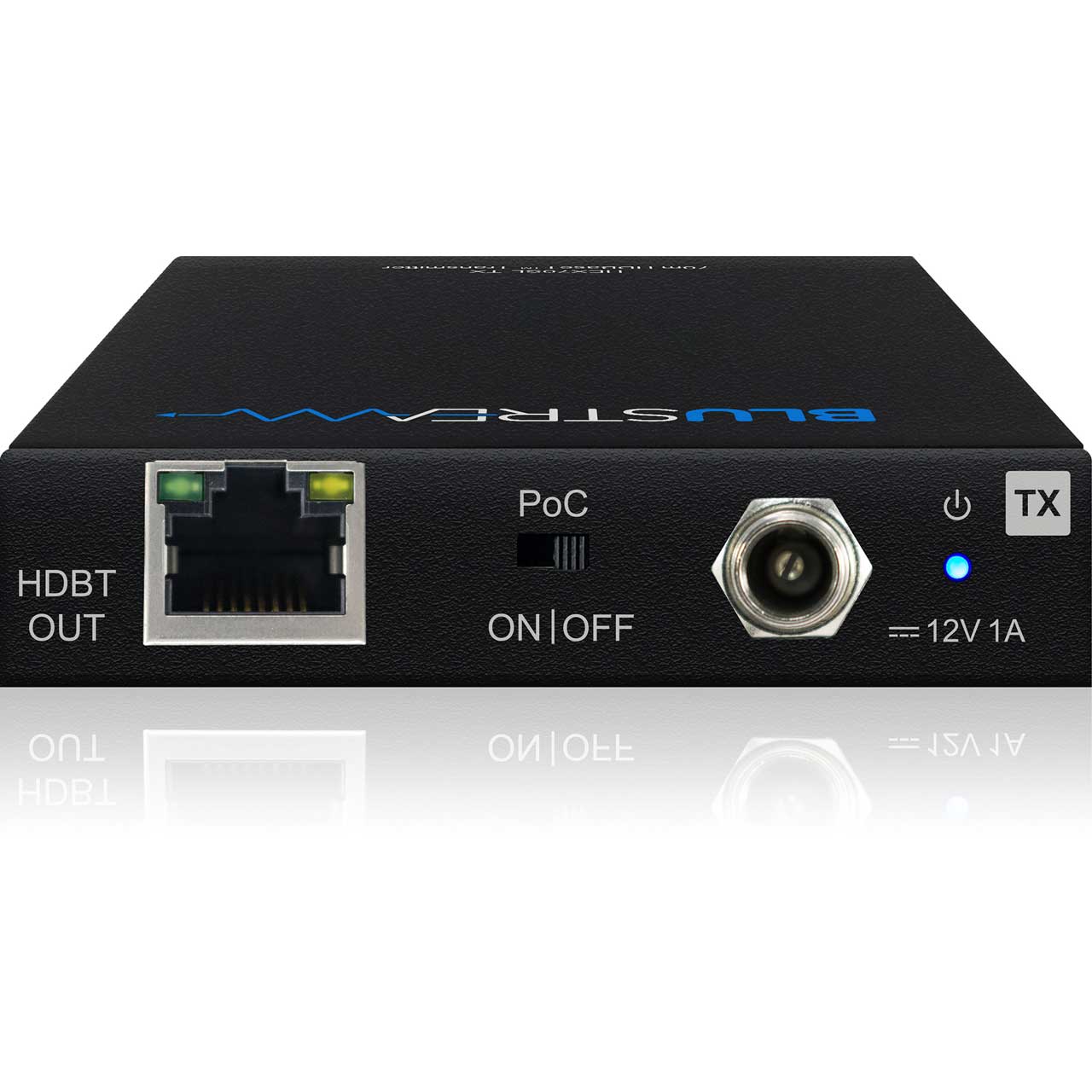

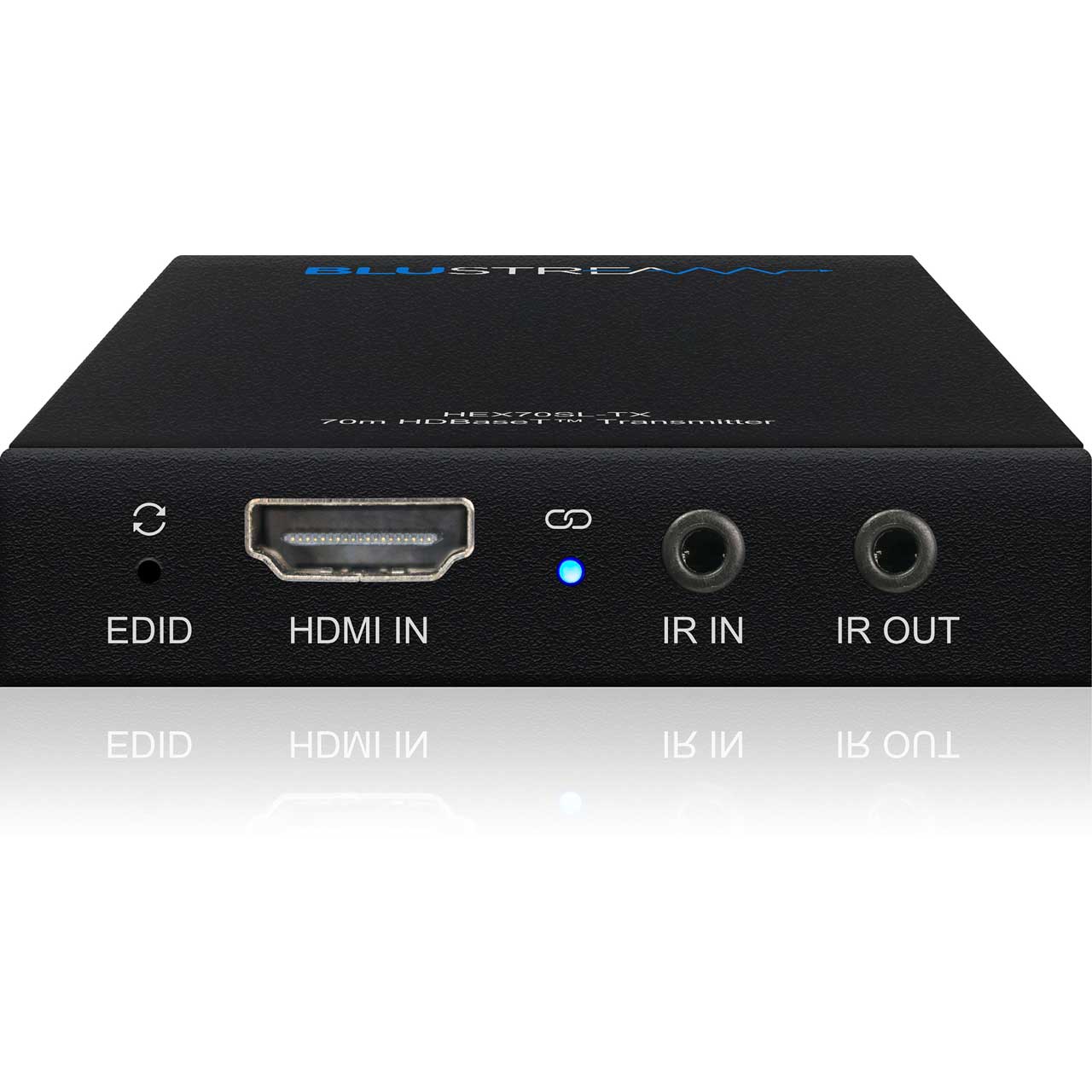

  • HEX70SL-TX
    Video Input Connectors: 1 x HDMI Type A, 19-pin, female
    Video Output Connectors: 1 x HDBaseT™ RJ45 connector
    IR Input Ports: 1 x 3.5mm stereo jack
    IR Output Ports: 1 x 3.5mm mono jack
    EDID: Pin hole button

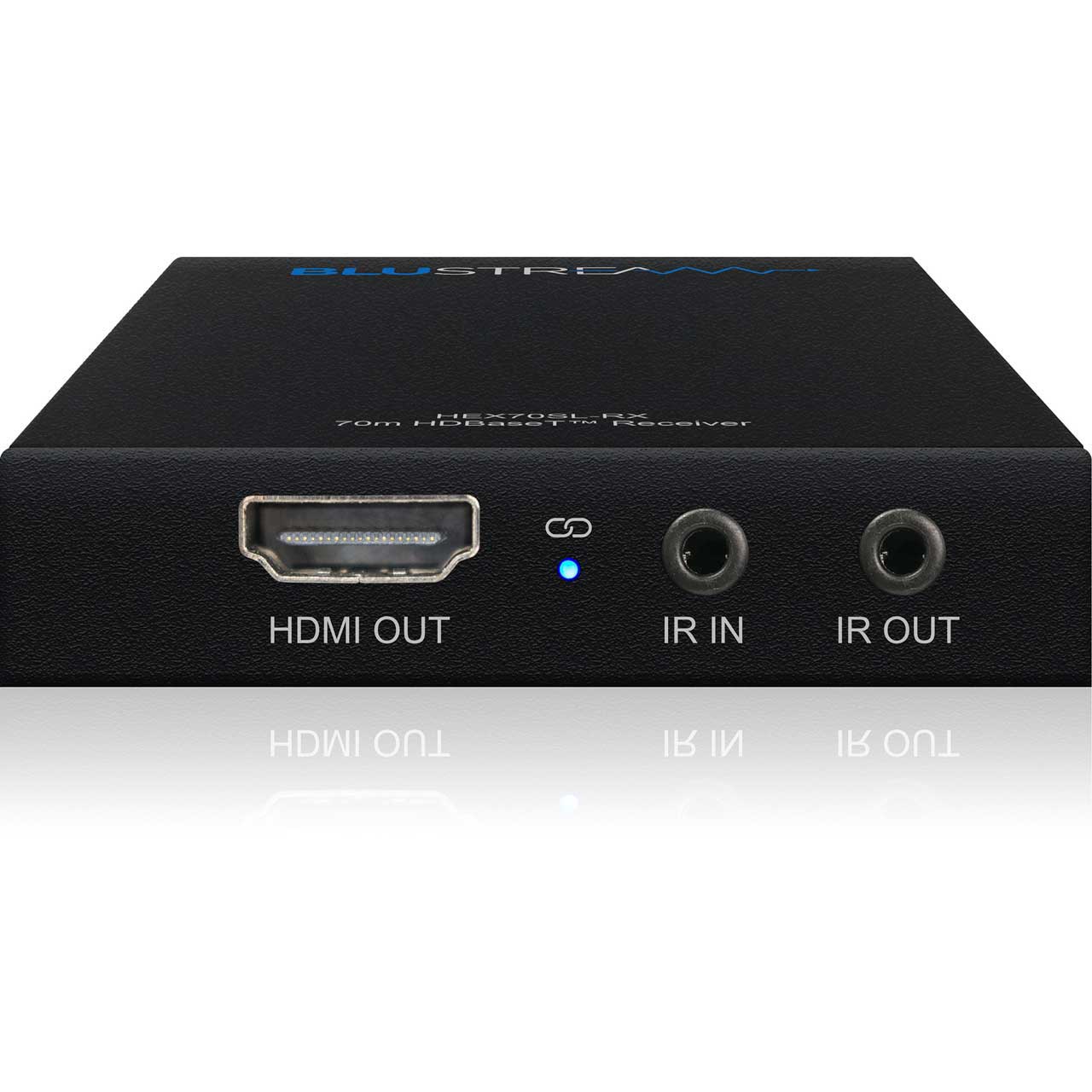

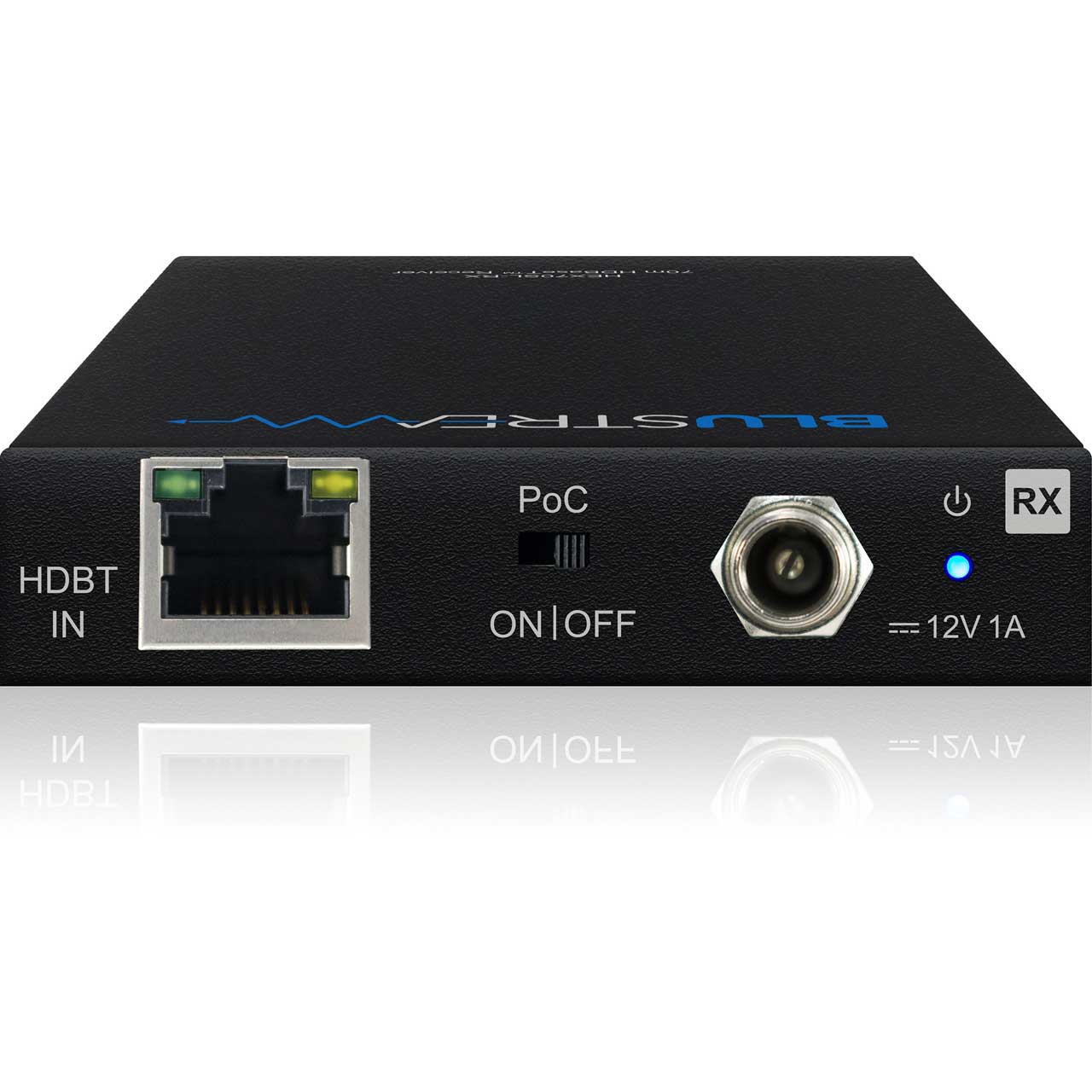

  • HEX70SL-RX
    Video Input Connectors: 1 x HDBaseT™ RJ45 connector
    Video Output Connectors: 1 x HDMI Type A, 19-pin, female
    IR Input Ports: 1 x 3.5mm stereo jack
    IR Output Ports: 1 x 3.5mm mono jack
  • Power Supply: 12V/1A DC
  • Dimensions: 106mm x 73mm x 16mm (L x W x H)
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)


• Item Includes:

  • 1x HEX70SL-TX
  • 1x HEX70SL-RX
  • 1x 12V/1A DC Power Supply
  • 1x IR Emitter
  • 1x IR Receiver
  • 2x Mounting Kit
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003317
