Blustream HMXL44CS-KIT 4x4 HDBaseT HDMI 18G Matrix Kit - 40m (1080p 70m)

HMXL44CS-KIT - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video down-conversion on HDBaseT™ output 1 allows for a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive the native 4K @ 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HEX70CS-RX HDBaseT™ Receivers to help solve HDMI HDCP, compatibility, and handshaking issues
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
  • Analog audio input can be embedded onto any HDMI input
  • Web interface module for control and configuration of the Matrix
  • Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
  • Supplied with Blustream IR receivers and emitters

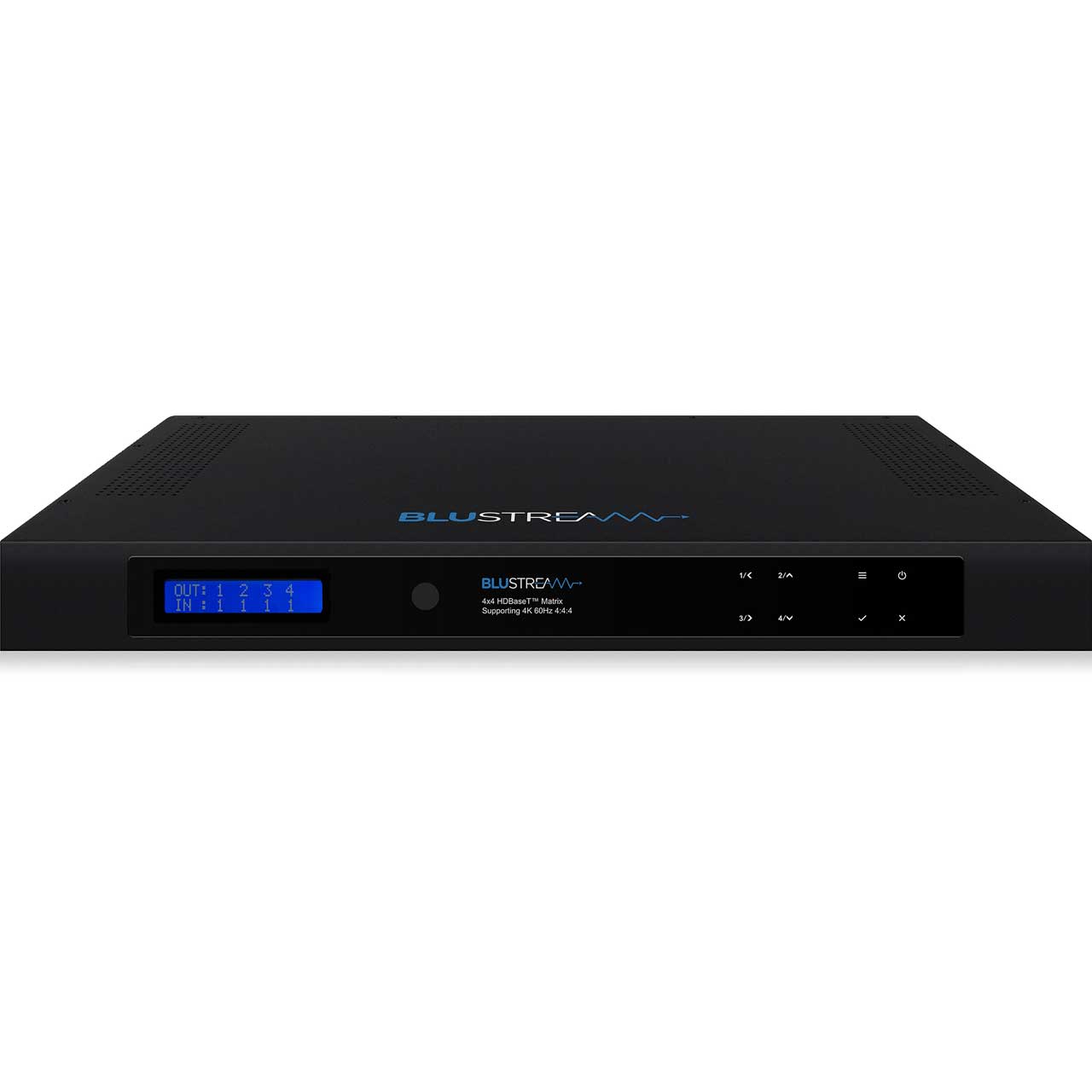

  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to power supplied HDBaseT™ receivers
  • 3rd Party drivers available for all major home control brands
  • 1U Design for 19"" rack mount integration - mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant


• Specifications:

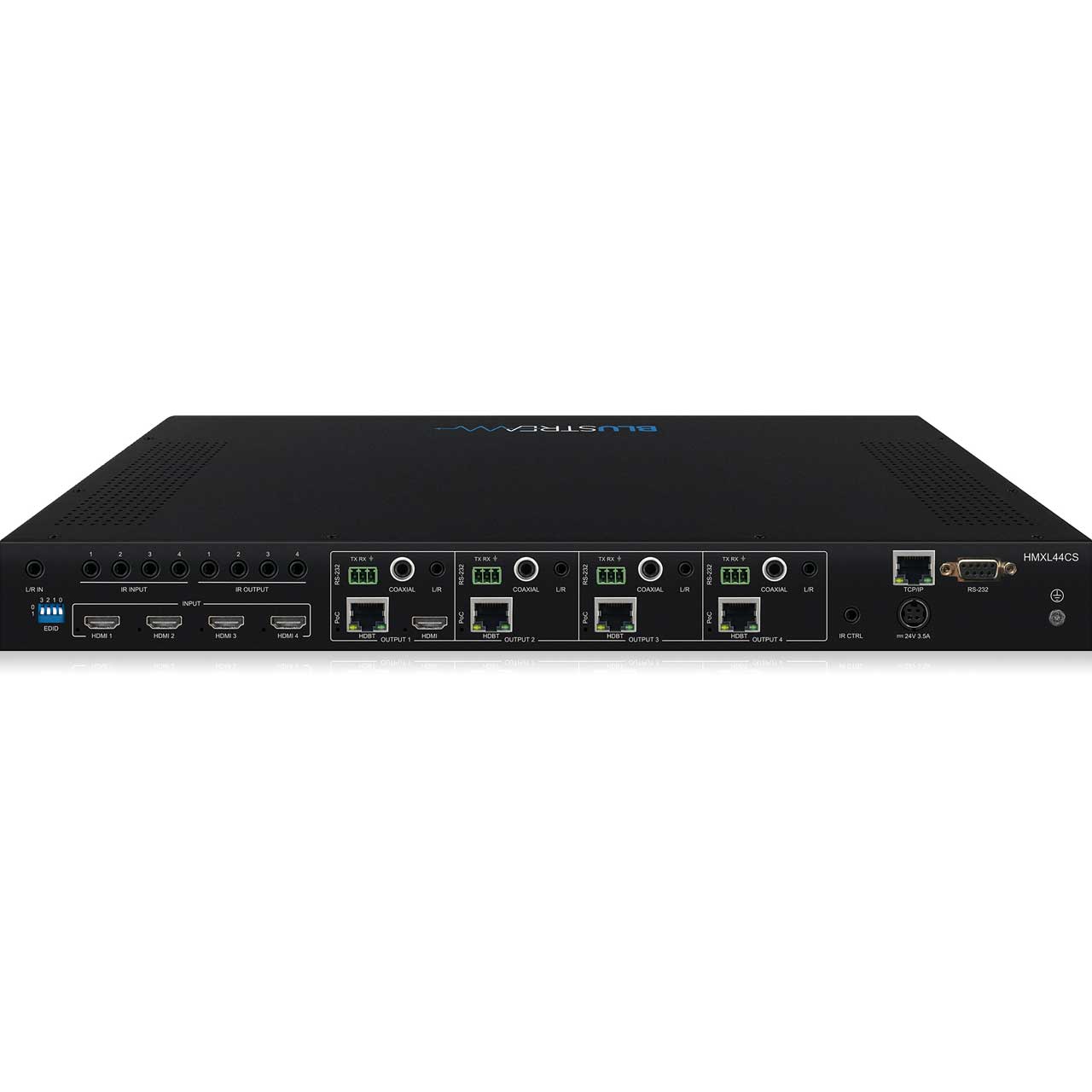

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector
  • Audio Output Connectors: 4 x 3.5mm stereo jack, 4 x RCA Coaxial Digital
  • RS-232 serial port: 1 x DB-9, female, 4 x 3-pin Phoenix sockets for each zone (DB9 serial to Phoenix
    connector cables supplied)
  • TCP / IP Control: 1 x RJ45, female
  • IR Input ports: 5 x 3.5mm stereo jack
  • IR Output ports: 4 x 3.5mm mono jack
  • Rack-Mountable: 1U rack height, rack ears included
  • Unit Dimensions (W x D x H): 440mm x 235mm x 44mm (without feet & connections)
  • Unit Dimensions (W x D x H): 440mm x 245mm x 52mm (with feet & connections)
  • Unit Weight: 2.98kg
  • Box/Carton Dimensions (W x D x H): 505mm x 305mm x 155mm
  • Shipping Weight: 7.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1 x 24V/3.5A DC


• Item Includes:

  • 1x HMXL44CS Matrix
  • 4x HEX70CS-RX Receivers
  • 1x Rack Mounting Kit for HMXL44CS
  • 4x Mounting Kits for HEX70CS-RX
  • 1x 24V/3.5A Power Supply
  • 1x IR Remote Control
  • 4x IRCAB IR Control Cables - 3.5mm-3.5mm Cable
  • 4x IR Emitters
  • 5x IRR Receivers


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002334
