Blustream HMXL88ARC 8x8 HDBaseT HDMI 18G Matrix w/ARC - 40m (FHD 70m)

HMXL88ARC - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
  • Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
  • 26x8 Audio Matrix independently controllable from video. Audio source inputs include:
  • - 8 x audio breakout from HDMI source inputs
  • - 8 x audio breakout from zone outputs
  • - 8 x ARC from zone outputs*
  • - 1 x Optical and 1 x Analogue audio input
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR and RS-232 on all HDBaseT™ outputs

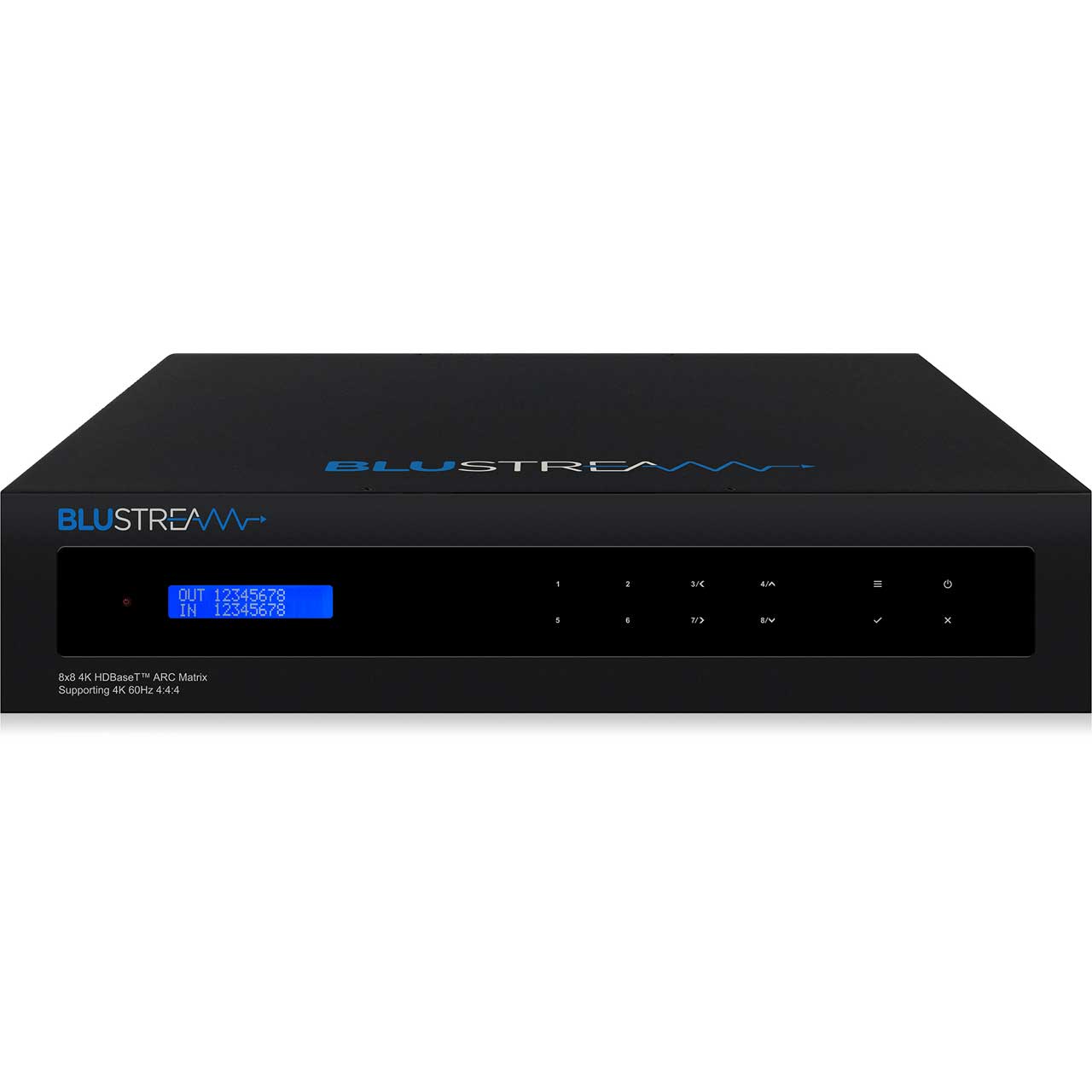

  • Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
  • Supports 24V PoC (Power over Cable) to power compatible Blustream RX70CS receivers
  • Supplied with Blustream IR receivers and emitters
  • Advanced EDID management and HDCP 2.2 compliant
    *ARC feature supports HDMI ARC or Optical ARC
  • *PoC, CSC, and ARC feature compatible with RX70CS only

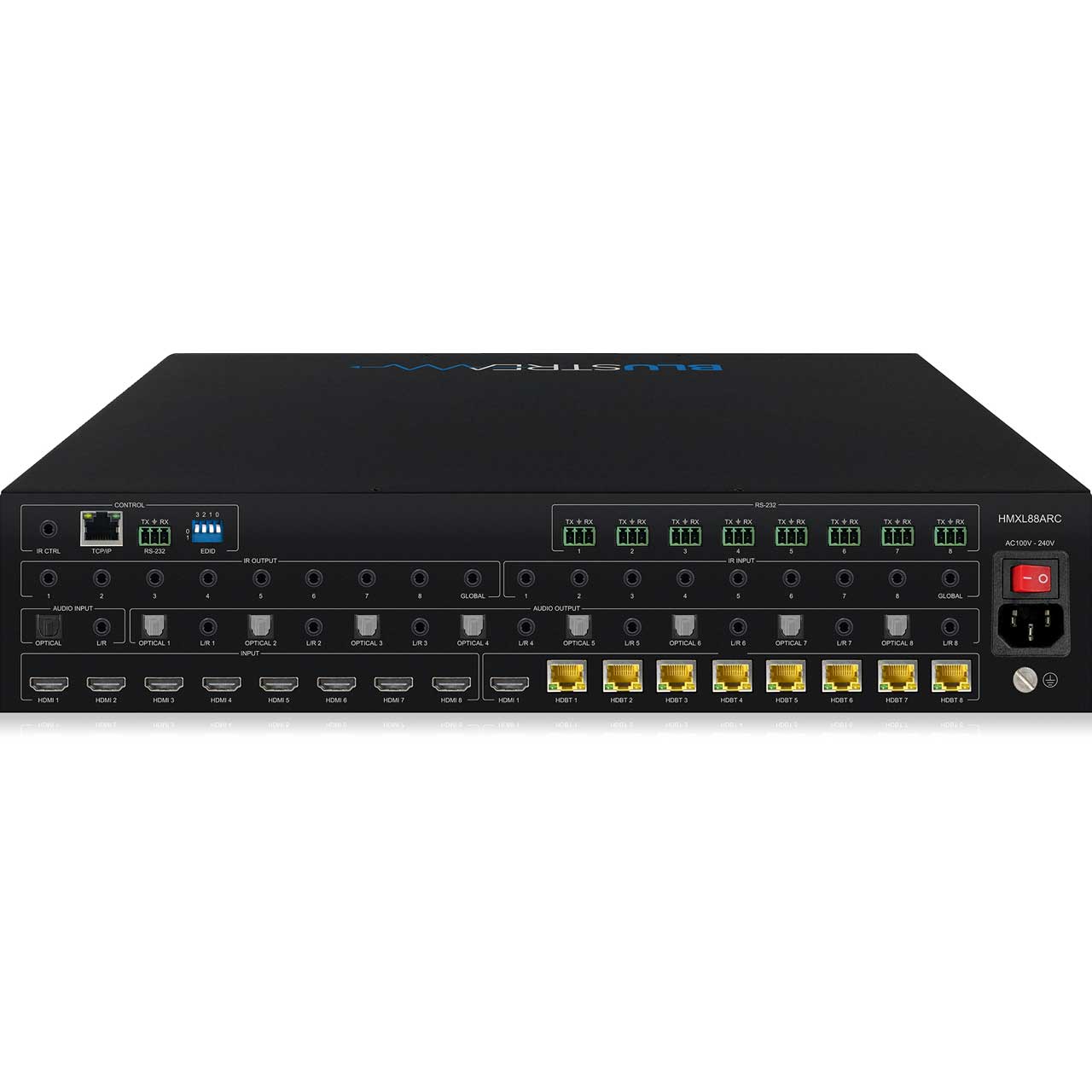

• Specifications:

  • Video Input Connectors: 8 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connector, used with
    RX70CS receiver
  • Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)
  • Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo jack), 8 x Optical (S/PDIF)
  • RS-232 Serial Ports: 9 x 3-pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 9 x 3.5mm stereo jack
  • IR Output Ports: 9 x 3.5mm mono jack
  • Rack Mountable: 2U rack height, rack ears included
  • Casing Dimensions (WxDxH): 436mm x 400mm x 88mm (without feet)
  • Shipping Weight: 10.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: Internal 100-240V AC


• Item Includes:

  • 1x HMXL88ARC
  • 1x Rack mounting Kit
  • 1x Remote Control
  • 8x IR Emitters
  • 9x IR Receivers
  • 1x Serial Cable - DB9 to 3-pin Phoenix Connector
  • 1x IR Control Cable - 3.5mm-3.5mm Cable
  • 1x IEC Power Cable(s)
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003676
