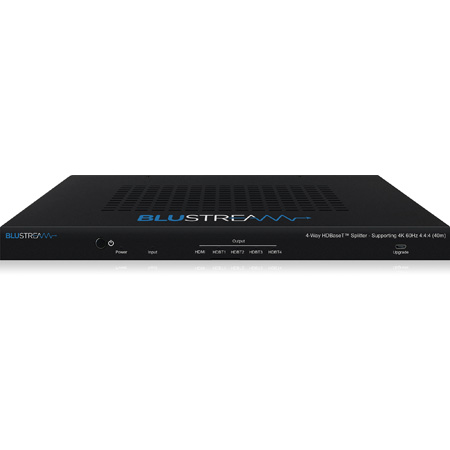

Blustream HSP14CS 1x4 HDBaseT Splitter HDMI 18G - 40m (1080p 70m)

HSP14CS - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 1 x HDMI input that is replicated to 4 x HDBaseT™ outputs
  • Features 1 x HDMI loop out for integrating local displays or cascading to multiple devices
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
  • Independent downscaling of video input resolutions up to 4K @ 60Hz 4:4:4 to the following formats*:
  • - 1080p @ 60Hz (for screens that do not support 4K)
  • - 4K @ 60Hz 4:2:0 (for screens that do not support full 4K @ 60Hz 4:4:4)
  • Extends HDMI 1080p up to a distance of 70m over single CAT cable
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to both analog L/R audio and coaxial digital outputs concurrently
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
  • Compatible with the following Blustream HDBaseT™ receivers:
  • - HEX70CS-RX (recommended for where resolutions up to 4K @ 60Hz 4:4:4 are required)
  • - Also compatible with HEX70B-RX & HEX70ED-RX (system will be limited to 4K @ 60Hz 4:2:0 8-bit maximum)
  • HDCP 2.2 support
  • *NOTE: downscaling feature does not support 4K 4:2:2 input signals


• Specifications:

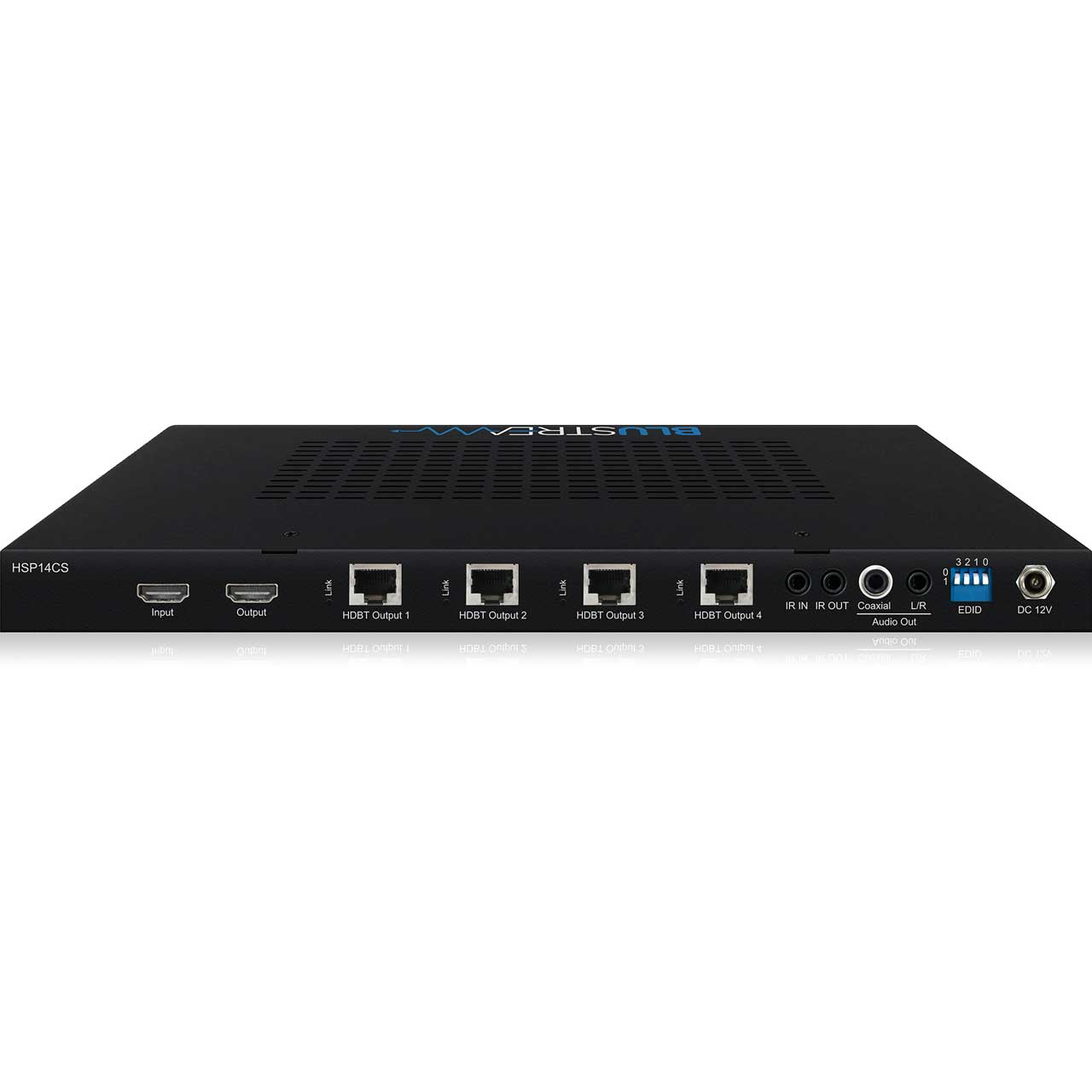

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 4 x HDBaseT™ RJ45, 1 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x RCA (S/PDIF), 1 x 3.5mm stereo jack (L/R)
  • EDID: 4-PIn DIP switch
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (W x D x H): 307mm x 144mm x 23mm
  • Dimensions Including Connections (W x D x H): 307mm x 152mm x 31mm
  • Shipping Weight: 1.1kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/5A DC


• Item Includes:

  • 1x HSP14CS
  • 1x 12V/5A DC Power Supply
  • 1x IR Emitter
  • 5x IR Receiver
  • 1x Mounting Kit
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242001603
