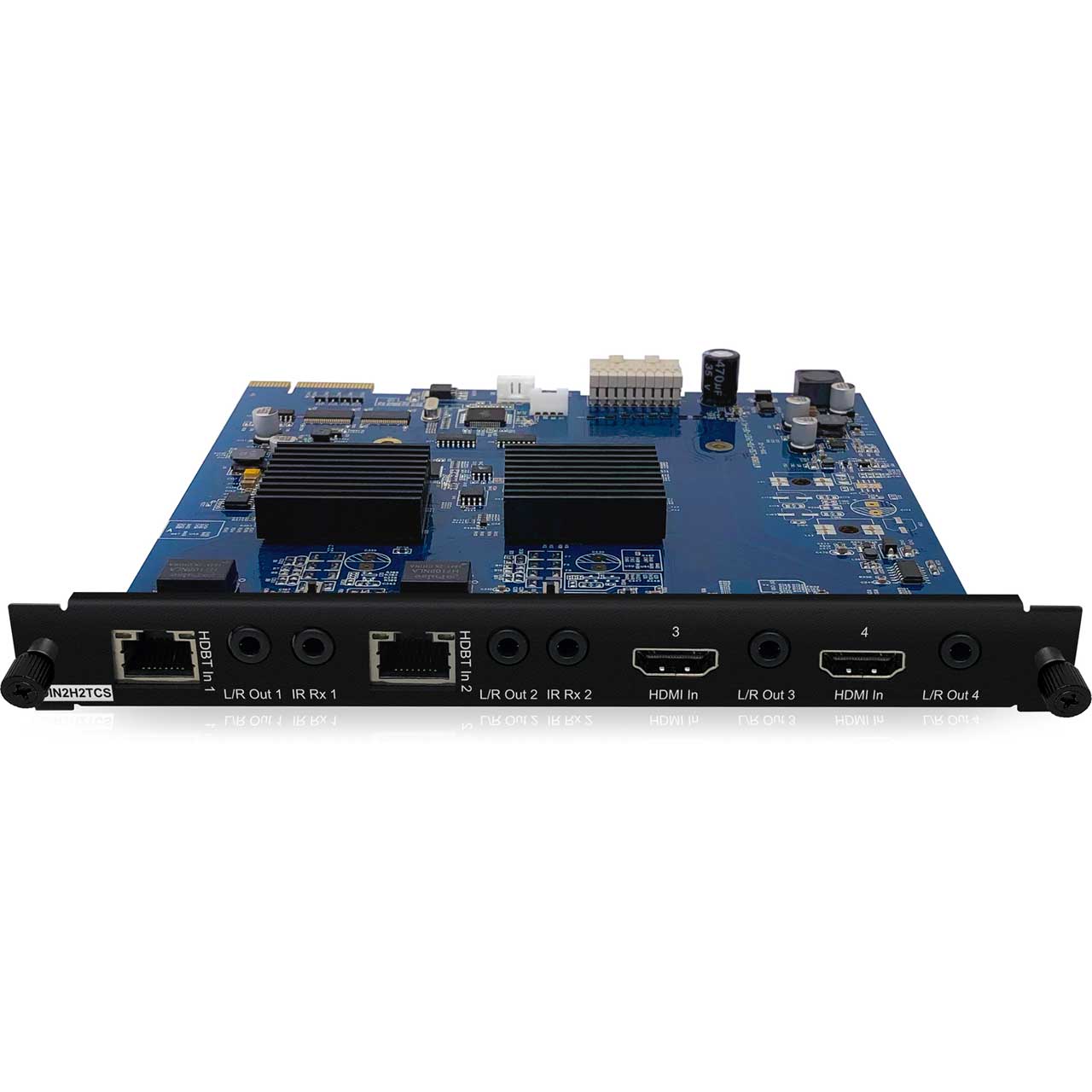

Blustream PRO-IN2H2TCS Pro Matrix 2x HDMI 18G & 2x HDBaseT Input Board

PRO-IN2H2TCS - Overview

• Features:

  • Features 2 x HDMI and 2 x HDBaseT™ inputs which can be independently routed to video output cards
  • HDMI and HDBaseT™ inputs support HDMI 2.0 18Gbps specification including up to 4K UHD 60Hz 4:4:4 and HDR resolutions*
  • HDBaseT™ inputs support signal distribution up to a distance of 100m @ 1080p (4K @ 60Hz 4:4:4 UHD @ 70m) when used with a compatible Blustream CSC Transmitter**
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Each HDMI / HDBaseT™ input includes an independent fixed level 2ch analog audio breakout allowing connection to a local third-party audio solution (supports 2ch PCM)
  • HDBaseT™ inputs include IR distribution to allow source control at each connected HDBaseT™ Transmitter
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support
  • *Full 4K @ 60Hz 4:4:4 support is subject to input / output boards specified. For HDMI 2.0 18Gbps video distribution the PRO-IN2H2TCS must be used with a Blustream CSC based HDBaseT™ Transmitter
  • **The PRO-IN2H2TCS does not support PoC (Power over Cable) to connected Blustream HDBaseT™ Transmitter units. A separate power supply unit must be specified


• Specifications:

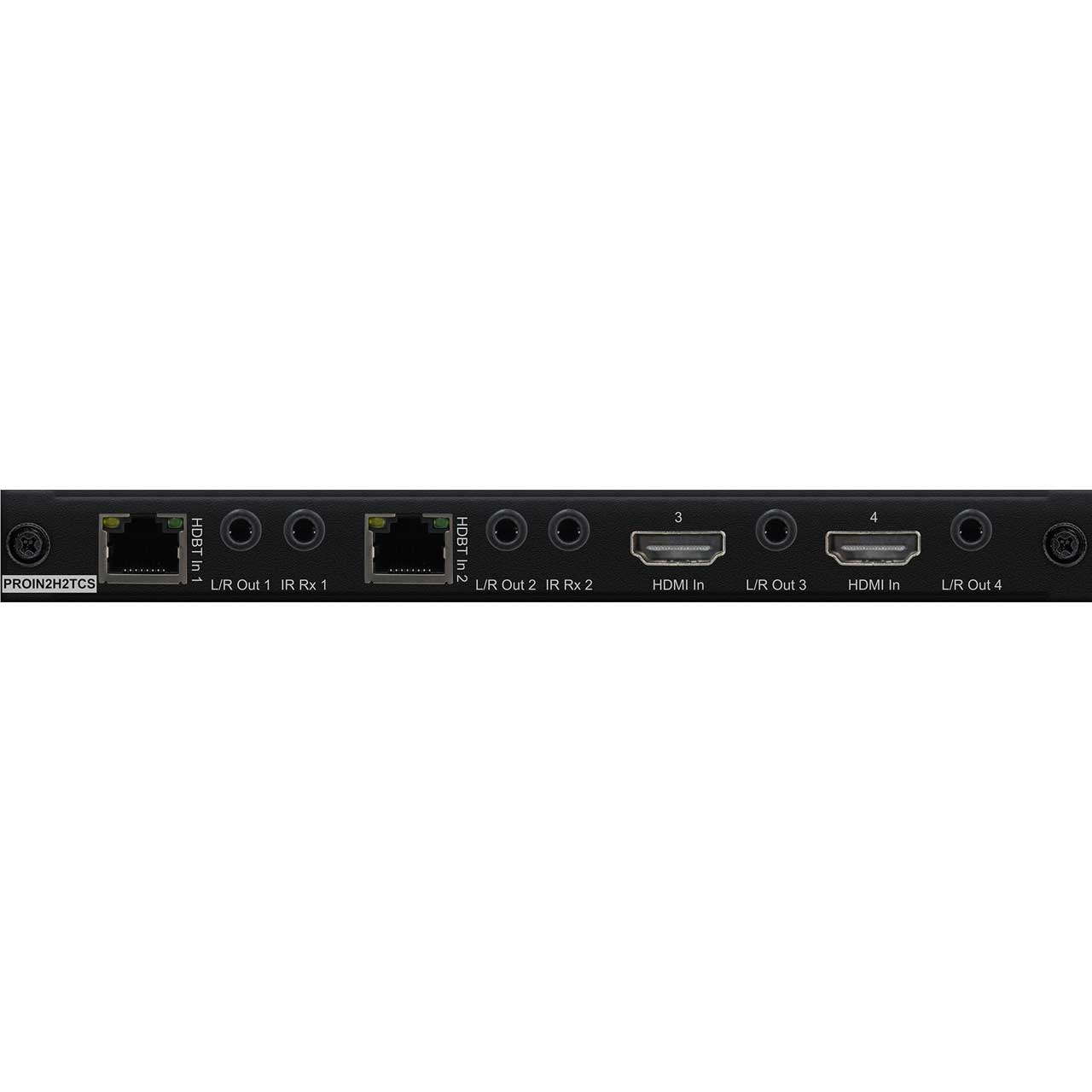

  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
  • Audio Output Connectors: 4 x Analog Left/Right audio (3.5mm stereo jack)
  • IR Input Ports: 2 x 3.5mm stereo jack
  • Card Dimensions (W x H x D): 170mm x 22mm x 182mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x PRO-IN2H2TCS


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003249
