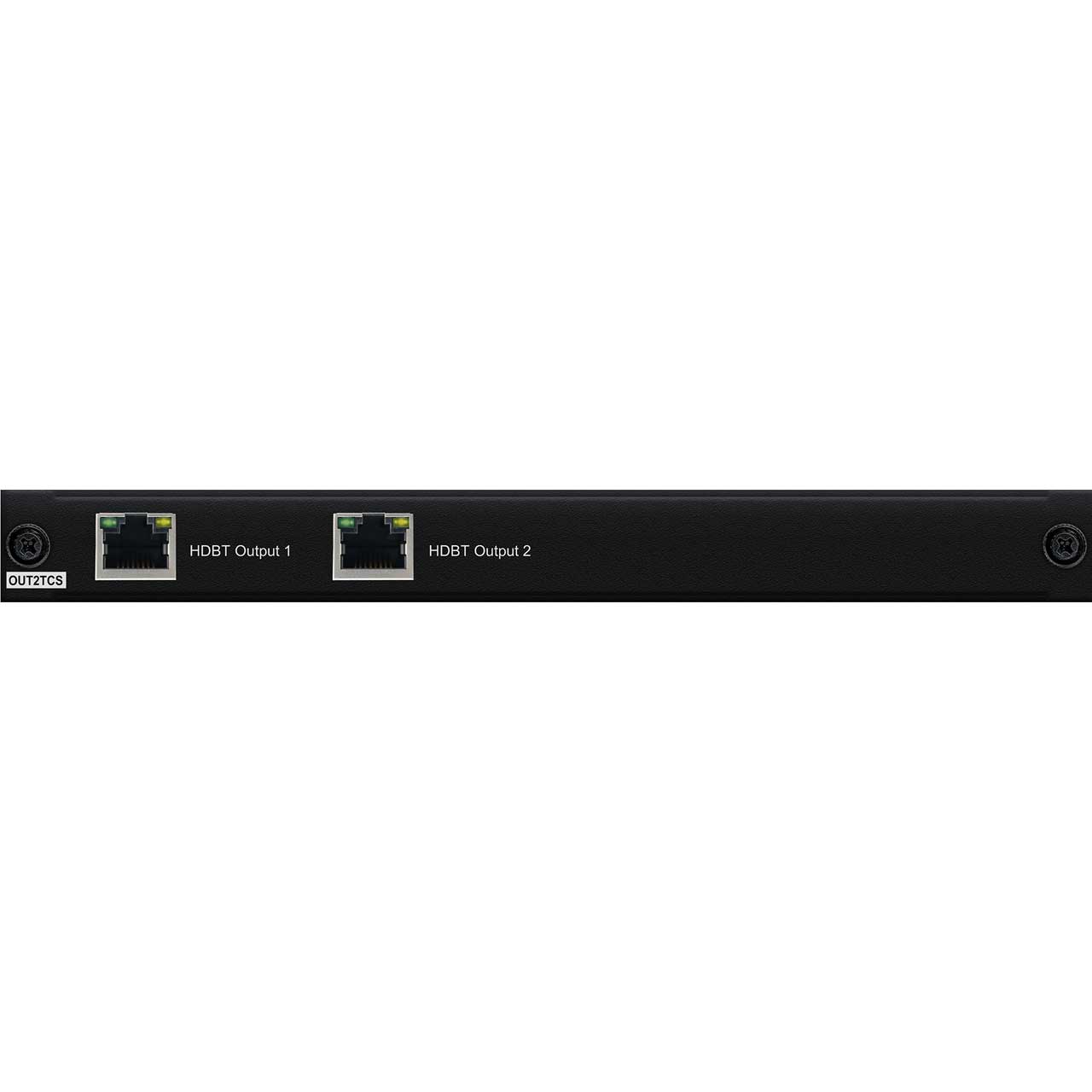

Blustream PRO-OUT2TCS Pro Matrix 2x HDBaseT 18G Output Board - 70m

PRO-OUT2TCS - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Features 2x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers
  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 70m*
  • Independent downscaling of video input resolutions up to 4K @ 60Hz 4:4:4 to the following formats:
  • 1080p @ 60Hz (for screens that do not support 4K)
  • 4K @ 60Hz 4:2:0 (for screens that do not support full 4K @ 60Hz 4:4:4)
  • Extends HDMI 1080p video up to 100m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports PoH (PoE) to power Blustream HDBaseT™ Receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support
  • To be used with the HEX100CS-RX receivers
  • *For HDMI 2.0 18Gbps video distribution the PRO-OUT2TCS must be used with a HDMI 2.0 18Gbps Custom Pro input board


• Specifications:

  • Video Output Connectors: 2x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x PRO-OUT2TCS


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002365
