EXU230H - Overview

Designed for professional outdoor video production, the Bolin EXU230H Low Light Professional Outdoor PTZ camera delivers broadcast-quality Full HD (1080p60) video with high-resolution clarity, smooth motion, and precise color accuracy. Featuring a 30x zoom, the EXU230H captures detailed visuals at long distances, making it an ideal choice for sports stadiums, outdoor concerts, observation towers, and live event coverage. Equipped with a Sony Starvis CMOS sensor, the camera excels in low-light conditions, ensuring superior image quality even in challenging lighting environments. Its advanced Super Image Stabilization Plus technology significantly reduces vibrations caused by wind, ground movement, or environmental factors, providing steady and reliable footage in dynamic settings.

Built to withstand extreme conditions, the EXU230H's IP67-rated housing offers full protection against dust, water, and temperature fluctuations, allowing for uninterrupted operation in rain, snow, and direct sunlight. The body features a salt-resistant coating, making it suitable for use in marine or coastal areas. The camera provides versatile output options, including simultaneous 3G-SDI, HDMI, optical fiber, and IP streaming, allowing for easy integration into production workflows. The camera supports multiple streaming protocols ensuring flexible and reliable video delivery. For precise synchronization in multi-camera setups, the camera includes a Genlock input, ensuring frame accuracy in complex production environments.

Additionally, FreeD protocol support allows for real-time tracking in AR/VR applications, enhancing virtual productions and immersive experiences. The camera also includes balanced XLR audio inputs for professional-grade audio integration.

  • Features:

    • Sony 1/1.8 type CMOS sensor STARVIS II
    • 30X zoom range
    • Resolution 1080i59.94, 1080p60
    • IP Video Resolution: Up to 1080p60

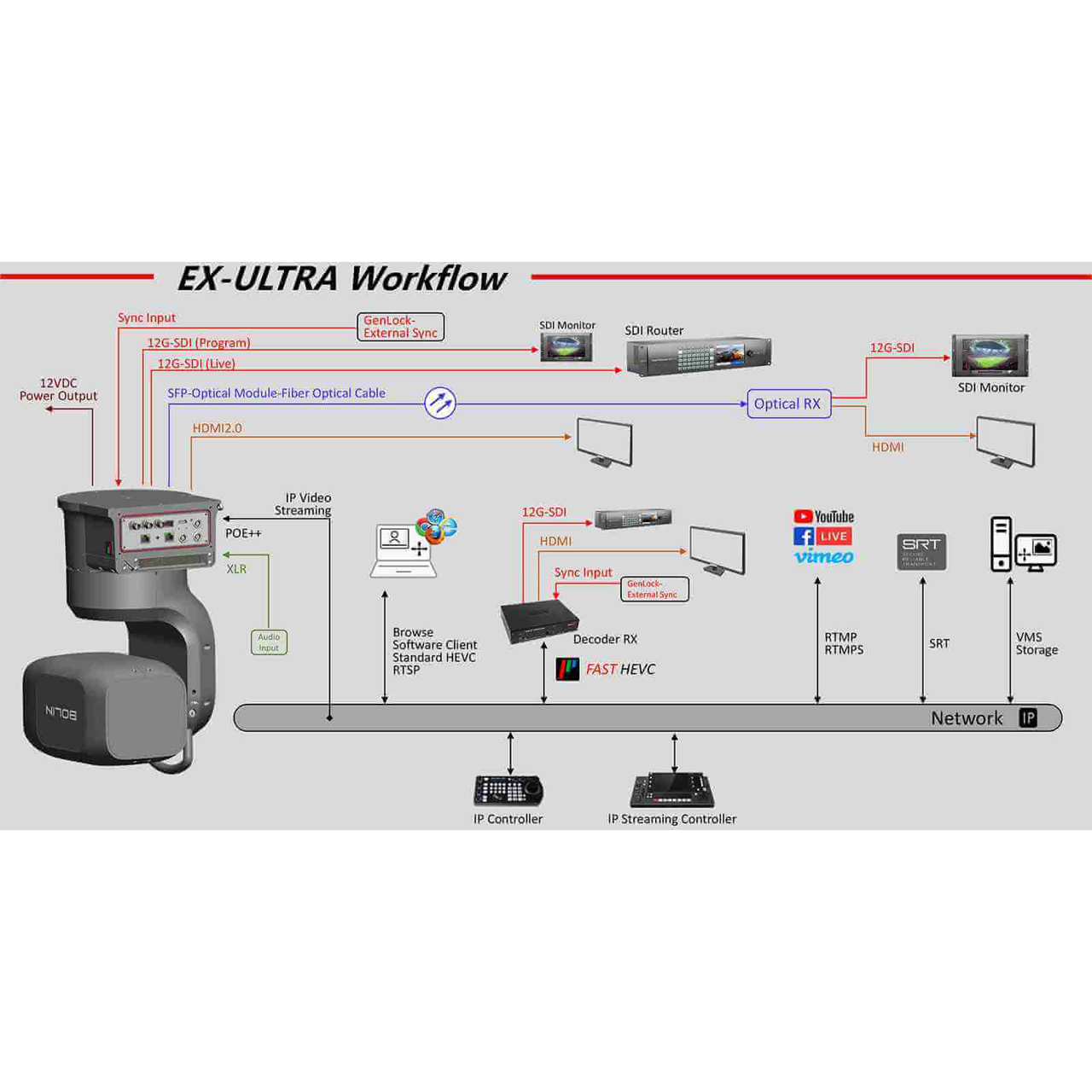

    • Video Output: Simultaneous 3G-SDI, HDMI, IP
    • SFP Optical SDI video output
    • RTSP. RTMP, SRT Supported
    • Visca Over IP, Onvif, FreeD, Serial Control Supported
    • Extreme Low Light Performance
    • Super Image Stabilizer
    • Weatherproof IP67 rated

  • Specifications:

      Camera
    • Image Sensor: CMOS image sensor 1/1.8-type STARVIS 2 sensor
    • Number of effective pixels: 2712 x 1538, 4.17M [pixels]
    • Picture elements: 2688 x 1520, 4.09M [pixels]
    • Lens: Enhanced optical zoom 30X
    • Digital Zoom: 12X
    • Horizontal Angle of View: 58.1° (Wide) - 2.3° (Tele),
    • Vertical Angle of View: 34.9° (Wide) - 1.7° (Tele),
    • Focal Length: f= 6.5 mm (WIDE) to 162.5 mm (TELE)
    • Min. object distance: 100mm (Wide), 1200mm (Tele)
    • Aperture: F1.6 (Wide) to F4.8 (Tele), 16 steps
    • Min. Illumination: ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On); ICR-On, 0.00008 lx
    • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
    • Focus: Spot Focus, Auto / Manual / One Push Trigger /Full Scan one push trigger / Near Limit / Spot Light Avoidance
    • White Balance: Auto / ATW / Indoor / Outdoor / One Push WB / Manual / One push Triger / Outdoor Auto / Sodium Vapor Lamp Auto / Sodium Vapor Lamp / Sodium Vapor Lamp Outdoor Auto
    • Exposure: Full Auto / Gain Limit Setting / Shutter Priority / Iris Priority / Manual / EV compensation
    • Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
    • Gamma: Standard / Straight gamma
    • Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D
    • S/N Ratio: ≥50db

      Mechanical
    • Pan Movement: PAN: 340° (-170° to +170°); Fully proportional 0.01° to 60°/s
    • Tilt Movement: TILT: 210° (-30° to +180°); Fully proportional 0.01° to 60°/s
    • Speed Proportional: Pan/Tilt Speed proportional to zoom range
    • Preset Position: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.03°
    • Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
    • Body Finishing: C5 Corrosion Resistant Power Coating
    • Wind Load Durability: Non-Destructive and steady operation at 60 m/s or less

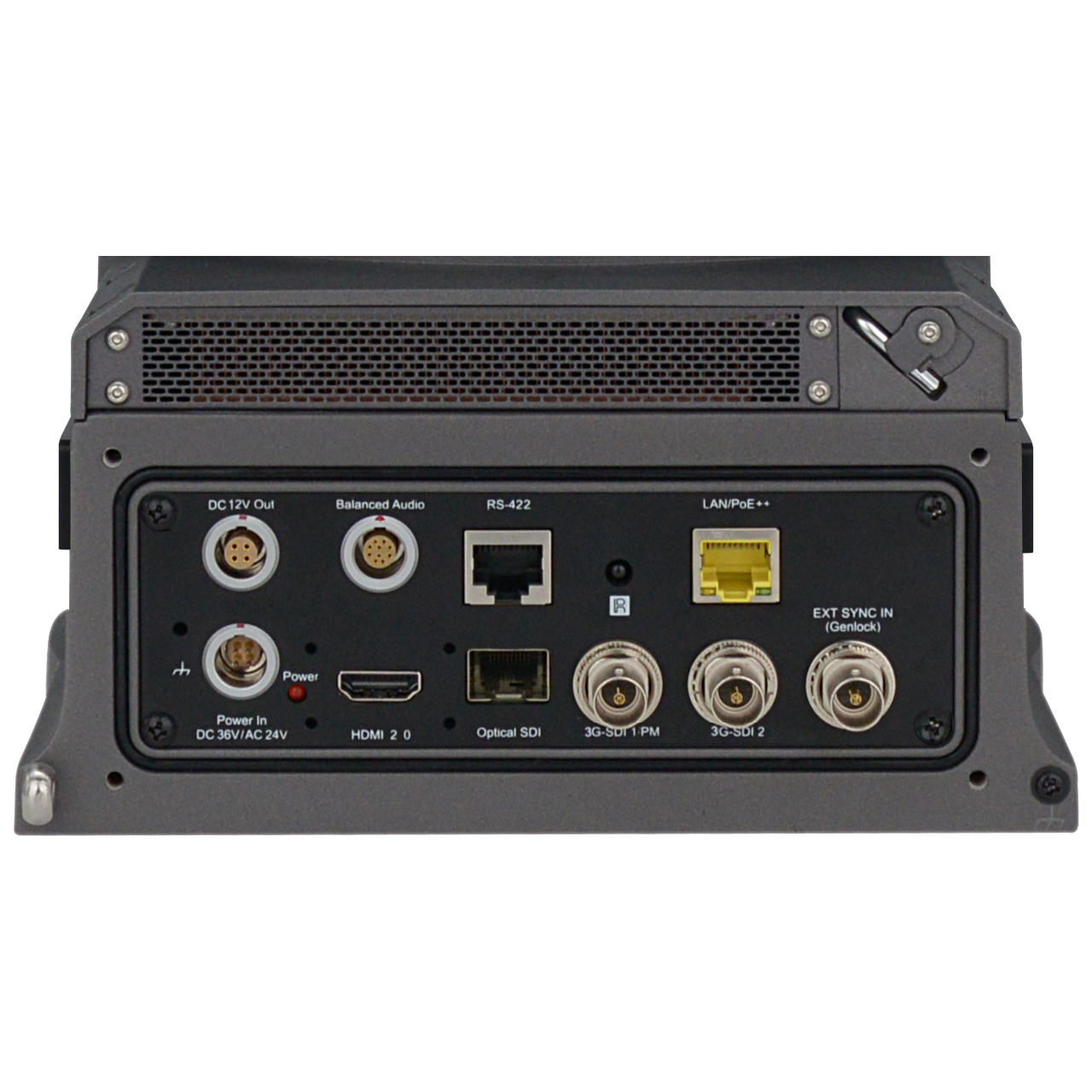

      Interface
    • HDMI Video Output: HDMI 2.0 Type A
    • SDI Video Output: 3G-SDI, SMPTE424M /SMPTE292M /SMPTE 296M standards, 75Ω BNC x 2,SDI/PM for output to has OSD display
    • SDI Optical Fiber Output A: Optical 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
    • SDI Optical Fiber Output B: Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
    • Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade
    • Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
    • External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
    • Audio Input A: 2 channels, XLR balanced input (Mini XLR - Hirose Connector)
    • Audio Input B: Input signal level: 0 dBu, Volume variable range: -40 dB to +12 dB (can be changed in 1 dB steps in the menu)
    • Audio Output A: 2 channels, XLR balanced input (Mini XLR - Hirose Connector); Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo
    • Audio Output B: 4 channels, superimposed over SDI & HDMI output, Sampling frequency: 48 kHz (synchronized to video) Quantization bit rate: 24-bit (LPCM) Audio compression format (IP): G.726, AAC-LC (High quality)

      HDMI Signal Format
    • HDMI Video Format: 1920 x 1080/59.94p/60p 1920 x 1080/59.94i/60i 1920 x 1080/50p 1920 x 1080/50i 1920 x 1080/29.97p/30p 1920 x 1080/25p 1920 x 1080/23.98p/24p 1280 x 720/59.94p/60p 1280 x 720/50p
    • Color Precision: 12bit(HDMI), YUV4:2:2, YUV4:2:0
    • Color Space: YUV RGB

      SDI Signal Format
    • SDI Video Format: 1920 x 1080/59.94p/60p 1920 x 1080/59.94i/60i 1920 x 1080/50p 1920 x 1080/50i 1920 x 1080/29.97p/30p 1920 x 1080/25p 1920 x 1080/23.98p/24p 1280 x 720/59.94p/60p 1280 x 720/50p
    • Color Precision: 10bit(SDI), YUV 4:2:2
    • Color Space: YUV
    • Standard: SMPTE 292M ,SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M,SMPTE 425-A (3Gb/s), SMPTE 2081(6Gb/s),

  • Item Includes:

    • 1x EXU Series PTZ Camera
    • 1x IR Remote Controller
    • 1x 36V, 4A Locking Power Supply with International Plugs
    • 1x 12V Power Output Adaptor
    • 1x RS422 RJ45 Adaptor
    • 1x Removable Tally Light
    • 1x Dust Cover
    • 1x Mounting Screw Set
    • 1x HDMI Cable Support
    • 1x Water Resistant Rear Panel Cover
    • 1x Waterproof Rear Panel Cover
    • 1x Flexible Conduit Sleeve
    • 1x Safety Cable

  • Warranty:

    • 2-Year Limited

  • GTIN:

    6973775121598
