Bolin EXU420F EX-ULTRA Fast HEVC 4K60 Outdoor PTZ Camera with 20X Zoom - HDMI/12G-SDI

ITEM #: BOL-EXU420F MFG #: EXU420F

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$6,395.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EXU420F - Overview

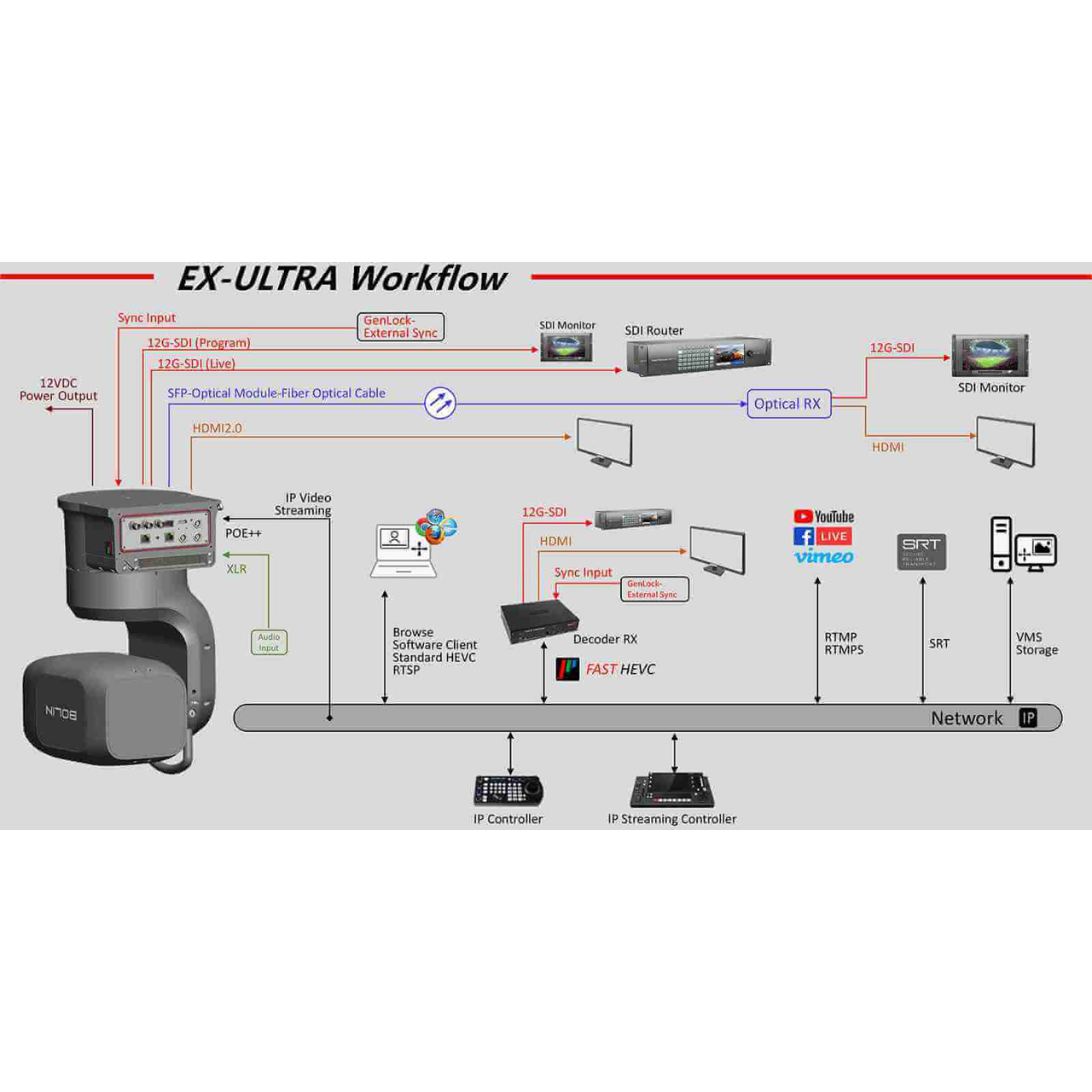

The Bolin EXU420F is an IP67-rated, outdoor broadcast-grade PTZ camera featuring a 1/2.8" Starvis I Sony image sensor providing a quality 4K image with a 20X zoom range, outstanding low-light performance with its Starvis sensor, and electronic image stabilization for challenging environments. It has multiple simultaneous and independant outputs, including dual 12G-SDI, HDMI, Optical SDI, and IP Streams. Further adding to its broadcast capabilities, the EXU420F supports balanced audio inputs through two XLR inputs, Genlock In, and the ability to output 12V of power to another device. On the software side, the camera supports FreeD and Color Matrix, among other helpful features and adjustable image parameters. The camera is availble in dark grey.

FreeD Protocol Integrated for VR/AR Video Production
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following targeted objects and people. Broadcasters can combine Bolin's FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming.

AI Powered Auto Focus and Auto Exposure
Built with Bolin's latest AI-powered facial analytics engine, which enables smart focus and smart exposure to provide faster, more precise focusing and improved auto exposure on faces in complex lighting environments.

  • Features:

    • 4K60 Simultaneous Output over HDMI 2.0, Dual 12G-SDI, Optical SDI, and IP
    • 20X Zoom Range
    • FreeD Protocol Supported
    • Balanced XLR Input
    • IP67-Rated

  • Specifications:

    • Camera
    • Image Sensor: IMX715, CMOS image sensor 1/2.8 type
    • Number of effective pixels: 8.29MP
    • Picture elements: 3840x2160
    • Lens: 20X
    • Digital Zoom: 16X
    • Horizontal Angle of View: 78.59° (W)~4.92° (T)
    • Vertical Angle of View: 48.39° (W)~2.79° (T)
    • Focal Length: f= 3.55 mm (WIDE) to 63.58 mm (TELE)
    • Min. object distance: 50cm
    • Aperture: F2.0 (Wide) to F3.8 (Tele)
    • Min. Illumination: 0.5lux (color),0.1lux (black)
    • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
    • Focus: Auto, Push, Manual
    • White Balance: Auto, Indoor, Outdoor,OPW,ATW, Manual
    • Exposure: Auto, Manual, Shutter /Iris /Brightness priority
    • Features: Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker ,Contrast, Effect, SHARPNESS
    • WDR: 120db
    • Gamma Level: 0-4

      Mechanical
    • Pan Movement: PAN: 340° (-170° to +170°); Fully proportional 0.01° to 60°/s
    • Tilt Movement: TILT: 210° (-30° to +180°); Fully proportional 0.01° to 60°/s
    • Speed Proportional: Pan/Tilt Speed proportional to zoom range
    • Preset Position: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.03°
    • Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
    • Quietness: NC55(45/35) or less when operating speed is 60°/30°/15°/sec or less

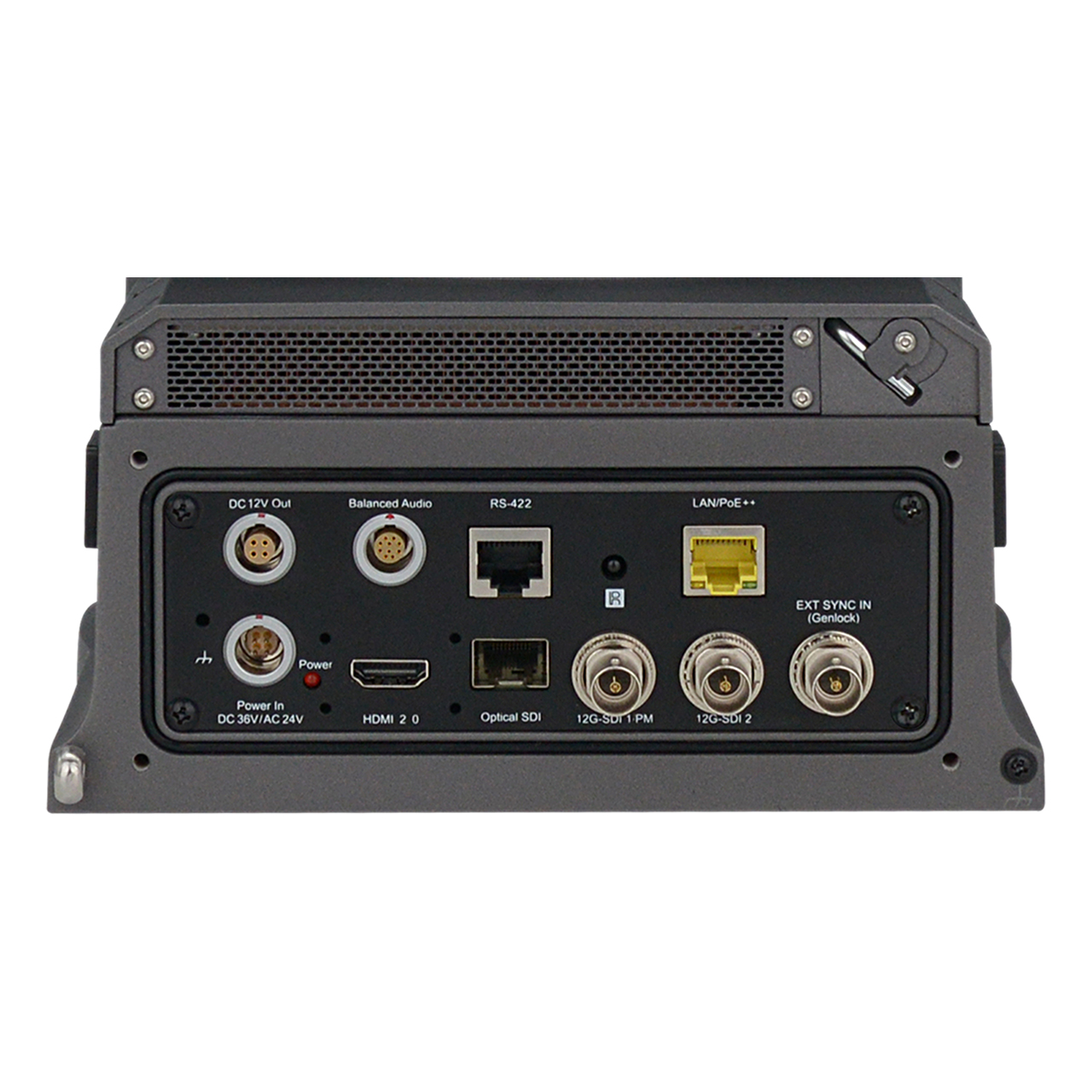

      Interface
    • HDMI Video Output: HDMI 2.0 Type A
    • SDI Video Output: 12G-SDI, SMPTE424M /SMPTE292M /SMPTE 296M / SMPTE 274M /SMPTE ST-2081 /SMPTE ST-2082 standards, 75Ω BNC x 2,SDI/PM for output to has OSD display
    • SDI Optical Fiber Output A: Optical 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
    • SDI Optical Fiber Output B: Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
    • Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade
    • Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
    • External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
    • Audio Input A: 2 channels, XLR balanced input (Mini XLR - Hirose Connector)
    • Audio Input B: Input signal level: 0 dBu, Volume variable range: -40 dB to +12 dB (can be changed in 1 dB steps in the menu)
    • Audio Output A: 2 channels, XLR balanced input (Mini XLR - Hirose Connector); Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo
    • Audio Output B: 4 channels, superimposed over SDI & HDMI output, Sampling frequency: 48 kHz (synchronized to video) Quantization bit rate: 24-bit (LPCM) Audio compression format (IP): G.726, AAC-LC (High quality)

      HDMI Signal Format
    • HDMI Video Format: 3840 x 2160/59.94p/60P 3840 x 2160/50p 3840 x 2160/29.97p/30P 3840 x 2160/25p 3840 x 2160/23.98p 3840 x 2160/24p 1920 x 1080/59.94p/60p 1920 x 1080/59.94i/60i 1920 x 1080/50p 1920 x 1080/50i 1920 x 1080/29.97p/30p 1920 x 1080/25p 1920 x 1080/23.98p/24p 1280 x 720/59.94p/60p 1280 x 720/50p
    • Color Precision: 12bit(HDMI), YUV4:2:2, YUV4:2:0

      SDI Signal Format
    • SDI Video Format: 3840 x 2160/59.94p/60P 3840 x 2160/50p 3840 x 2160/29.97p/30P 3840 x 2160/25p 3840 x 2160/23.98p 3840 x 2160/24p 1920 x 1080/59.94p/60p 1920 x 1080/59.94i/60i 1920 x 1080/50p 1920 x 1080/50i 1920 x 1080/29.97p/30p 1920 x 1080/25p 1920 x 1080/23.98p/24p 1280 x 720/59.94p/60p 1280 x 720/50p
    • Color Precision: 10bit(SDI), YUV 4:2:2
    • Color Space: YUV
    • Standard: SMPTE 292M ,SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M,SMPTE 425-A (3Gb/s), SMPTE 2081(6Gb/s), SMPTE 2082-1(12Gb/s) standard / 75 Ω (BNC x 1), With SMPTE352 SDI Metadata Supported

      Physical
    • Weight: 8.36
    • Dimensions: 20.27 in x 19.09 in x 12 in

  • Item Includes:

    • 1x EXU Series PTZ Camera
    • 1x IR Remote Controller
    • 1x 36V, 4A Locking Power Supply with International Plugs
    • 1x 12V Power Output Adaptor
    • 1x RS422 RJ45 Adaptor
    • 1x Removable Tally Light
    • 1x Dust Cover
    • 1x Mounting Screw Set
    • 1x HDMI Cable Support
    • 1x Water Resistant Rear Panel Cover
    • 1x Waterproof Rear Panel Cover
    • 1x Flexible Conduit Sleeve
    • 1x Safety Cable

  • Warranty:

    • 2-Year Limited Warranty

  • GTIN:

    6973775121574
