    R9-418F - Overview

    The Bolin R9-418F is a broadcast-grade, cinematic PTZ camera featuring a full Sony image block providing a high-quality 4K image with 18X zoom range, outstanding low-light performance with its 1" sensor, and optical image stabilization for the vibration-prone environments. It has multiple simultaneous and independant outputs, including dual 6G-SDI, HDMI, Optical SDI, and IP Streams. Further adding to its broadcast capabilities, the camera supports balanced audio inputs through two XLR inputs, a 3.5mm comms (intercom) port, and Genlock In. By default, the camera is available in black.

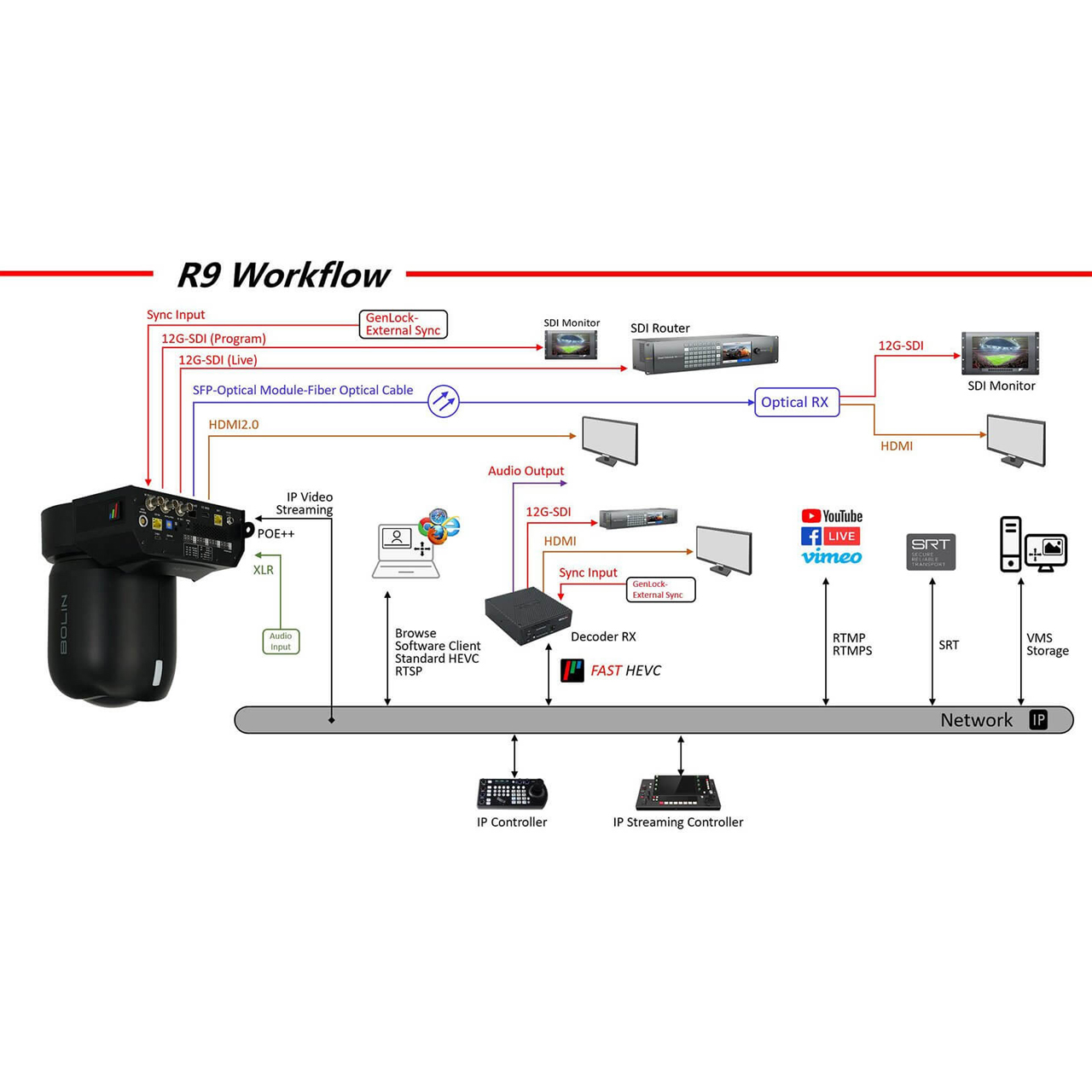

    True Tri-Output
    Simultaneously output SDI, HDMI, and IP, which can be set to independent formats for different application use.

    FreeD Protocol Integrated for VR/AR Video Production
    FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin's FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming.

    • Features:

      • 18X Zoom Range
      • 1-inch Exmor R CMOS sensor Sony image block
      • 4K30 Simultaneous Output over HDMI 2.0, Dual 6G-SDI, Optical SDI, and IP
      • Balanced XLR Input
      • Optical Image Stabilization

    • Specifications:

      • Camera
      • Image Sensor: CMOS image sensor 1/1.8 type STARVIS 2 sensor
      • Number of Effective Pixels: 2712 x 1538, 4.17M [pixels]
      • Picture Elements: 2688 x 1520, 4.09M [pixels]
      • Lens: Enhanced optical zoom 30X
      • Digital Zoom: 12X
      • Horizontal Angle of View: 58.1° (Wide) - 2.3° (Tele),
      • Vertical Angle of View: 34.9° (Wide) - 1.7° (Tele),
      • Focal Length: f= 6.5 mm (WIDE) to 162.5 mm (TELE)
      • Min. Object Distance: 100mm (Wide), 1200mm (Tele)
      • Aperture: F1.6 (Wide) to F4.8 (Tele), 16 steps
      • Min. Illumination: ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On); ICR-On, 0.00008 lx (1/30 sec, 50%, High Sensitivity On)
      • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
      • Focus: Spot Focus, Auto / Manual / One Push Trigger /Full Scan one push trigger / Near Limit / Spot Light Avoidance
      • White Balance: Auto / ATW / Indoor / Outdoor / One Push WB / Manual / One push Triger / Outdoor Auto / Sodium Vapor Lamp Auto / Sodium Vapor Lamp / Sodium Vapor Lamp Outdoor Auto
      • Exposure: Full Auto / Gain Limit Setting / Shutter Priority / Iris Priority / Manual / EV compensation
      • Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
      • Gamma: Standard / Straight gamma
      • Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D

        Mechanical
      • Pan Movement: PAN: 340° (-170° to +170°); Fully proportional 0.05° to 100°/s
      • Tilt Movement: TILT: 120° (-30° to +90°); Fully proportional 0.05° to 75°/s
      • Speed Proportional: Pan/Tilt Speed proportional to zoom range
      • Preset Position: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.1°
      • Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)

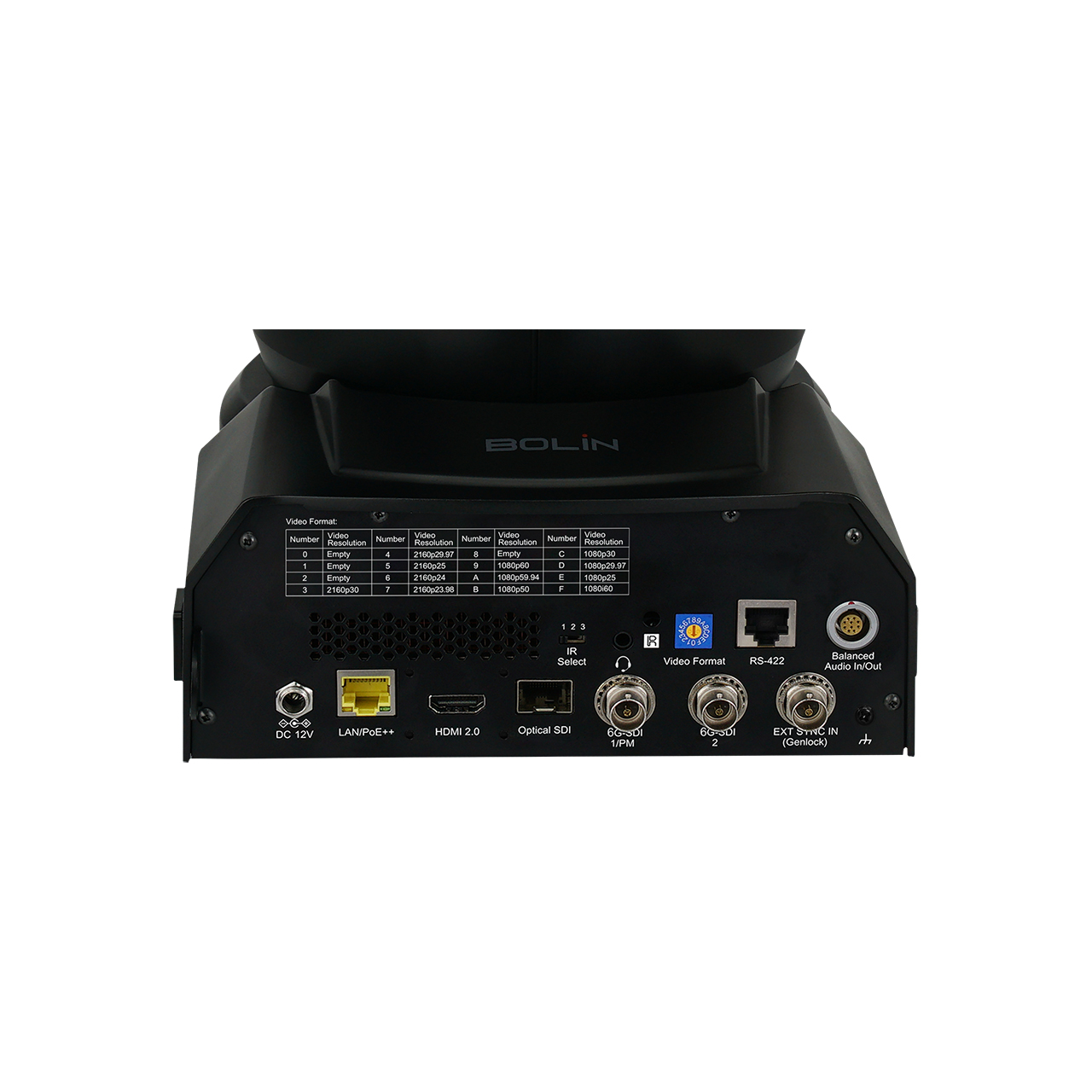

        Interface
      • HDMI Video Output: HDMI 2.0 Type A
      • SDI Video Output: 3G-SDI, SMPTE424M /SMPTE292M /SMPTE 296M standards, 75? BNC x 2,SDI/PM for output to has OSD display
      • SDI Optical Fiber Output A: Optical 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
      • SDI Optical Fiber Output B: Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
      • Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade
      • Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
      • External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
      • Audio Input A: Balanced XLR (Hirose Connector via Atomos 10-Pin LEMO Type to XLR Breakout Cable) with 48V Phantom power
      • Audio Input B: 3.5mm TRRS for bidirection audio intercom
      • Audio Output A: Balanced XLR (Hirose Connectorvia Atomos 10-Pin LEMO Type to XLR Breakout Cable), embedded with HDMI, SDI, USB and IP
      • Audio Output B: 3.5mm TRRS for bidirection audio intercom

        HDMI Video Signal System
      • HDMI Video Format: 1920 x 1080/59.94p/60p 1920 x 1080/59.94i/60i 1920 x 1080/50p 1920 x 1080/50i 1920 x 1080/29.97p/30p 1920 x 1080/25p 1920 x 1080/23.98p/24p 1280 x 720/59.94p/60p 1280 x 720/50p
      • Color Precision: 12bit(HDMI), YUV4:2:2, YUV4:2:0
      • Color Space: YUV?RGB

        SDI Signal Format
      • SDI Video Format: 1920 x 1080/59.94p/60p 1920 x 1080/59.94i/60i 1920 x 1080/50p 1920 x 1080/50i 1920 x 1080/29.97p/30p 1920 x 1080/25p 1920 x 1080/23.98p/24p 1280 x 720/59.94p/60p 1280 x 720/50p
      • Color Precision: 10bit(SDI), YUV 4:2:2
      • Color Space: YUV
      • Standard: SMPTE 292M ,SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M,SMPTE 425-A (3Gb/s), SMPTE 2081(6Gb/s), SMPTE 2082-1(12Gb/s) standard / 75Ω (BNC x 1), With SMPTE352 SDI Metadata Supported
      • True Dule Output: HDMI and SDI signal can be output with different format

        Physical
      • Weight: 10.58lbs
      • Dimensions: 14.17" x 10.55" x 11.97"

    • Item Includes:

      • 1x R9 Series PTZ Camera
      • 1x IR Remote Controller
      • 1x 12V, 4A Locking Power Supply with International Plugs
      • 1x RS422 RJ45 Adaptor
      • 1x Lens Cap
      • 1x Dust Cover
      • 1x Mounting Screw Set
      • 1x Safety Cable

    • Warranty:

      • 2-Year Limited Warranty

    • GTIN:

      6973775121420
