Blonder Tongue ND-24-IP MPEG-2 / H.264 Decoder - Clearm QAM & IP Source Capible

ITEM #: BT-ND-24-IP MFG #: ND-24-IP

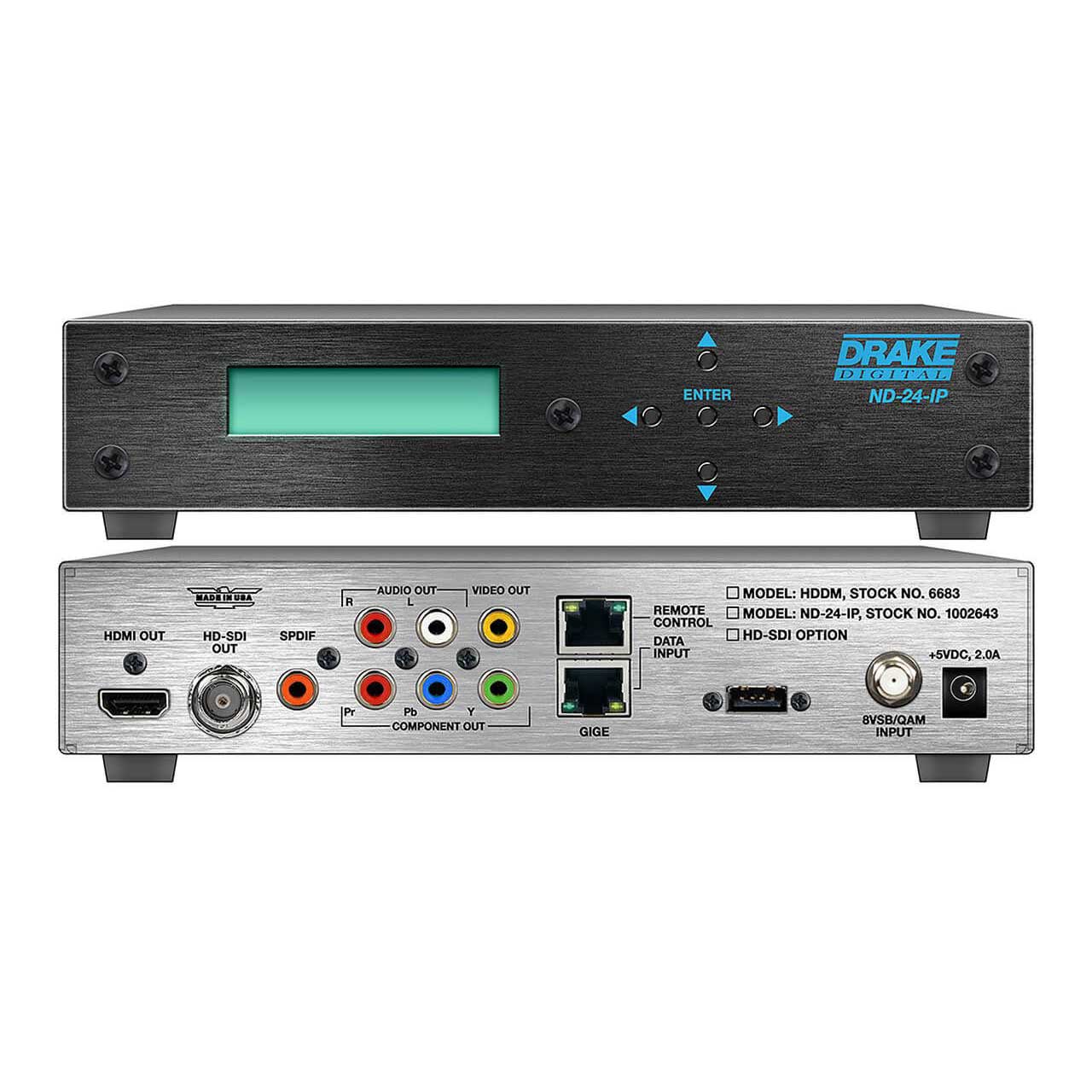

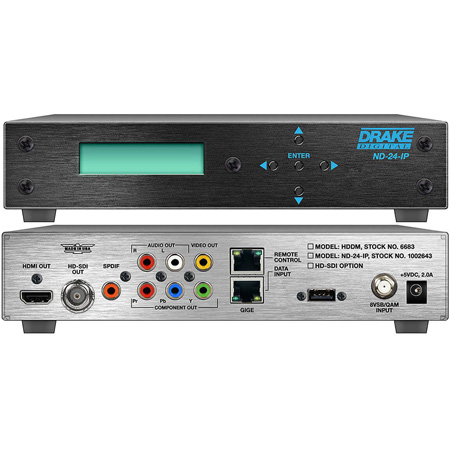

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,840.00

Our Price:

$1,398.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ND-24-IP - Overview

The Blonder Tongue ND-24-IP is a low cost professional MPEG-2 and H.264 decoder that is capable of receiving content from off-air, clear QAM, and IP sources. The ND-24-IP is capable of simultaneously outputting video content in SDI, HDMI and component formats. SDI outputs are available in 3G-SDI, HD-SDI, or SD-SDI formats.

The unit can be used as a stand-alone high quality decoder, or used in conjunction with other IP encoders, to provide an end-to-end IP video delivery solution over a managed network.

When the ND-24-IP decoder is used with Drake's PEG encoder (with Zixi option) and a Zixi Link License, it can provide a point-to-point reliable IP video transport from anywhere in the world with an internet connection.

The ND-24-IP can also be used in a point-to-multipoint application, where the ND-24-IP would decode the IP based Zixi protocol stream from a Zixi Broadcaster.

  • Features:

    • Simultaneous SDI/HDMI/Component HD + Composite SD Outputs
    • Decoding content from Off-Air, Clear QAM, and IP sources
    • Supports both MPEG-2 and H.264 content
    • LCD screen
    • Closed Captioning
    • VBR or CBR
    • IGMPv2 and IGMPv3
    • IP Security Camera Decoding (VLC Compatible)

  • Specifications:

    • Input
      IP Mode
    • Connectors: RJ-45
    • Standard: 100/1000Base-T Ethernet
    • UDP/RTP: Supported
    • Protocols: IGMPv3/IGMPv2 Supported
      Stream Portfolio
    • SPTS and MPTS: Null Packet Deletion
    • Bit Rate: Variable and Constant
      8VSB Mode
    • Connectors: 1x "F" Female
    • Standard: ATSC Digital Television A/53E
    • Tuning Range: UHF (Ch.14-69), VHF (Ch.2-13)
    • Data Rate: 19.392 MHz
    • Bandwidth: 6 MHz
    • Power Level: -20 to +20 dBmV
    • Impedance: 75 Ω
      QAM Mode
    • Connectors: 1x "F" Female
    • Standard: ITU-T J.83; Annex A and B (64 & 256 QAM)
    • Tuning Range: CATV Ch. 2-158 (STD, HRC, IRC)
    • Data Range: 38.8 Mbps (QAM 256); 26.97 Mbps (QAM 64) - Auto Detect
    • Bandwidth: 6 MHz
    • Power Level: -15 to 20 dBmV (@ QAM 256), -20 to 20 dBmV (@ QAM 64)
    • Impedance: 75 Ω

    • Output
      3G/HD/SD-SDI
    • Connectors: 1x BNC
    • Standards: SMPTE 424M (3G), SMPTE 292M (HD) & SMPTE 259M (SD)
    • Video Resolution: 480i, 720p, 1080i, & 1080p
    • Audio: Embedded PCM
      HDMI
    • Connectors: 1x HDMI
    • Video Resolution: 480i, 720p, 1080i, & 1080p
    • Audio: Embedded PCM
      Composite
    • Connectors: 1x RCA for Video (Y)
    • Video Resolution: 480i
    • Audio: 2x RCA for Analog Audio (L,R)
      Component
    • Connectors: 3x RCA for Video (Y, Pb, Pr)
    • Video Resolution: 480i, 720p, & 1080i
    • Video Aspect Ratio: 4:3 & 16:9
    • Audio: 2x RCA for Analog Audio (L,R)
      Digital Audio (SPDIF)
    • Connectors: 1x RCA

    • Alarms/Monitoring/Control
      Local
    • Monitoring: Front-panel LCD screen
    • Control: Front-panel Navigational Key-pad
      Remote
    • Monitoring/Control: GUI-based menu via Web browser (1x RJ45 rear-panel connector; 100/1000Base-T)

      General
    • Mechanical Dimensions: 8.69 x 8.0 x 1.97 inches (220.7 x 203 x 50.0 mm)
    • Unit Weight: 1.87 lbs (0.85 kg)
      Unit & Power
    • Transformer Weight: 2.18 lbs (0.99 kg)
    • Shipping Weight: 2.6 lbs (1.18 kg)
    • Operating Temperature: 32 to 122 °F (0 to 50 °C)
    • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
    • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
    • Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing
      Power
    • Power: 100-240 VAC 50/60 Hz / 5 VDC @
    • 2.5 A; External Power Supply
    • Power Consumption: 10 W

  • Item Includes:

    • 1x ND-24-IP Network Decoder
    • 1x ND-24-IP Quick Guide
    • 1x ND-24-IP AC Adapter
