Cobalt Digital RM20-9940-C 20-Slot Frame Rear I/O Module (Standard Width)

ITEM #: CB-RM20-9940-C MFG #: RM20-9940-C

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$263.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RM20-9940-C - Overview

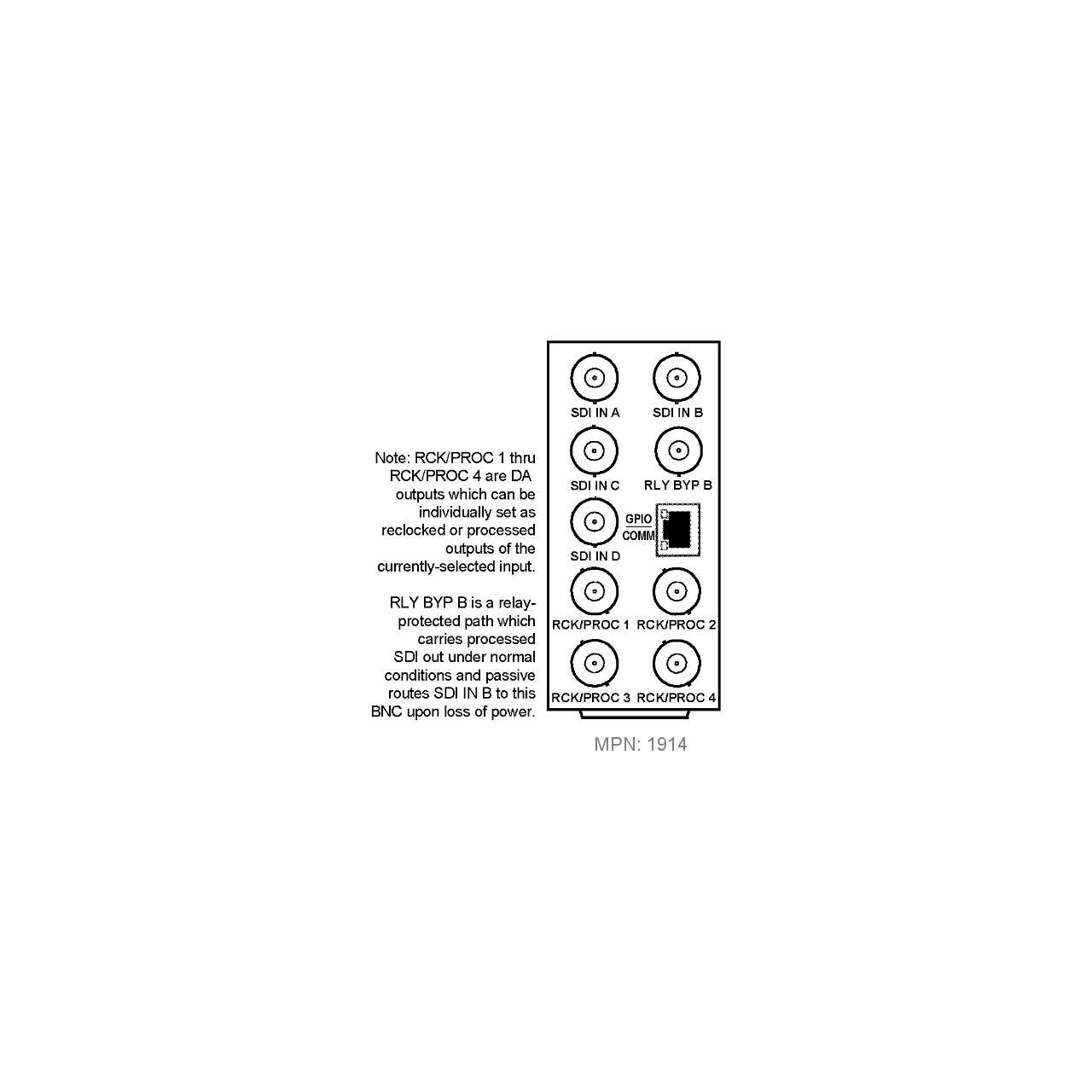

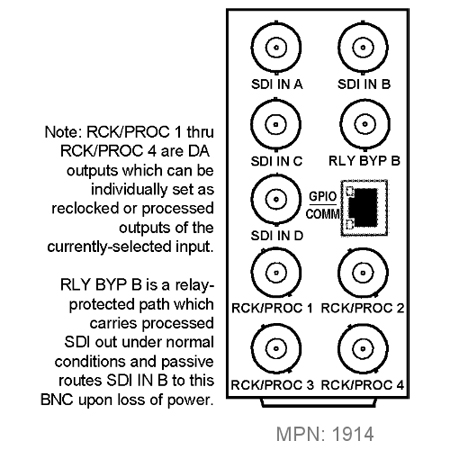

Colbalt Digital RM20-9940-C is a 20-Slot Frame Rear I/O Module (Standard Width). Rear I/O Modules may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the image is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number.

  • Features:

    • (4) SDI In (selectable manually or as failover)
    • GPIO/COMM port (RJ-45)
    • (4) SDI Out (each selectable as processed out or input RCK)
    • (1) Relay protected SDI Out (proc or SDI IN B on loss of power)
    • (All coaxial connectors BNC)
