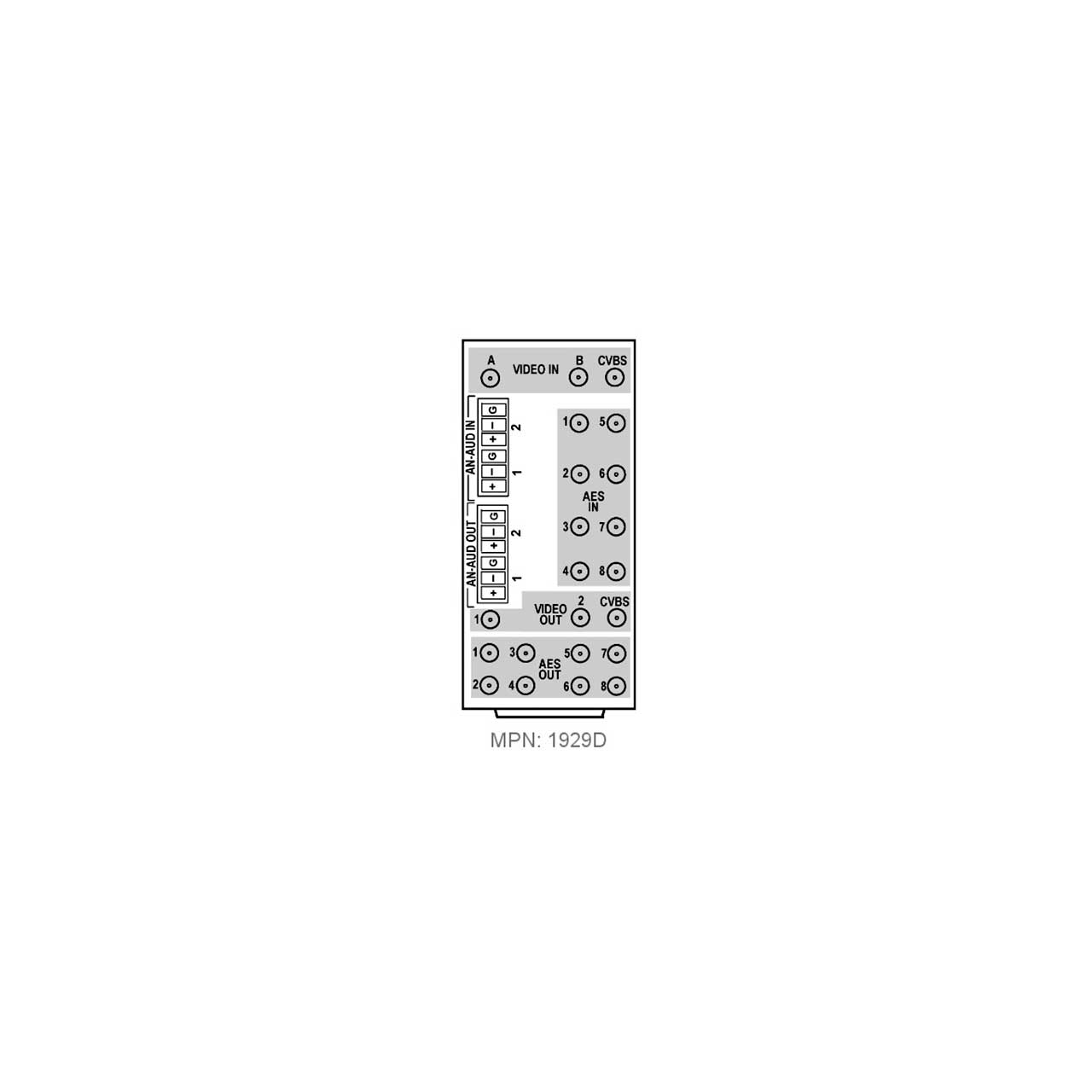

Rear Module for the Cobalt 9902-2UDX 3G/HD/SD-SDI Dual-Channel Up-Down-Cross Converter/Frame Sync/Audio Embed/De-Embed card offers two independent signal paths of up/down/cross conversion, frame sync, and audio embedding /de-embedding in a single openGear card. Using any of our legacy or current frames, this provides up to 40 channels of processing in a single frame. The 9902-2UDX represents a new level of openGear packaging density! This rear module card includes the following;
(2) SDI In (selectable manually or as failover)
(1) CVBS In
(8) AES In
(2) Balanced Analog Audio In
(2) SDI Out (each selectable as processed out or input RCK)
(1) CVBS Out
(8) AES Out
(2) Balanced Analog Audio Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
Please note: Rear module only! openGear card and frame sold separately.
