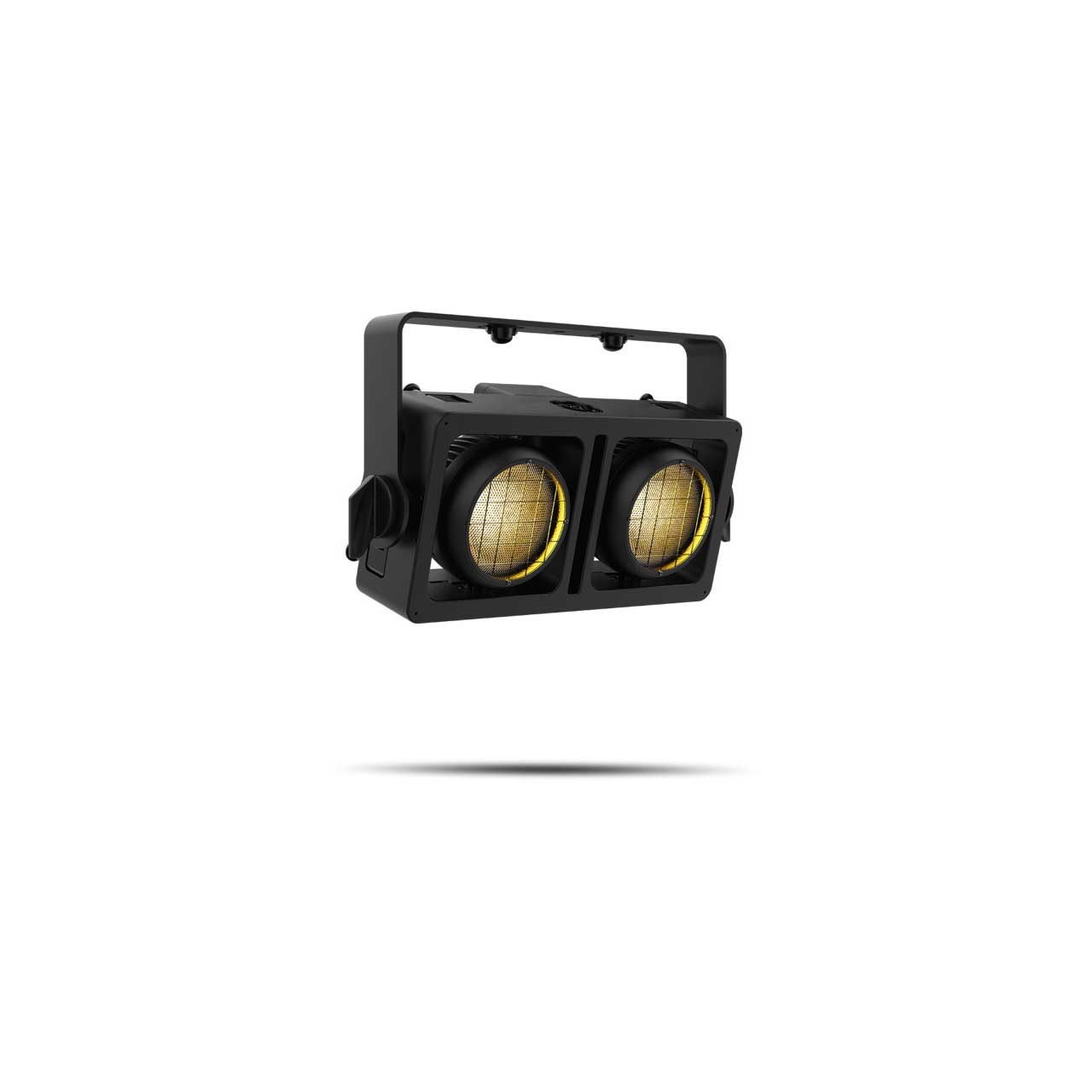

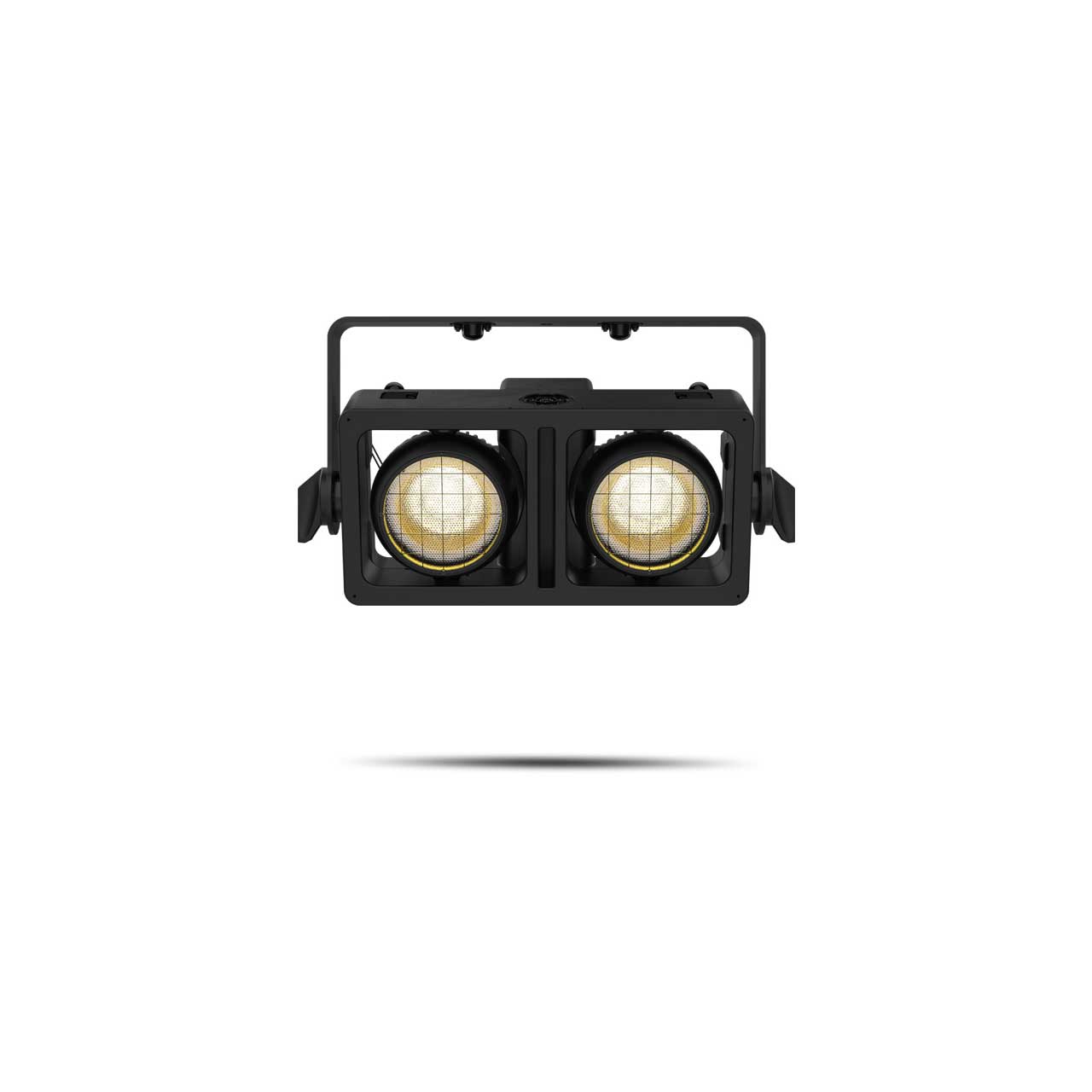

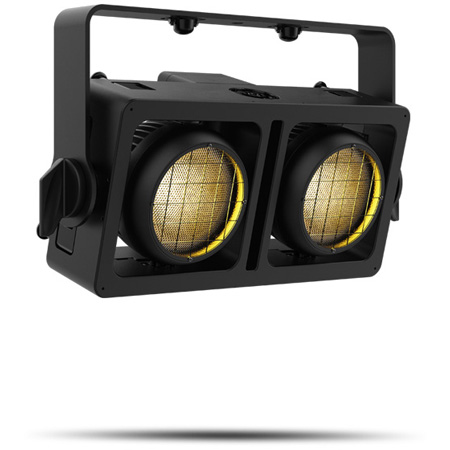

Chauvet STRIKE Array 2 Intense 2 Pod Blinder/Strobe Light with IP65 Rating for All-Weather Use

STRIKEARRAY2 - Overview

• Features:

  • Intense 2 pod blinder/strobe rated IP65 for all-weather use
  • Emulated red shift to mimic incandescent fixtures perfectly.
  • Individual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output.

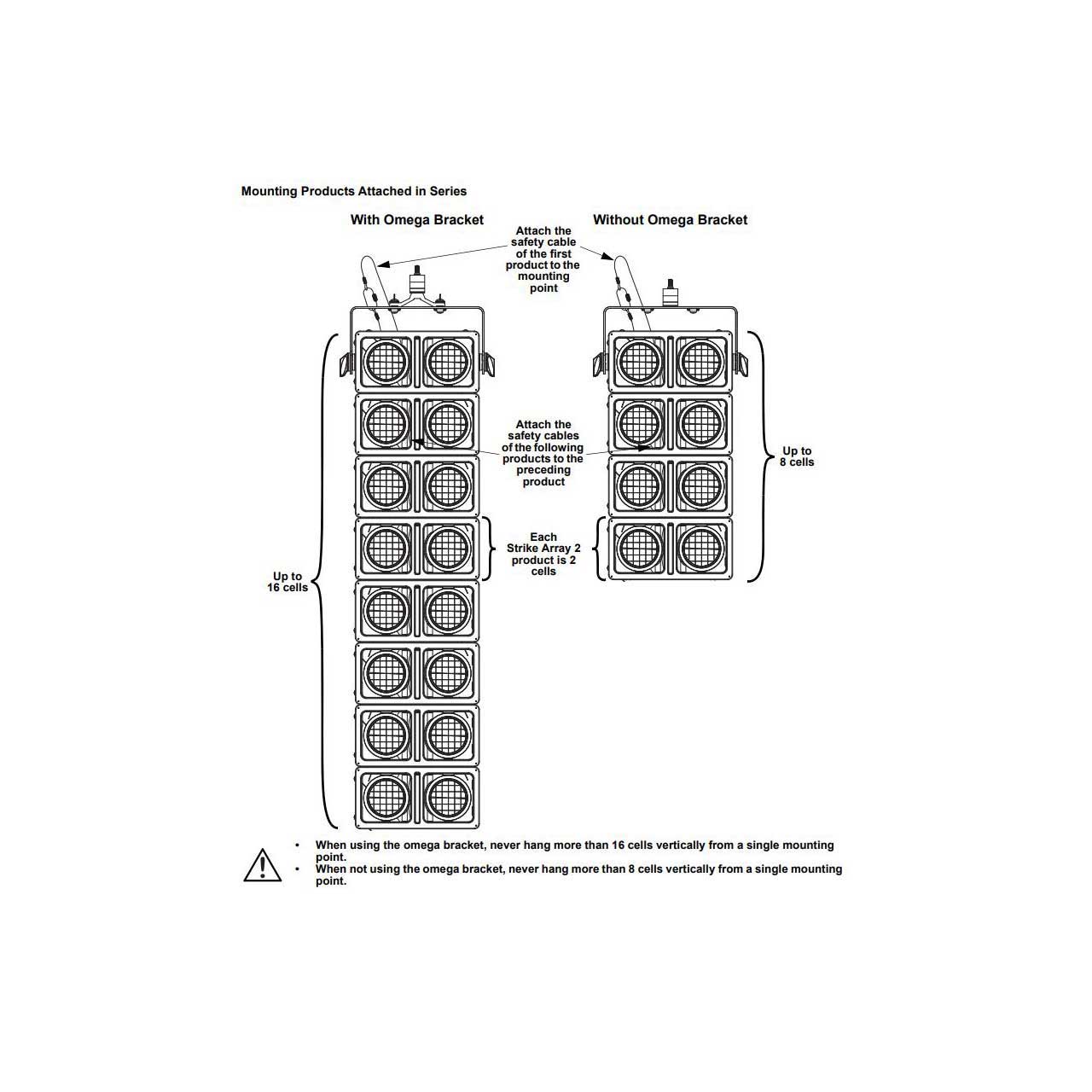

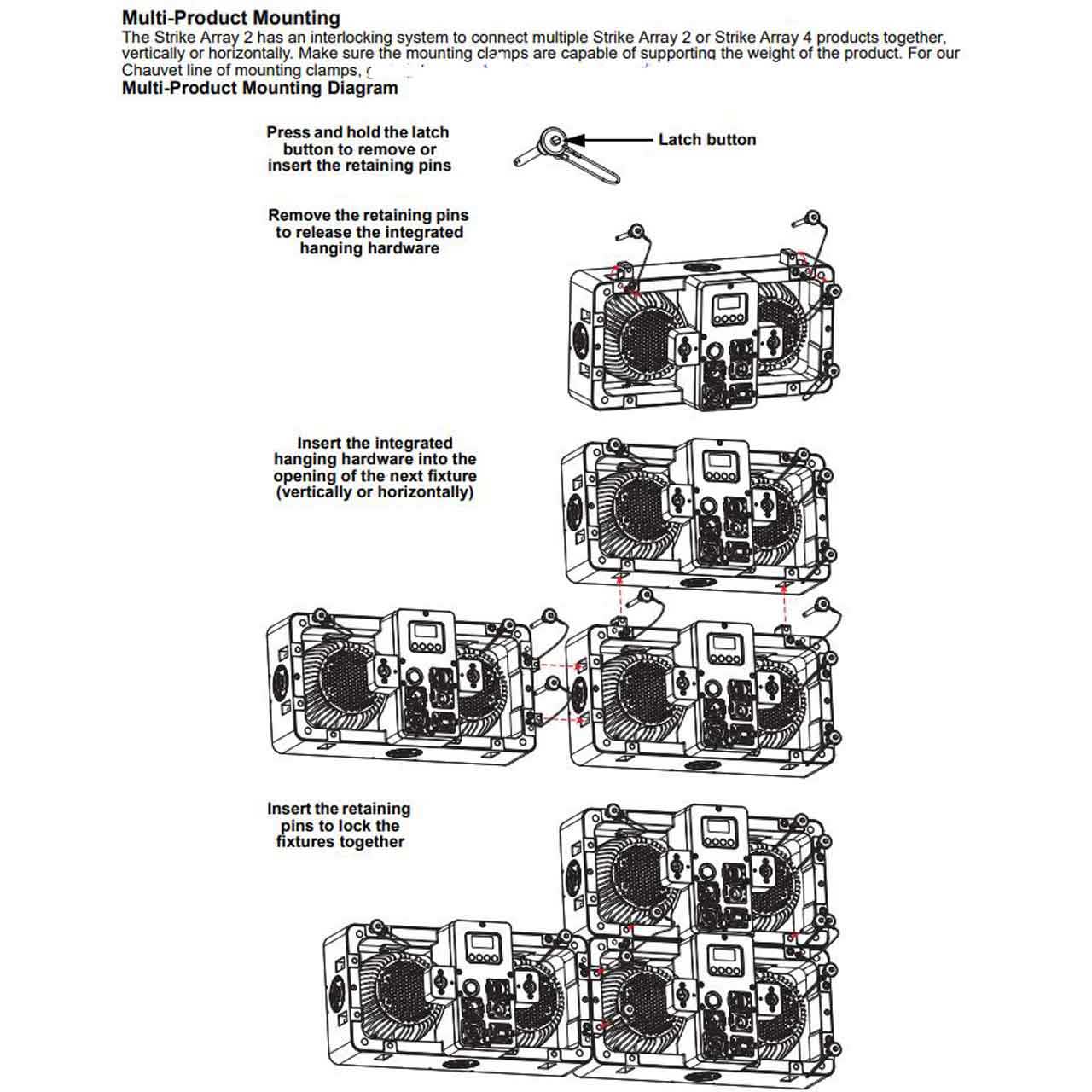

  • Innovative interlocking system to connect multiple Strike Array 2s and Strike Array 4s together.
  • Multiple mounting locations with 1/4" turn adaptors for creative and convenient rigging options
  • 16-bit dimming control for smooth, perfect fades
  • Strobe functionality for high-impact effects on the fly

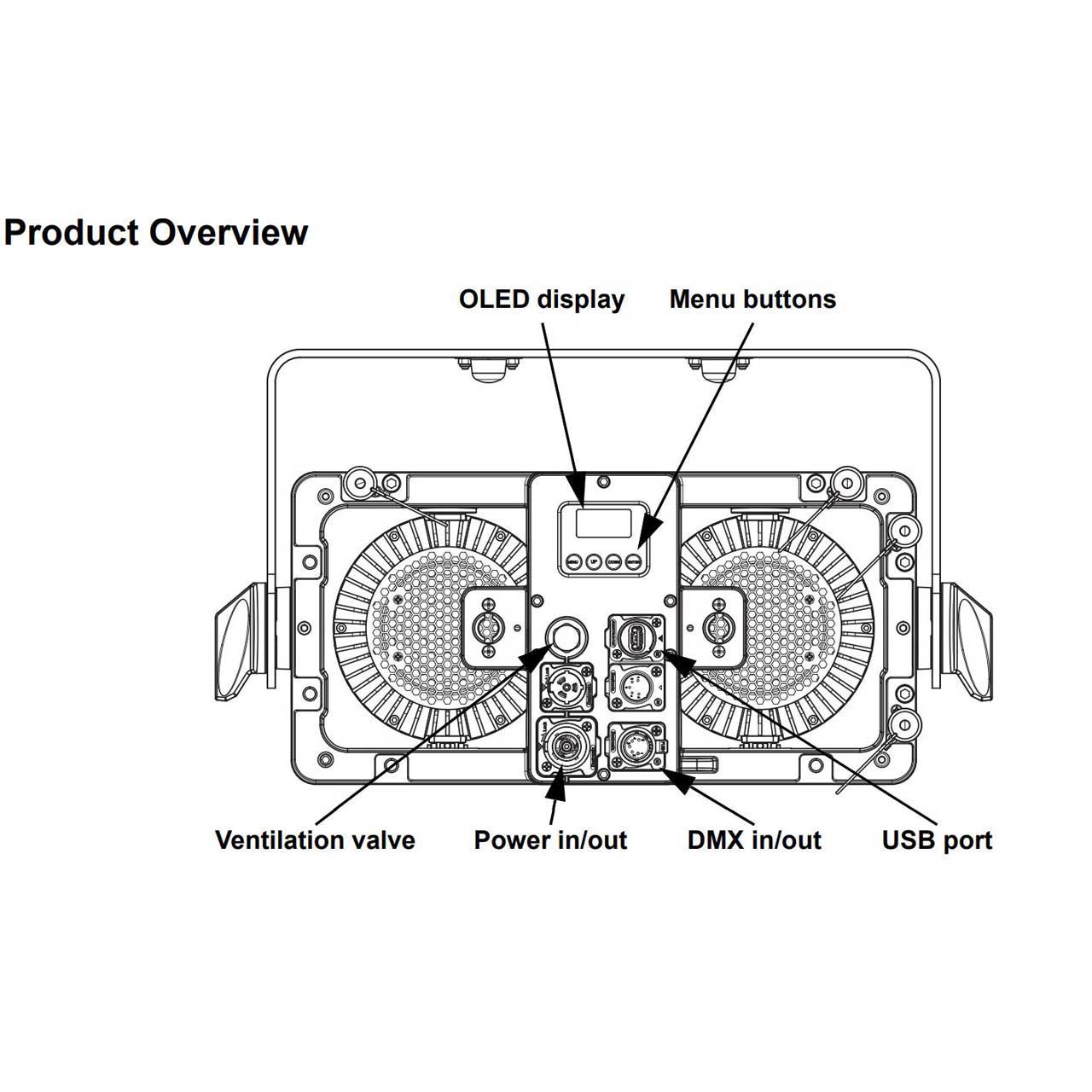

  • Easy to use OLED display
  • Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility


• Specifications:

  • Optical
  • Light Source: 96 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
  • Light Source: 10 LED (Amber) 2.63 W, (.750 A), 50,000 hours life expectancy
  • Color Temperature (at full): 2792 K
  • CRI: 92.9
  • TLCI: 91 Beam Angle: 60.3°
  • Field Angle: 99°
  • Illuminance (total): 360 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Strobe Rate: 0 to 25 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

    Construction/Physical
  • Dimensions: 18.5 x 10.4 x 6.3 in (469 x 264.5 x 161 mm)
  • Dimensions (shipping size): 20.7 x 8.5 x 12.8 in (525 x 215 x 325 mm)
  • Weight: 17.6 lb (8 kg)
  • Weight (shipping weight): 21.6 lb (9.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2, 3, 4, 5, or 8

    Connections
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 11 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V;25 units @ 240 V
  • Power and Current: 124 W, 1.24 A @ 100 V, 60 Hz [3.1 A inrush]
  • Power and Current: 123 W, 1.04 A @ 120 V, 60 Hz [1.8 A inrush]
  • Power and Current: 127 W, 0.61 A @ 208 V, 60 Hz [1.9 A inrush]
  • Power and Current: 129 W, 0.56 A @ 230 V, 50 Hz [3.8 A inrush]
  • Power and Current: 130 W, 0.54 A @ 240 V, 50 Hz [1.2 A inrush]
  • Power and Current (resting): 3 W, .021 A @ 100 V, 60 Hz
  • Power and Current (resting): 4 W, .029 A @ 120 V, 60 Hz
  • Power and Current (resting): 7 W, .040 A @ 208 V, 60 Hz
  • Power and Current (resting): 9 W, .040 A @ 230 V, 50 Hz
  • Power and Current (resting): 10 W, .044 A @ 240 V, 50 Hz


• Item Includes:

  • 1x Strike Array 2
  • 1x Seetronic Powerkon IP65
  • 1x Omega bracket with mounting hardware
  • 1x Warranty Card
  • 1x Quick Reference Guide or User Manual


• GTIN:

  0781462220617
