ClearOne 930-6200-103-W-D Ceiling Microphone Array Dante (3 Channel Bundle ) - White

930-6200-103-W-D - Overview

• Features:

  • Full 360-degree coverage.
  • LED indicators for On/Mute.
  • Daisy-chain up to 4 mic arrays, 12 channels, for one combined system.
  • Optimized for speech-intelligibility with full audio bandwidth and highest SNR.
  • 100% shielding against RF interference.
  • Numbered microphone elements for easy identification.
  • Height easily adjustable from 0 feet to 7 feet.
  • Sleek, unobtrusive design.
  • White or black color options.
  • Works with ClearOne and other 3rd-party DSP mixers.


• Specifications:

  • Acoustic Characteristics
  • Element: Condenser (Electret)
  • Polar Pattern: 3 X 120° Cardioid Patterns, covering 360°
  • Signal/Noise Ratio: 74 dBA @ 1 kHz
  • Frequency Response: 70 Hz - 20 kHz
  • Sensitivity: -37dB @ 1 kHz (0 dB = 1V / Pa)
  • Max Sound Pressure Level: 120 dB SPL
  • RF Immunity: 100% immunity, fully balanced twisted pair throughout

    Power & Thermal
  • Power Type: PoE
  • Port Type: RJ-45
  • Power Source: PoE power injector, PoE Ethernet Network Switch
  • Impedance: 200Ω
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Power Consumption: 8.5 Watts Typical with 4 Mic Capsules
  • Operating Temperature: 41° to 104° F (5° to 40° C)

    Cables
  • Junction to Interface/Junction Box: RJ45 CAT5e/ CAT6 24AWG (max 33 ft)
  • Interface Box to Network Switch: RJ45 CAT5e/CAT6 24AWG (max 330 feet)
  • Network Switch to Dante DSP Mixer: RJ45 CAT5e/ CAT6 24AWG (max 330 feet)
  • Junction Box to Mic Capsule: Proprietary Mic Array cable (max 7 ft)

    Dimensions (WxDxH)
  • Mic Capsule: 1.7" x 1.7" x 86.6" (42 mm x 42 mm x 2200 mm)
  • Analog-X Interface: 6.8" x 4.1" x 1.7" (172 mm x 103 mm x 43 mm)
  • Analog-X Junction: 4" x 3.7" x 1.4" (102 mm x 93 mm x 35 mm)

    Weight
  • Mic Capsule: 1.7" x 1.7" x 86.6" (42 mm x 42 mm x 2200 mm)
  • Digital Dante Interface: 6.8" x 6.7" x 1.7" (172 mm x 169 mm x 43 mm)
  • Digital Junction: 4" x 3.7" x 1.4" (102 mm x 93 mm x 35 mm)
  • Mic Capsule: 6 oz (170 g)
  • Digital Dante Interface: 21.6 oz (612 g)
  • Digital Junction: 7.2 oz (204 g)

    Mic Array Color Finish
  • White or Black

    LED
  • Mic Capsule - Mute (Red/Blue = GPIO Controlled)
  • Power and Status (On=Red/Blue, Off=Not Illuminated)
  • Dante RJ45s (Green = Connected, Yellow = Connectivity Status)
  • Digital-In RJ45 (Green = Connected, Red = Error)
  • Digital Junction
  • Power (On=Blue, Off=Not Illuminated)
  • Digital-In/Out RJ45 (Green = Connected, Red = Error)

    Compliance
  • FCC, IC, CE, RoHs, WEEE, UL2043 (plenum rated)


• Item Includes:

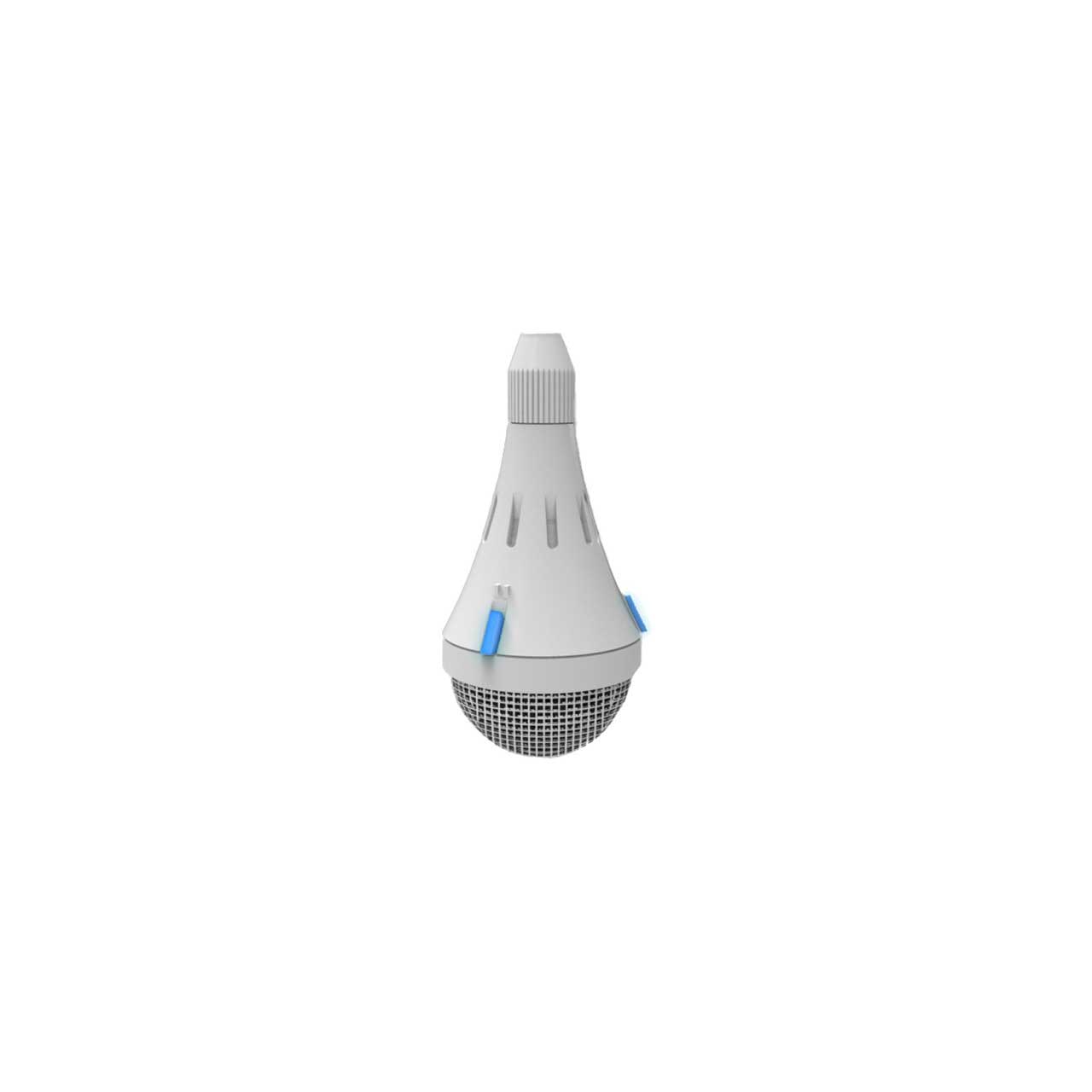

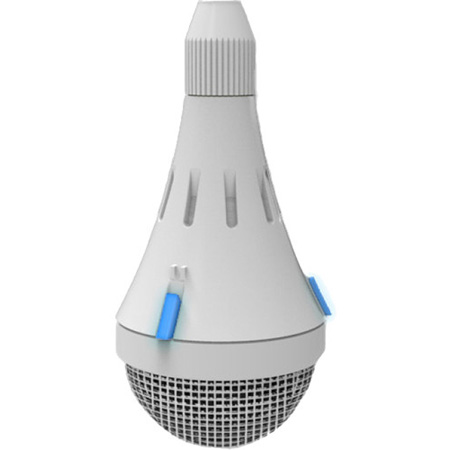

  • 1x 930-6200-103-W-D Mic Capsule - White

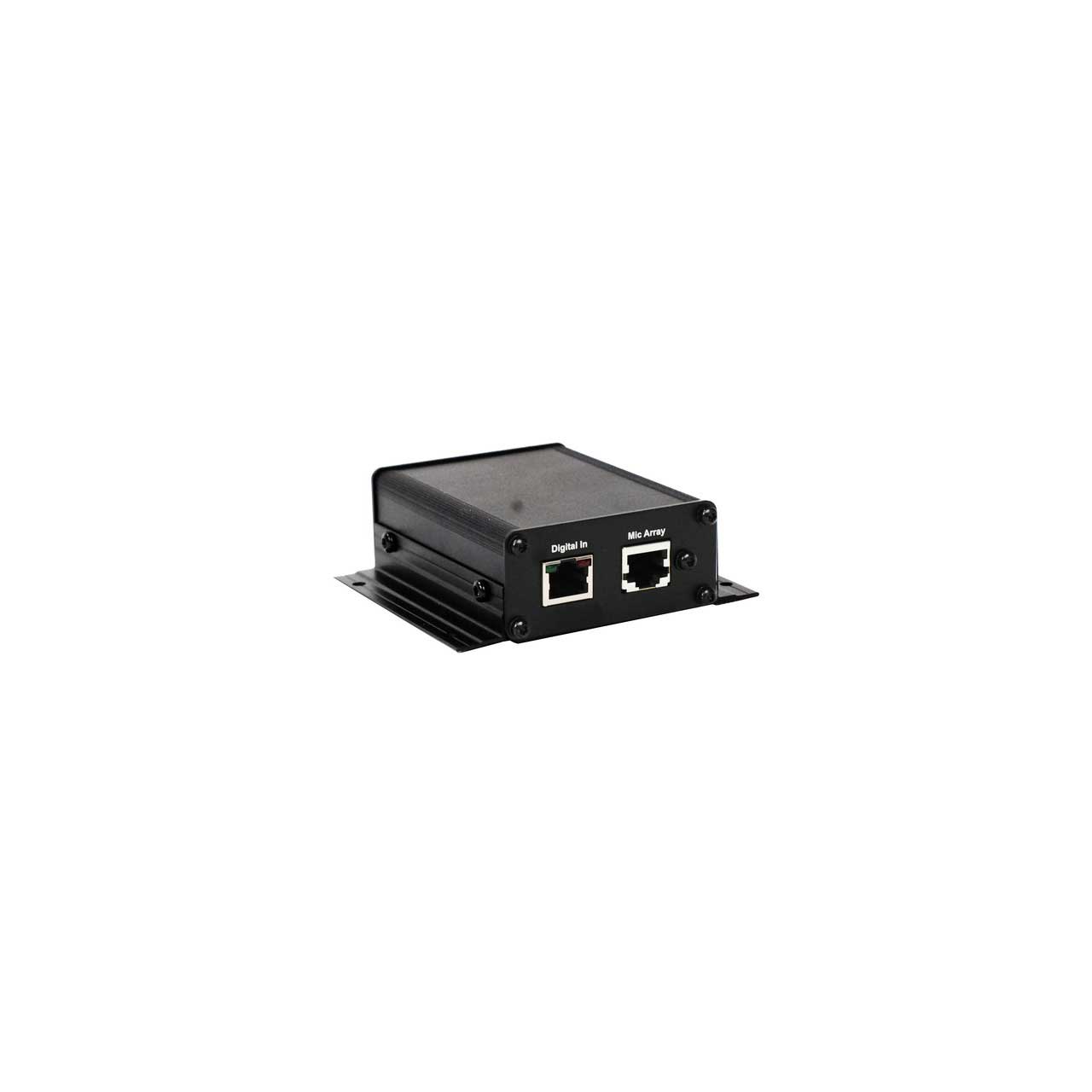

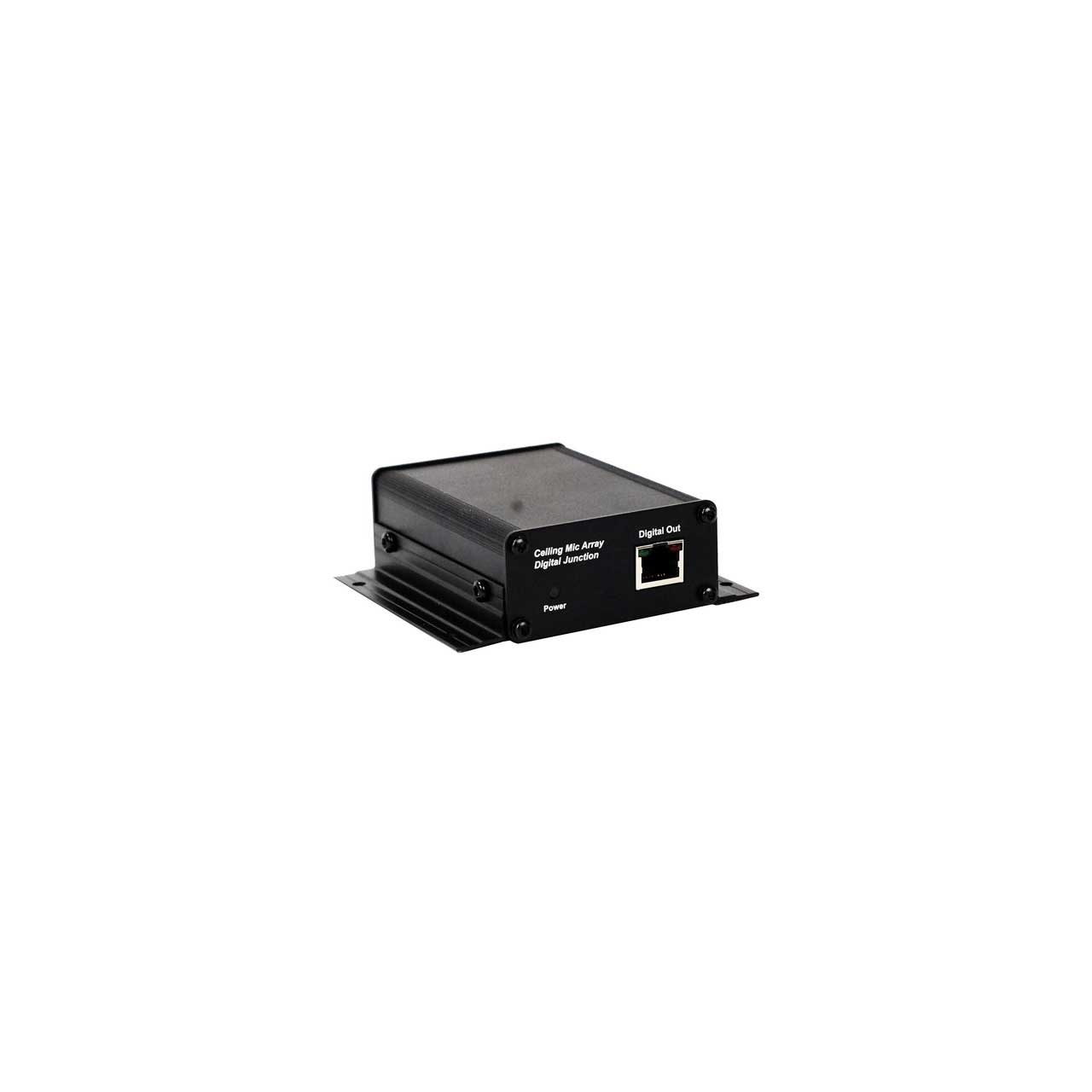

  • 1x Dante Junction Box

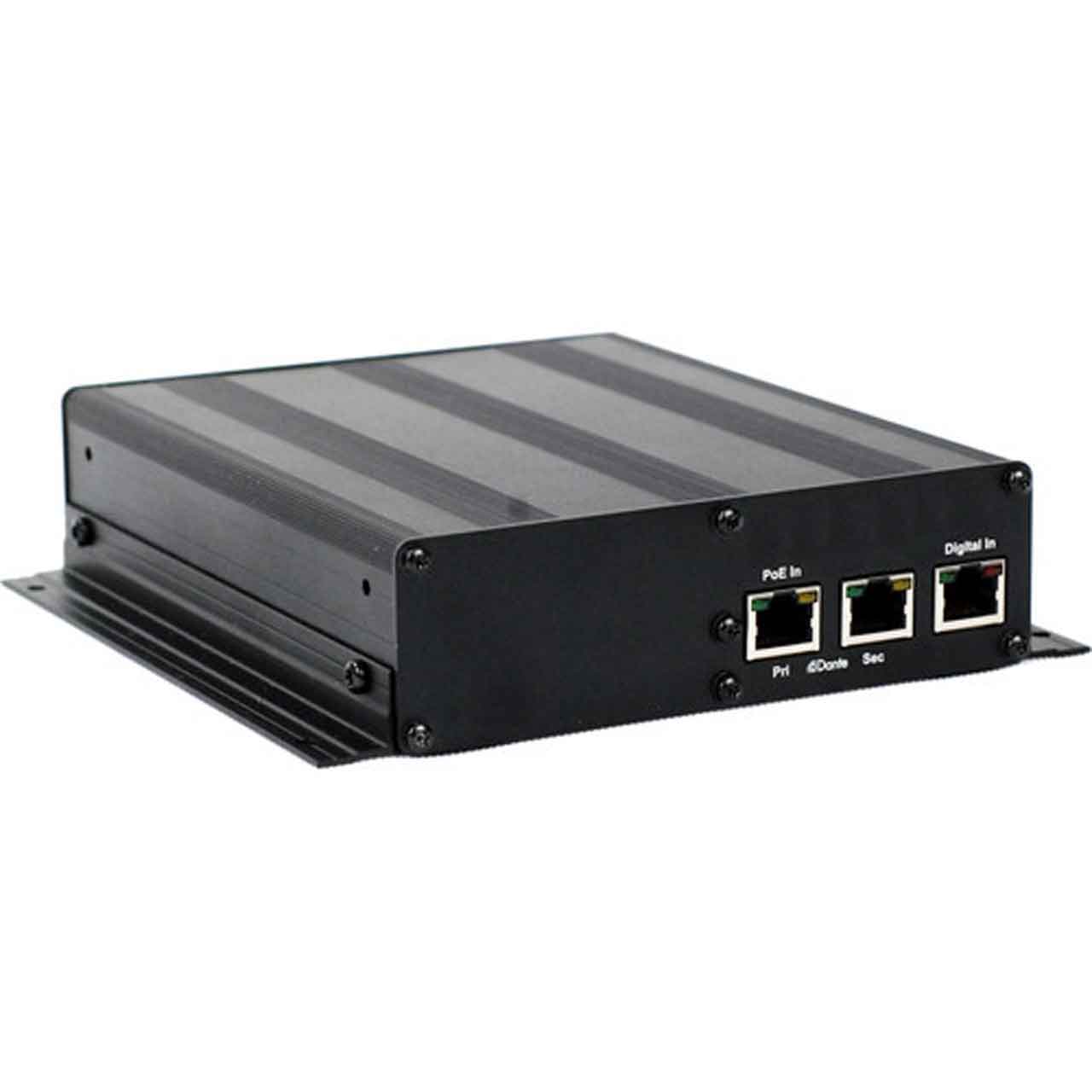

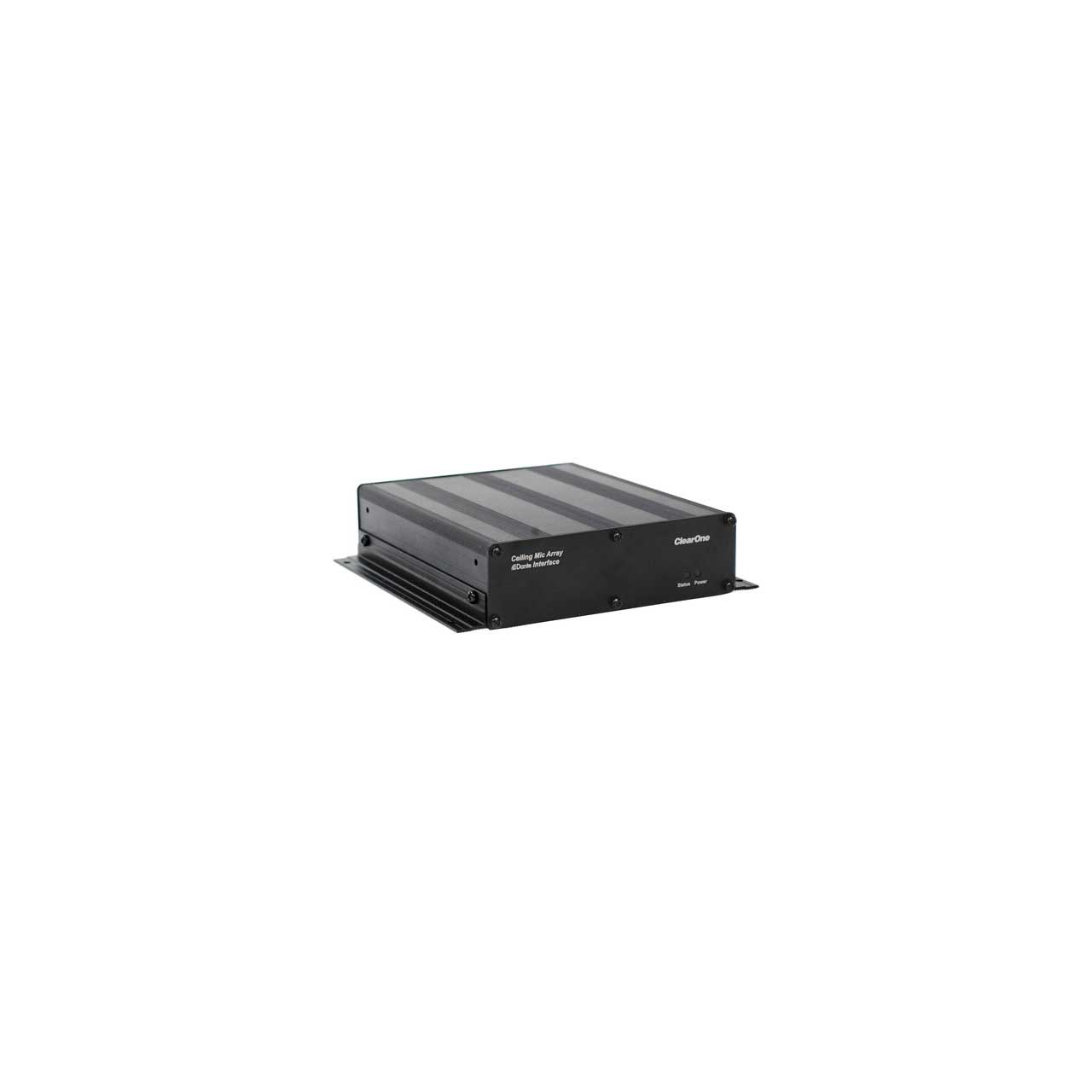

  • 1x Dante Interface Box


• GTIN:

  0671010013849
