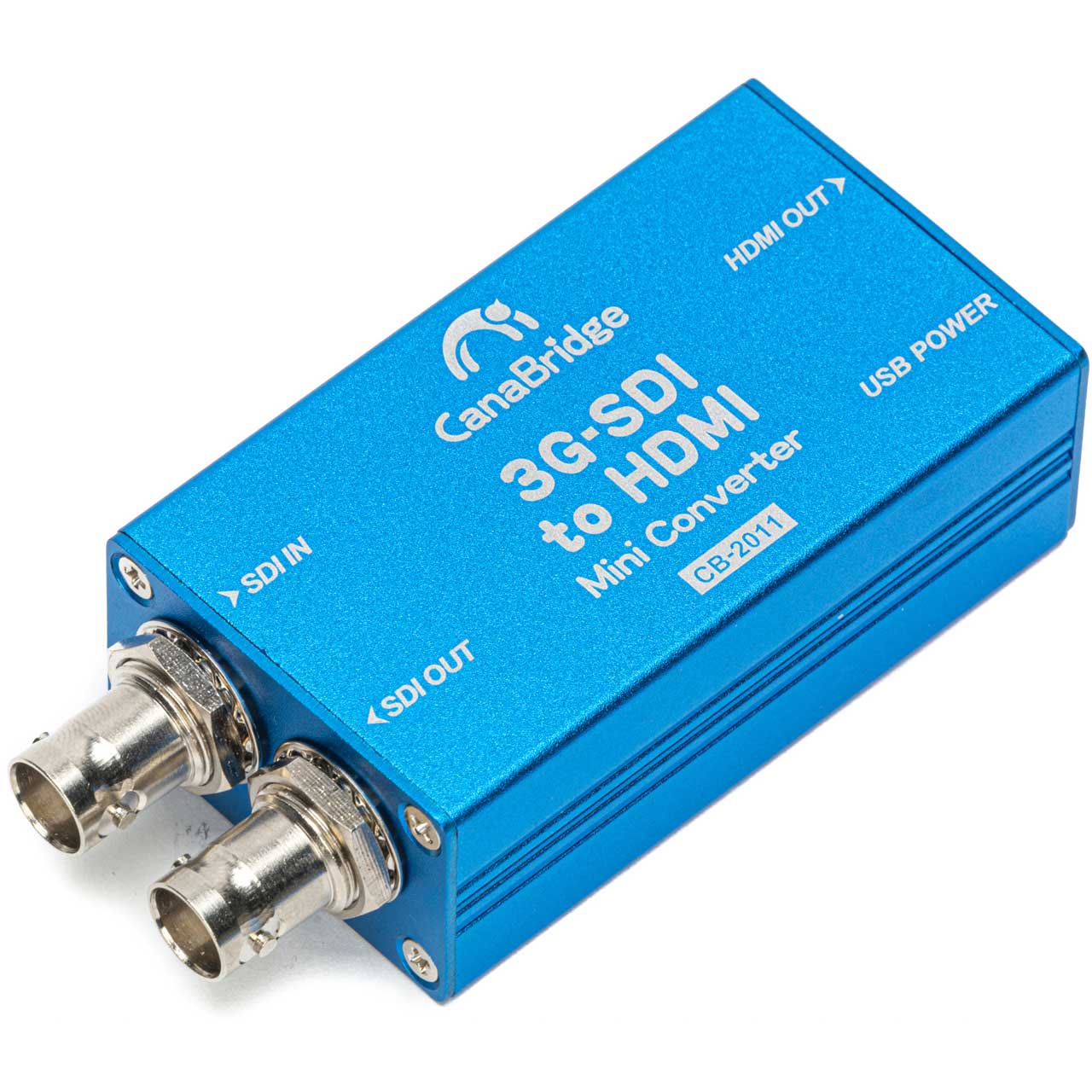

Canare CB-2011 CanaBridge 3G-SDI to HDMI Mini Video Converter

ITEM #: CNR-CB-2011 MFG #: CB-2011

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$163.30

Our Price:

$149.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CB-2011 - Overview

Being Made for Broadcast Equipment
The mini Canre CB-2011 and 2012 support SD/HD/3G-SDI.They comply with EMC standards and the steady and reliable performance make it possible for it to work uninterrupted for 7 x 24hours without any lag or delay.

Powered Anywhere
One of the features of this series is that the power input is possible just by Micro USB connection. Power supply is possible not only from DC power plug pack or power bank, but also possible from laptop or computer. Its incredibly small power consumption, makes an uninterrupted 24 hours' operation possible by a 5,000mAh power bank.

Pocket Size and Easy to Mount
The miniature design makes it portable for indoors and outdoors. You can put it in your pocket and take it anywhere you want. The detachable mounting bracket comes with the product and it can be used for various scenarios.

  • Specifications:

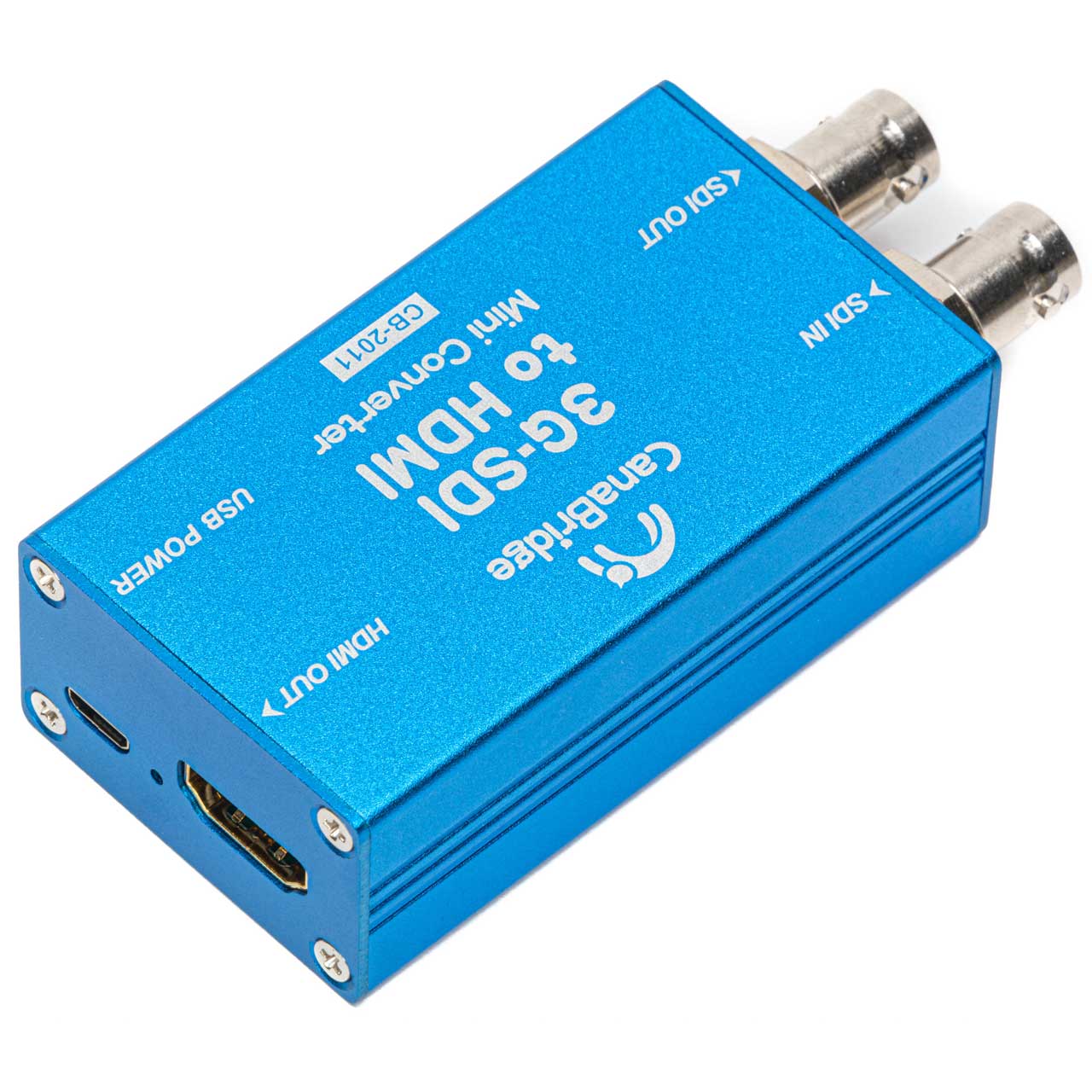

    • Connections
    • SDI Video Input: 1 x SD/HD/3G-SDI (75Ω BNC)
    • SDI Video Loop Output: 1 x SD/HD/3G-SDI (75Ω BNC)
    • HDMI Video Output: 1 x HDMI A
    • Multi Rate Support: Auto Detect SD/HD/3G-SDI
    • Micro USB: Power and software update
    • Power LED: Power indicator
    • SDI LED: SDI input signal indicator

      Functions and Standards
    • SDI Input Format:
      - 1080p 50/59.94/60
      - 1080p 23.98/24/25/29.97/30
      - 1080psf 23.98/24/25/29.97/30
      - 1080i 50/59.94/60
      - 720p 50/59.94/60
      - 525i 59.94, 625i 50
    • SDI Auto Switching:
      - Automatically detects SD, HD and
      - 3G-SDI
    • SDI Video Rate:
      - SD/HD/3G-SDI
    • SDI Color Space and Precision:
      - YCbCr 4:2:2
    • SDI Standard:
      - SMPTE ST 259
      - SMPTE ST 292-1
      - SMPTE ST 424
    • HDMI Output Format:
      - 1080p 50/59.94/60
      - 1080p 23.98/24/25/29.97/30
      - 1080i 50/59.94/60
      - 720p 50/59.94/60
      - 480i 59.94, 576i 50
    • HDMI Color Space and Precision:
      - YCbCr 4:2:2

      Power
    • Power: Micro USB
    • Power Consumption: 2.5W (Max)
    • Voltage Range: USB 3.3-5.5V

      Physical
    • Dimension: 2.85" x 1.61" x 0.97" (72.4mm x 41mm x 24.6mm)
    • Net Weight: 3.88oz (110g)
    • Gross Weight: 1.04lbs (470g)

      Environmental
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
    • Relative Humidity: 0% - 90% non-condensing

  • Item Includes:

    • 1x CB-2011 (3G-SDI to HDMI Mini Converter)

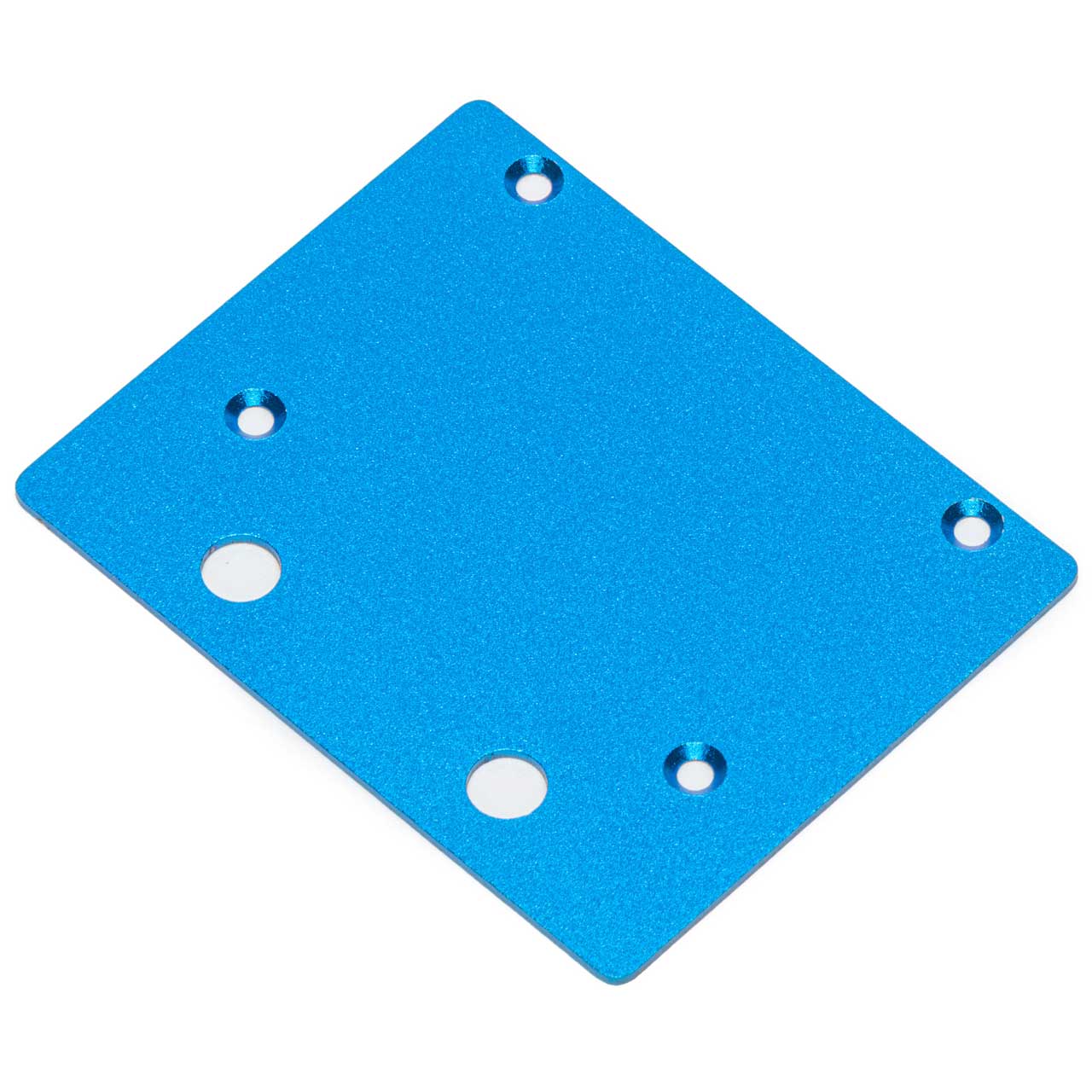

    • 1x Mounting Bracket with 4 screws (12g)
    • 1x DC 5V Universal Power Supply with 5 International Socket Adapters

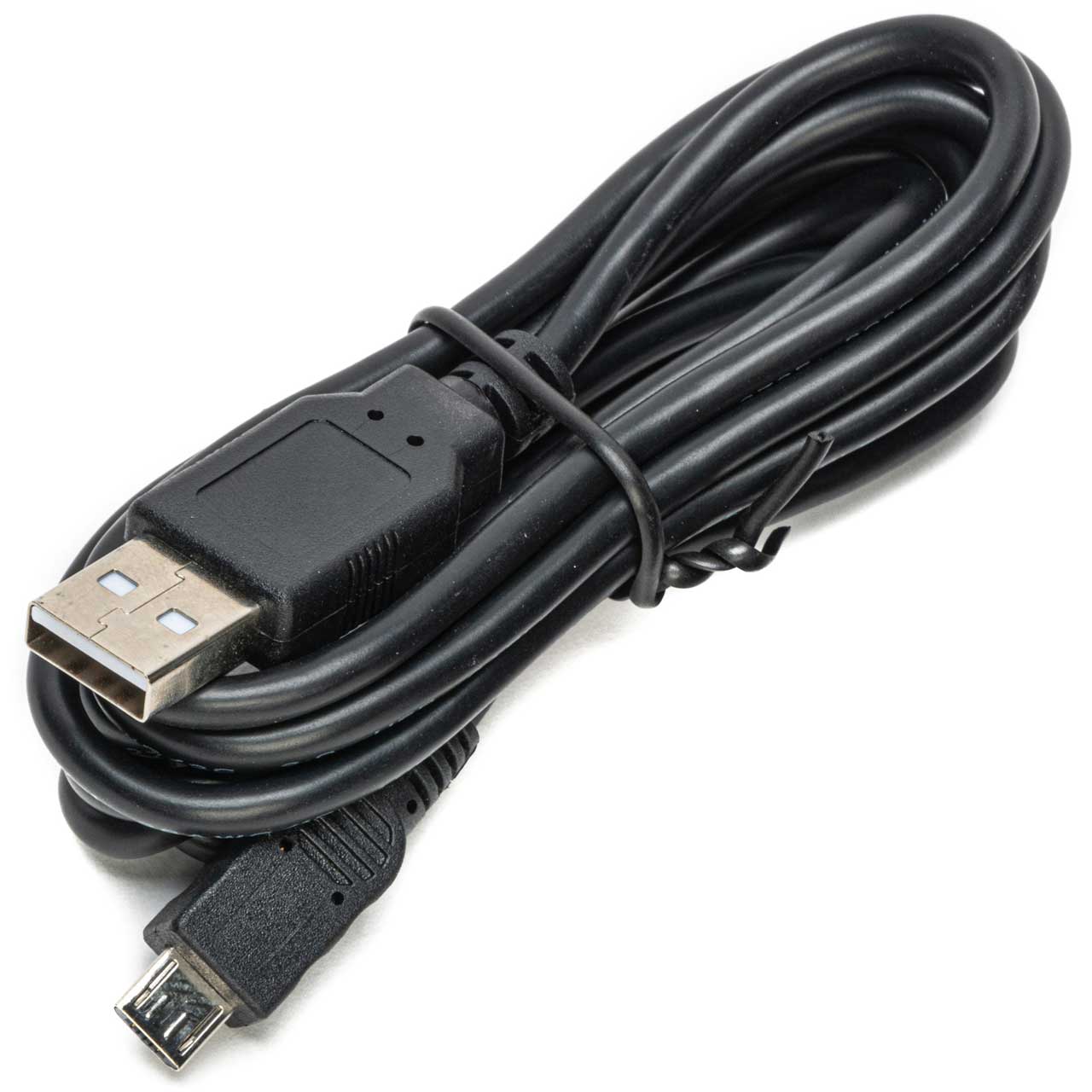

    • 1x USB Cable (150cm)
