MuxLab 500831 HDMI 2.0/3G-SDI Signal Analyzer

ITEM #: MUX-500831 MFG #: 500831

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$2,054.00

Our Price:

$1,643.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

500831 - Overview

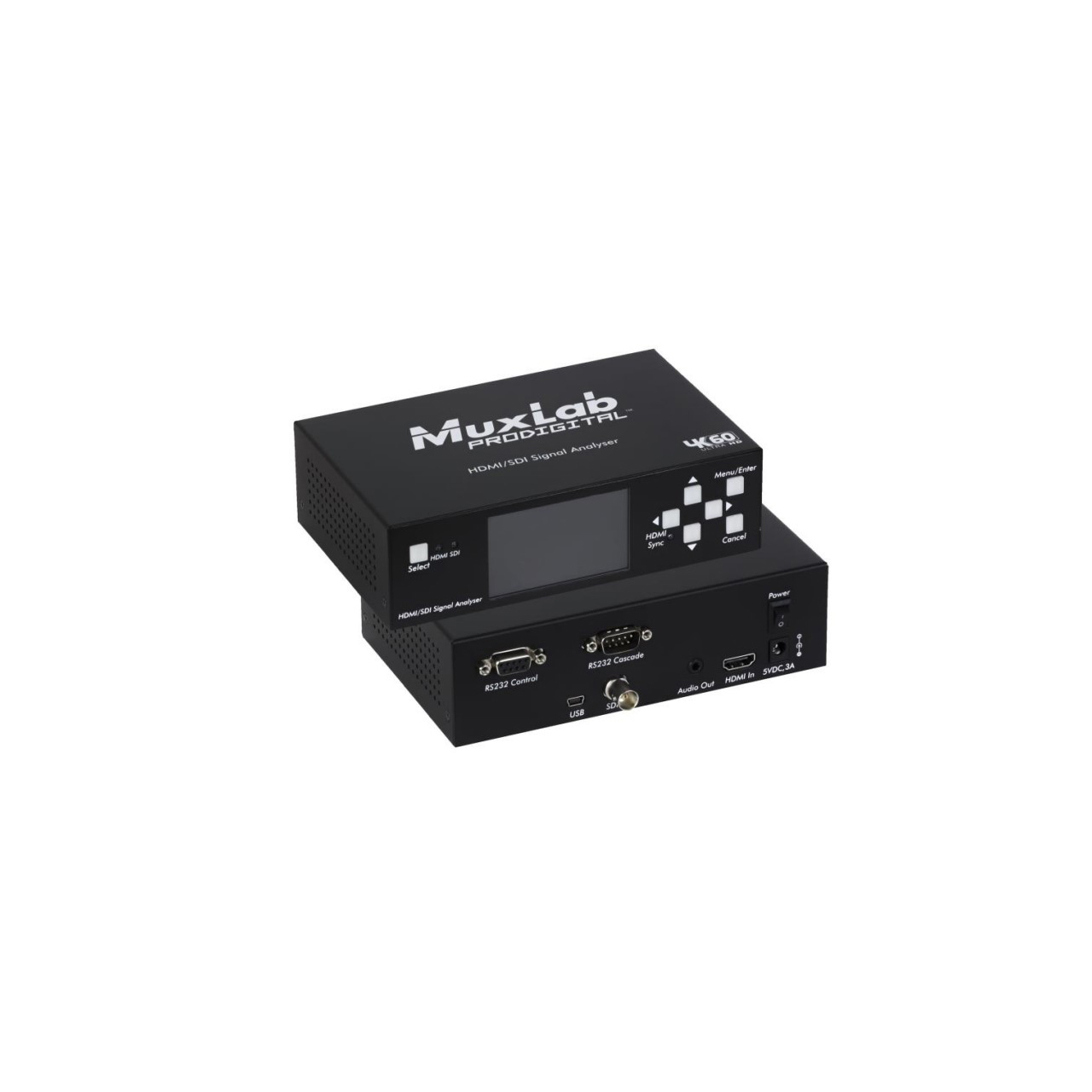

This MuxLab 500831 Signal Analyzer is able to analyze SD/HD/3G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their source devices. When used with the 500830 Signal Generator, a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. The device is an exceptional tool at an attractive price for any AV engineer/developer, integrator and installer.

  • Features:

    • Supports HDMI up to 4K/60 & 3D, and 3G-SDI
    • Supports RGB4:4:4, YUV4:2:2, YUV4:2:0 & Deep Color
    • Supports an HDMI cable test function
    • Displays AV signal characteristics
    • 3" LCD panel for pattern preview & menu settings
    • Supports 7 audio sample rates
    • Supports an internal rechargeable Lithium-ion battery
    • VU metter supported on LCD
    • Supports HDCP 2.2 & 1.4
    • Supports EDID management


  • Specifications:

    • Environment: HDMI 2.0 and 3G-SDI
    • HDMI Signal Support: Up to HDMI 2.0/DVI.
    • SDI Signal Support: SD-SDI, HD-SDI and 3G-SDI
    • HDCP Support: HDCP 2.2 and 1.4.
    • Video Bandwidth: Up to 18.0GHz (6.0GHz per channel)
    • Color Depth: 24bits,30bits,36 bits,48bits
    • Color Space: RGB444, YUV444, YUV422, YUV420 (HDMI 2.0 only)
    • Audio Bit Depth: 16bit,20bit,24bit
    • Audio Sample Rate: 32K, 44K, 48K, 88K, 96K, 176K, 192K
    • Vertical Frequency Range: ≤120Hz
    • Connectors:
      - 1x HDMI connector for HDMI video-in
      - 1x SDI (BNC) connector for SDI video-in
      - 1x S/PDIF connector for digital audio-out
      - 1x 3.5mm connector for analog audio-out
      - 1x RS232 DB9 connector for management
      - 1x RS232 terminal block for cascading management port
      - 1x USB connector for management
      - 1x 2.1mm locking power connector
    • Power Source:
      - 1x 110/240VAC to 5VDC @ 1A power supply, with interchangeable blades for US, UK and EU
      - 1x built-in (non-serviceable) rechargeable Lithium-ion battery supporting up to 5 hours of usage per charge (Unit supports a power switch on rear. Battery charge duration may vary.)
    • Power Consumption: 2W
    • Temperature:
      - Operating: 32°F - 104°F (0°C - 40°C)
      - Storage: -4°F - 185°F (-20°C - 85°C)
      - Humidity: Up to 95% non-condensing
    • Enclosure: Metal
    • Dimensions: 6.38" x 1.73" x 3.74" (162mm x 44mm x 95mm)
    • Weight: 1.14lbs (0.52kg)


  • Warranty:

    • 2 Years


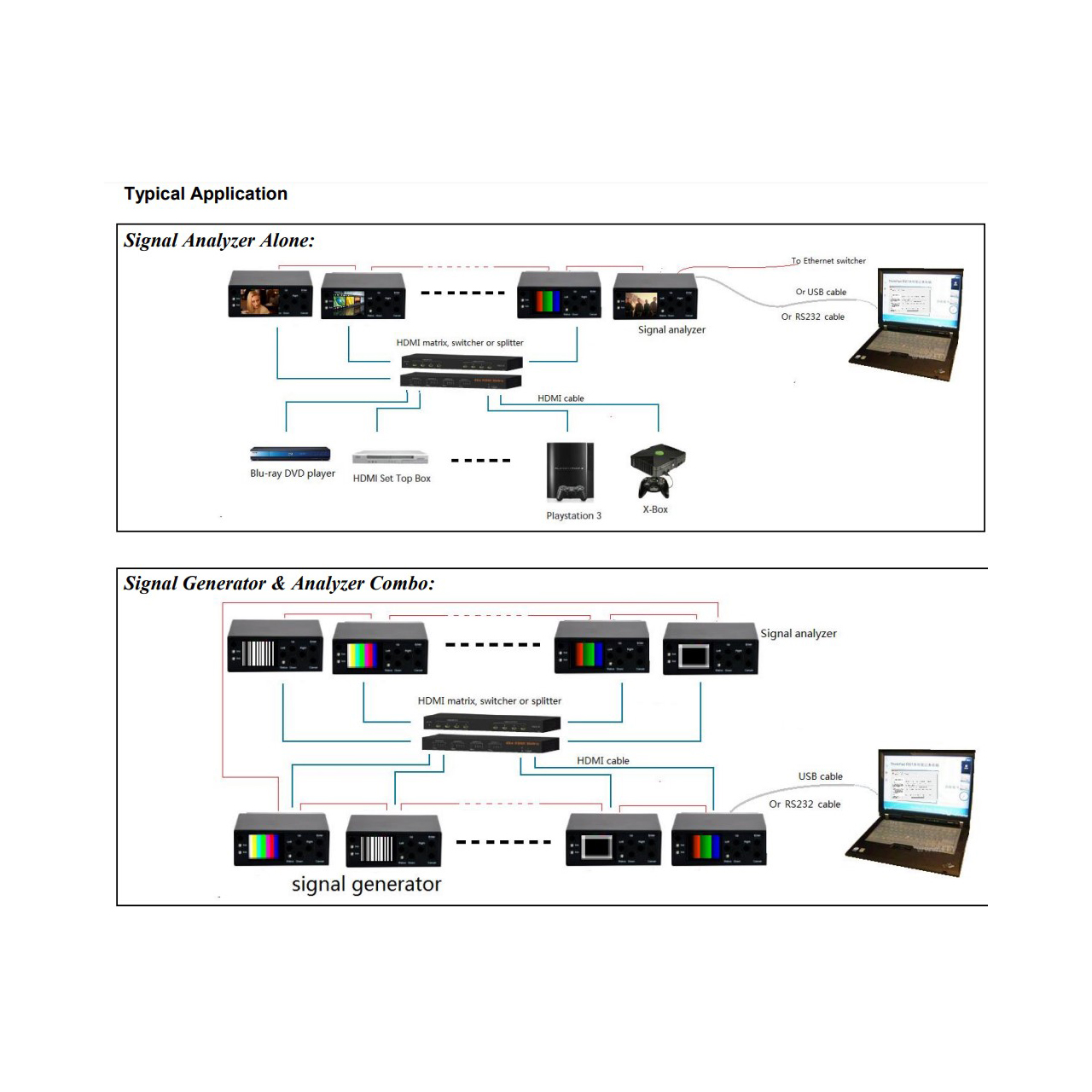

  • Applications

    :

    • Testing AV source devices
    • Testing AV transmission infrastructure


  • GTIN:

    0627699008317
