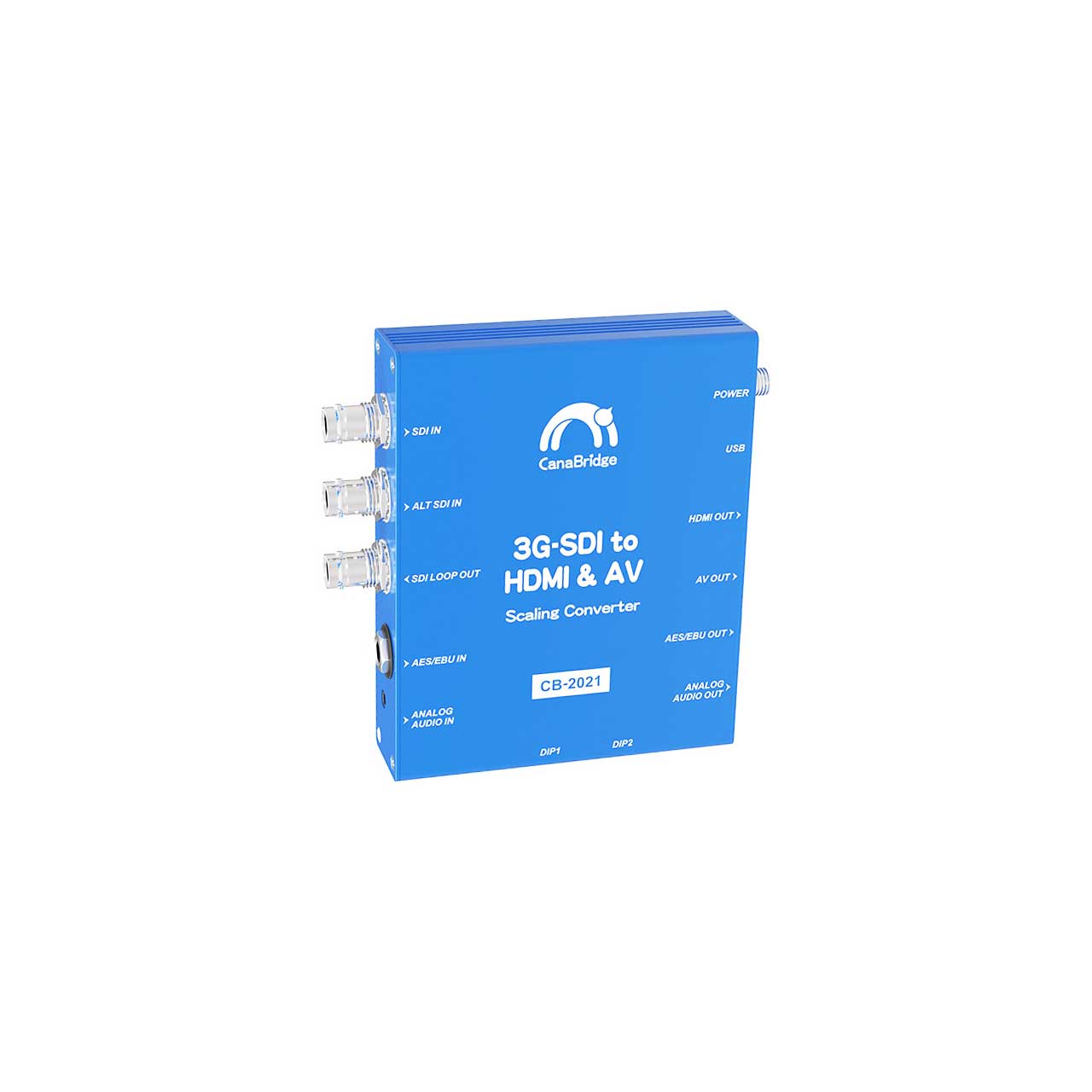

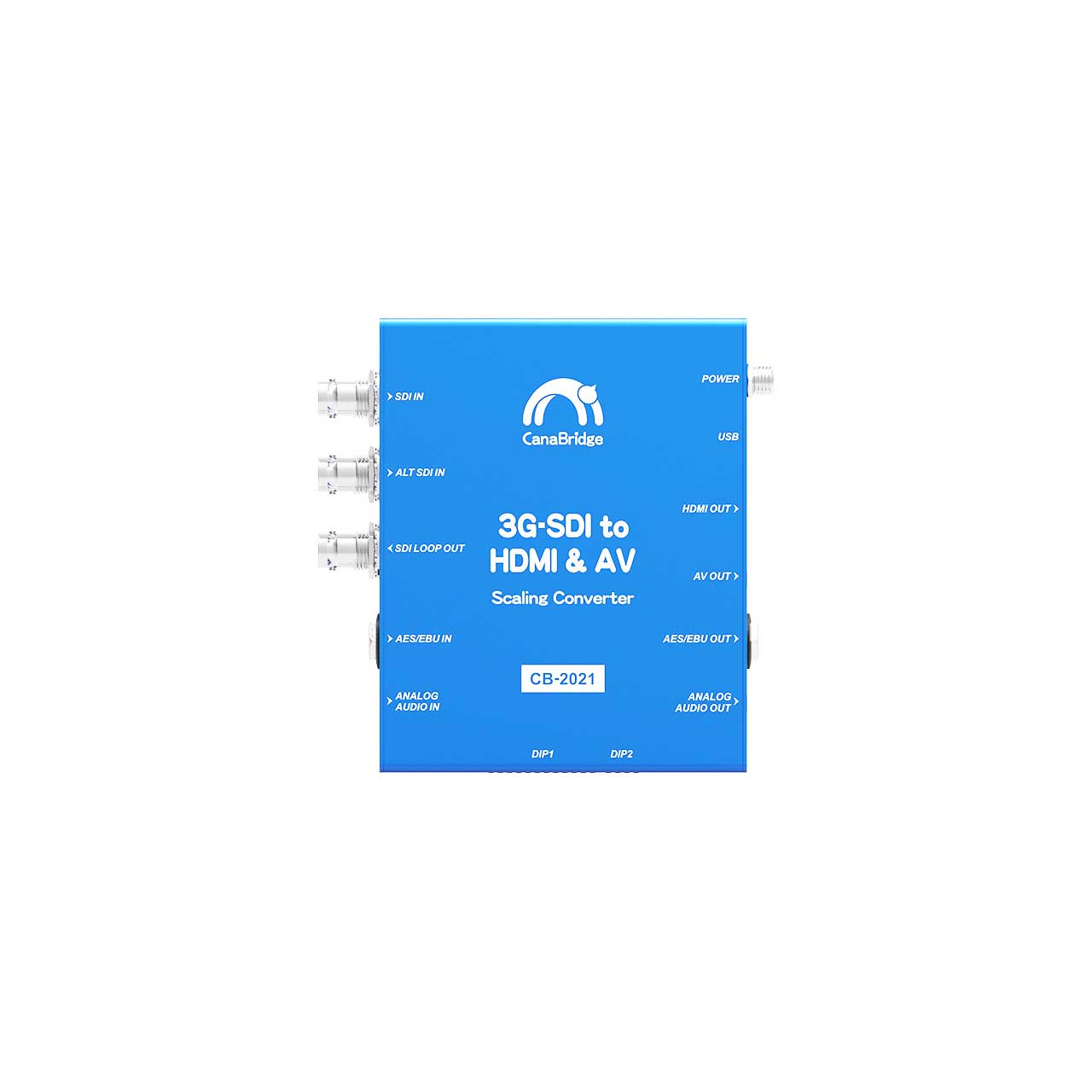

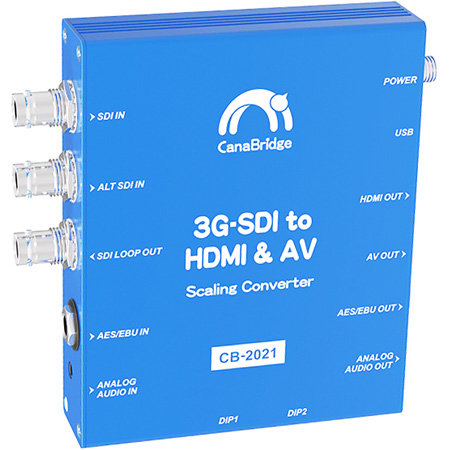

The Canare CB-2021 is an exquisite and professional SDI converter to convert SDI signal into HDMI and AV signals at the same time. The output formats are responding to up/down scaling and frame rate conversion as well as signal pass through. The functions of de-interlacing and seamless conversion are equipped for eliminating jitters.
Also, AES/EBU or Analog audio signal can be embedded or de-embedded. All the functions can be easily set by the built-in DIP switches or PC via USB. CB-2021 is an ideal choice for your broadcasting and AV post production.

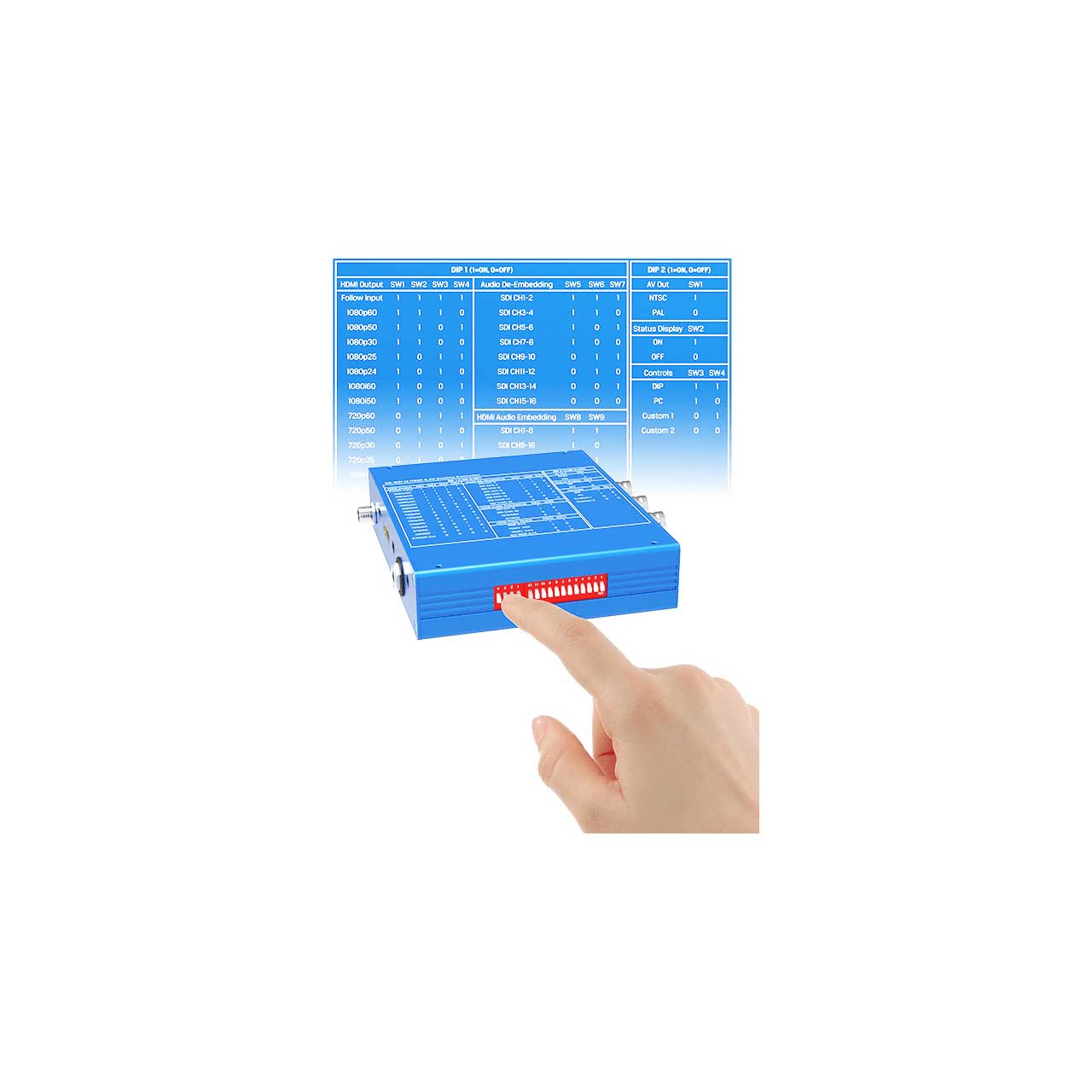

Easy Control over DIP Switches.
By using the DIP switches, you can easily set functions with your finger, without the need for tools. It's a quick and convenient way to change settings in outdoor applications. To remote-set the functions, you can use your computer by downloading the software via USB connection. The latest software can also be up-dated by your computer via USB connection.

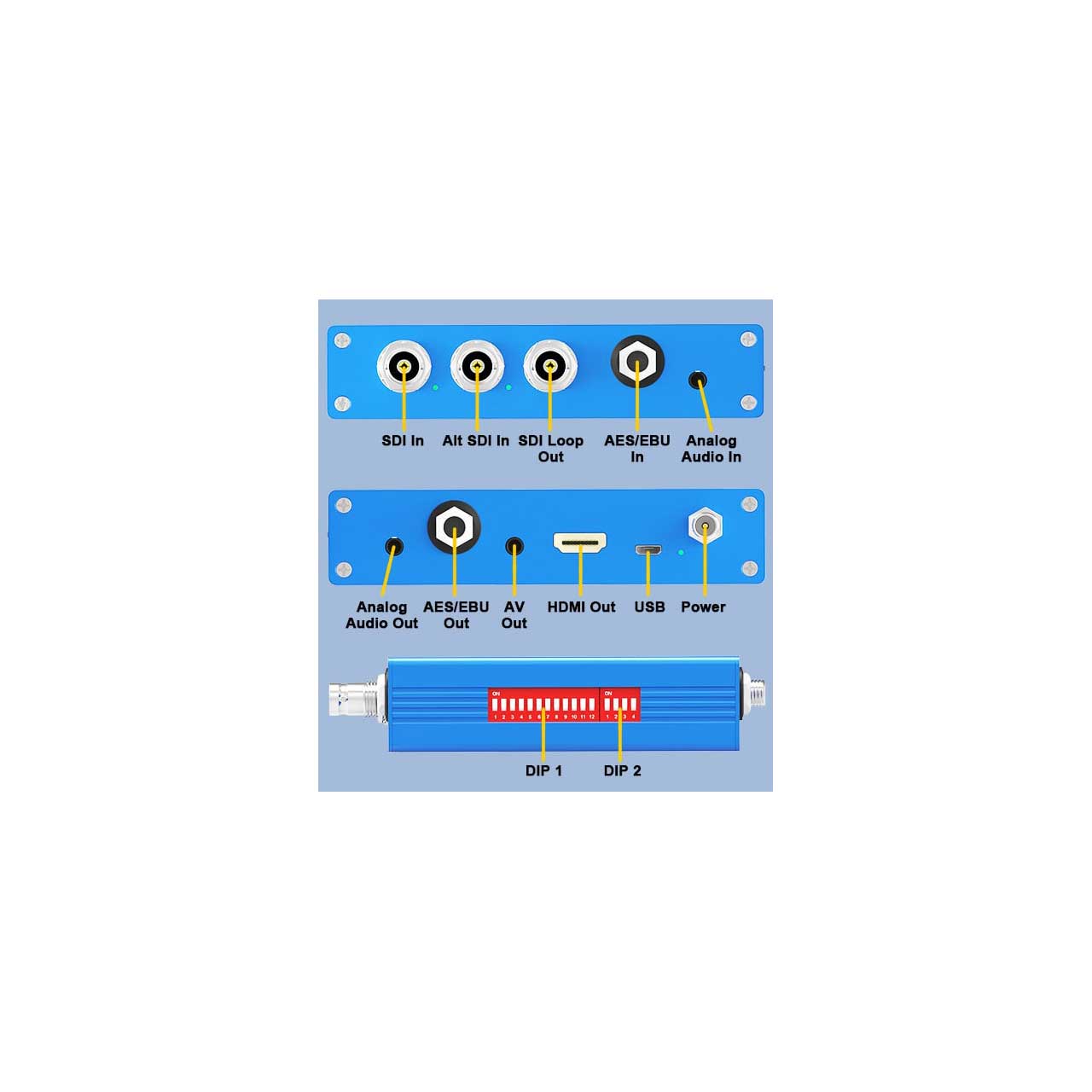

Redundant SDI Input & Loop Output.
The Alt SDI In is for input redundancy so that the signal can be auto-switched to the redundant SDI input to avoid the loss of video signal in case of an accident. It's an innovative solution and especially suited for use in the studio, at live shows and at outdoor live events.

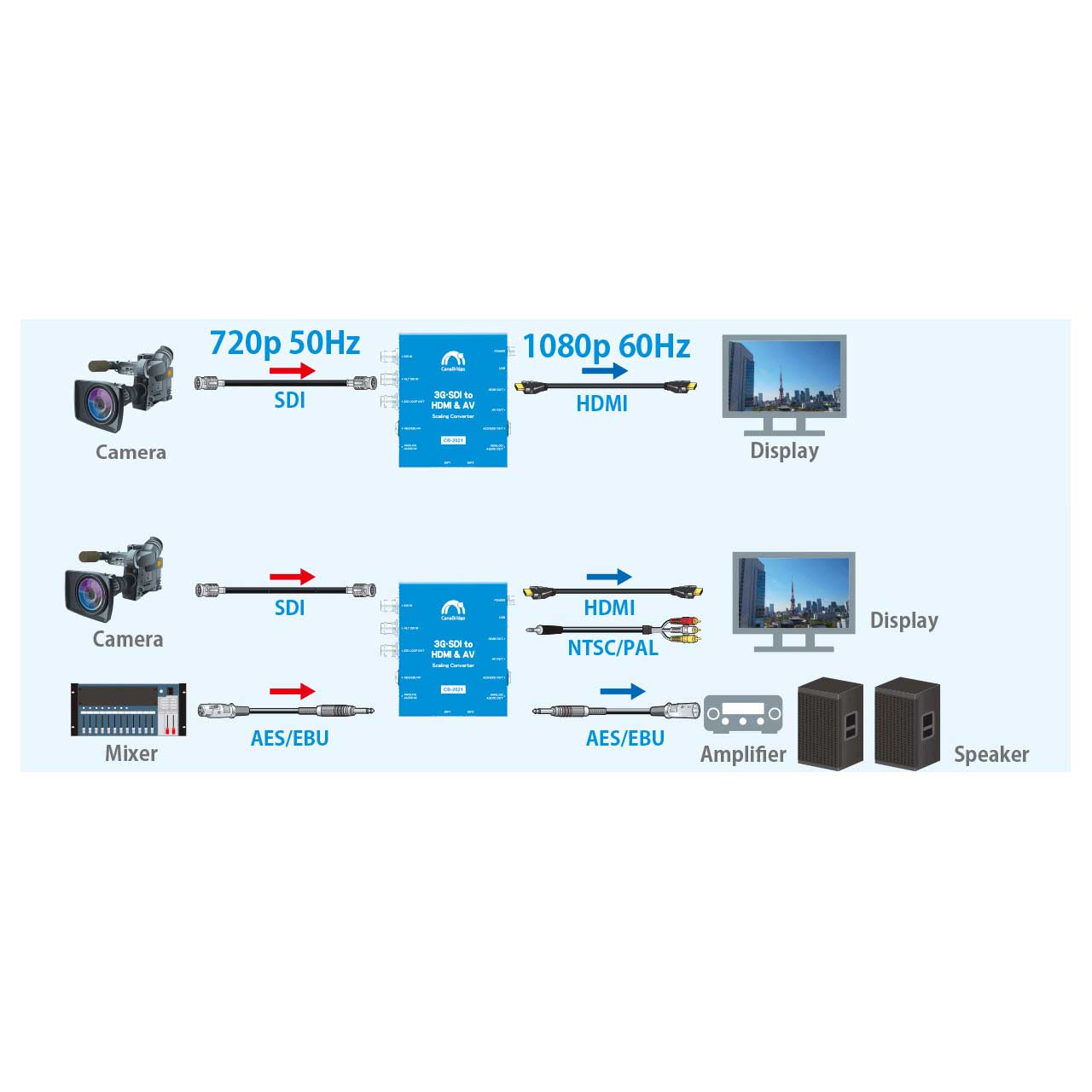

CB-2021 can convert SDI signal into HDMI and AV signal at the same time. The output formats are responding to up/down scaling and frame rate conversion as well as signal pass through. The functions of de-interlacing and seamless conversion are equipped for eliminating jitters. The available signal bandwidth is up to 1080p@60Hz.
Input signals of AES/EBU or Analog Audio or SDI embedded analog audio can be sent to HDMI output. Also, SDI embedded audio signal can be taken out and sent to audio signal outputs. You do not need to purchase custom cables when you have standard 1/4" (6.3mm) audio plug or mini 3.5mm audio plug.
