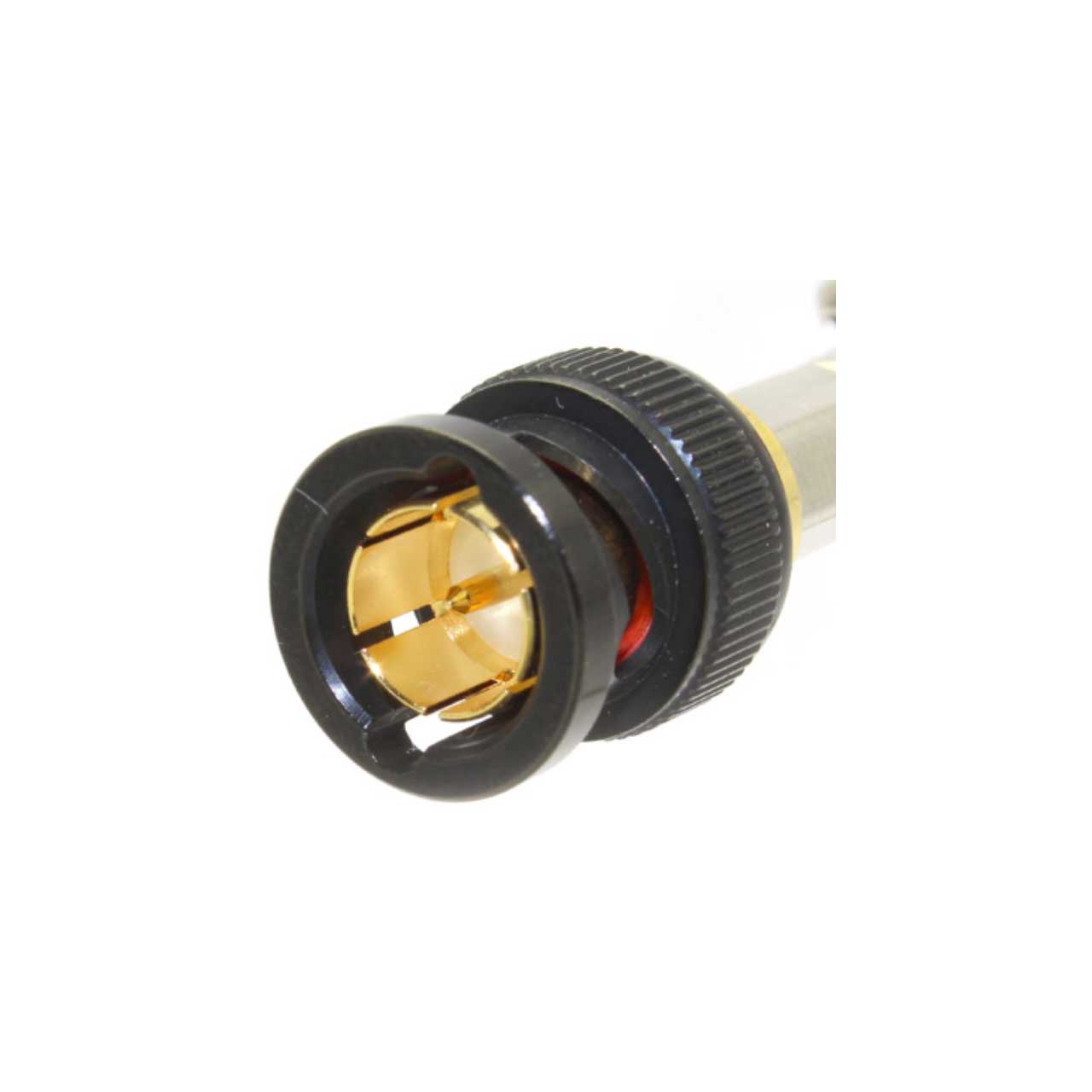

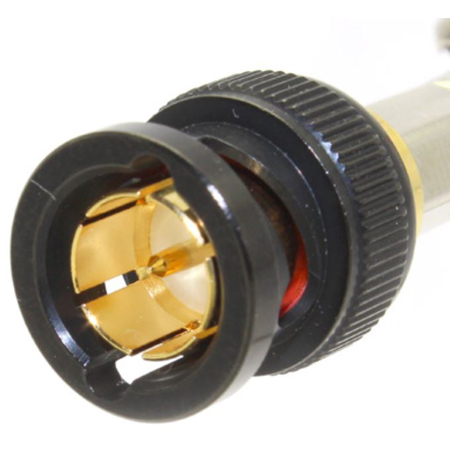

Coax Connectors 10-005-W126-FB1 is an Ultra HD 12G High Performance ‘KORUS’ 12GHz True 75 ohm BNC with black finished body and gold plated inner and outer contact using standard US crimp sizes. High Performance 75 ohm BNC crimp plug tested to meet the requirements of SMPTE ST 2081-1 & ST 2082-1 for use in 6G & 12G systems.. Suitable for cables in group FB. Please Note: ** Now Tested to 18 GHz **
Overall our 75 ohm series includes a range of High Performance connectors suitable for use at frequencies of 12GHz and beyond. When tested, many of these connectors have shown low loss performance up to 18GHz. BNC connectors feature a simple bayonet coupling requiring only a quarter turn to connect or disconnect. The easy to use coupling make BNC one of the most popular general purpose connectors used in all markets. Typical applications are, broadcast, including Ultra High Definition (4K), telecom, instrumentation, security, mil/aero and many others. See also our standard 50 ohm BNC, Mini BNC, Micro BNC sections.
