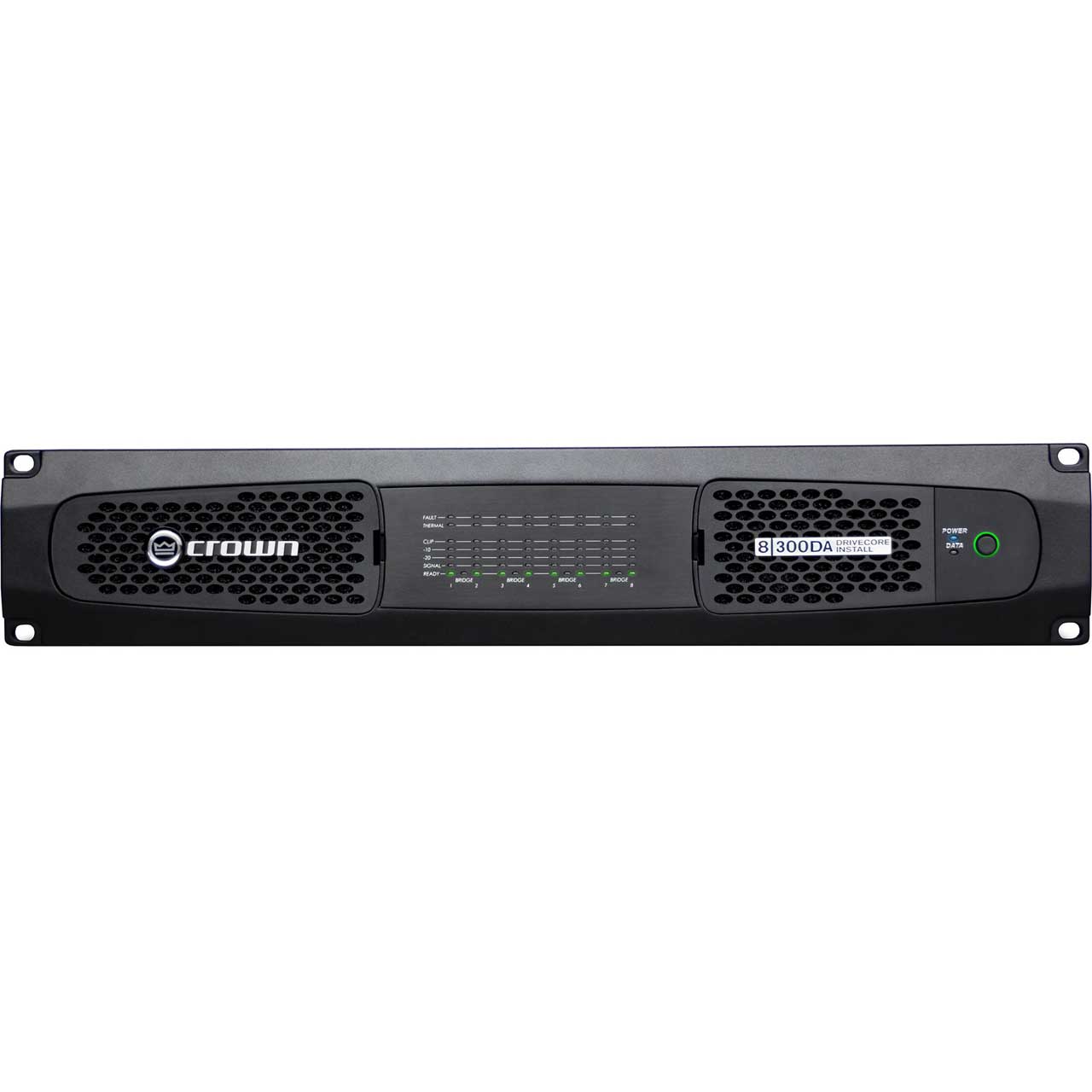

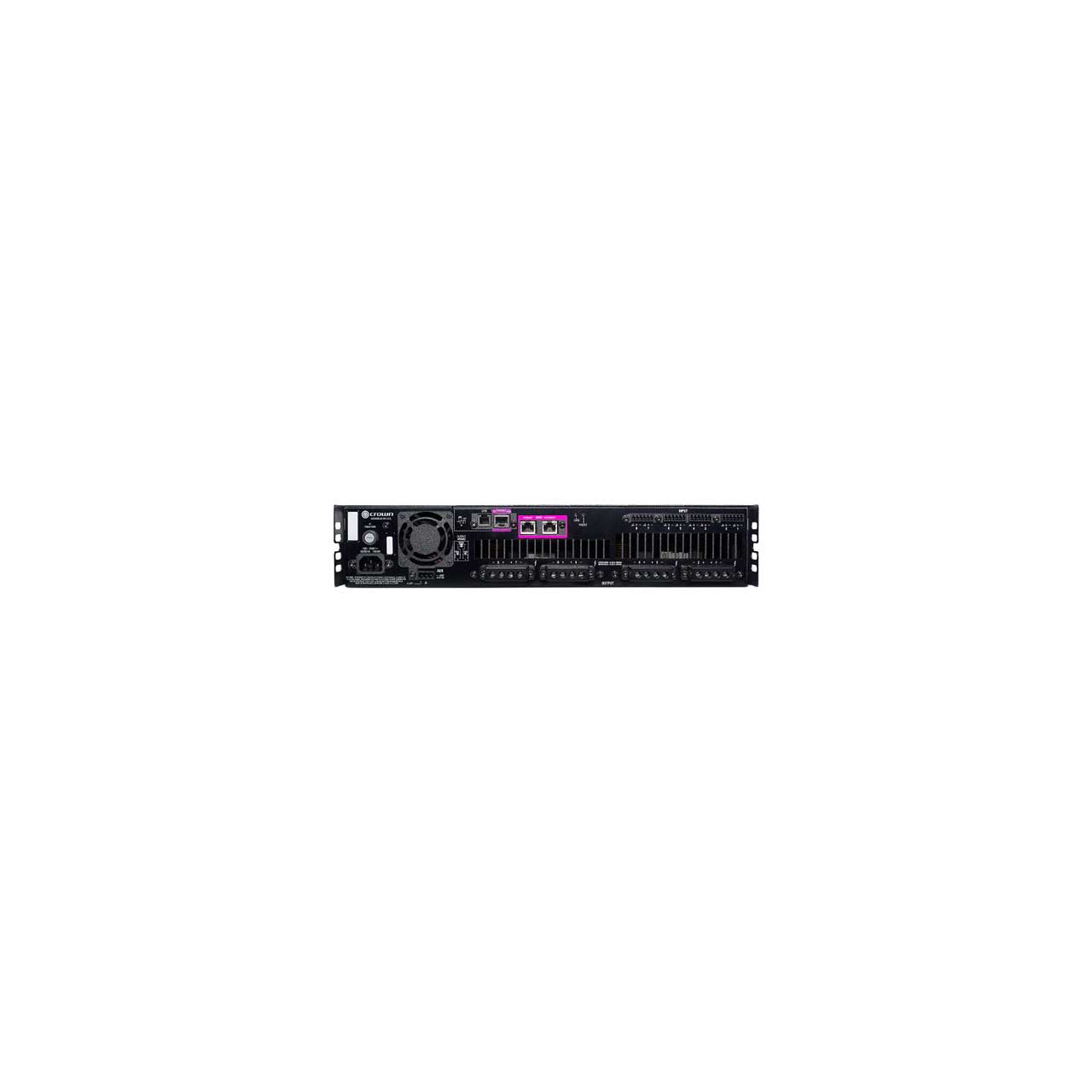

Crown DCI8300DA DCi DriveCore Install 8-Channel Power Amplifier with Dante Networked Audio - 300Watt

DCI8300DA - Overview

• Features:

  • Integrated Dante / AES67 Networked Audio - Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers. Includes support for Dante 4.0 firmware for integration with Dante Domain Manager.
  • Network Configuration, Monitoring & Control - Better monitoring, control and audio manipulation with the HiQnet protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.
  • Programmable General Purpose Input/Output Port - GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.
  • Digital Signal Processing - DSP capabilities include the following: LevelMAX Limiters, Input/Output EQ, Crossover, Delay, Matrix Router, Speaker Line Monitoring
  • EN 54-16 Compliant for Life Safety Applications - Part 16 of the European Union's (EU) EN 54 standard for fire detection and alarm systems has a specific requirement for voice alarms, which output messages in the form of a voice message rather than a traditional siren. This amplifier is certified as part of an EN 54-16VACIE*, meeting the stringent requirements of a life safety system to serve the needs of hospitality, large venue and other markets.


• Specifications:

  • Redundant, independent Dante / AES67 ports
  • Primary & Secondary
  • Will accept 48khz or 96khz
  • Capable of sending out Dante / AES67 audio from analog inputs pre/post processing (@ 48kHz)
  • Audio Architect Control and Monitoring
  • DriveCore Amplifier Technology
  • Universal PFC Power Supply
  • DSP
  • 48kHz processing
  • 20 Presets
  • Input router
  • High, medium, and low priority inputs
  • Input delay up to 2s
  • Input EQ
  • Crossover
  • Output EQ
  • Output Delay up to 100ms
  • LevelMAX limiter
  • Load Monitoring
  • Pilot tone
  • Normal
  • Burst
  • Continuous Load Monitoring
  • Sweep Load Monitoring
  • Channel Auto-Standby
  • Speaker Tunings
  • Aux-Port
  • Sleep contact closure
  • Amp Status output
  • Removable air filters
  • Front panel LED indicators
  • AES67 Compatible
  • EN 54-16 Compliant for life safety applications


• GTIN:

  0691991010194
