Connectronics CTX-12GSDI2SDI 12G-SDI to Dual-link 6G-SDI or Quad-link 3G-SDI Converter

Name: Connectronics CTX-12GSDI2SDI 12G-SDI to Dual-link 6G-SDI or Quad-link 3G-SDI Converter
Brand: Connectronics
SKU: CTX-12GSDI2SDI
Price: 495.00 USD
Availability: InStock

ITEM #: CTX-12GSDI2SDI MFG #: 12GSDI2SDI

Connectronics

List Price:

$599.95

Our Price:

$549.95

Special Price:

$495.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

12GSDI2SDI - Overview

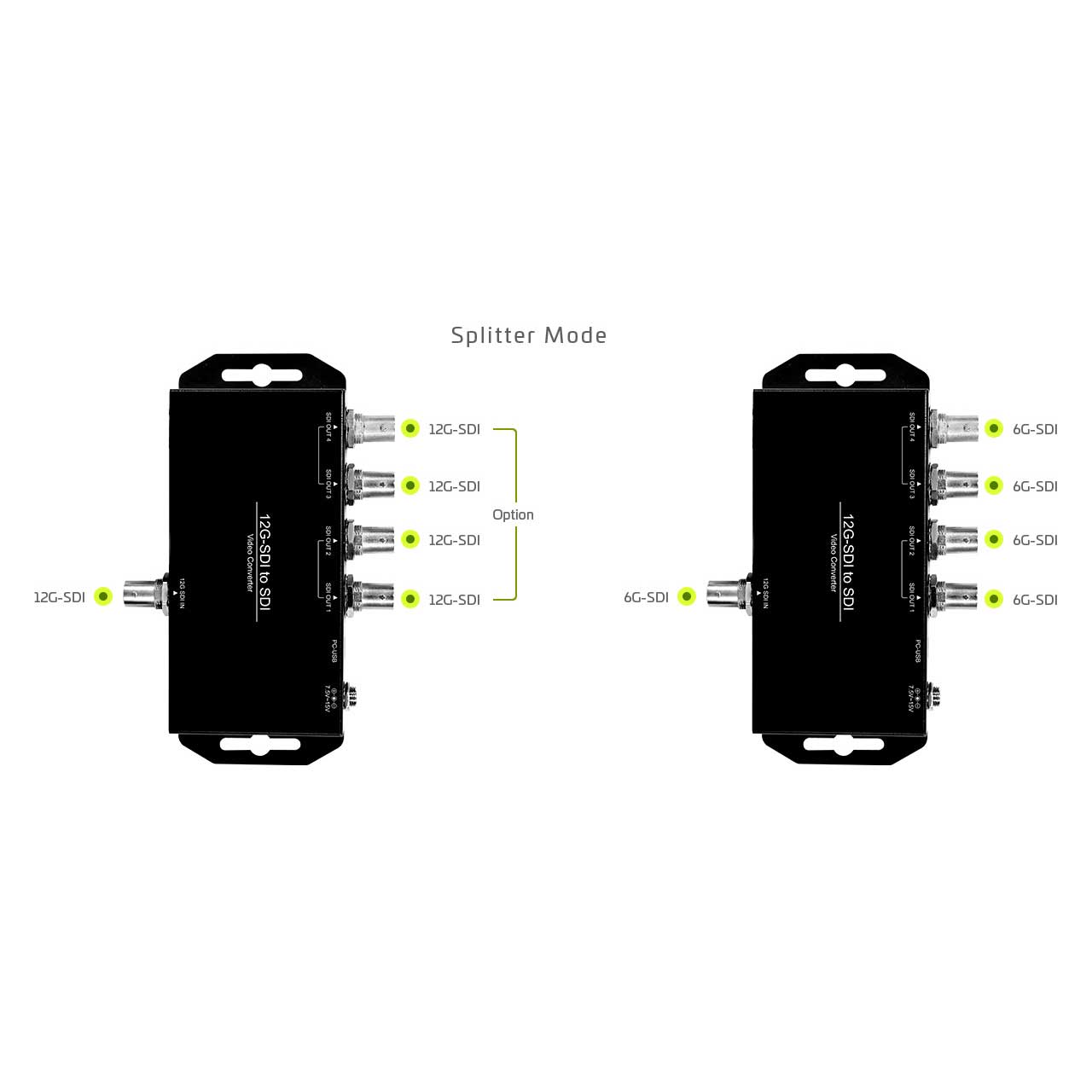

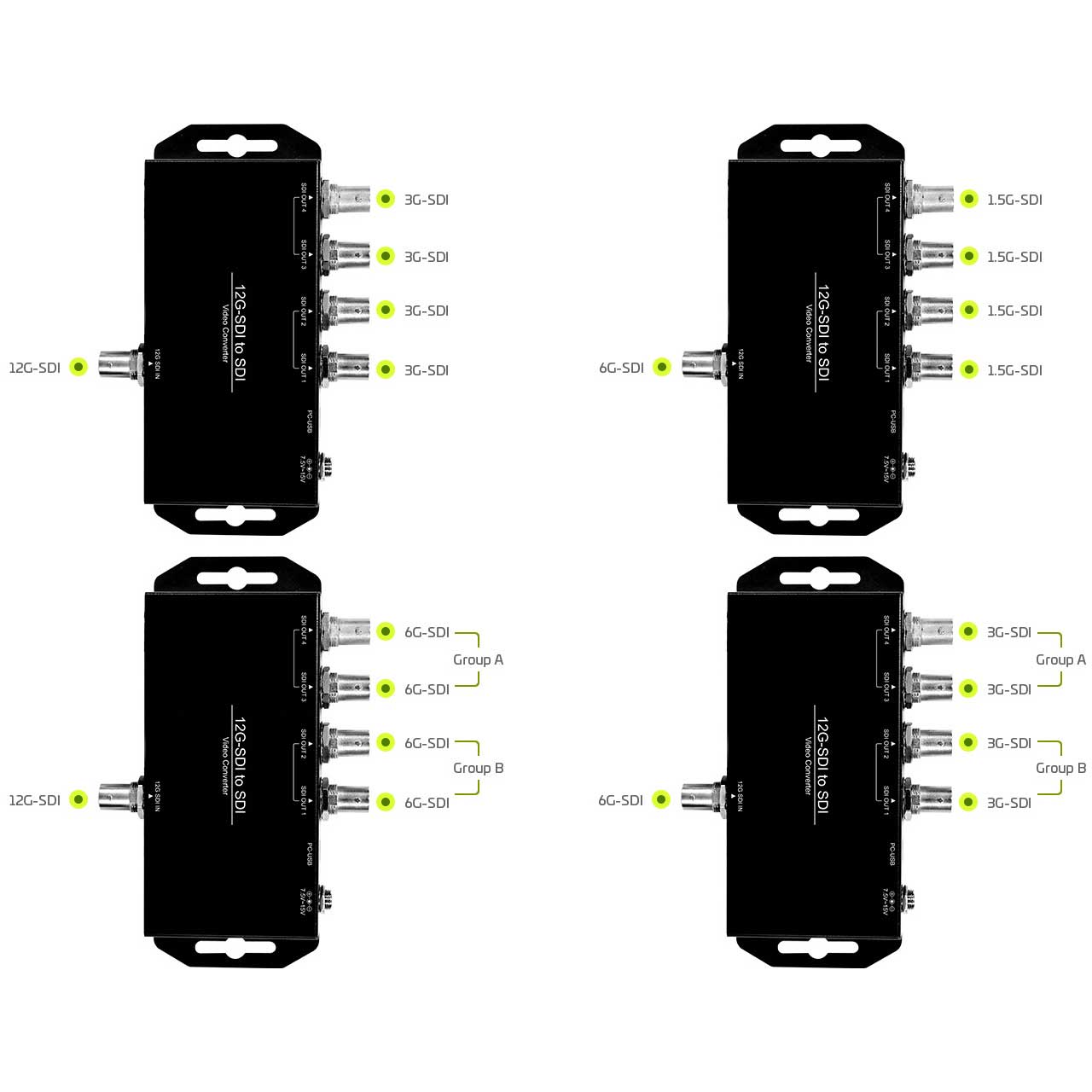

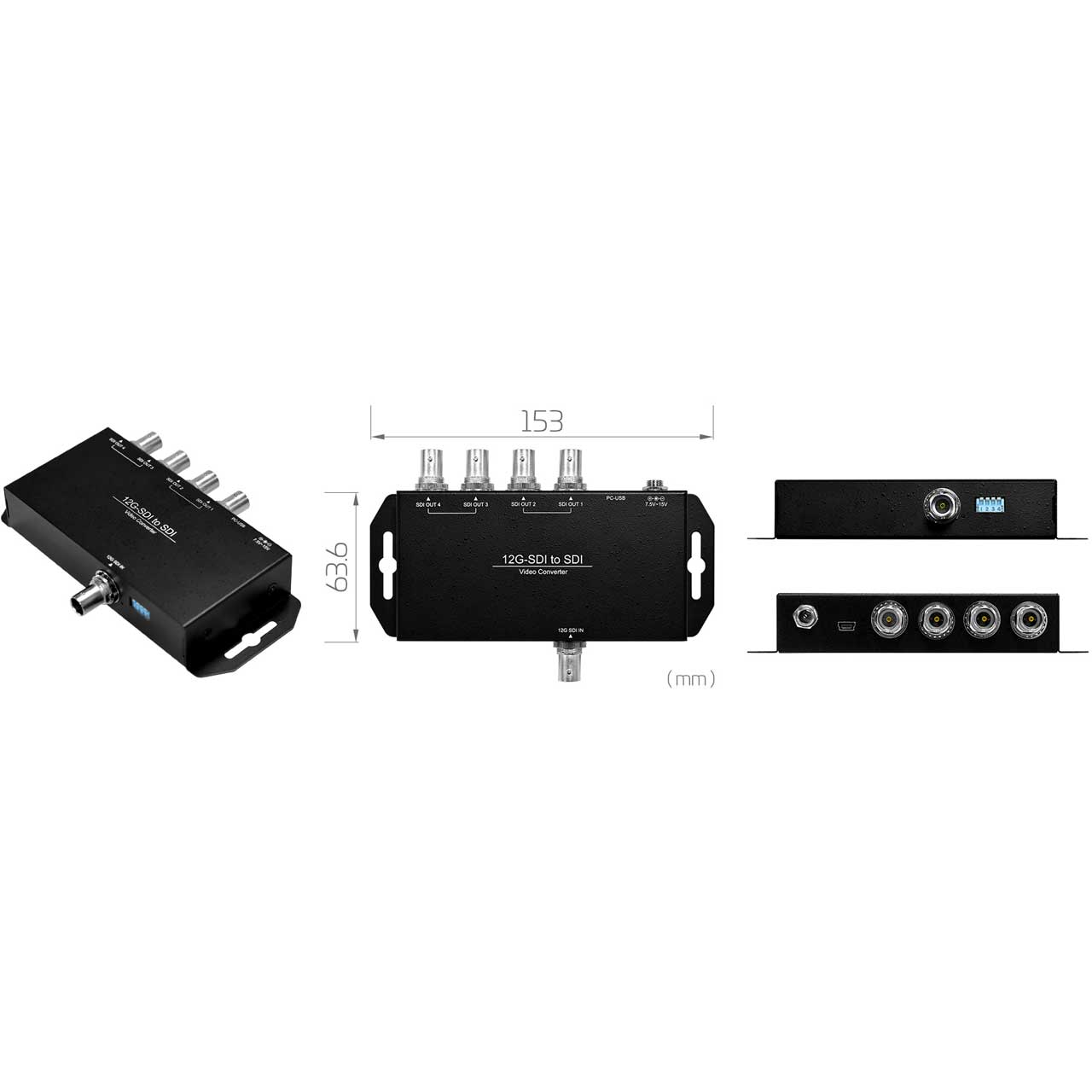

The Connectronics 12GSDI2SDI is a 12G-SDI to SDI Convertor. You can convert 12G-SDI to Dual-link 6G-SDI or Quad-link 3G-SDI. The small form factor combined with tough all-metal construction make it perfect for tight spaces in Rigs, Broadcast Trucks, Data Centers and more.

Features:
- Quad-link 2 Sample Interleave ( 2SI ) Output Supported
- Quad-link 3G-SDI Output Supported
- Dual-link 6G-SDI Output Supported
- Multi-Standard Support ( 12G / 6G / 3G / HD / SD - SDI )
- 3G - SDI Level A / B - Dual-link / B - Dual-stream Support
Specifications:
- Input Interface Video: 12G-SDIx1
  Output Interface Video: 12G-SDIx1 6G-SDIx3
  Supported Video Input Format: SDI
  Dual-Link 6G-SDI / Quad-Link 3G-SDI
- 4096x2160p@60/50fps
- 3840x2160p@60/50fps
  6G-SDI / Dual-Link 3G-SDI / Quad-Link HD-SDI
- 4096x2160p@30/25/24fps
- 3840x2160p@30/25/24fps
- 3G-SDI / Dual-Link HD-SDI
- 1920x1080p@60/50fps
  HD-SDI
- 1920x1080p@30/25/24fps
- 1920x1080i@60/50fps
- 1280x720p@60/50fps
  SD-SDI
- 720x480i@60fps
- 720x576i@50fps
  Supported Video Output Format:
  SDI
- Dual-Link 6G-SDI / Quad-Link 3G-SDI
- 4096x2160p@60/50fps
- 3840x2160p@60/50fps
  6G-SDI / Dual-Link 3G-SDI / Quad-Link HD-SDI
- 4096x2160p@30/25/24fps
- 3840x2160p@30/25/24fps
- 3G-SDI / Dual-Link HD-SDI
- 1920x1080p@60/50fps
  HD-SDI
- 1920x1080p@30/25/24fps
- 1920x1080i@60/50fps
- 1280x720p@60/50fps
  SD-SDI
- 720x480i@60fps
- 720x576i@50fps
