Universal Fiber Optic HDMI

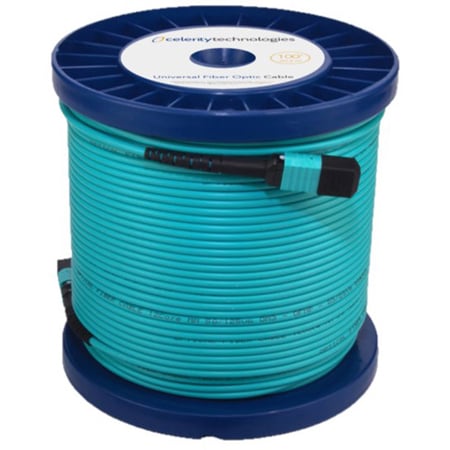

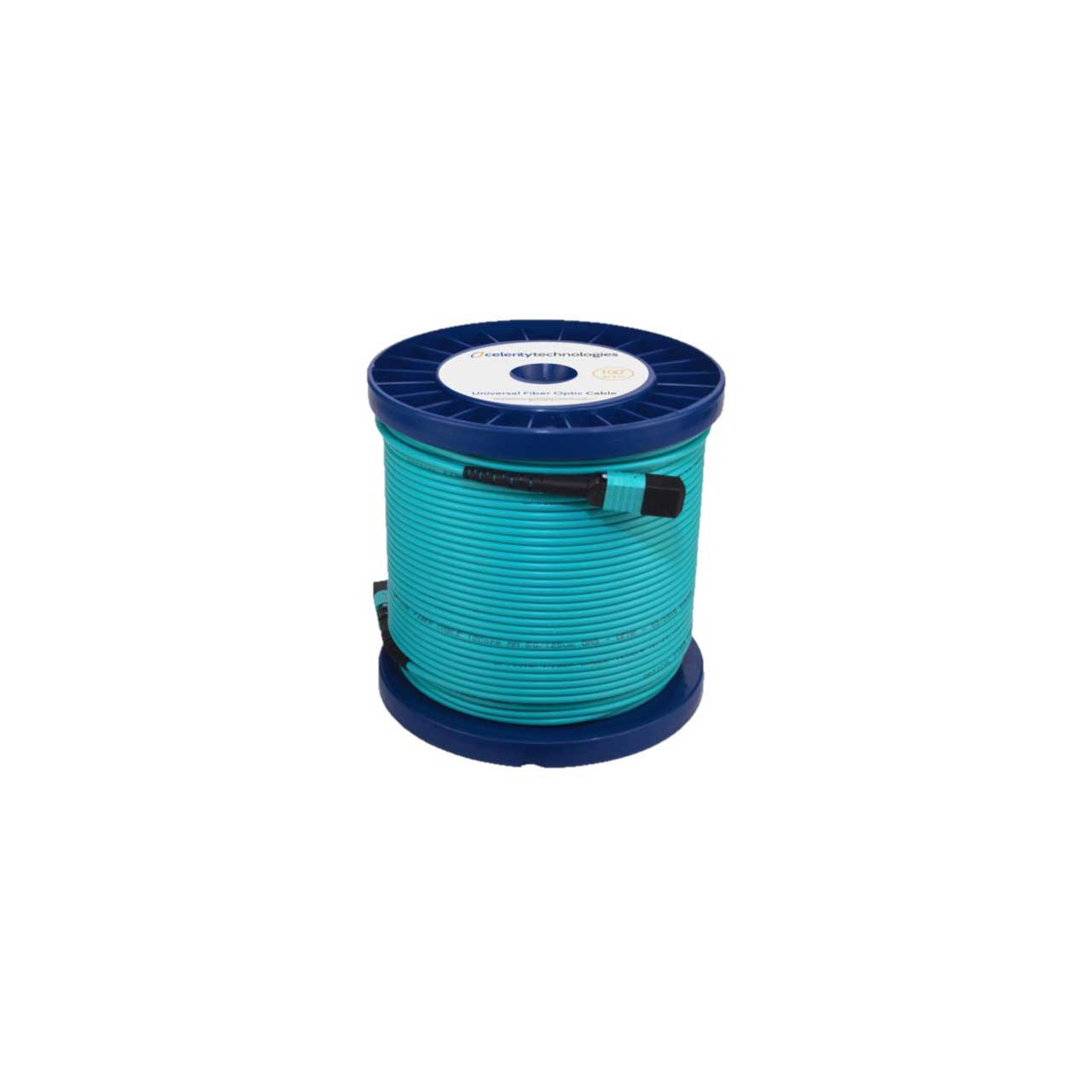

Celerity UFO-CABLE100P Universal Fiber Optic (UFO) supports HDMI 2.1 connections up to 1000 feet and offer the vey best possible picture quality. Celerity fiber optic cable shows full brightness highlights, and the wide range of colors as originally intended by the video engineers during mastering. Celerity fiber optic cable shows all the details of the video content being played. Celerity fiber optic cables offer isolation from EMI and are plenum rated and can be installed as residential, commercial and infrastructure cabling for current and future needs. Celerity HDMI connectors have received the following medical electrical equipment certifications:
IEC 60601-1:2005/A1:2012
EN 60601-1:2006/A12:2014
EN 55032: 2015
EN 55024: 2010+A1:2015
EN 60601-1-2 : 2015
Two Steps, No Tools
Celerity UFO is installed with a simple two-step process "Pre-Wire and Connect." This is made possible by Celerity's innovation with fiber optics so that fiber terminations, testing and tools are no longer necessary. This ensures reliability and efficient project deployment.
Bi-Directional Cable
The Celerity UFO Cable may be installed from any location between a source and display without the burden of ensuring the cable is in the correct direction. Celerity UFO is designed that each end of the UFO fiber cable acts as a precision optical pathway. Once the cable has been installed, it is ready for source and display connections. This UFO Cable has received the following certification:
UL certified as Optical Fiber Non-Conductive Plenum OFNP
Fiber Optics Connectors
An HDMI transmitting (TX) connector and an HDMI receiving (RX) connector are coupled to the ends of the Celerity UFO Cable and connected to the components.Each Celerity Connector has a 3" Celerity fiber optic cable and integrated 5V USB power cable for final connections at the component.
5V Power
HDMI source components (TX) supply 5V power. Celerity UFO takes advantage of this feature to draw power for the source UFO TX connector cable.In rare instances, the source component may not provide this signal. For this condition, a hardwired USB power cable is included to draw power externally when necessary. At the display (sink) location, the UFO RX connector US power cable must be connected to a 5V powered USB connector located on the display panel or or projector.
UFO Couplers

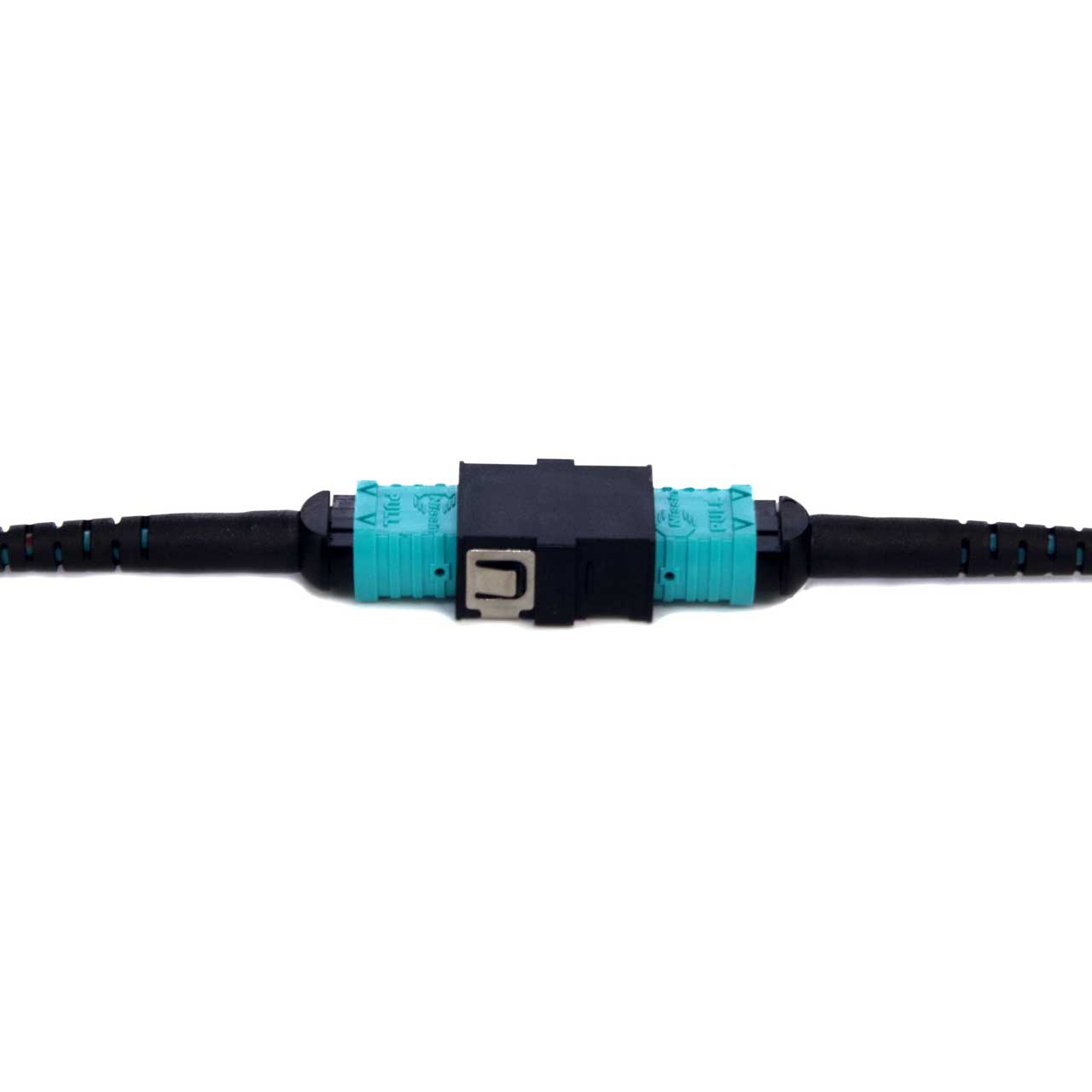

Celerity UFO Connectors include a pair of locking couplers that have been designed to ensure correct optical alignment between the UFO cable and the UFOTXandRXconnectors. The UFOcoupler adds further protection for the precision optical connection between the fiber cable and the connector.
UFO Protective Caps
Celerity UFO Cables and Connectors are terminated with a precision optical lens that must be kept free from dust and debris. Each of these optical lenses are protected by a rubber cap that remains in place until the UFO cables are joined.The UFO coupler then provides protection for the life of the cable connection.
Keystone Wall Plate
Celerity UFO may be adapted to a keystone wall plate connection for applications where a flush-mount architectural connection is required. A single-gang wall plate with a UFO Keystone coupler is available separately and may be installed at one or both fiber cable ends.The Celerity UFO Connector easily connects to the keystone coupler with a spring-loaded connector lock to ensure a reliable connection.
