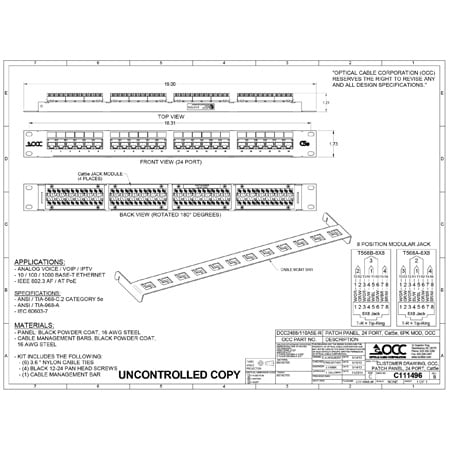

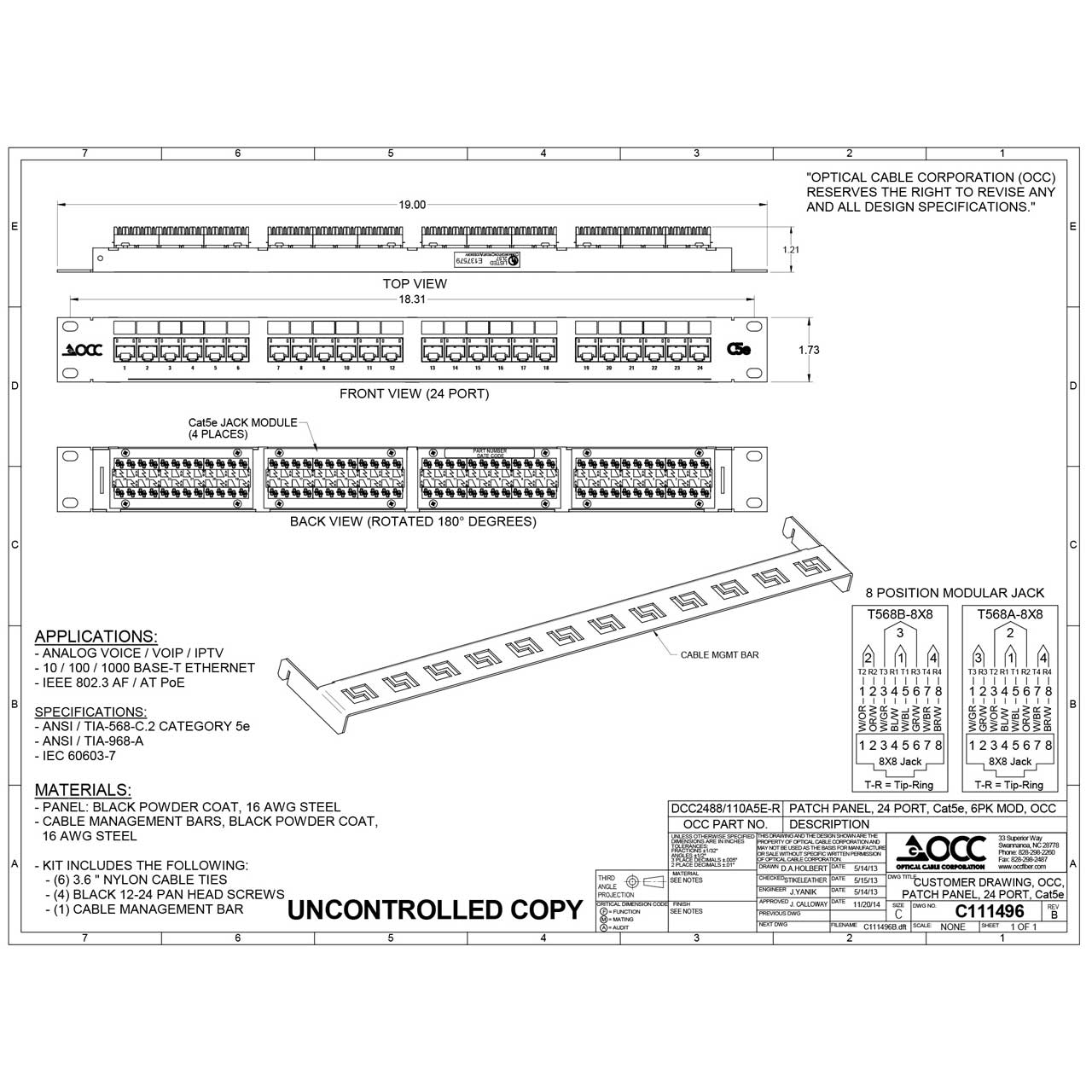

OCC DCC2488/110A5E-R Rack Mount Patch Panel

DCC2488/110A5E-R - Overview

• Features:

  • Available in 12, 24 & 48
  • Comfortably exceeds TIA-568-C.2 Cat 5e requirements
  • ISO/IEC60603-7 compliant
  • Patented PC board technology
  • Constructed of cold rolled steel for durability
  • Rigid design provides solid frame for high-impact punch-down tools
  • Universal TIA 568A/B wiring configuration
  • IDC’s rated for 200 wire insertions
  • Write-on label fields
  • Cable strain-relief bar provided
  • Patch panels are available in both flat and angled configurations
  • Supports all IEEE Power over Ethernet (PoE) standards
  • Insulation resistance: 500MΩ minimum
  • Dielectric withstand: 1000 VAC RMS or 1414 VDC
  • DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient


• Specifications:

  • Rack Mount Patch Panel
  • 568A/B Wired
  • 24-Port
  • Category 5e
  • Rack Mount Patch Panel
  • 568A/B Wired
  • 24-port
  • 1U
