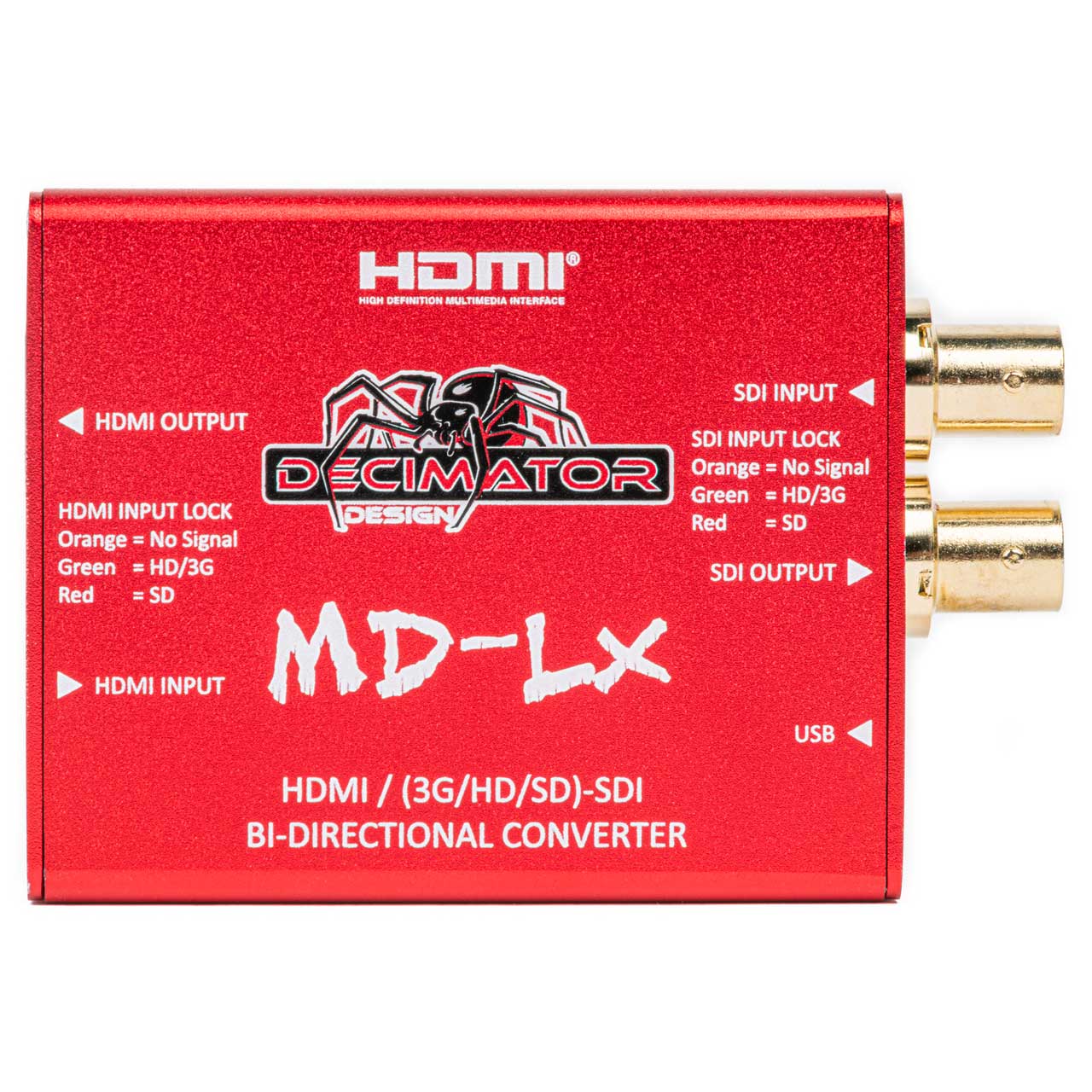

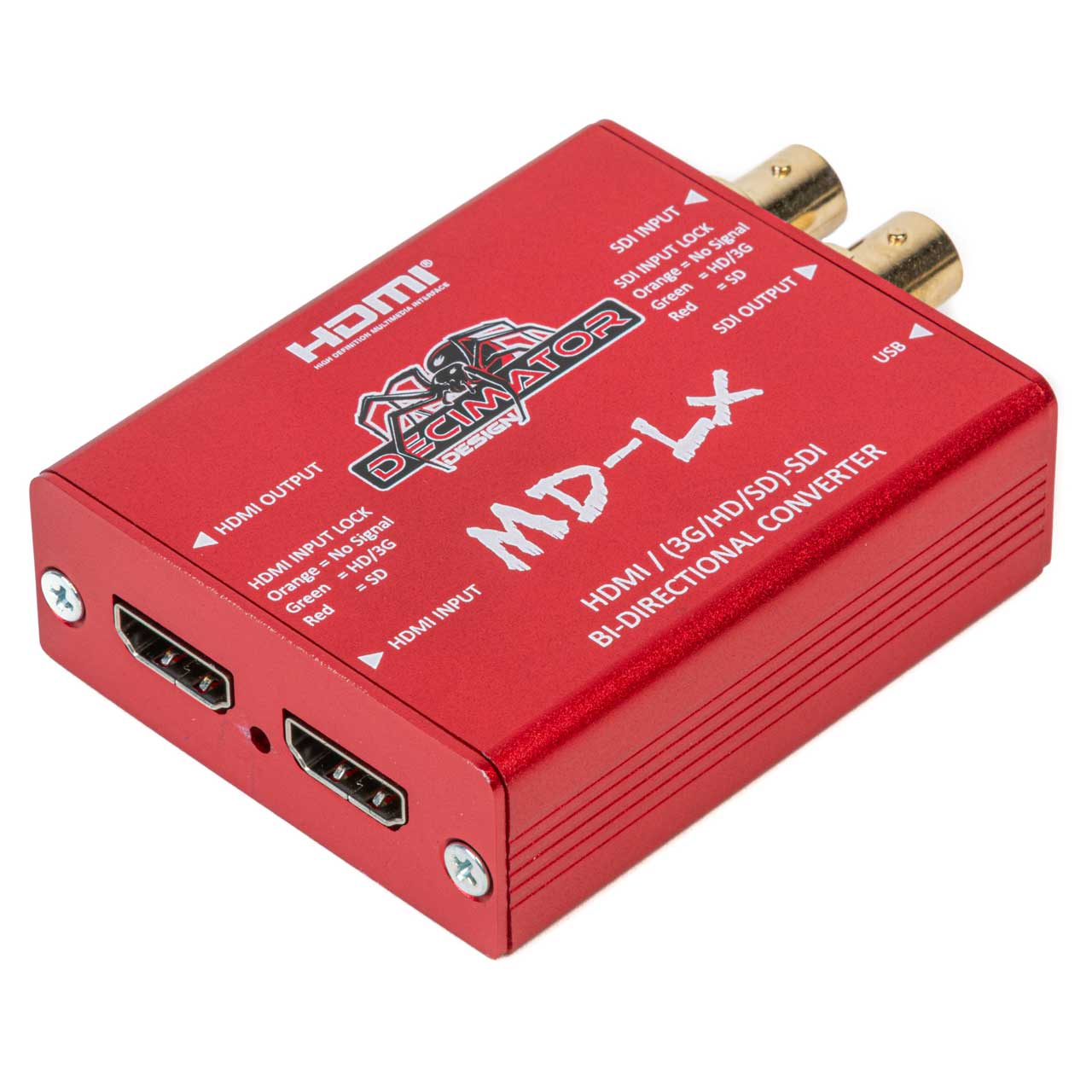

Decimator MD-LX HDMI/SDI Bi-Directional Converter for 3G/HD/SD - Bstock (Vendor Refurbished - Unit Only)

DEC-MD-LXBSTK4 - Overview

• Features:

  • Auto Select (Active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI)
  • HDMI in to SDI out and SDI in to HDMI out
  • SDI in to HDMI and SDI out
  • HDMI in to HDMI and SDI out
  • Low Power enabling operation from the USB
  • USB provides for power, control and firmware upgrades
  • This unit also includes a Power Supply and USB Cable


• Specifications:

  • SDI Formats:
  • 3G-A or 3G-B:SMPTE [email protected] and 2.967Gb/s, 1080p@60/59.94/50Hz
  • HD: SMPTE 292M/274M/[email protected] and 1.435Gb/s, 1080i@60/59.94/50Hz, 1080p/psf@30/29.97/25/24/23.98Hz, 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD: SMPTE 259M@270Mb/s, 625i50 (PAL), 525i59.94 (NTSC)

    HDMI Formats:
  • 1080p@60/59.94/50/30/29.97/25/24/23.98Hz, 1080i@60/59.94/50Hz, 720p@60/59.94/50/30/29.97/25, 625i50 (PAL), 525i59.94 (NTSC)
  • Inputs: 1x HDMI Type A / 1x (3G/HD/SD)-SDI / Micro USB for power, control and firmware updates
  • Outputs: 1x HDMI Type A / 1x (3G/HD/SD)-SDI
  • Power: USB Power +4.4V to +5.25V DC, Uses under 2.5 Watts
  • Dimensions: 2.4" x 2.9" x 0.9"


• Item Includes:

  • Power Supply
  • USB Cable
