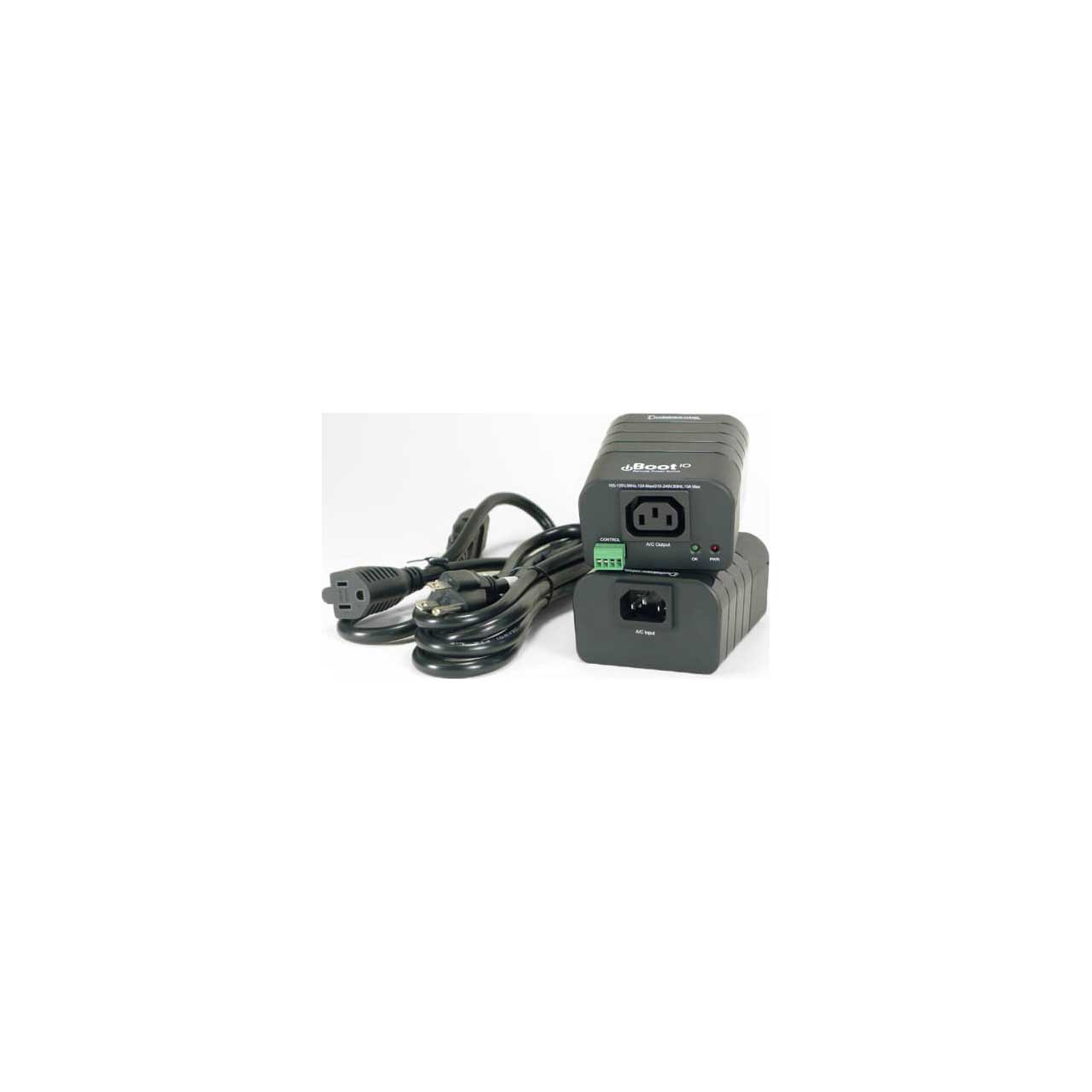

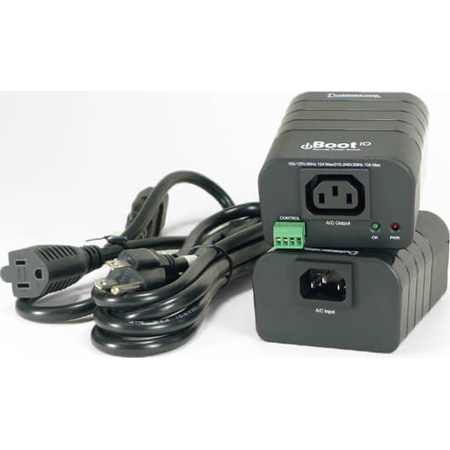

The Dataprobe iBoot-IO-OFF (default power off) is a remote controlled power On / Off switch. One external control input is used to switch the power ON and OFF. The iBoot-IO also provides a feedback circuit to verify the current power status. iBoot-IO handles worldwide power from 105-240VAC. It is capable of switching up to 12 Amps at 120VAC and 10 Amps at 220 VAC. Screw terminals provide connection to the contact closure control and feedback circuit. Power connections are made using supplied IEC-320 to NEMA 1-15 cables.
Leverage your existing GPIO contact closures or logic levels into AC power control with Dataprobe iBoot-IO-OFF (default power off). A single outlet power switch with I/O control, iBoot-IO allows you to easily integrate remote power control into your existing management system and manage devices remotely. iBoot-IO is perfect for remote reboot, test automation, environmental control, security access or any remote or automated facilities.
Four models are available to cover any I/O Controlled power application. Select between default power ON typically for remote reboot applications or default power OFF to reverse the logic of the inputs. Models are also available for either wet or dry control inputs. Wet (Logic Level) inputs trigger on +3 to +12 VDC and are suitable for TTL and RS-232 control signals.
Instant Remote Control
From closing a gate on a ranch, to causing an alarm to sound, to managing a boiler room from another building, iBoot-IO gives you the flexibility to monitor and respond to physical alert conditions from wherever you are.

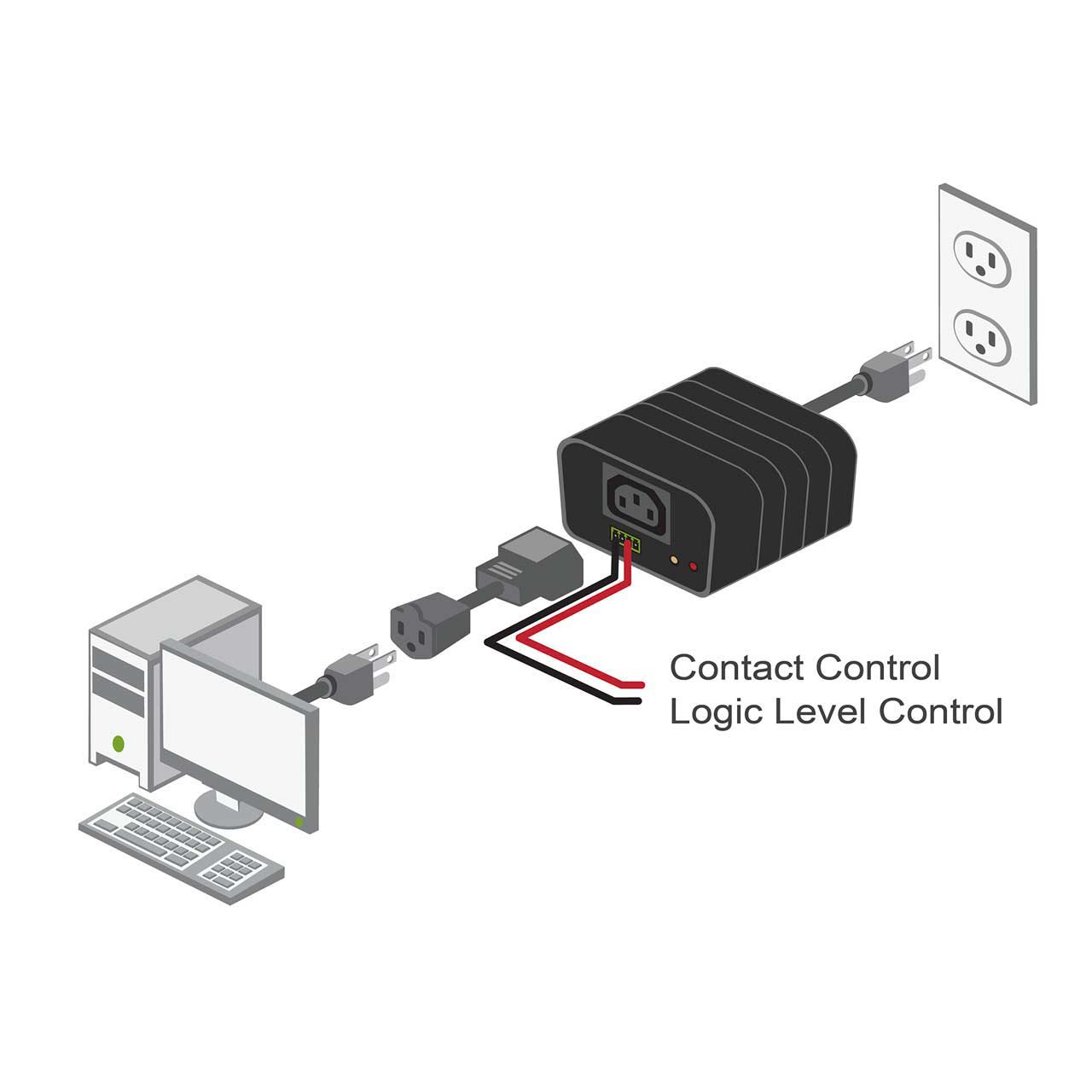

iBoot-IO is easy to install - just attach it to the device you want to control, plug it ino the power outlet and close the control contacts, and you'll gain remote access.
Powerful Features
iBoot-IO uses industry standard IEC connections and ships complete with input and output cords for North America. It's available in four versions: default power on, standard for remote reboot applications, and default power off, where a closure is required to turn power on.
