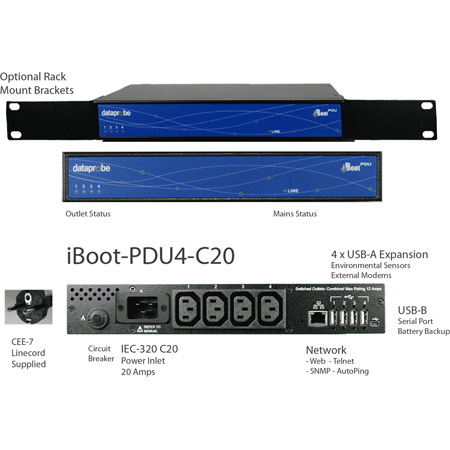

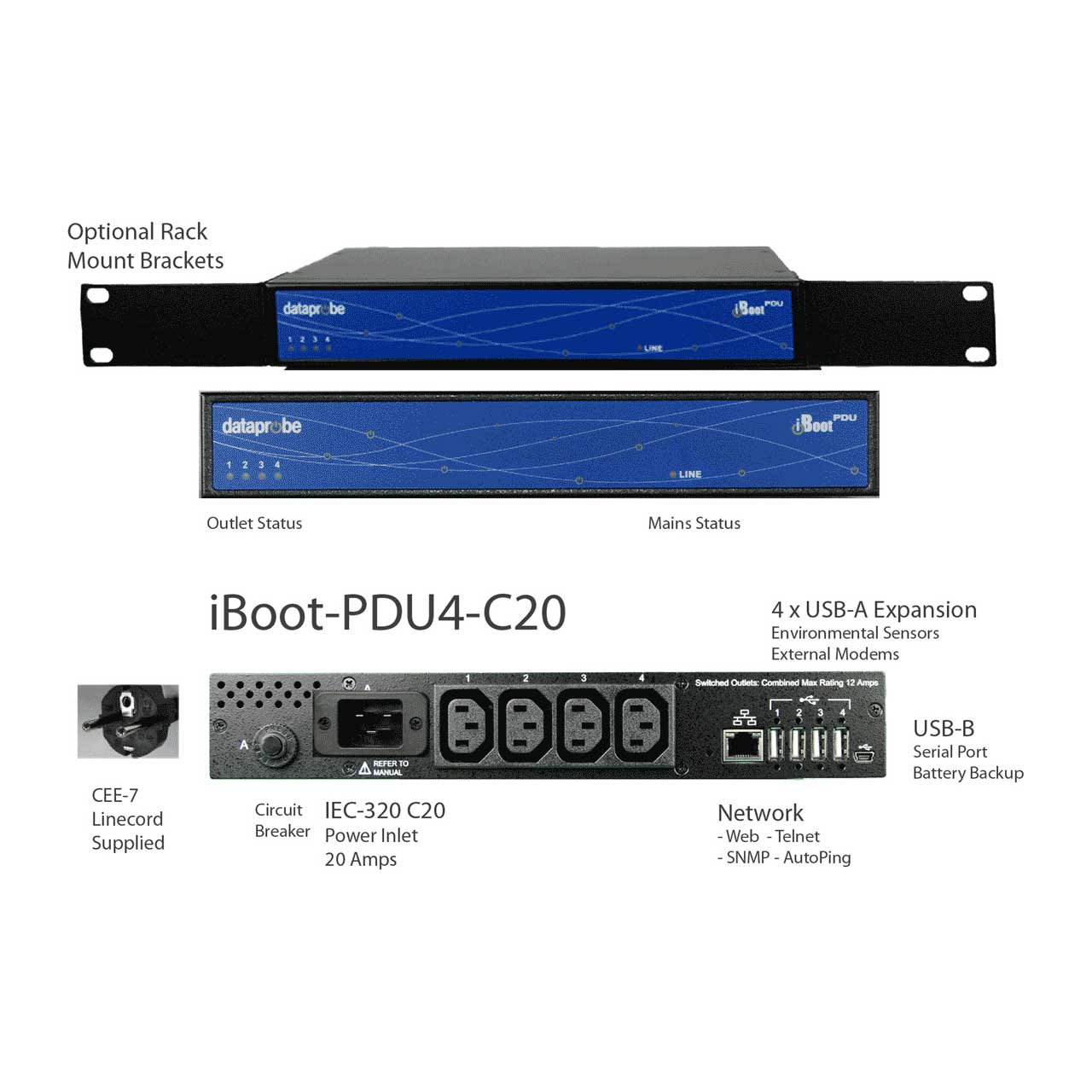

Dataprobe iBoot-PDU4-C20 Switched PDU 4 Outlet IEC 20A

ITEM #: DTPB-IBOOT-PDU4 MFG #: IBOOT-PDU4-C20

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$410.00

Our Price:

$365.93

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


IBOOT-PDU4-C20 - Overview

Power Distribution Units with clear easy to use web interface. This rack mounted PDU makes it easy to manage A/C power from any location. This is a switched and managed PDU, each outlet is independently controlled.

The web page presents a clear status indication of each outlet, current draw across all inputs and the AutoPing monitoring, if implemented. Multiple PDUs can be managed from a single web page.

Each outlet on this PDU can be individually selected, or multiple outlets can be simultaneously operated. User selectable cycle timer allows single command reboot. Delay timer limits inrush current by staggering power up when multiple devices are simultaneously controlled.

  • Features:

    • Independently Controllable Outlets
    • Web Browser Control
    • Integrated 1Gig Ethernet Switch
    • Telnet/Serial CLI Control
    • Multiple Users
    • Grouping of Outlets for Simultaneous Management
    • Automation
    • Multiple iBoot-PDU Cluster Configuration
    • Real-Time Event Control
    • Landline Modem Option
    • Network Management

  • Specifications:

    • Physical
    • Height: 1U 1.75 in (4.5 cm)
    • Width: 11.0 in (27.94 cm)
    • Depth: 6.00 in (15.25 cm)
    • Weight: 4.5 lbs (2 kg)

      Temperature
    • Operating: 0 to 65o C
    • Storage: -10 to 85o C
    • Relative Humidity: 0 to 95% Non-Condensing
    • Altitude: 2000m Operating

      AC Input
    • 100-240 VAC VAC
    • 10 AMP Models: IEC320 C14 Receptacle
    • 20 AMP Models: IEC320 C20 Receptacle

      Network
    • Single or Dual (S Models) 1G Ethernet
    • Web, Telnet, SNMP, SMTP
    • Port Assignable for Web and Telnet.
    • SSL Security on Web control

      Temperature Module Option
    • USB Dual Temperature Sensors. Sensor 2 on 1m cable.

      Switched Outlet
    • 4 or 8 IEC 320 C13 Receptacle
    • 10 Amps Max per Receptacle
    • -C10 Models: 15 Amps Max per Linecord
    • -C20 Models: 20 Amps Max per Linecord
