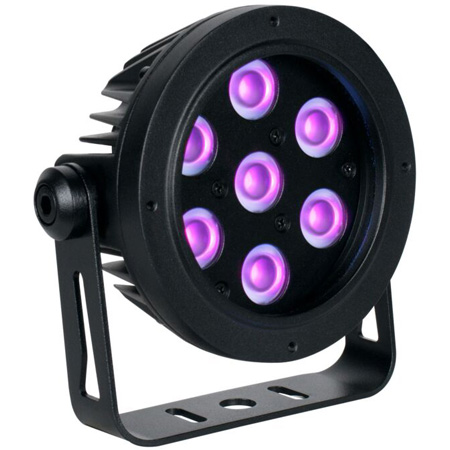

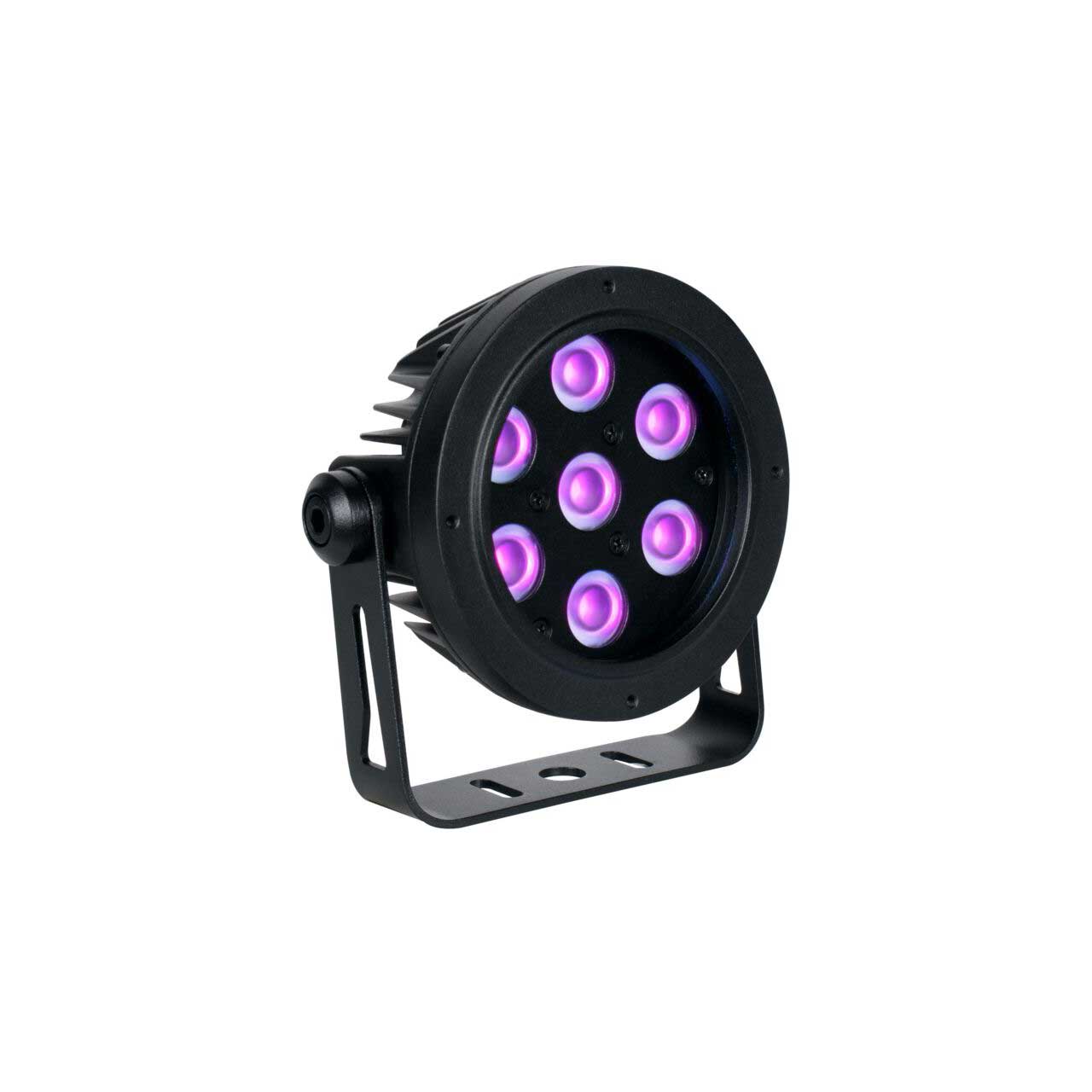

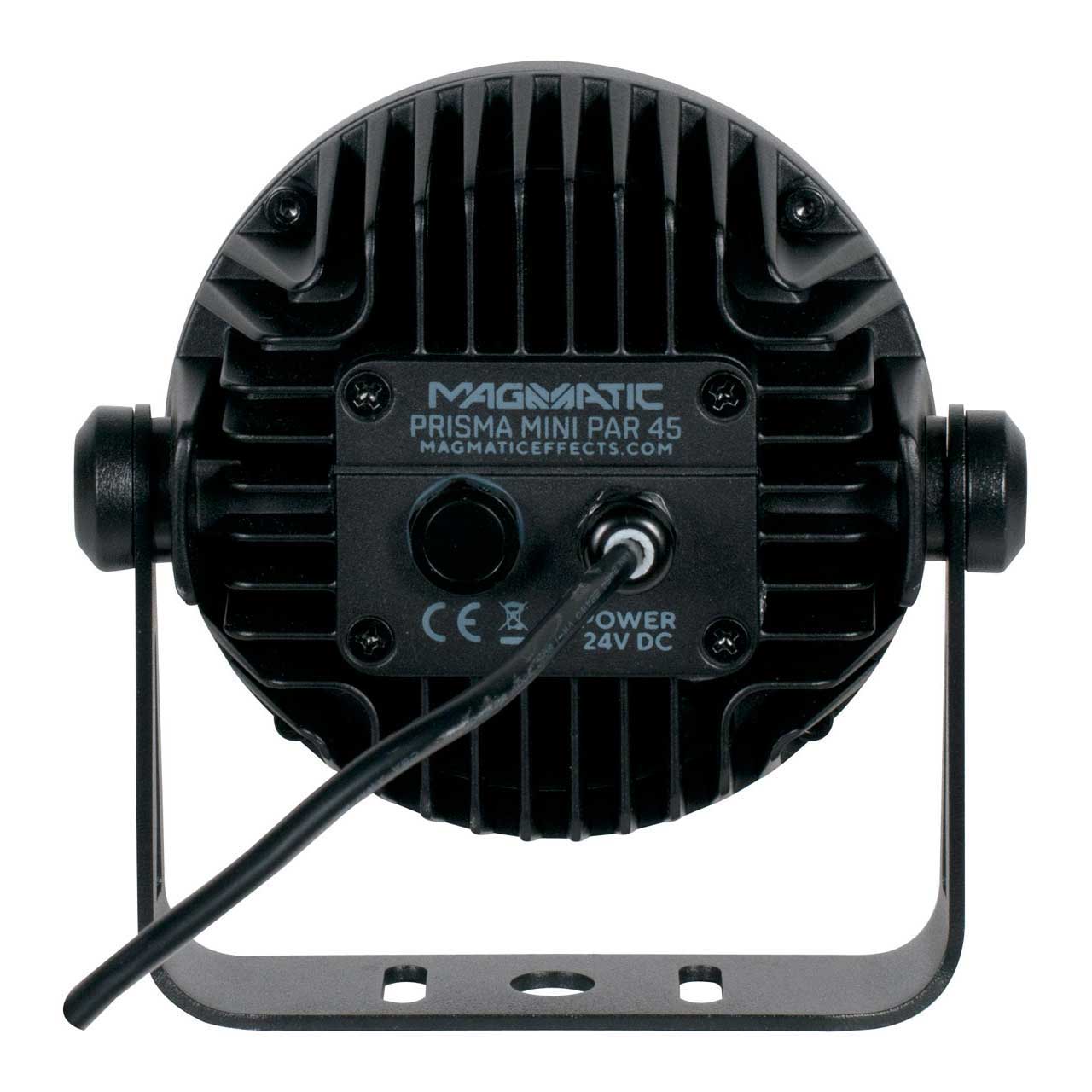

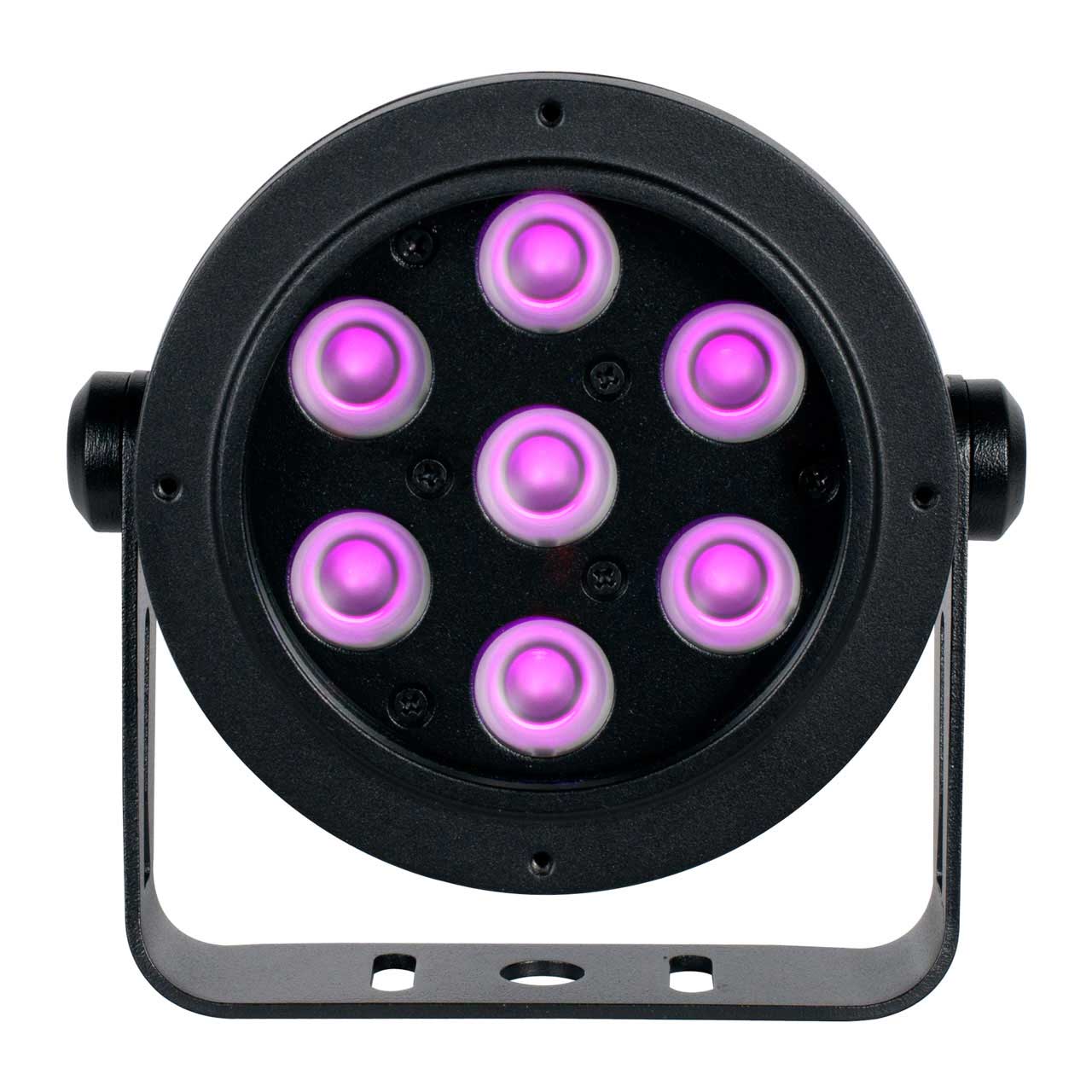

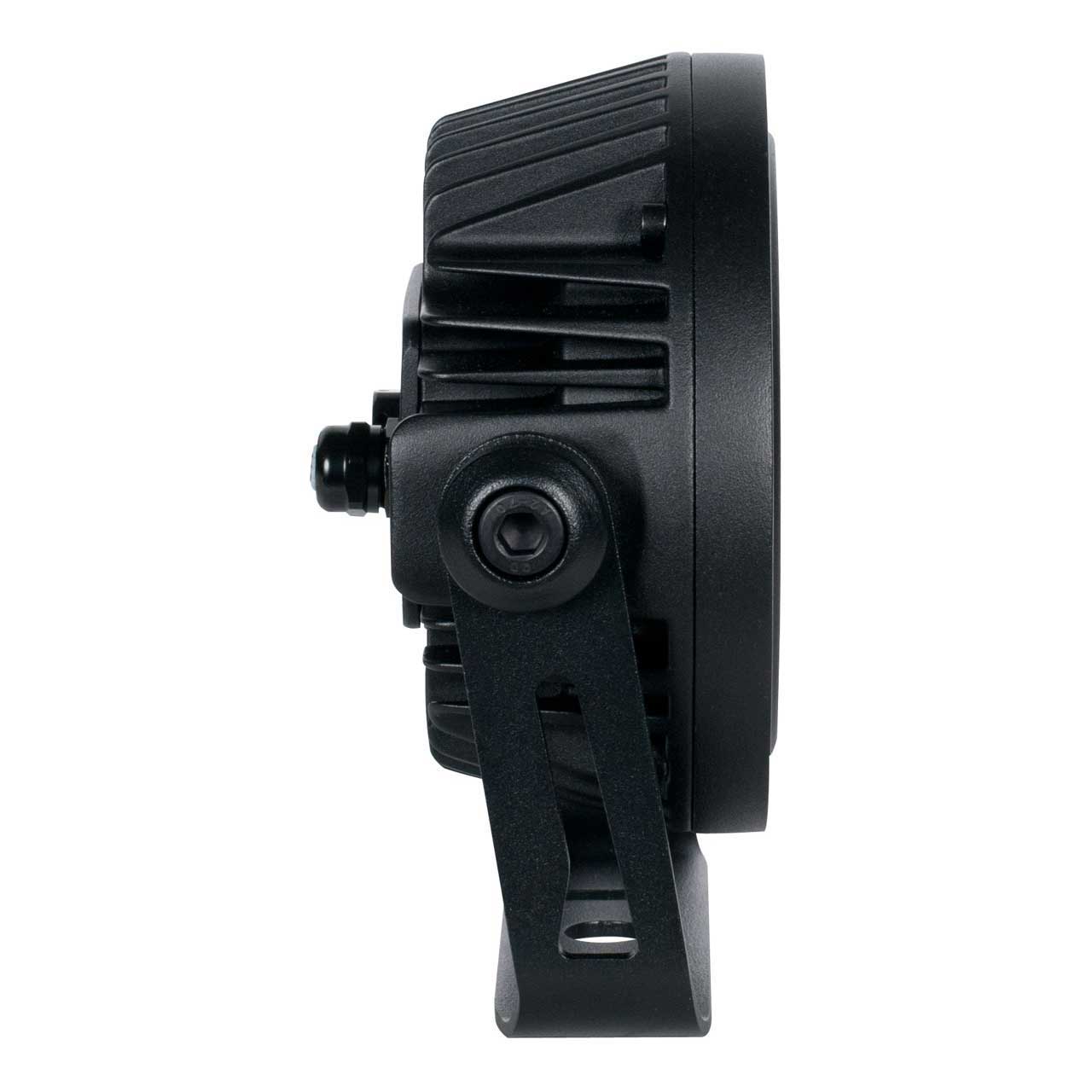

Elation Professional PSP145 Magmatic Prisma Mini Par 45 IP65 Rated Exterior UV Wash Par Luminaire

PSP145 - Overview

• Features:

  • IP65 Rated Exterior High-Power UV Wash Par Luminaire
  • 45 Degree Wide Beam Angle
  • 365nm True UV Peak Wavelength
  • Zero Visible Light Output
  • IP Rated Power/Data Pigtail Cable Attached


• Specifications:

  • Source:
  • (7) 2W High Power UV Diode LEDs
  • 20,000 Hour Average LED Life*
  • *Test lab conditions. May vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

    Photometric Data:
  • 45 Degree Wide Beam Angle
  • 365nm True UV Peak Wavelength

    Effects:
  • High Speed Electronic Strobe
  • Variable Dimming Curve Modes

    Construction:
  • Rugged IP65 Rated Aluminum Housing
  • Adjustable Mounting Yoke

    Control:
  • Multiple DMX Channel Modes
  • DMX-512 and RDM Protocol Support

    Connections:
  • 9 ft (2.7m) 2-Conductor 14 Gauge IP Rated Power/Data Pigtail Cable Attached
  • With Wired Digital Communication Network

    Size / Weight:
  • Length: 5.70 in. (145mm)
  • Width: 2.75 in. (70mm)
  • Vertical Height: 5.7 in. (145mm)
  • Weight: 1.98 lbs. (0.9kg)

    Electrical:
  • AC100-240V 50-60Hz
  • Max Power Consumption pending

    Thermal:
  • 14°F to 113°F (-10°C to 45°C)
  • Air Cooled


• Item Includes:

  • 1x Power Cable


• Warranty:

  • 2 Year


• GTIN:

  0810008261170
