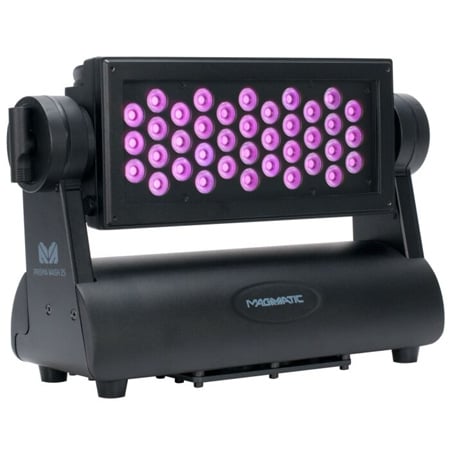

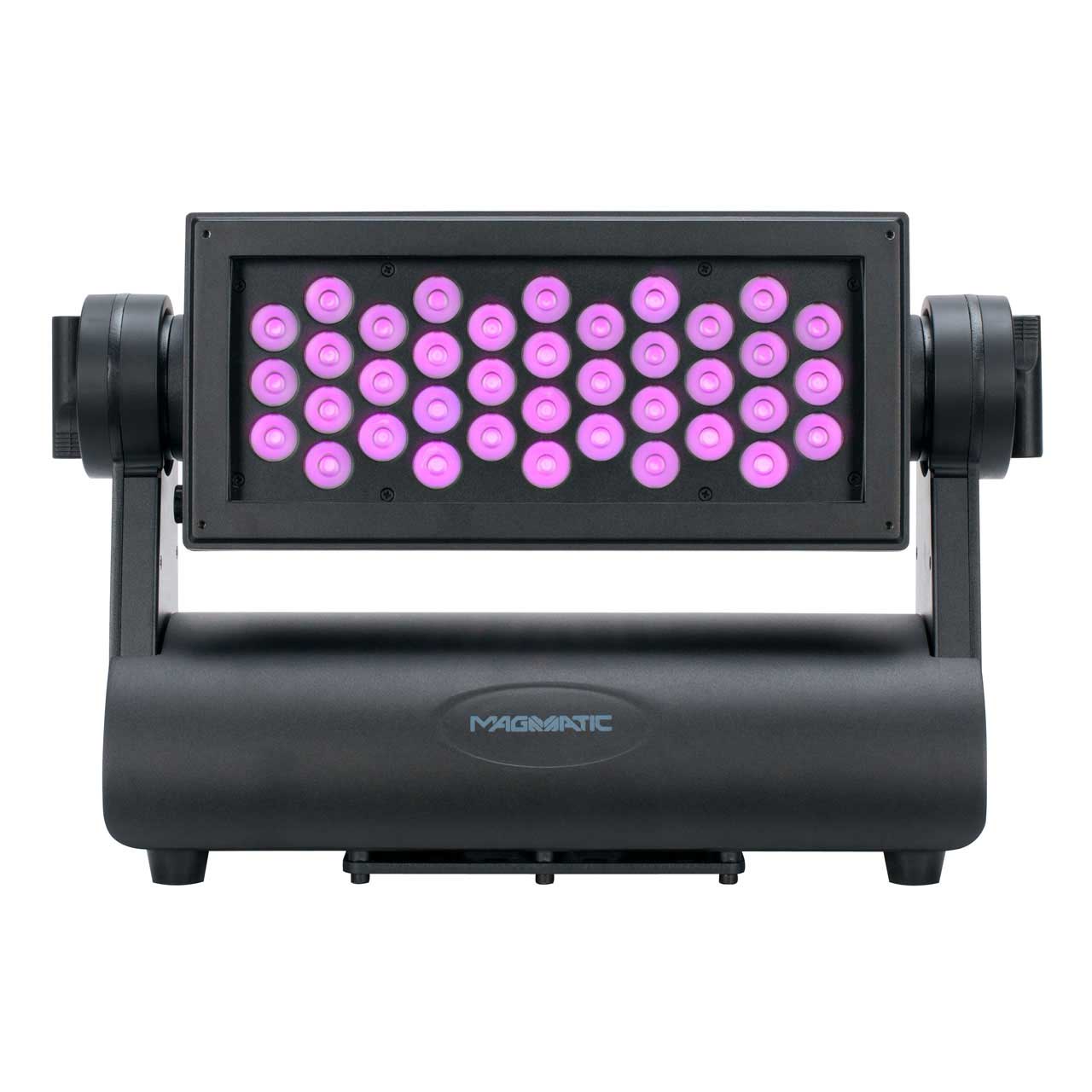

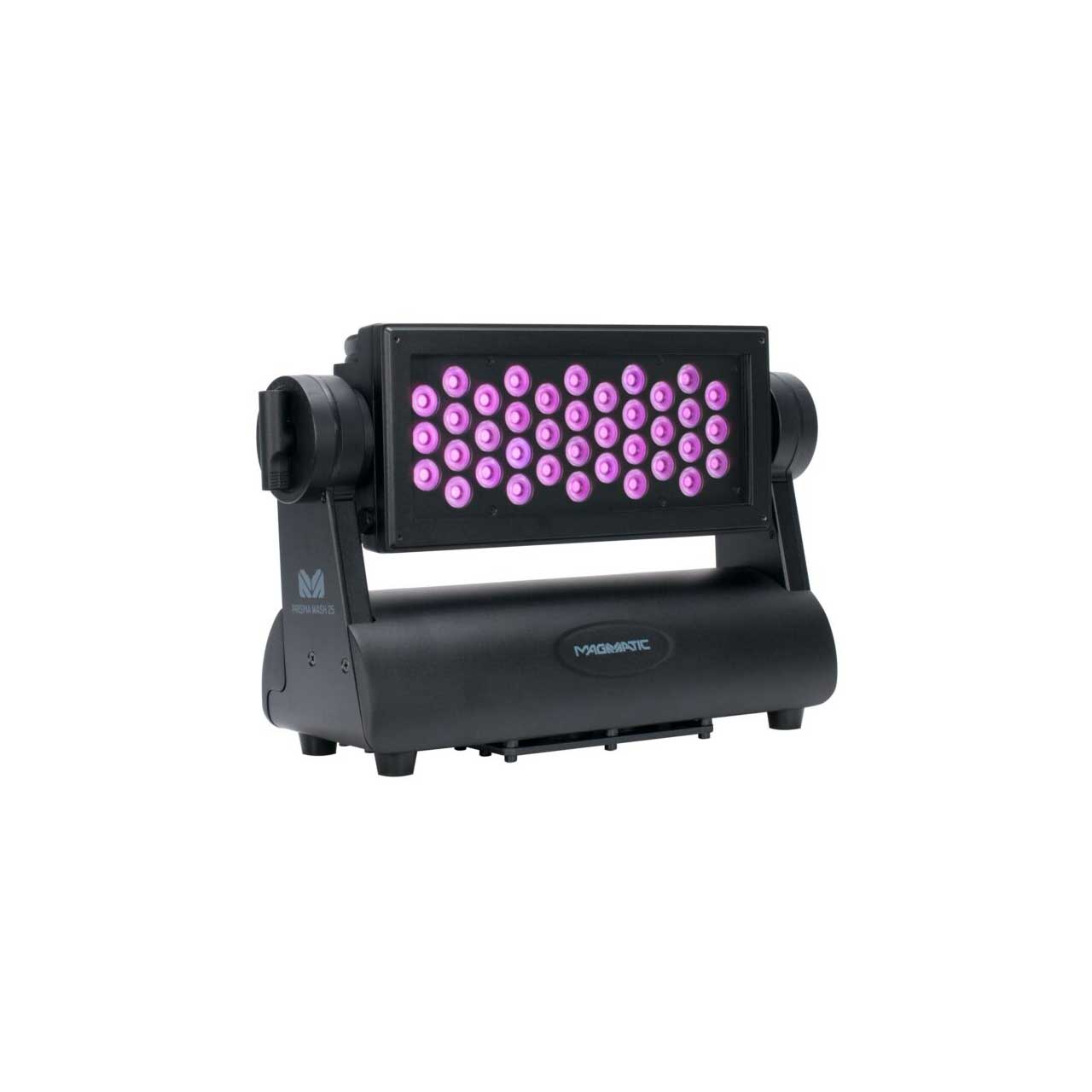

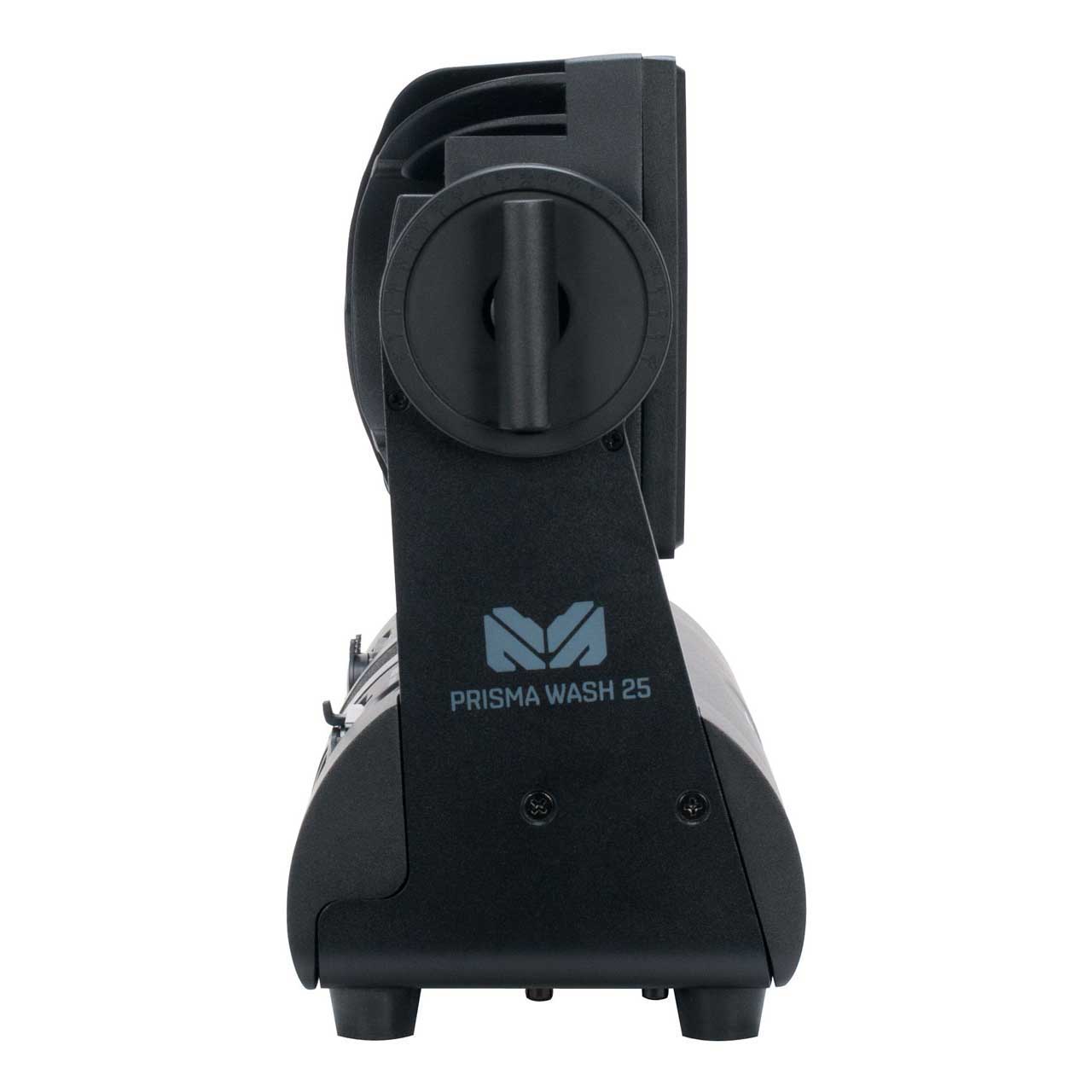

Elation Professional PSW325 Magmatic Prisma Wash 25 IP65 (PSW325) Rated UV Led Wash Luminaire

PSW325 - Overview

• Features:

  • IP65 Rated Exterior High-Power UV Wash Luminaire
  • 25 Degree Narrow Beam Angle
  • 365nm Peak True UV Wavelength
  • Zero Visible Light Output
  • Optional Black Glass Diffusion Filter


• Specifications:

  • Source:
  • (38) 2W High Power UV Diode LEDs
  • 20,000 Hour Average LED Life*
  • *Test lab conditions. May vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

    Photometric Data:
  • 25 Degree Narrow Beam Angle
  • 365nm True UV Peak Wavelength

    Effects:
  • High Speed Electronic Strobe
  • Variable Dimming Curve Modes

    Construction:
  • Rugged IP65 Rated Aluminum Housing
  • Manual Adjustable Tilt Position

    Control:
  • Multiple DMX Channel Modes
  • Onboard 4 Button Touch Control Panel
  • DMX-512 and RDM Protocol Support

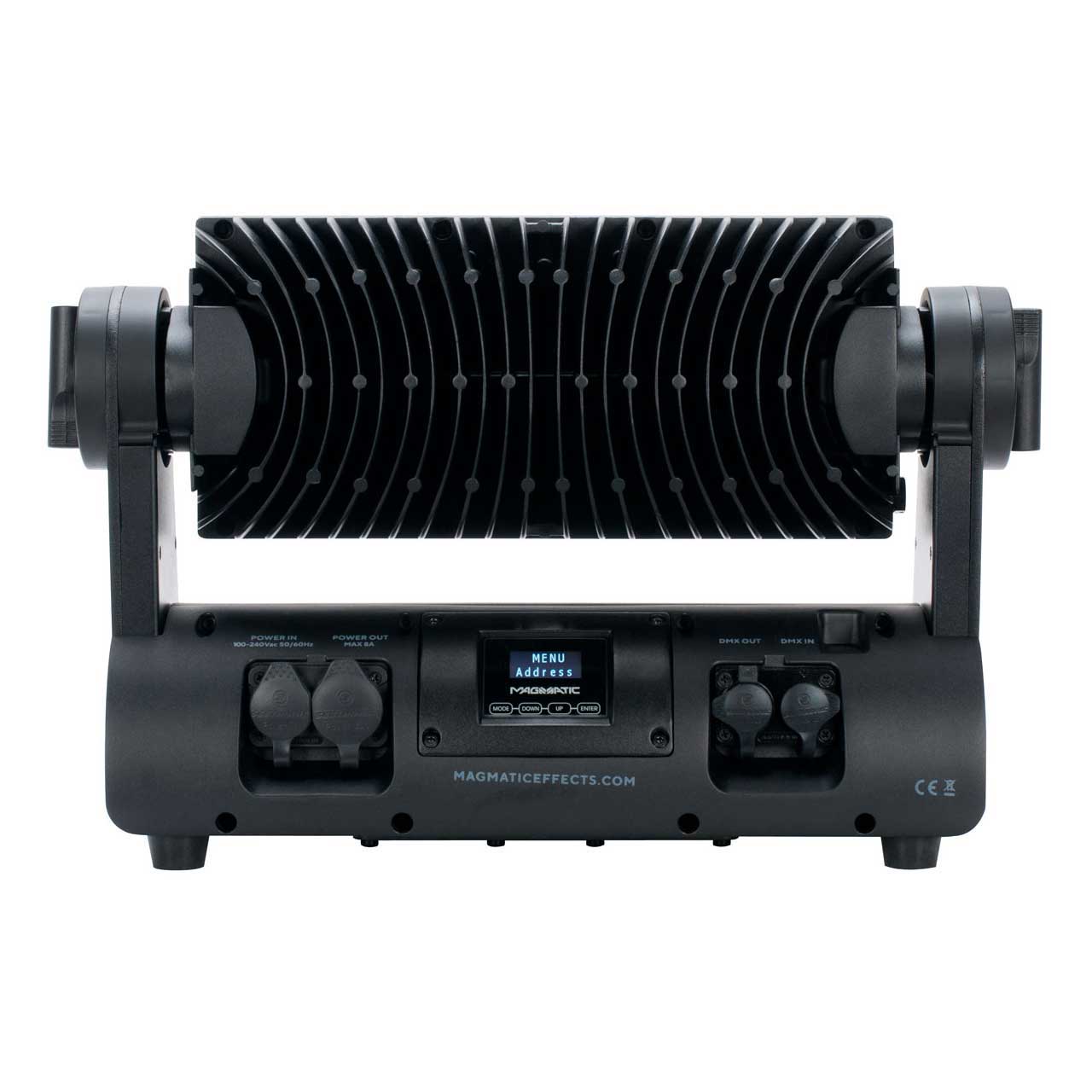

    Connections:
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In
  • With Wired Digital Communication Network

    Size / Weight:
  • Length: 17.5” (445mm)
  • Width: 5.9” (150mm)
  • Vertical Height: 11.29” (287mm)
  • Weight: 19 lbs. (8.62 kg)

    Electrical:
  • AC100-240V 50-60Hz
  • T2A/250V
  • 83W Max Power Consumption

    Thermal:
  • 14°F to 113°F (-10°C to 45°C)
  • Air Cooled

    Approvals / Ratings:
  • CE
  • cETLus
  • IP65


• Item Includes:

  • 1x Power Cable


• Warranty:

  • 2 Year


• GTIN:

  0810008261132
