Epiphan ESP1150 Pearl-2 4K 6-Source Portable Live Event Video Production Switching / Streaming / Recorder

ITEM #: EPIP-ESP1150 MFG #: ESP1150

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$7,999.00

Availability: In Stock
iAvailability Description Popup


ESP1150 - Overview

The ultimate all-in-one live video production system!

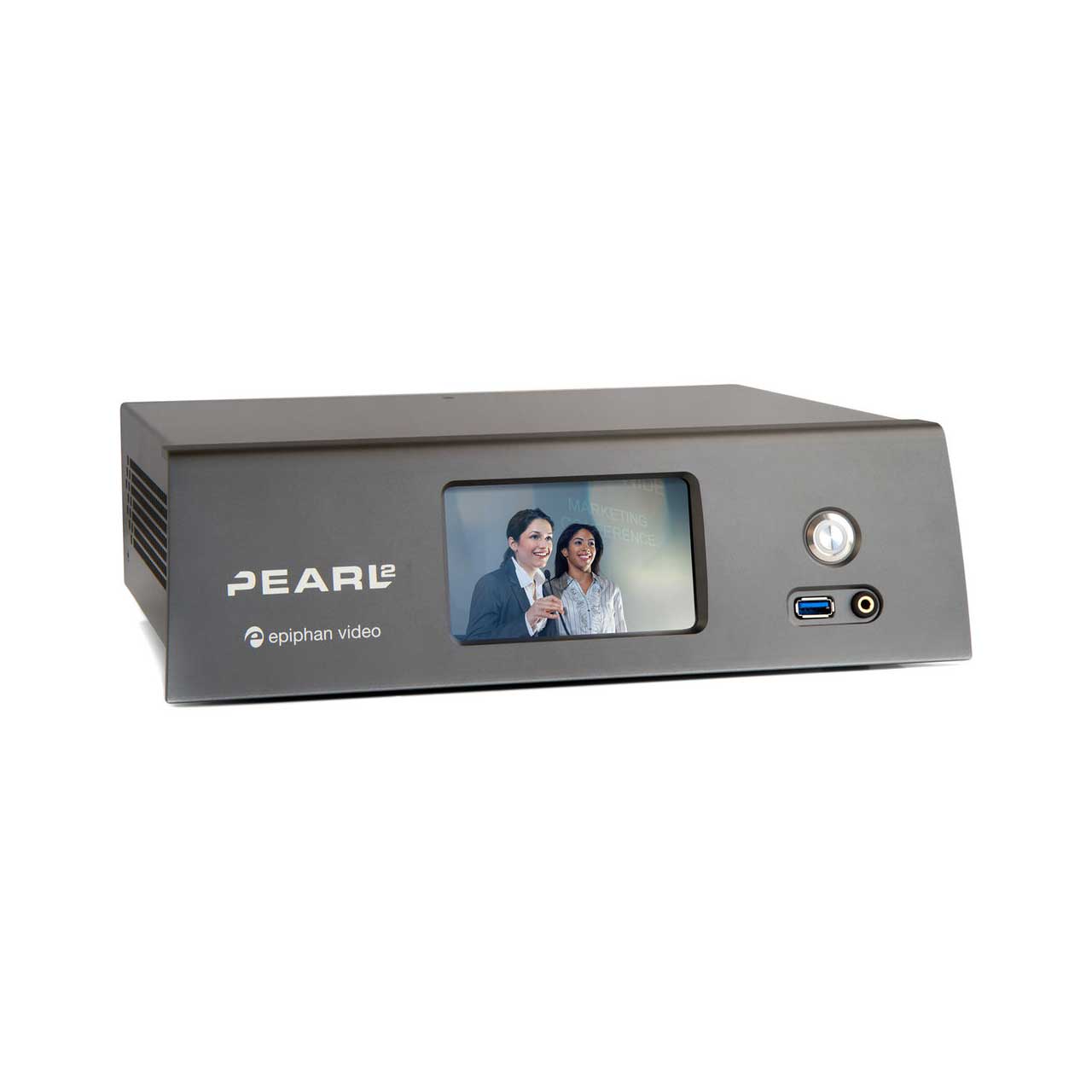

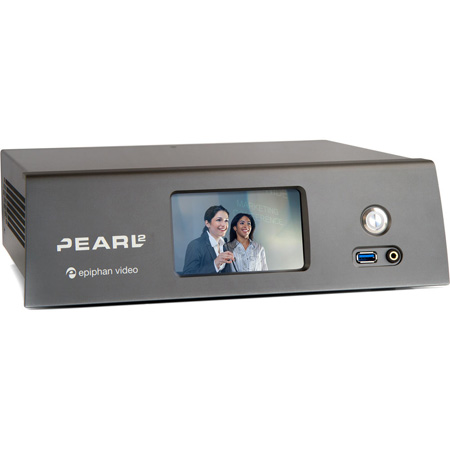

The Epiphan Pearl-2™ is a portable video switcher, recorder, streamer, splitter, and scaler all in one. The Pearl-2 (ESP1150) is ready for the road, it comes in a rugged, hardshell carry case. With six video inputs and four for XLR professional audio, 4K streaming and recording*, NDI support, chroma keying, and much more, Pearl-2 brings the pro features and processing power required for the most demanding live events.

Reach viewers everywhere

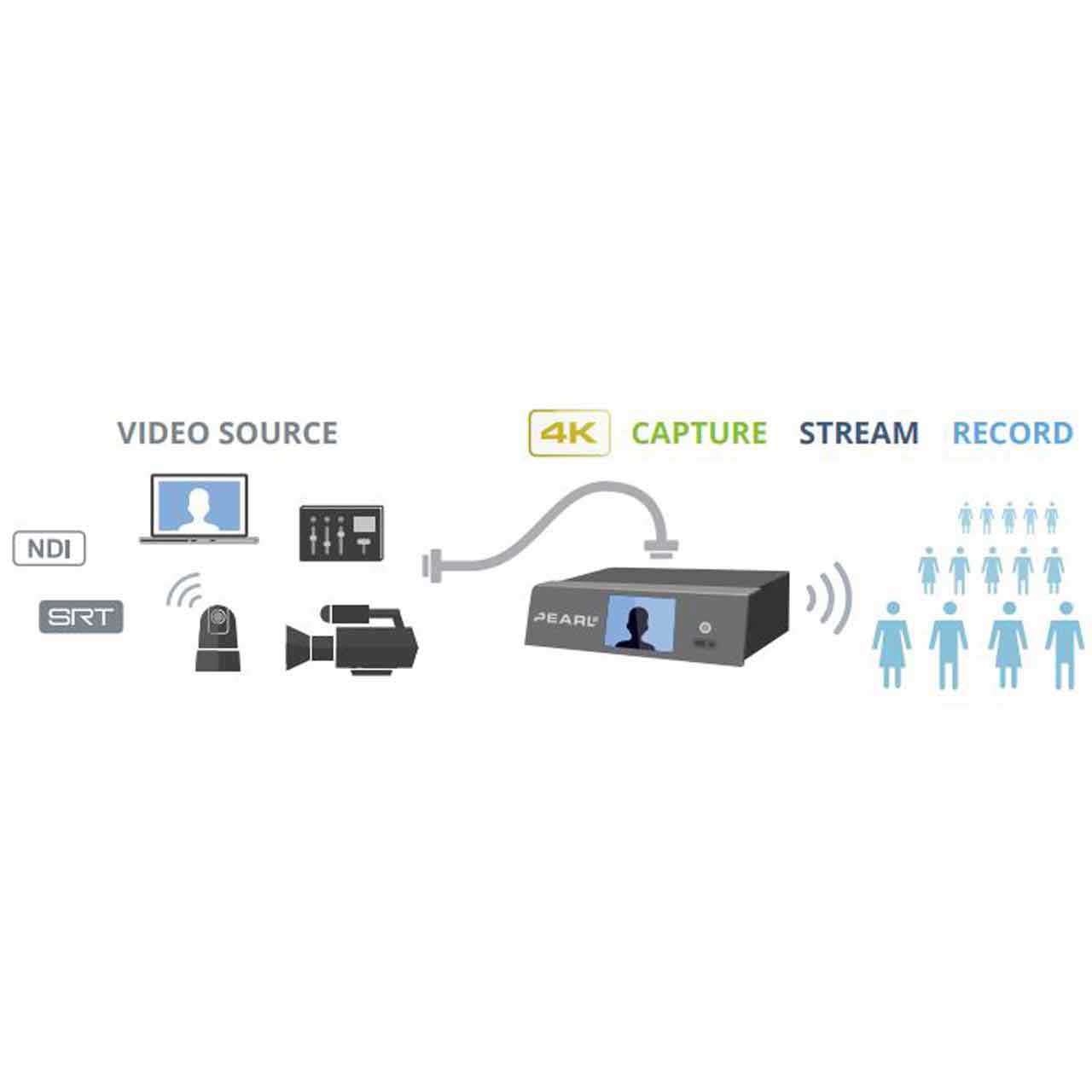

Simultaneously live stream to YouTube, Facebook, and other content delivery networks and content management systems using SRT, HLS, MPEG-DASH, custom RTMP/RTMPS, and RTSP. At the same time, use the built-in streaming server to stream locally to web browsers, smart TVs, and set-top boxes. Deep integration with Kaltura and Panopto video platforms means no complicated stream URLs to set up. Just schedule your webcast events or start streaming right from Pearl-2's built-in touch screen.

Share your webcasts
Locally share unicast or multicast streams to up to 50 viewers with popular streaming protocols like HTTP, HLS, FLV, ASF, UPnP, and SAP.

Multiple Streaming Protocols Supported
Pearl units support multiple streaming protocols including RTMP/RTMPS, SRT, HLS, MPEG-DASH, NDI, RTSP, MPEG-TS, RTP/UDP, UPnP. It makes the Pearl a universal streaming production system.

Get an Edge with Remote Cloud Management
Epiphan Edge is where remote teams can conveniently manage and control all Pearl devices together in one place. An Internet connection and a free Epiphan Cloud account is all you need to get started. When Pearl-2 is paired with your Epiphan Cloud account, you can start/stop video recording and streaming, monitor the health of Pearl-2 with status alerts and a diagnostics dashboard, monitor video feeds, update firmware remotely, and even remotely configure channel encoding. Configure and monitor hundreds of Pearl devices on campus from a centralized admin panel in a web browser. This autonomous remote functionality is perfect for educational facilities with multiple lecture halls and sport venues as well as house of worship and live event producers. The power of remote cloud control is completely in your hands.

Lecture & Worship Service Streaming and Recording
The ability to live stream and record (and later archive) lectures, court trials, trainings and worship services is an often overlooked feature of the Pearl-2. Coupled with Epiphan cloud services, you can have hundreds of units across a facility while offering accessibility at audiences of scale. Because Pearl-2 units also record the event, your on-demand dreams are realized. Students and faithful followers can now access recorded sessions whenever they need them.

* 4K Operation requires the EPIP-ESP1205 4K feature add-on. (sold separately)

  • Features:

    • Stunning 4K video
    • Switch video sources live
    • Stream to viewers everywhere
    • Pro audio support
    • Custom layout builder
    • Keeps your recordings safe
    • Single person operation
    • Plug and play, or tweak to perfection
    • Output video to local displays
    • Stream locally
    • Stream to CDNs
    • Capture ISOs in full detail
    • CMS/LMS integration
    • Use Pearl-2 anywhere

  • Specifications:

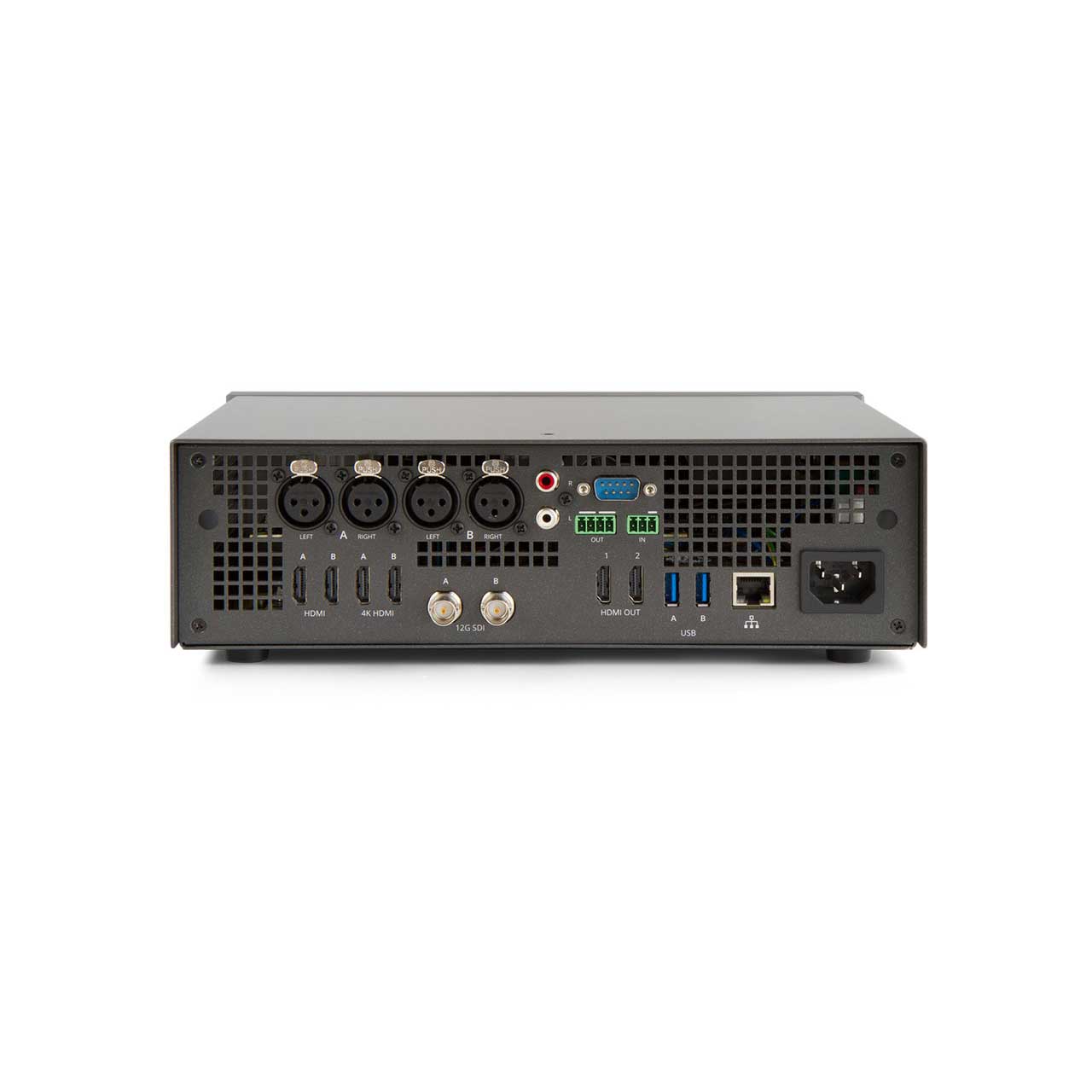

    • Video inputs
    • You can connect just about anything to Pearl-2 - cameras, computers, imaging equipment, and more. Pearl-2 accepts standard and custom resolutions up to 4096x2160 from SDI, HDMI, and USB sources, as well as network-based H.264 RTSP, NDI®, NDI/HX®, and SRT sources.
    • 2 x 12G SDI
    • 2 x HDMI 1.4a
    • 2 x 4K HDMI
    • 2 x USB 3.0 (UVC/UAC)
    • NDI / NDI/HX
    • SRT
    • RTSP (H.264)

      Video output
    • Send an HDMI feed of your switched program to projectors for front-of-house presentations, display walls, or monitors for confidence monitoring. Share the program output or an individual input source.
    • 2 x HDMI
    • NDI, RTSP, SRT

      Network
    • Connect to the network over Ethernet.
    • 1 x 10/100/1000 Ethernet port (RJ45)

      Audio inputs
    • Mix embedded audio from you video sources with audio from professional mixers or other audio devices with individual input gain controls. Confidently monitor audio levels with on-screen VU meters and headphones.
    • 4 x XLR pro line level (+4.0 dBu) up to 12.3 VRMS, +24 dBu (balanced/unbalanced, mono or two L/R stereo pairs)
    • 1 x RCA consumer line level -10 dBV (L/R stereo pair)

      Audio output
    • Connect headphones to the front-mounted 3.5 mm audio jack and monitor audio levels with on-screen VU meters.
    • 1 x 3.5 mm audio jack

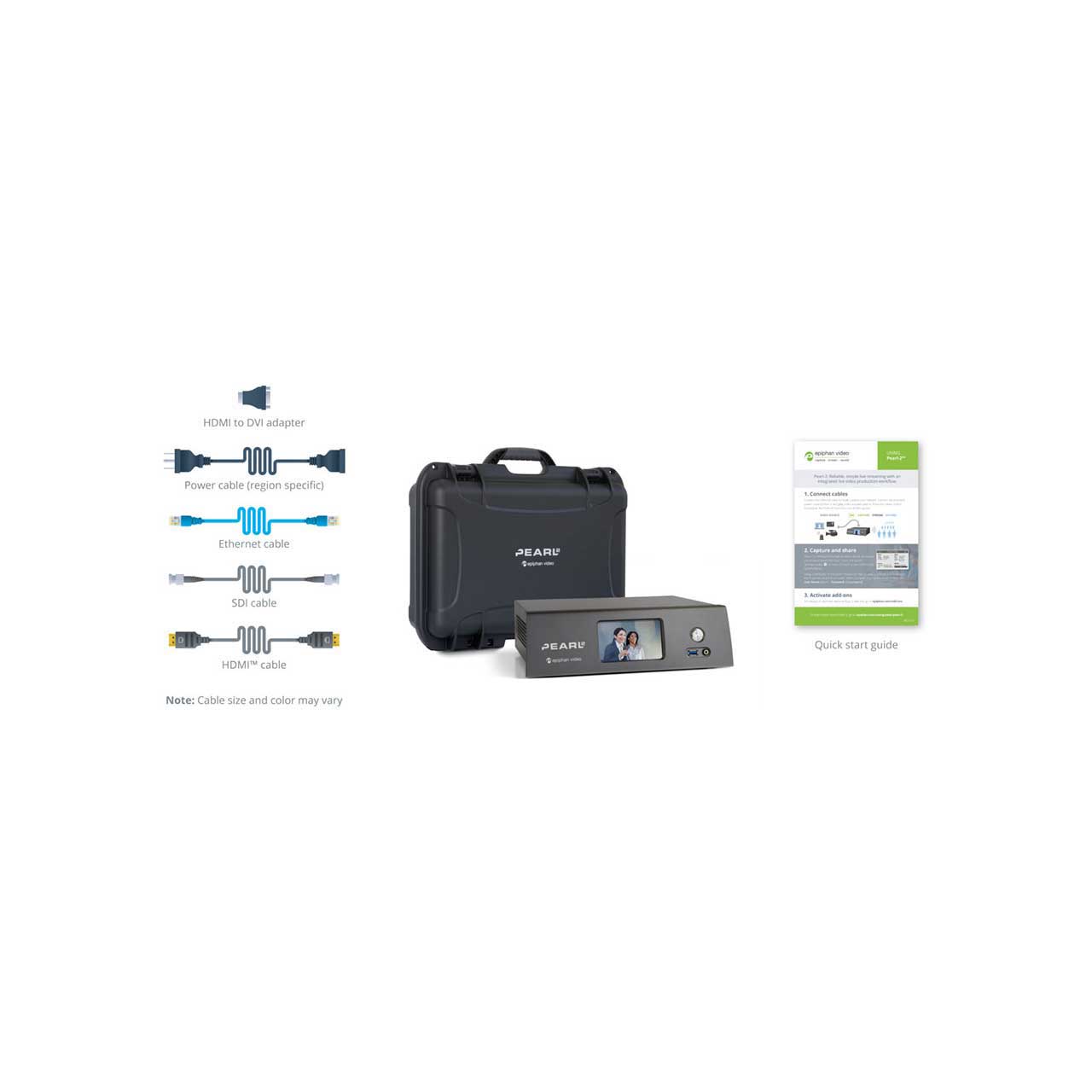

  • Item Includes:

    • Pearl-2 Unit
    • Hardshell Carry Case
    • HDMI to DVI Adapter
    • Power Cable
    • Ethernet Cable
    • SDI Cable
    • HDMI Cable
    • Quick Start Guide

  • Warranty:

    • One-year phone support
    • One-year limited warranty
    • Free firmware upgrades

  • GTIN:

    0019962359606
