ICM FSBNC1RGB Mini BNC Coax Compression Connector 24-26 AWG

ITEM #: FSBNC1RGB MFG #: FSBNC1RGB

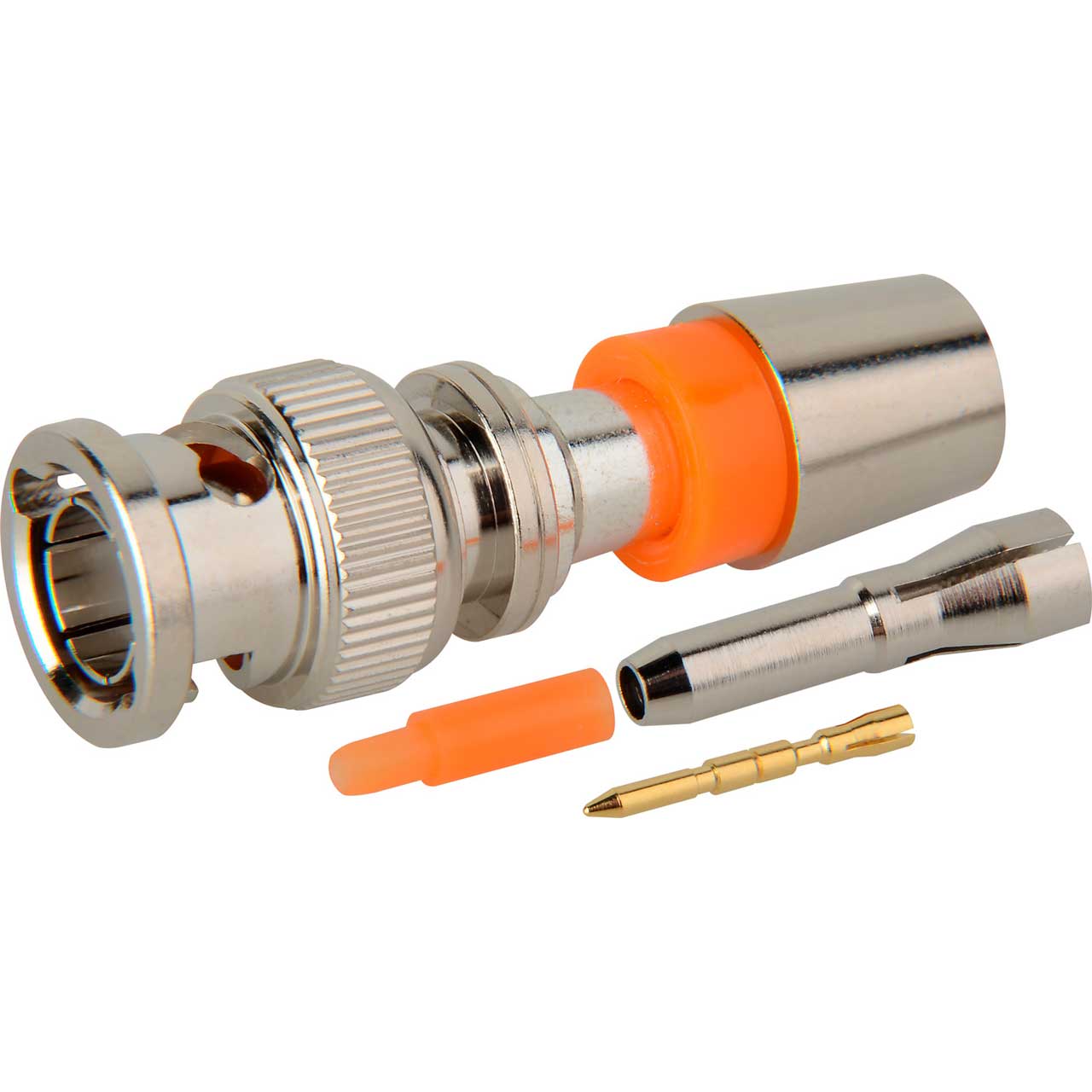

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the FSBNC1RGB

FSBNC1RGB - Overview

FS Series Mini (24-26 AWG) multi-piece BNC connector (FSBNC1RGB) fits most stranded center conductor coaxial cables. Split ferrule design provides proper fit to mini coax cables with sliding pin to eliminate blind entry. 25 per Pack

Applications:
CCTV
Security Cameras
Video

  • Features:

    • BNC Multi Piece Compression Connector
    • RGB 24-26 AWG (Orange)


  • Specifications:

    • Nominal Characteristic Impedance: 75 Ohms
    • Frequency [MHz]:
      DC-1 GHz 23 dB Return Loss 1.16 VSWR
      DC-2 GHz 20 dB Return Loss 1.20 VSWR
      DC-3 GHz 20 dB Return Loss 1.20 VSWR
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: ProSNS
    • Color Band: Violet
    • Locking: No
    • Tool Compatibility: CPLCCT-SLMR (compression), PSA59/6/RGB (strip)
    • Termination Type: Compression
    • Cable Center Conductor Diameter Limits: .015 - .025"
    • Cable Dielectric Diameter Limits: .065 - .078"
    • Cable Outer Jacket Diameter Limits: .095 - .110"


  • GTIN:

    0845671000566
