RAVEN 3104 - Overview

Delivers 4 USB 3.0 Ports & Ethernet Over a Single CAT6!

The Icron USB 3-2-1 Raven 3104 is the world's first and only USB 3.1 extender over copper with ExtremeUSB-C technology extending all USB 3.1, 2.0 and 1.1 devices simultaneously up to 100 meters over CAT 6a/7, making it perfect for: USB 3.1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and/or any other USB 3, 2 and 1 device. If your USB 3.1 extender application requires fiber optic cable instead, please refer to the Icron USB 3-2-1 Raven 3124 extender.

This is an ideal USB 3.1 extender solution for conference rooms using USB 3.1 conference cameras. The Raven has been successfully tested with most major USB 3.1 conference cameras in conjunction with major web conferencing applications.

The Icron USB 3-2-1 Raven 3104 4-port USB 3.1 extender supports data rates at up to 5 Gbps and is plug and play - no software drivers required - for all major operating systems: Windows, macOS, Linux and Chrome OS.

Additionally, this ExtremeUSB-C based USB 3.1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras including: flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and any other USB 3, 2 and 1 device.

Please Note: Not compatible with Microsoft Kinect

Applications:
Remote Storage
Security and Monitoring
Video Matrix Systems
Conferencing Cameras

  • Features:

    • USB 3.1 Gen 1 data rate up to 5Gbps
    • Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
    • Four available 3.1 Gen 1 ports
    • 100/1000 Ethernet channel; LAN pass-through
    • Single cable, CAT 6a/7 up to 100m

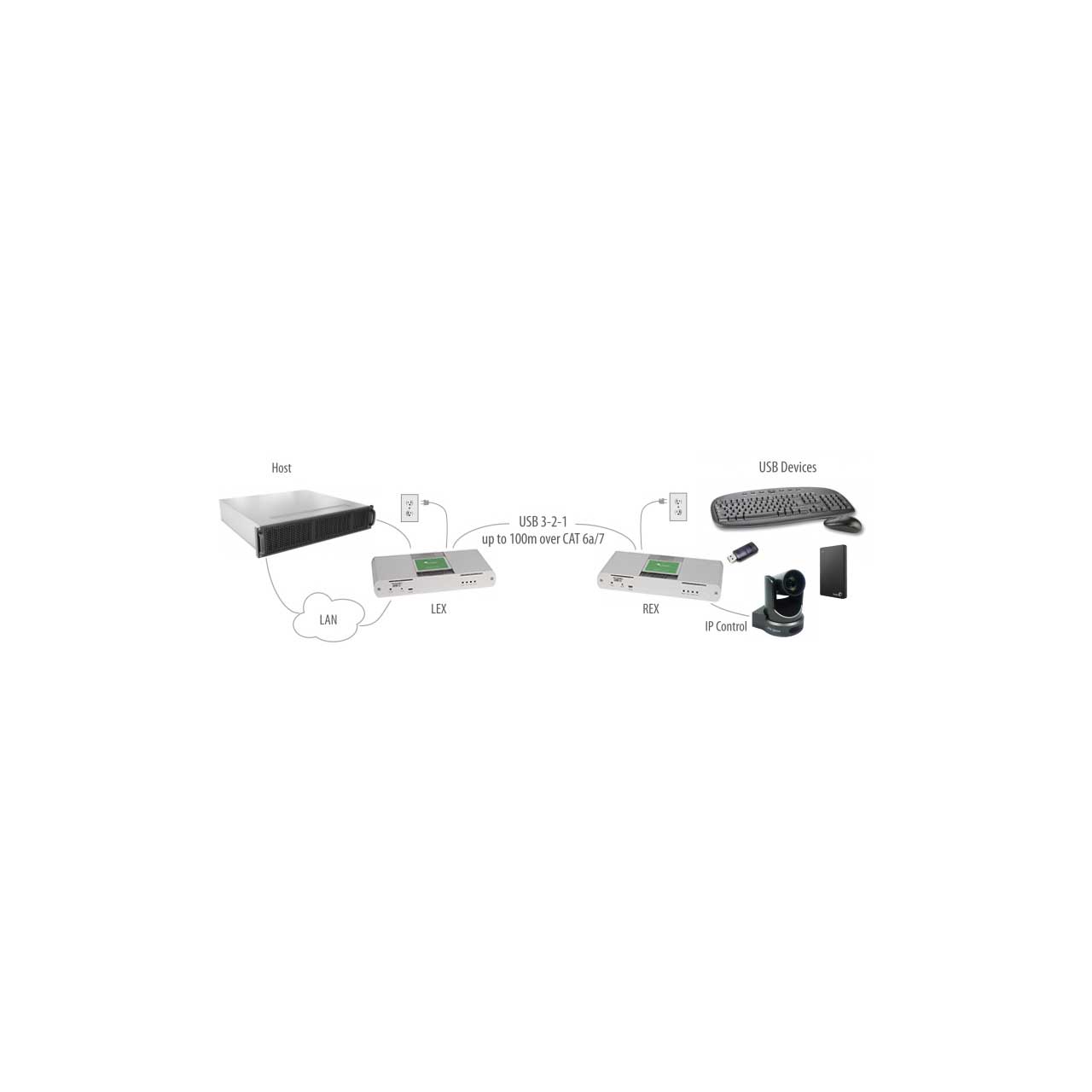

    • Point-to-point connection
    • FCC and CE (Class B) compliant
    • Includes the ExtremeUSB-C™ suite of features:
      Transparent USB extension supporting USB 3, 2 and 1
      True plug and play; no software drivers required
      Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™

  • Specifications:

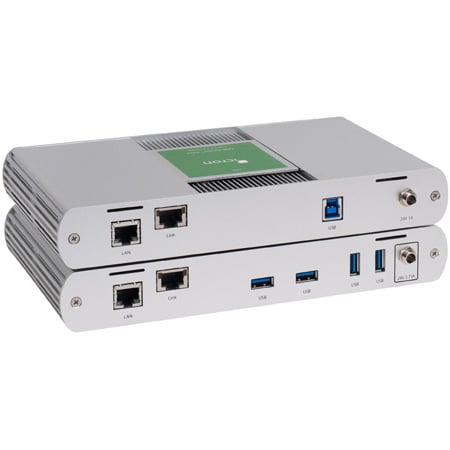

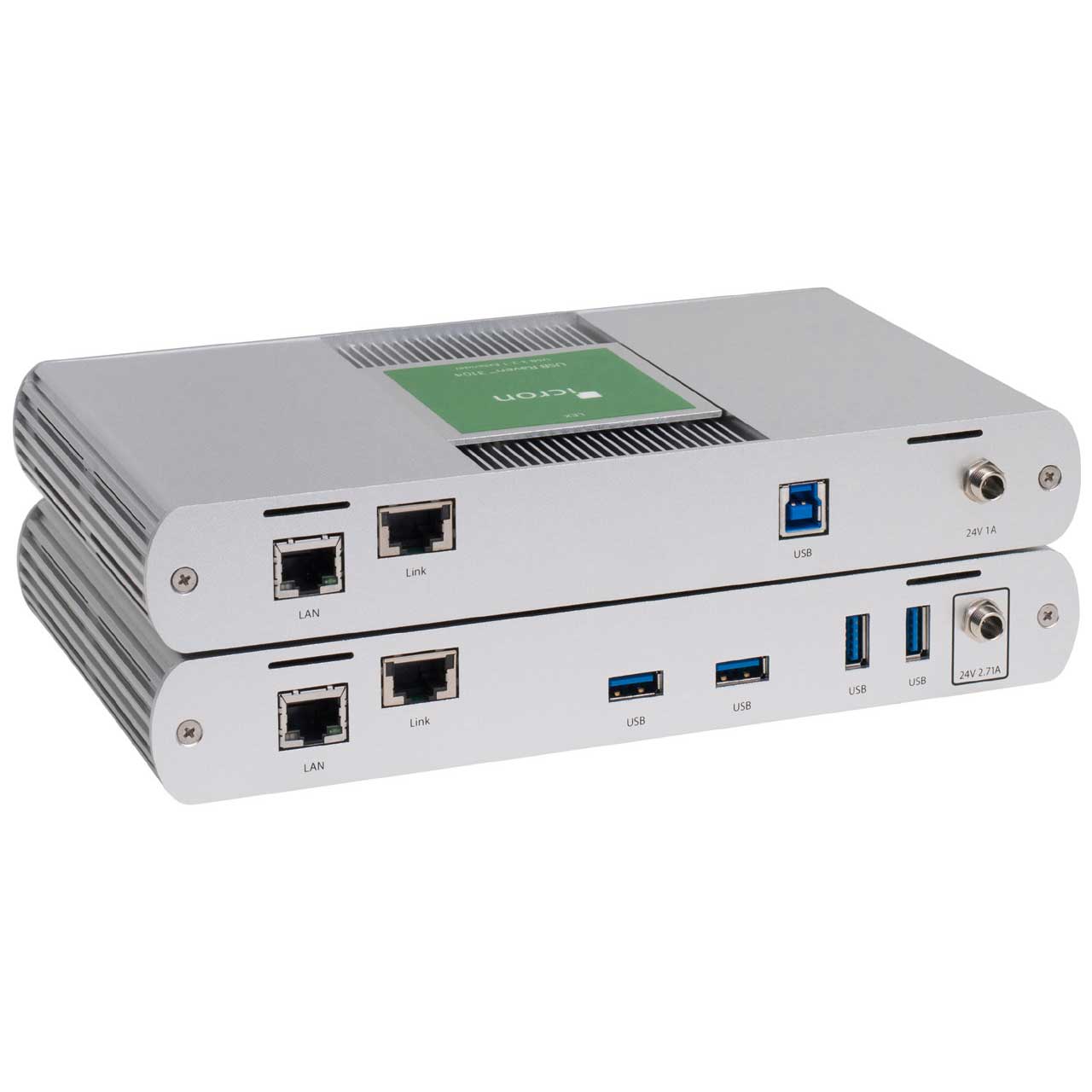

    • Local Extender Mechanical Data
    • 137.3 x 232.1 x 33.0mm (5.4 x 9.1 x 1.3")
    • 1x USB 3.1 B Receptacle
    • 1x RJ45 Ethernet 100/1000 Port
    • 1x RJ45 Ethernet Link Port
    • 24V 1A DC Locking Jack
    • 920g (2.03 lbs.)

      Remote Extender Mechanical Data
    • 137.3 x 232.1 x 33.0mm (5.4 x 9.1 x 1.3")
    • 4x USB 3.1 A Receptacles
    • 1x RJ45 Ethernet 100/1000 Port
    • 1x RJ45 Ethernet Link Port
    • 24V 2.71A DC Locking Jack
    • 990g (2.18 lbs.)

      Range
    • Point-to-Point: Up to 100m over CAT 6a/7

      Usb Support
    • USB Speeds: SuperSpeed 5Gbps, High-Speed, Full-Speed, Low-Speed
    • USB Bandwidth: Up to 5Gbps
    • Device Compatibility: All Device Types and Classes (Control, Interrupt, Isochronous and Bulk)
    • Host Compatibility: OHCI, UHCI, EHCI, xHCI
    • Available Current at Remote: 1.2A (6W) per USB port
    • Max Number of USB Devices: 30

      Environmental
    • Operating Temperature: 0° to 50°C (32° to 122°F)
    • Storage Temperature: -20° to 70°C (-4° - 158°F)
    • Operating Humidity: 20-80% Non-Condensing
    • Storage Relative Humidity: 10-90% Non-Condensing

  • Item Includes:

    • 1x Local Extender
    • 1x Remote Extender
    • 1x USB 3.1 Gen 1 Cable
    • 2x International Locking AC Adapters
    • 2x Country Specific Power Cords
    • 1x Quick Start Guide

  • Warranty:

    • 2 Years

  • GTIN:

    8716065028683
