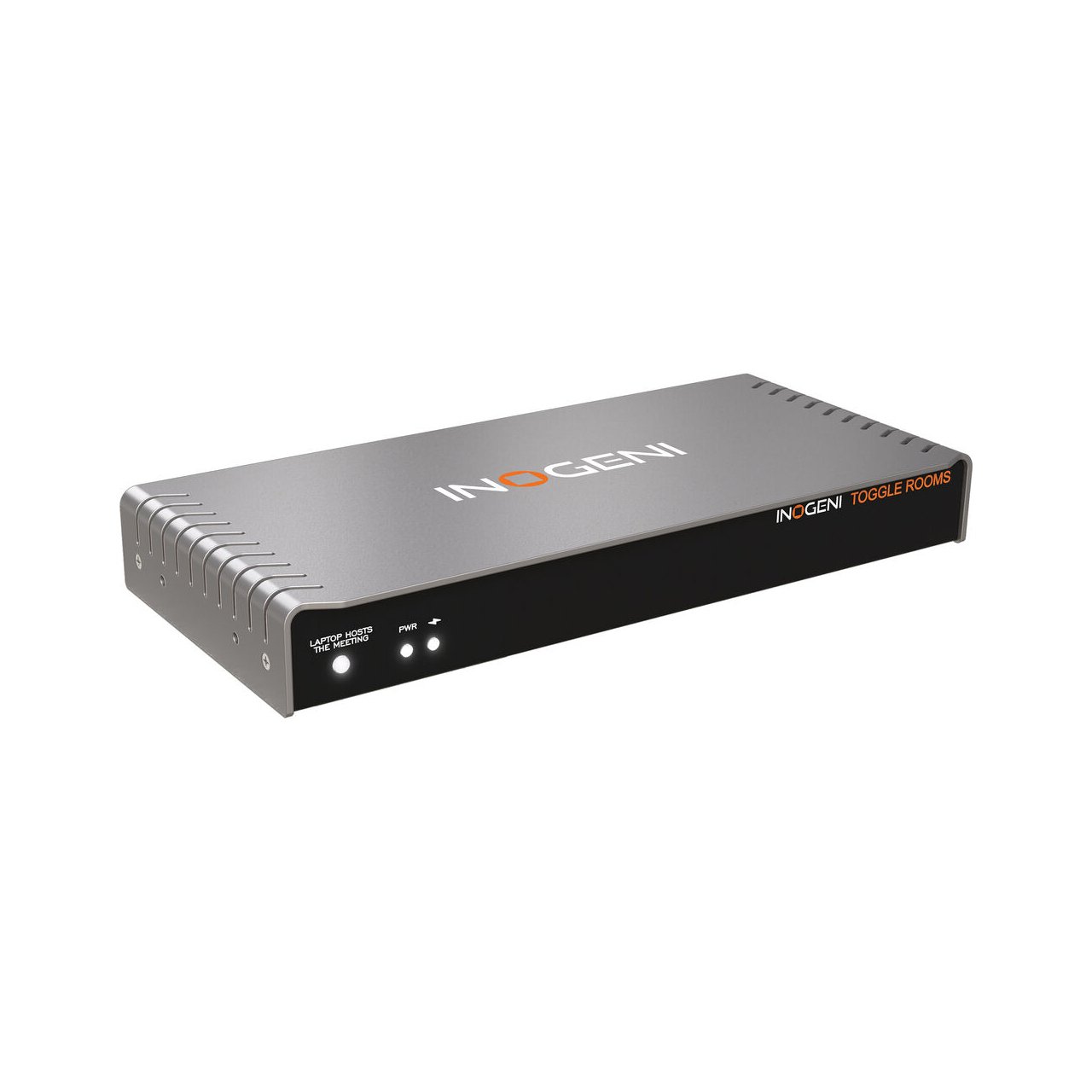

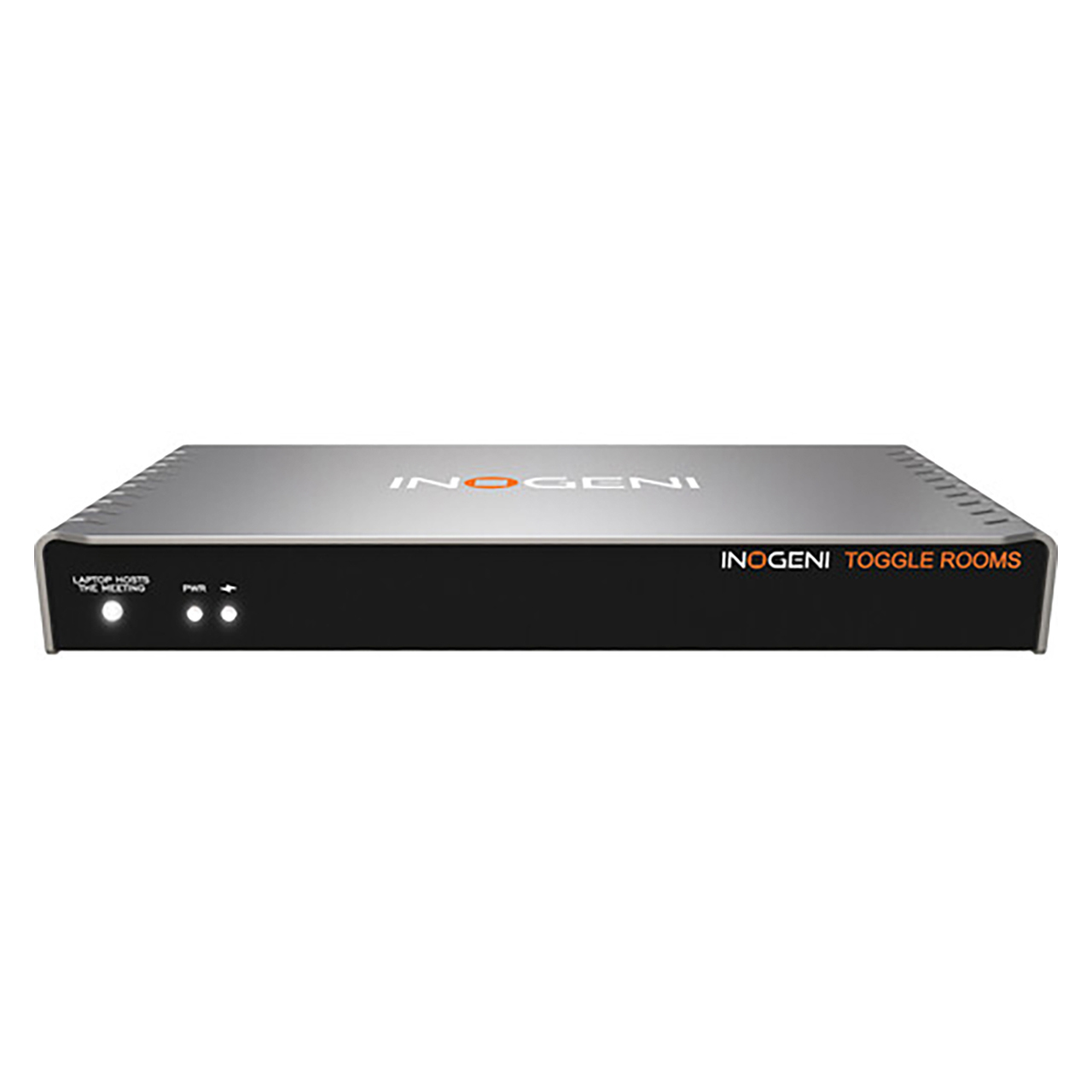

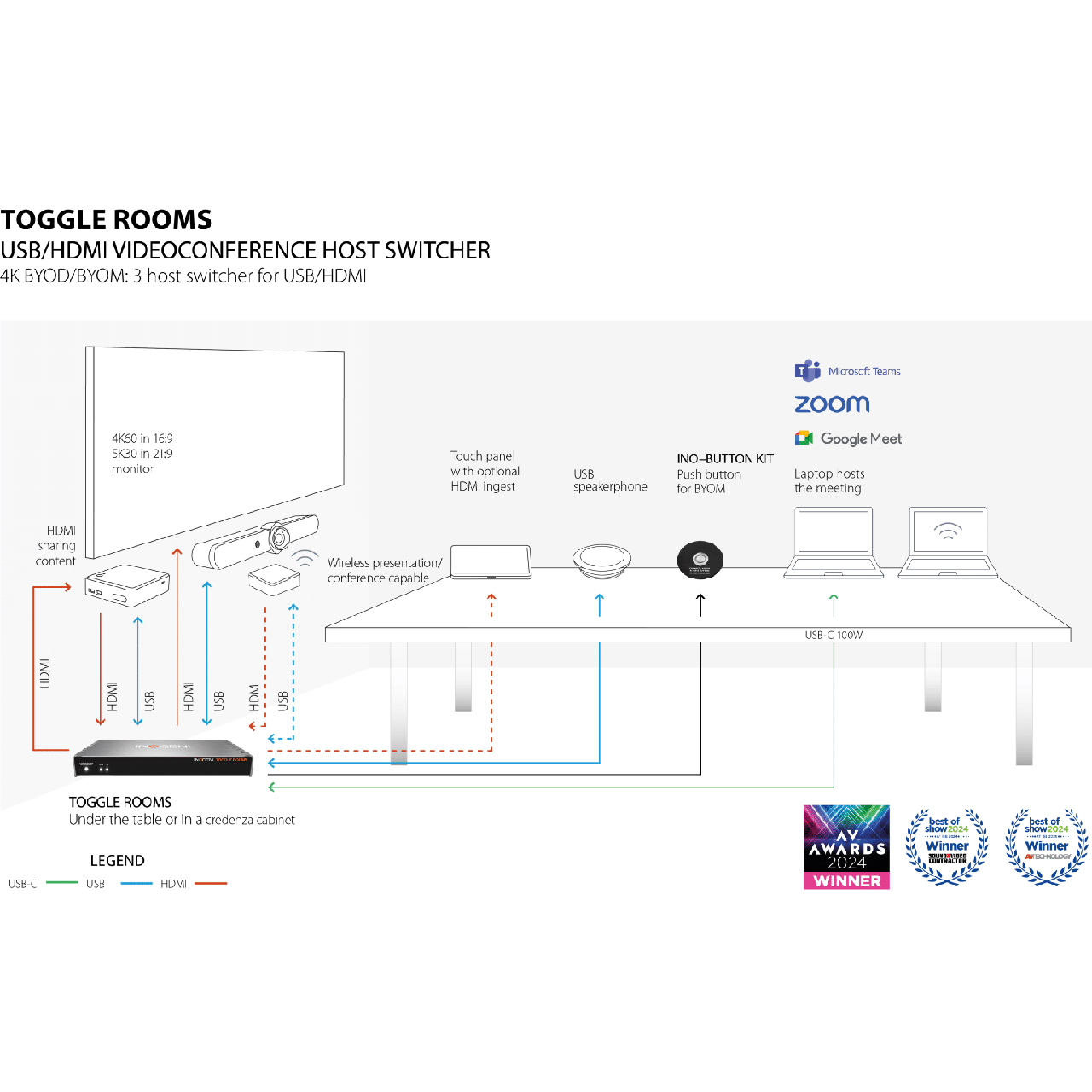

INOGENI TOGGLE ROOMS Switcher - Switch Three USB 3.0/HDMI Devices between Two PCs - TAA-compliant

TOGGLE ROOMS - Overview

• Features:

  • 4K60 in 16:9 and 21:9 wide screen capable (HDMI)
  • Compatible by design: Teams, Zoom, on Crestron, Logitech, Lenovo, Poly, MAXHUB CODECs.
  • Controllable by RS-232, IP or 2x GPI (PC selection: BYOD/ Bring Your Own Meeting (BYOM)) or a table surface-mounted button for Bring Your Own Meeting (BYOM) laptop selection
  • Power charging to 100W on USB-C for the laptop
  • Cost-effective solution that is reliable as well as simple to install and connect (no driver required)
  • Designed and manufactured in Canada
  • TAA-compliant

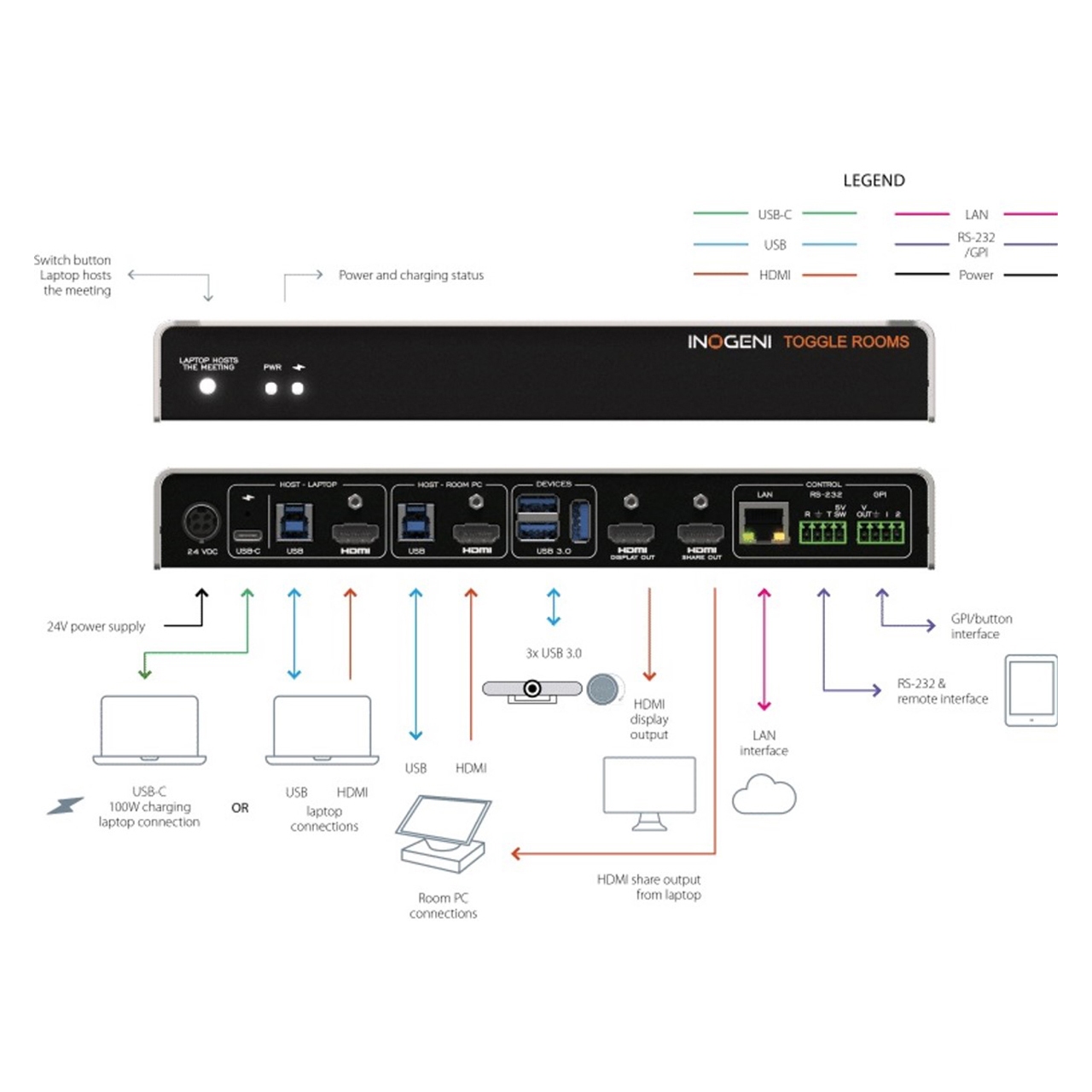

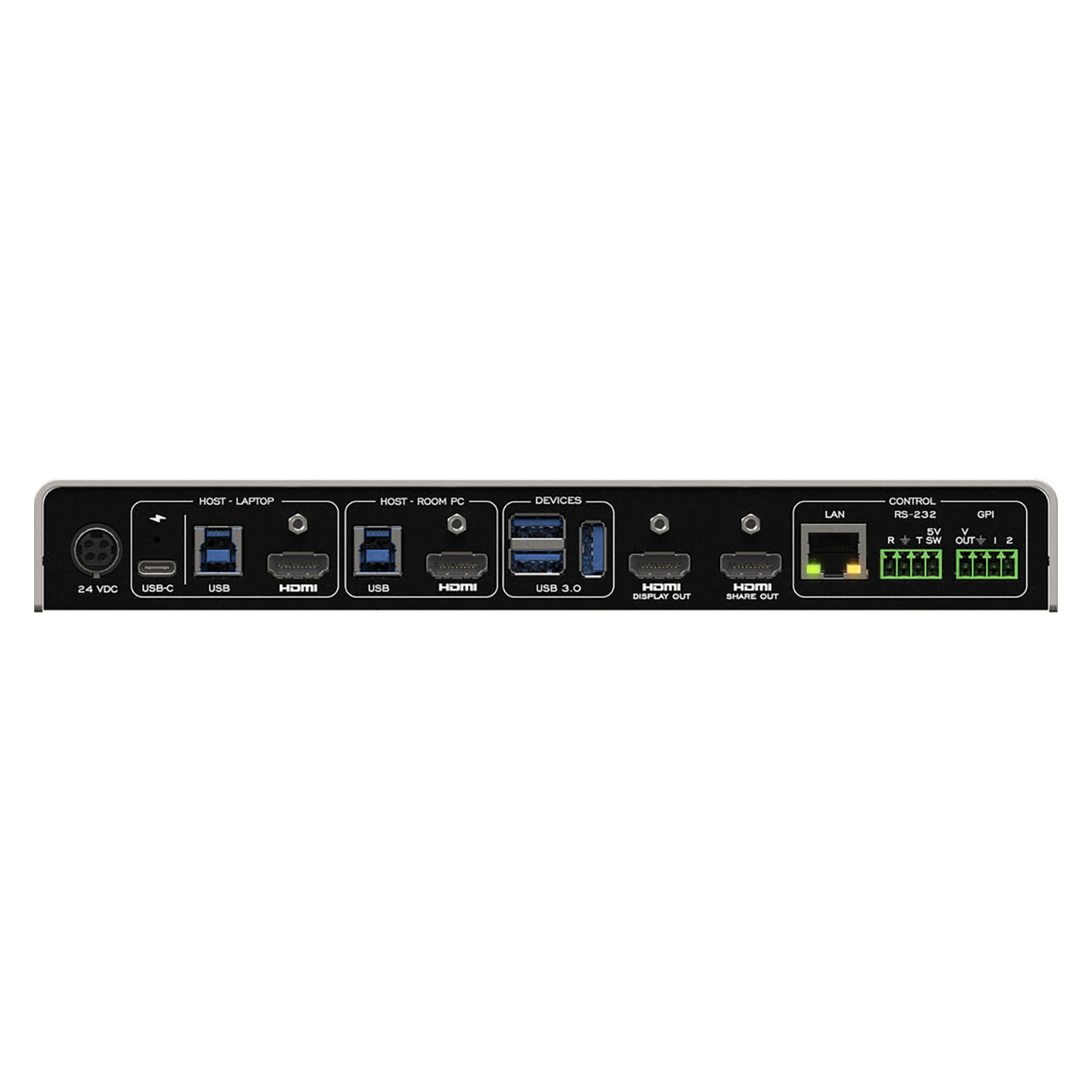

• Specifications:

  • Host - Laptop
  • USB-C: 1x USB-C Connector
    - DisplayPort up to 3840x2160p60 / 4096x2160p60
    - USB 3.0 (USB 3.1 Gen 1 / 5 Gbps)
    - USB 2.0 (480 Mbps)
    - Charges up to 100W
    - USB-C cable locking option
  • USB: 1x USB 3.0 Type-B
  • HDMI: 1x HDMI Connector
    - Up to 3840x2160p60 / 4096x2160p60
    - Cable locking option

    Host - Room PC
  • USB: 1x USB 3.0 Type-B
  • HDMI: 1x HDMI Connector
    - Up to 3840x2160p60 / 4096x2160p60
    - Cable locking option

    HDMI Display Output
  • Resolution: Up to 3840x2160p60 / 4096x2160p60 / Compatible with a 5Kp30 widescreen in 21:9
  • Connector: HDMI with Cable Locking Option

    HDMI Share Output
  • Resolution: Up to 3840x2160p60 / 4096x2160p60 / Compatible with a 5Kp30 widescreen in 21:9
  • Connector: HDMI with cable locking option

    USB Devices
  • Connectors: 3x USB 3.0 Type-A ports
  • Power: 1.8A shared between downstream ports

    Video - HDMI
  • HDCP Compliance: Compliant with HDCP2.3, HDCP2.2 and HDCP1.4
  • HDMI Compliance: Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
  • Sampling frequency: 600MHz
  • Video Scaling: Crosspoint switch supports video downscaling from 4K to 1080p
  • Chroma Subsampling:
    - YUV/RGB
    - 4:4:4, 4:2:2
  • CEC: Ability to send CEC commands to connected HDMI display sink

    Audio - HDMI
  • Audio: Audio passthrough from input to output
  • Formats: LPCM, Dolby Digital and DTS up to 192kHz

    Compatibility
  • Operating System:
    - Windows 7 and above (32/64-bit)
    - macOS 10.10 and above
    - Linux (kernel v2.6.38 and above)
  • Compatible Videoconferencing Systems:
    - Crestron - Flex Series
    - Crestron - Flex Advanced Series
    - Poly - Studio Room Kit with HP Mini Conferencing PC
    - MAXHUB - MAXHUB XCore Kit
    - Logitech - Tap with Rally
    - Logitech - Tap with MeetUp
    - Logitech - Rally Bar Tap room systems
    - Lenovo - ThinkSmart Hub Gen 2 Microsoft Teams Rooms
    - Lenovo - ThinkSmart Core + Controller
    - Lenovo - ThinkSmart Core & IP Controller Kit
    - Jabra - PanaCast 50 Room System
    - Airtame - Airtame Hub

    Physical
  • Dimensions (WxLxH): 9.88" x 4.56" x 1.28" (25.1cm x 11.57cm x 3.26cm)
  • Power Supply: 160W (85-264VAC 50/60Hz to 24V/6.67A DC)
  • Weight: 1.74 lb (790 g)
  • Operating Temperature: 32°F to 113°F (0°C to 45°C)
  • Storage Temperature: -40°F to 221°F (-40°C to 105°C)
  • Relative Humidity: 0% to 90% non-condensing
  • Mounting Options: Ability to mount under the table or on a wall


• Item Includes:

  • 1x TOGGLE ROOMS
  • 1x USB-C to USB-C cable - 6 ft.
  • 1x USB 3.0 cable (USB-A to USB-B) - 3 ft.
  • 2x Terminal block 4-pos
  • 2x Mounting brackets
  • 4x M2.5 mounting screws for brackets on product
  • 4x Screws for Toggle Rooms table/wall mount
  • 1x 24V/160W PSU
  • 1x Power supply 85-264VAC 50/60Hz to 24V/6.67A DC
  • 1x PSU mounting bracket
  • 4x Screws for PSU table/wall mount
  • 4x Rubber feet


• Warranty:

  • 5 Year Limited Warranty
