Kramer RC-208 8-Button I/O Control Keypad

ITEM #: KR-RC-208 MFG #: RC-208

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$630.00

Our Price:

$504.00

Availability: In Stock
iAvailability Description Popup


RC-208 - Overview

Flexible Room Control

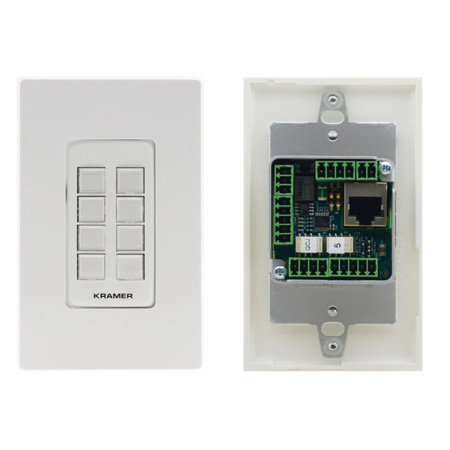

The Kramer RC-208 is a compact 8-button control keypad that fits US standard 1-gang wall junction boxes. Easy to deploy, RC-208 fits decoratively within a room design. It is perfectly suited for use as a user interface keypad within a Kramer Control system.

Using K-Config, tap into the rich, built-in I/O interfaces that enable this keypad to be used as a flexible, standalone room controller. In this way, it is ideal for classroom and meeting room control, providing end-user convenient control of complex multimedia systems and other room facilities such as screens, lighting and shades.

Multiple keypads can be linked together side-by-side or at a distance, via a single K-NET™ cable carrying both power and communication, providing uniform design and user experience.

Perfect for:
Control in presentation and conference room systems, board rooms and auditoriums

  • Features:

    • Clear and Customizable User Interface - RGB-color, tactile feedback, backlit buttons with custom labeled, removable button caps, allowing simple and intuitive end-user and guest control over facility deployed devices and systems

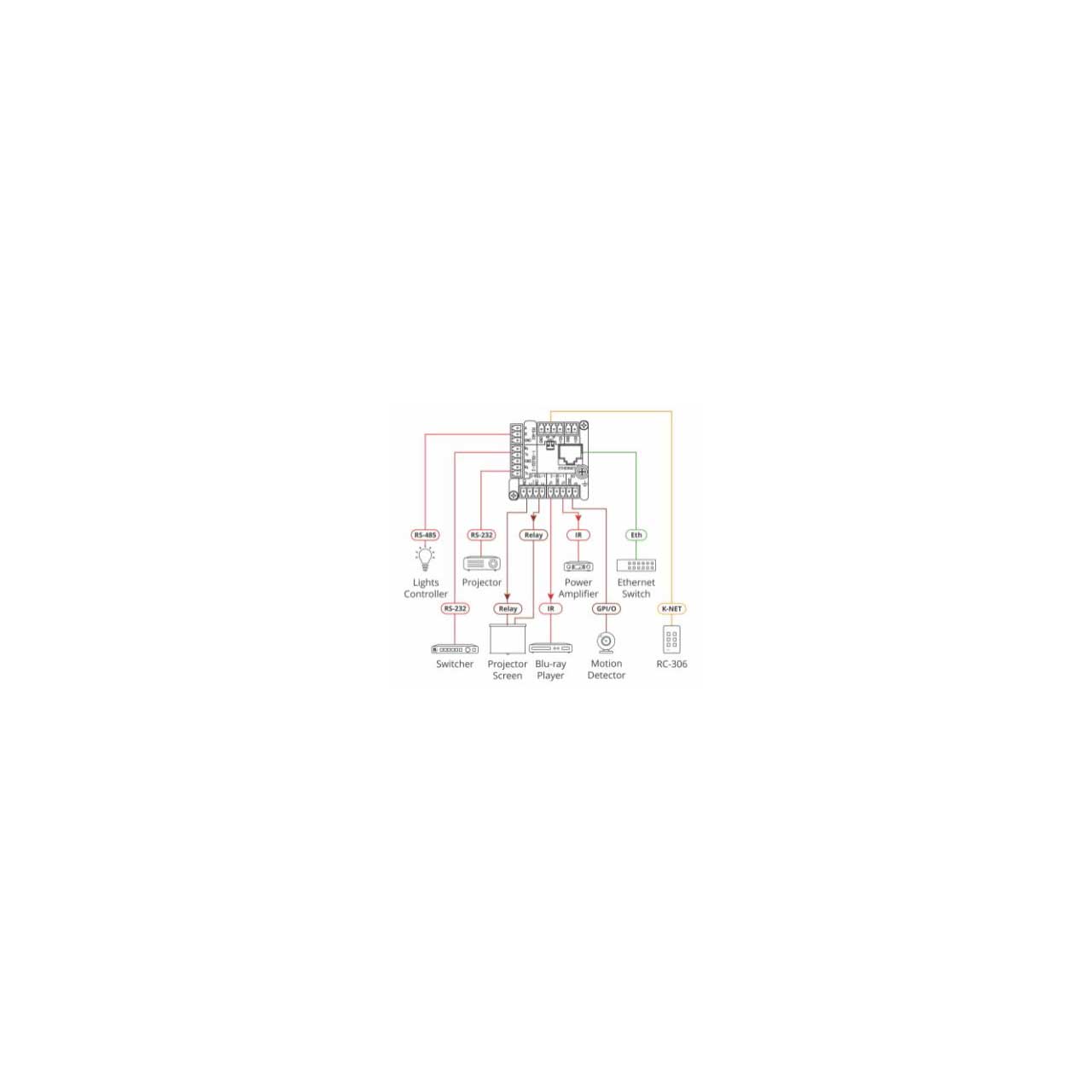

    • Flexible Room Control - Control any room device via LAN connections, multiple RS-232 and RS-485 serial ports, and various IR, relay and general purpose I/O built-in device ports. Connect the keypad to an IP network with additional control gateways interfacing with remote controlled devices, for extending control across large space facilities
    • Expandable Control System - According to arising demands, easily expands to be part of a larger control system, or coupled-operation with auxiliary keypads, via either LAN or K-NET™ single cable connection delivering both power and communication
    • Simple Control Programming - Using K-Config software. Leverage the power of Kramer's highly customizable, flexible and user-friendly software, to easily program complex control scenarios of Pro-AV, Lighting, and other room and facility controlled devices
    • Easy and Cost-effective Installation - Compactly fits into standard US, EU and UK 1-gang in-wall box size, allows decorative integration with room deployed user interfaces such as electrical switches

  • Specifications:

    • INPUTS
    • 1 IR Sensor: For IR learning

    • OUTPUTS
    • 2 IR: On 2-pin terminal block connectors

    • PORTS
    • 1 Ethernet: On an RJ-45 female connector for device configuration, control and firmware upgrade
    • 2 RS-232: On 3-pin terminal block connectors
    • 1 RS-485: On a 3-pin terminal block connector
    • 1 K-NET: On a 4-pin terminal block connector
    • 2 Relays: On 2-pin terminal block connectors (30V DC, 1A max)
    • 1 GPI/O: On a 2-pin terminal block connector
    • 1 Mini USB: On a female mini USB-B connector for configuration and firmware upgrade

    • DEFAULT IP SETTINGS
    • DHCP Enabled

    • POWER
    • Source: 12V DC 2A power supply
    • Consumption: 12V DC, 780mA

    • ENVIRONMENTAL CONDITIONS
    • Operating Temperature: 0° to +40°C (32° to 104°F)
    • Storage Temperature: -40° to +70°C (-40° to 158°F)
    • Humidity: 10% to 90%, RHL non-condensing

    • REGULATORY
    • Safety: CE, UL
    • Environmental: RoHs, WEEE

    • ENCLOSURE
    • Size: 1 Gang wall plate
    • Cooling: Convection ventilation

  • Item Includes:

    • RC-208 Control Keypad
    • White & Black Decora® Design Frame Sets with faceplate
    • Button Label Sheets (1 set)
    • Power adapter and cord (1)
    • Tweezers for Button Cap Removal (1)
    • Button Caps (8)
    • Installation Accessories

  • Warranty:

    • Limited 7 Year Warranty

  • GTIN:

    7291063088330
