Kramer TP-582T 2x1 HDMI Switchable Transmitter with Ethernet/RS-232 & IR over Extended-Reach HDBaseT

TP-582T - Overview

HDMI Signal Extension - HDCP 2.2 compliant

• Features:

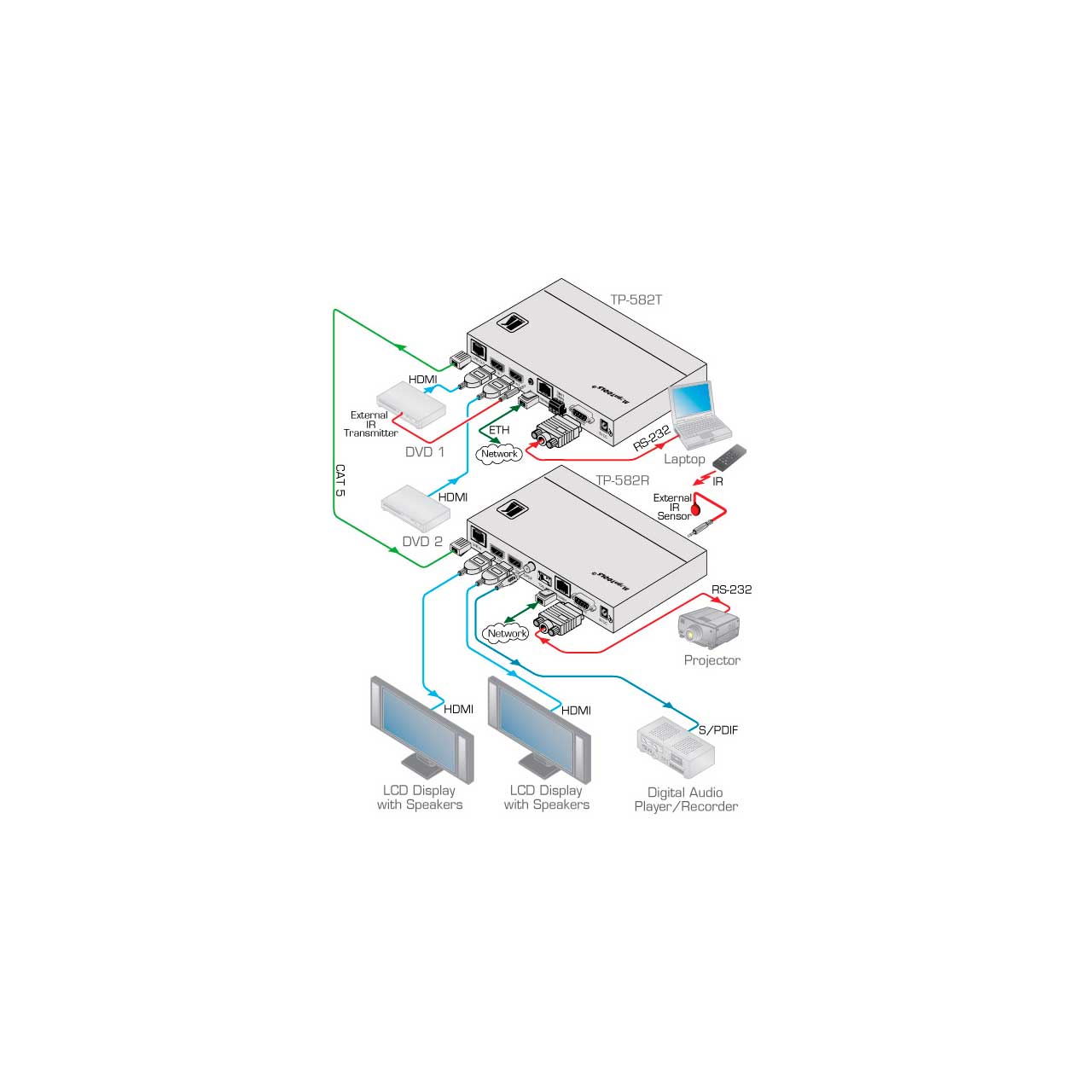

  • High Performance Standard Extender - Switchable, professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-582T is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, and 3D. EDID signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension - Up to 8 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

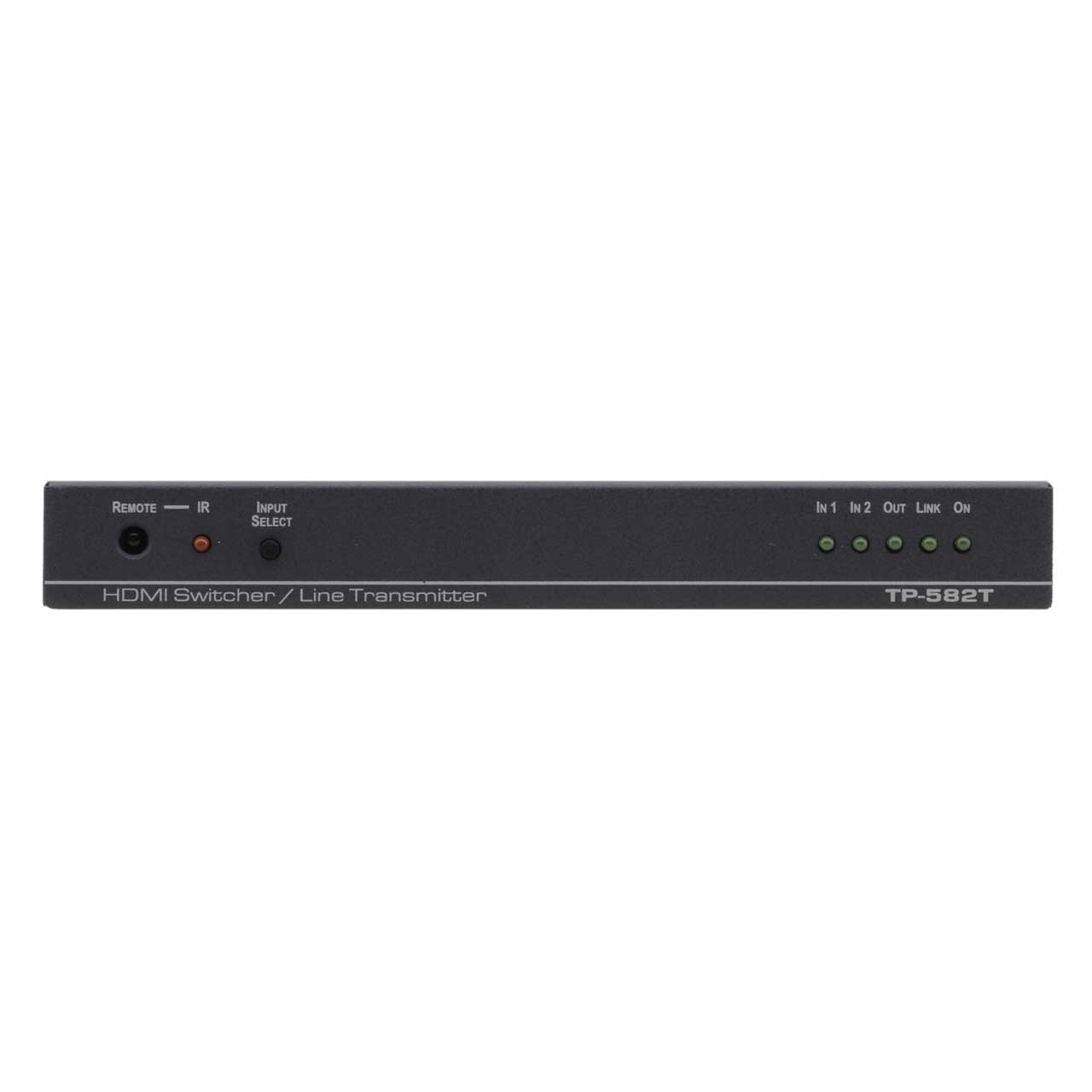

  • Simple Control Operation - Easy selection of input video signals for its extension, locally via front panel button, or remotely via either remote IR control or control buttons connected to rear panel contact closures.
  • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting.

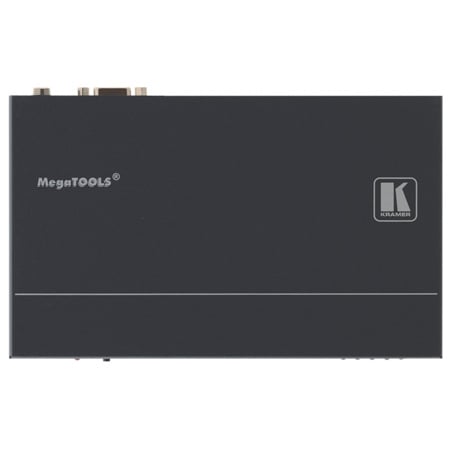

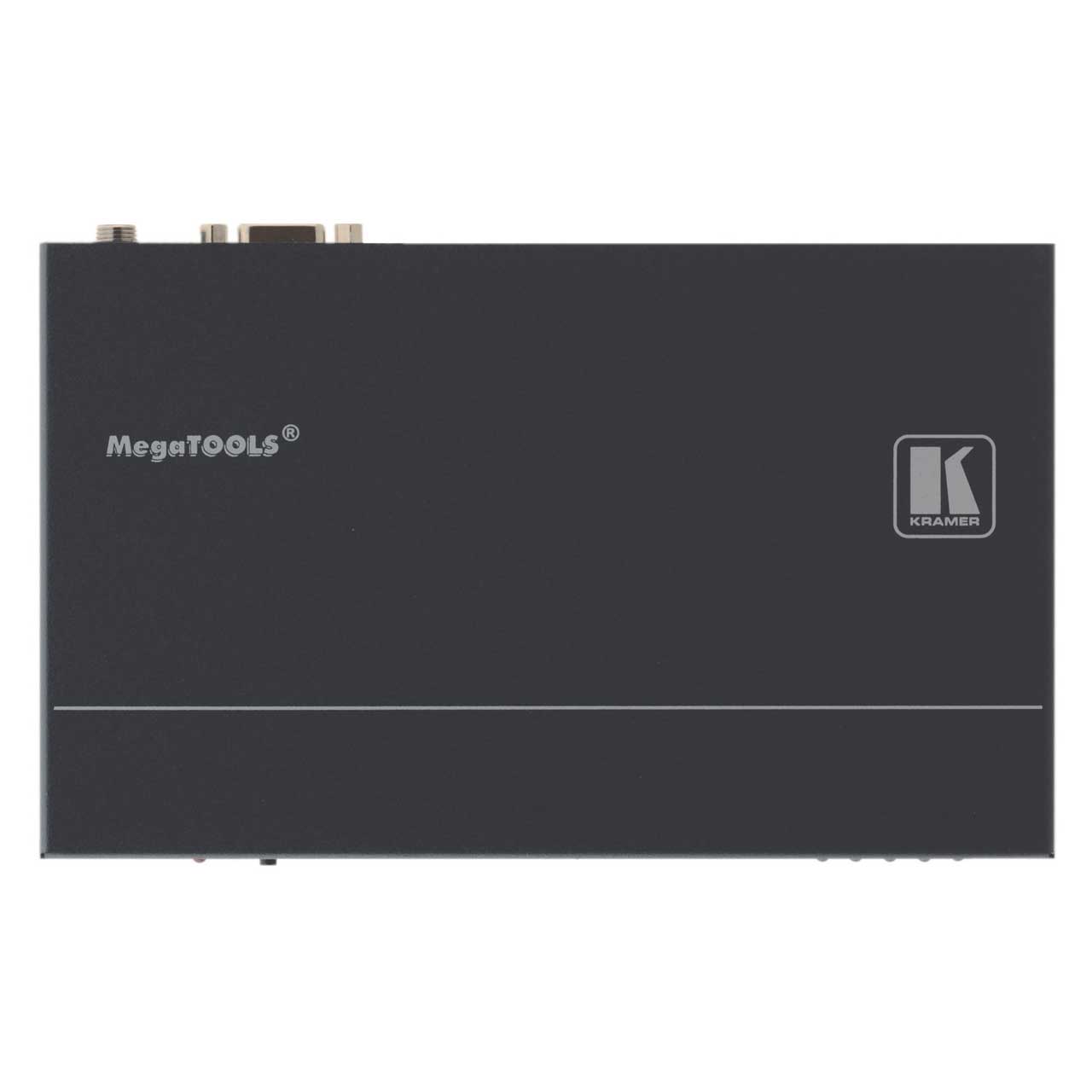

  • Easy and Elegant Installation - Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 HDBaseT RJ-45 female connector


  • OUTPUTS
  • 2 HDMI on HDMI connectors,
  • 1 TOSLINK® digital audio on optical connector,
  • 1 S/PDIF digital audio on an RCA connector

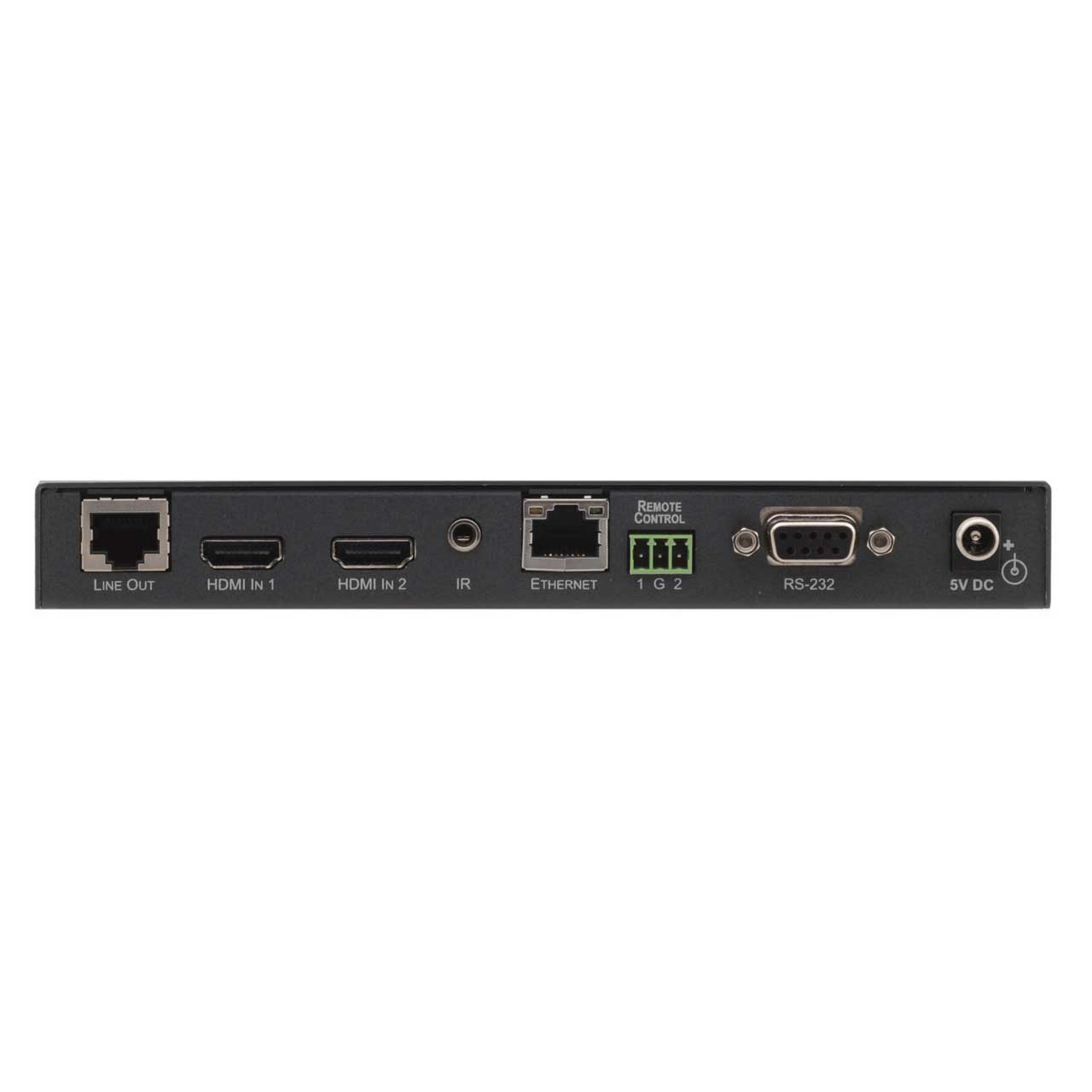

  • PORTS
  • 1 IR on a 3.5mm mini jack for IR link extension,
  • 1 RS-232 on a 9-pin D-sub connector for serial link extension,
  • 1 10Base-T/100BaseTx Ethernet on an RJ-45 female connector for LAN extension


  • EXTENSION LINE
  • HDBaseT 1.0 compliant
  • Up to 130m (430ft) at full HD (1080p @60Hz 36bpp)
  • Note: When using Kramer HDBaseT cables


  • VIDEO
  • Up to 6.75Gbps bandwidth (2.25Gbps per graphic channel),
  • Up to 1080p@60Hz 36bpp resolution,
  • HDCP 2.2 signal compliance


  • EXTENDED ETHERNET
  • Up to 100Mbps extended line rate bandwidth


  • EXTENDED RS-232
  • 300 to 115200 baud rate


  • POWER SOURCE
  • 5V DC, 4A


  • POWER CONSUMPTION
  • 5V DC, 1.55A


  • ENCLOSURE
  • Mega Tools size, aluminum type


  • COOLING
  • Convection ventilation


• Item Includes:

  • TP-582T Transmitter
  • Power supply 5V/4A
  • Bracket installation kit


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063018412
