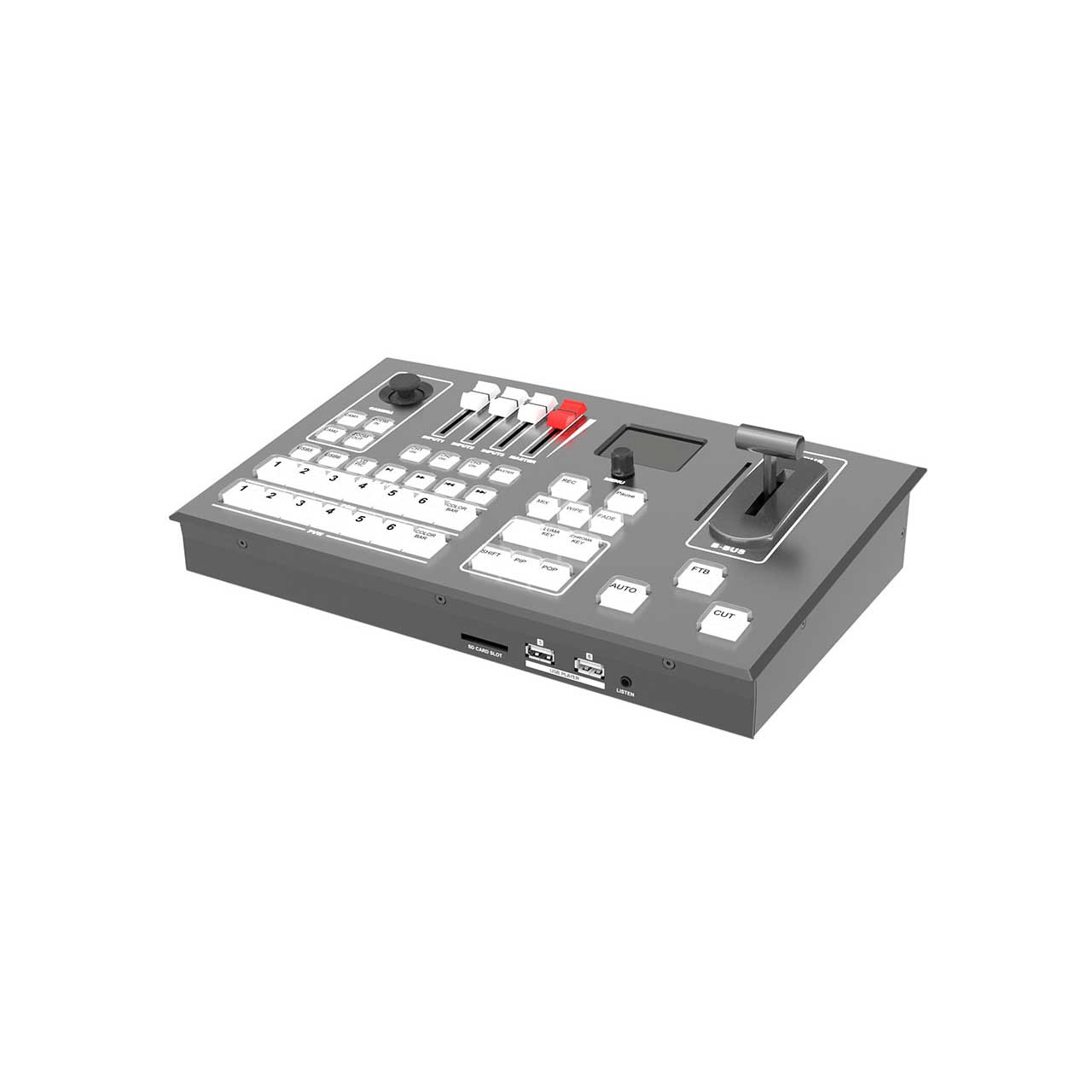

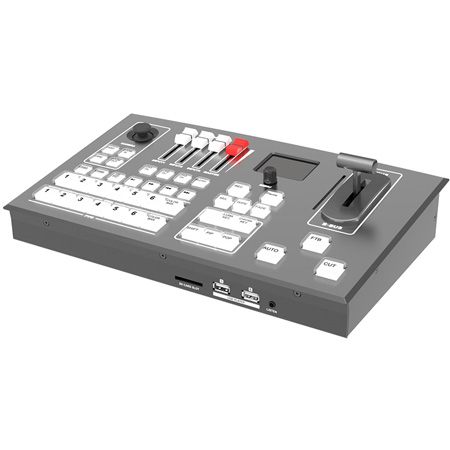

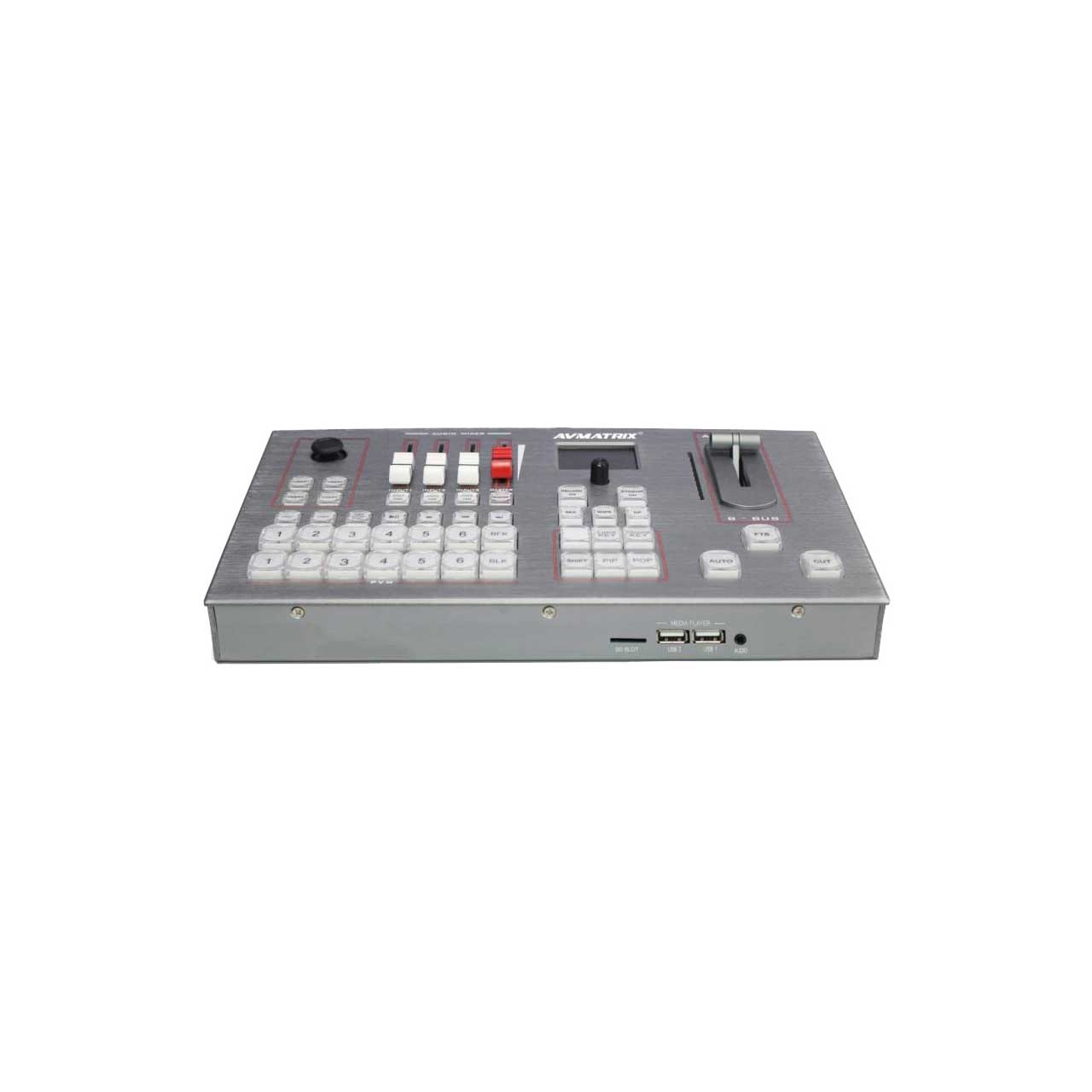

AVMATRIX VS065 Portable 6 channel SDI/HDMI Video Switcher

VS0605 - Overview

• Features:

  • Input format auto-detected and PGM/AUX output format selectable
  • Remote PTZ camera control: Visca and Pelco protocol
  • T-Bar/AUTO/CUT transitions and MIX/FADE/WIPE effects
  • Luma Key/Chroma Key for virtual studio
  • PIP/POP window size and position adjustable
  • Record PGM video to SD card, up to 1080p60
  • Audio Mixer: TRS audio & SDI, HDMI, USB embedded audio


• Specifications:

  • Video Inputs:
    - 4x SDI
    - 2x HDMI/DVI-I/VGA/USB
  • Bit Rate: 270Mbps - 3Gbps
  • Return Loss: >15dB, 5MHz - 3GHz
  • Signal Amplitude: 800mV ±10% (SDI/HDMI/DVI/VGA)
  • Impedance:
    - 75Ω (SDI/VGA)
    - 100Ω (HDMI/DVI)
  • SDI Input Format:
    - 1080p 60/59.94/50/30/29.97/25/24/23.98
    - 1080psF 30/29.97/25/24/23.98
    - 1080i 60/59.94/50
    - 720p 60/59.94/50/30/29.97/25/24/23.98
    - 625i 50 PAL, 525i 59.94 NTSC
  • HDMI Input Format:
    - 4K 60/50/30
    - 2K 60/50/30
    - 1080p
    - 1080i 50/59.94/60
    - 720p 60/59.94/50/30/29.97/25/24/23.98
    - 576i 50, 576p 50
  • DVI-I/ VGA Input Format:
    - 1920x1080 60Hz/1680x1050 60Hz
    - 1600x1200 60Hz/1600x900 60Hz
    - 1440x900 60Hz/1366x768 60Hz
    - 1360x768 60Hz/1280x1024 60Hz
    - 1280x960 60Hz/1280x800 60Hz
    - 1280x768 60Hz/1280x720 60Hz
    - 1152x864 60Hz/1024x768 60Hz/640x480 60Hz
  • SDI Video Rate: Auto detection, SD/HD/3G-SDI
  • SDI Compliance: SMPTE 259M/292M/424M
  • Bit Rate: 270Mbps - 3Gbps
  • Color Space/Precision
    - SDI: YUV 4:2:2, 10-bit
    - HDMI: RGB 444 8/10/12bit, YUV 444 8/10/12bit, YUV 422 8/10/12bit

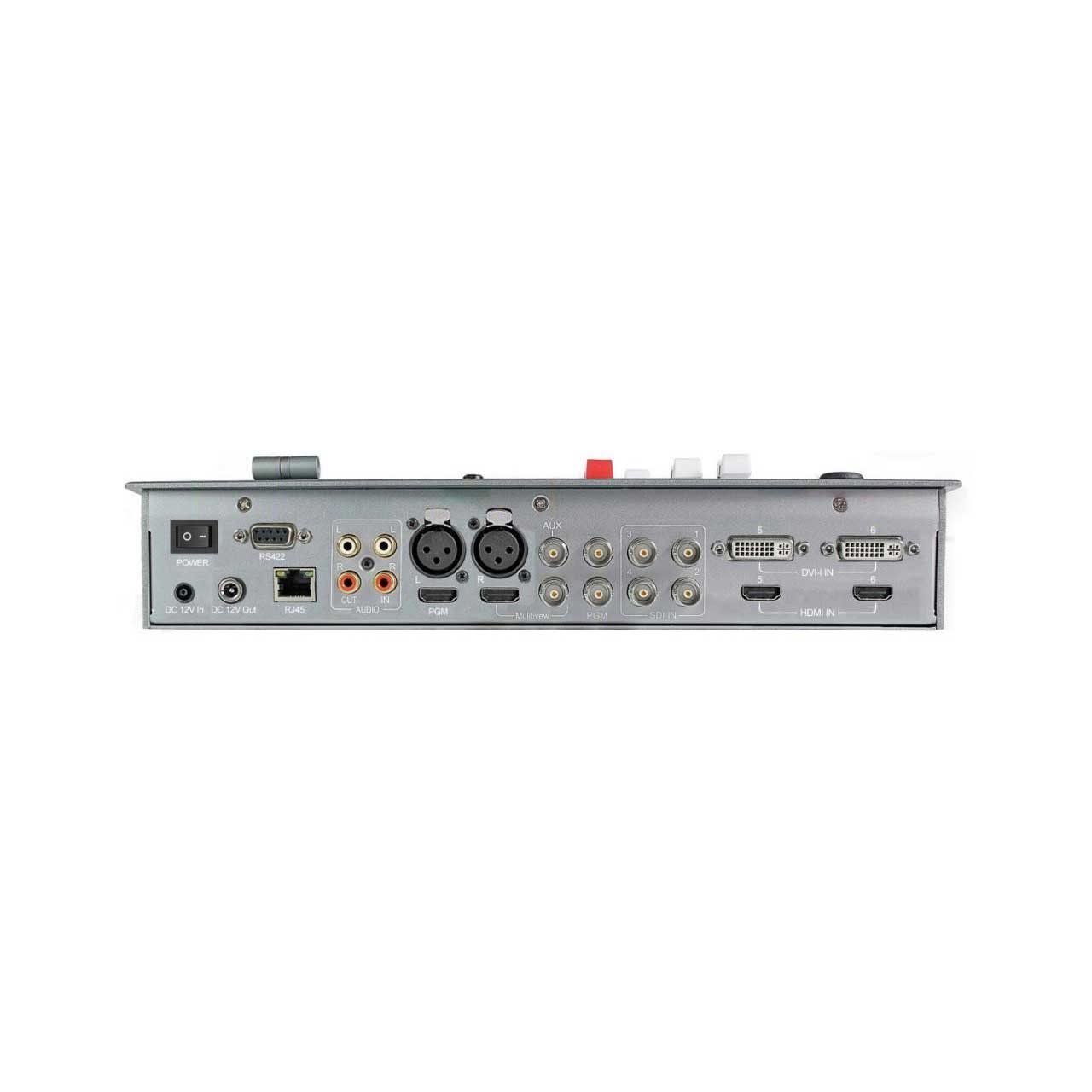

    Outputs
  • PGM Outputs:
    - 2x HD/3G-SDI
    - 1x HDMI
  • AUX Output: 1x HD/3G-SDI
  • PGM Output Format:
    - 1080p 50/60/30/25/24
    - 1080i 50/60

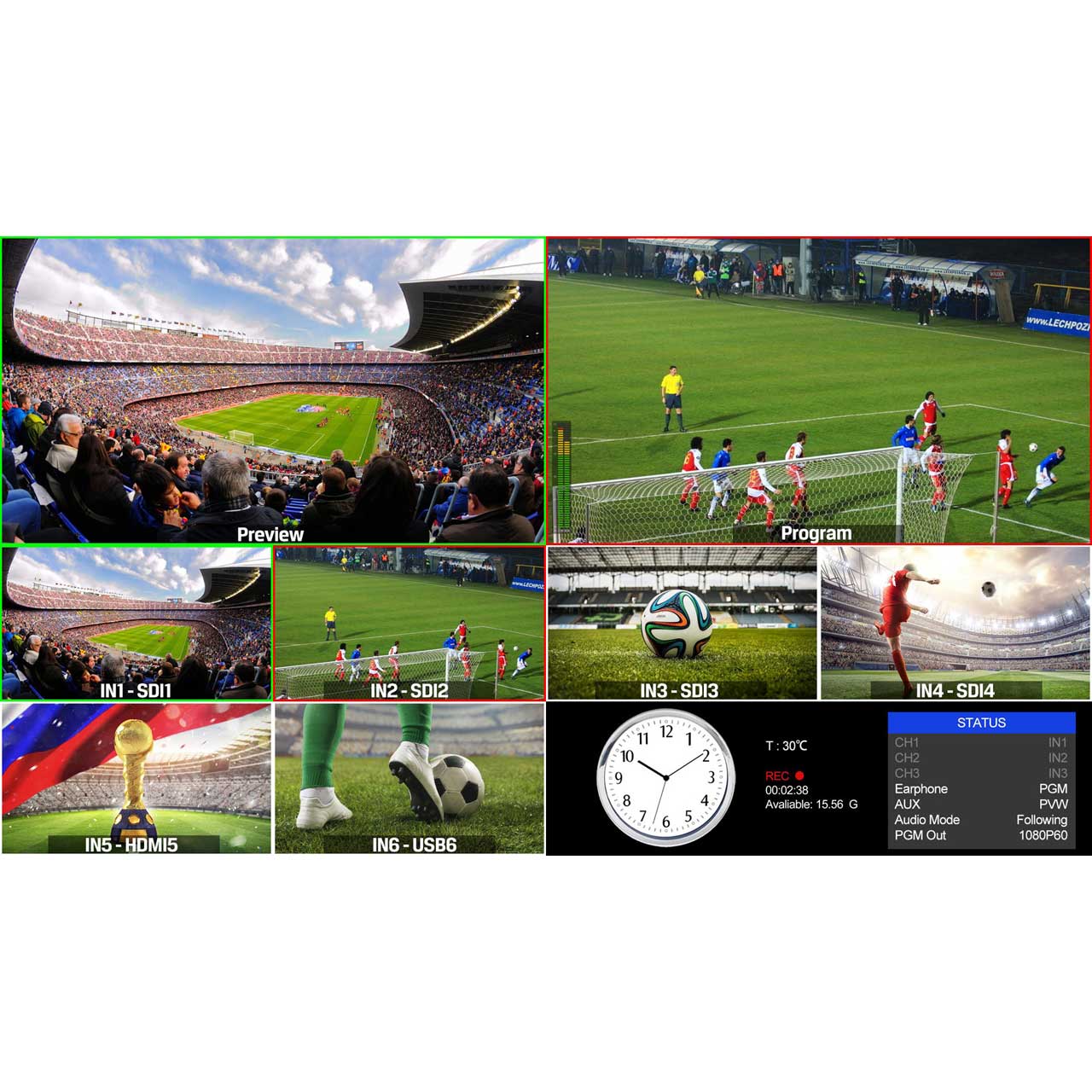

  • Multiview Output:
    - 1x HD/3G-SDI
    - 1x HDMI
  • Multiview Output Format: 1080p 60


  • Return Loss: >15dB 5MHz - 3GHz
  • Signal Amplitude: 800mV ±10% (SDI/HDMI/DVI-I/VGA)
  • DC Offset: 0V ±0.5V
  • Audio Input:
    - 1x TRS (L/R), 50Ω
    - 1x 3.5mm earphone, 100Ω
  • Others
    - 1x LAN RJ45
    - 1x SD card slot
  • Power: DC 12V In, 2A; DC12V Out
  • Consumption: Greater than or less than 24W
  • Operation Temp: -4°F - 140°F (-20°C - 60°C)
  • StorageTemp: -22°F - 158°F (-30°C - 70°C)
  • Operation Humidity: 20% - 70% RH
  • Storage Humidity: 0% - 90% RH
  • Dimensions (LxWxD): 12.20" x 7.09" x 2.76" (310mm x 180mm x 70mm)
  • Net Weight: 4.19lbs (1.9kg)
  • Gross Weight: 8.16lbs (3.7kg)


• Warranty:

  • 3 Year Limited Warranty


• GTIN:

  6971118000111
