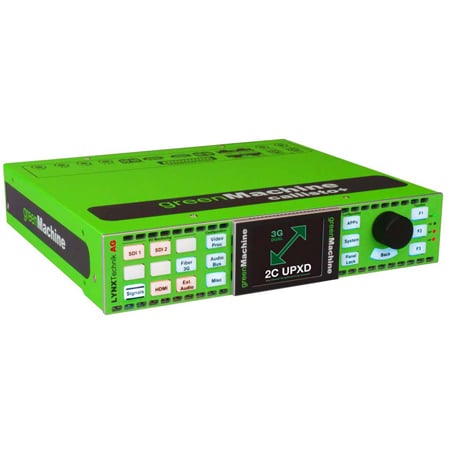

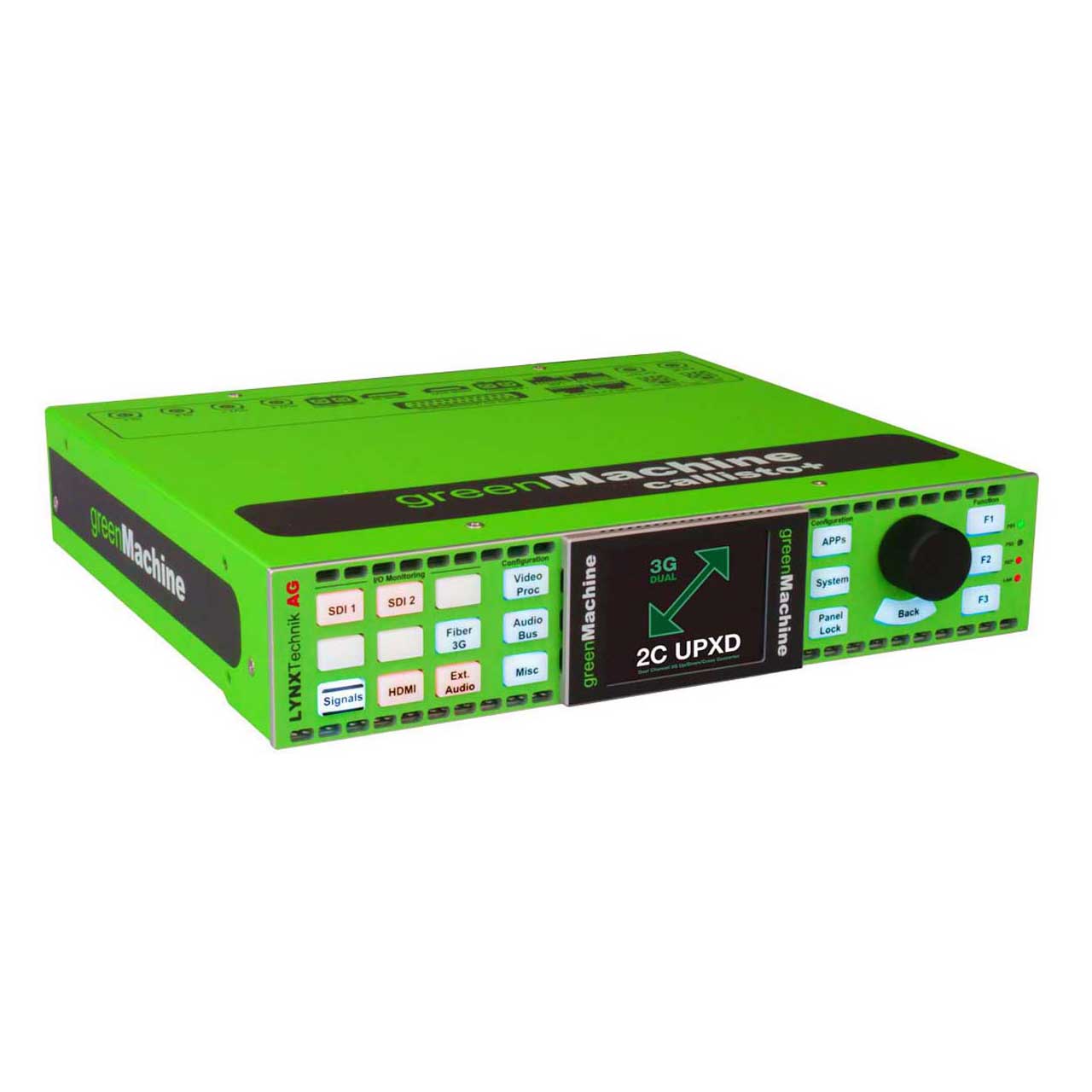

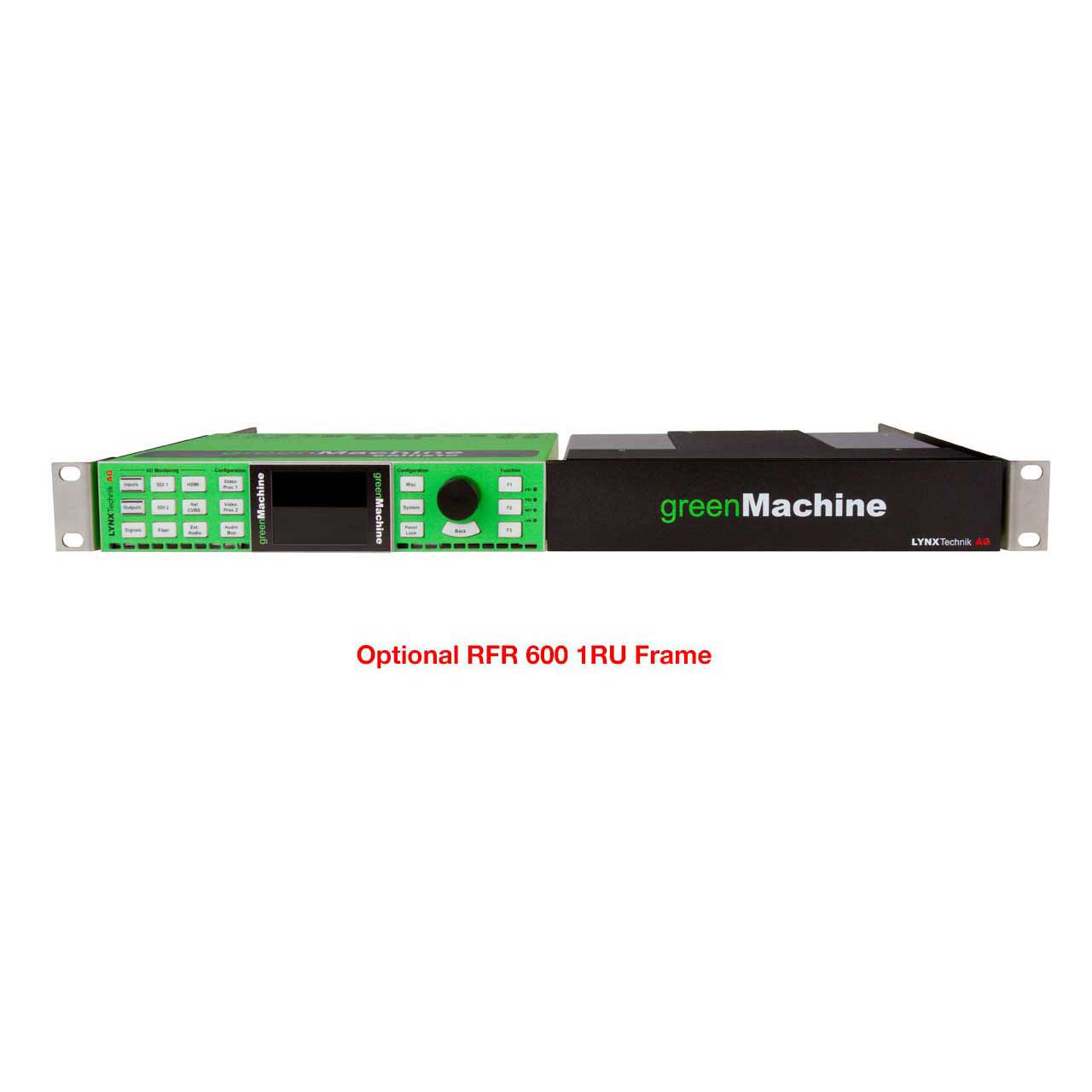

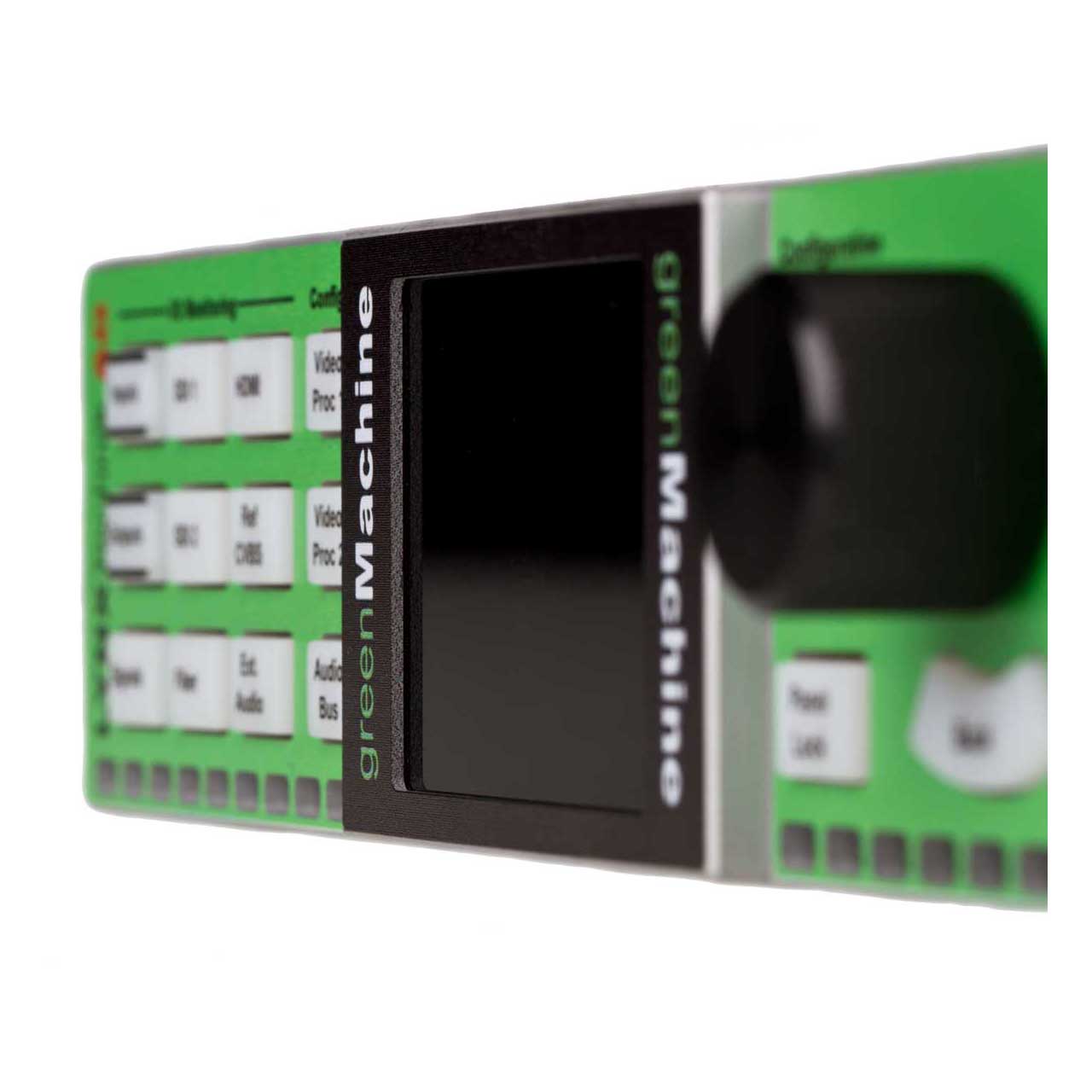

LYNX Technik GMPC 2CUPXD US greenMachine callisto+ - Dual 3G-SDI UPXD Converter - Frame Synchronizer and Audio Processor

GMPC 2CUPXD US - Overview

• Features:

  • Processing Channels: Two independent 3G channels (2x3G)
  • 3G Scaler: A spatial converter with a powerful region of interest (ROI) selection and scaling. The conversion modes supported are: Pillar box/Letterbox, Center cut, 14:9 conversion, Stretch to fill, and Custom ROI.
  • Deinterlacer: Deinterlacers on channel 1 and channel 2 performing broadcast-quality deinterlacing on SD and HD video formats.
  • Motion adaptive filtering: Motion adaptive filtering allows deinterlacer to create a sequence of output frames at the same rate as the sequence of input fields eliminating feathering or flickering artefacts.
  • 3G level A/B: It provides automatic detection of 3G level A/B and allows 3G level A <> 3G level B dual-link conversion. (3G level A acc. to SMPTE ST425-1/4:2:2, 10Bit)
  • Frame Synchronizer: One of the best synchronizers in the industry utilizing the external reference with a robust "flywheel" function for the synchronization of SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay, then embedded via a matrix into the SDI output.
  • Metadata Management: This functionality manages the embedded metadata in the video signals. Time code, Closed captions, and Teletext can be monitored and/or converted.
  • Video Adjustment: It includes saturation, gain black and hue adjustments, blanking interval deletion and aperture correction. It also provides a horizontal flip and YCrCb headroom clipping functionality.
  • Color Correction: It allows adjustments in gain, offset, lift, and gamma for Red, Green, and Blue (RGB). It also provides gain and offset adjustments for Cyan, Magenta, Yellow, and White (CMYW).


• Specifications:

  • SDI Inputs
  • 2x 3G SDI video on 75 Ohm BNC connector - SMPTE, 292M, 424M, 259M with automatic video format and standard detection
  • Return Loss: >15dB from 5MHz to 1.5GHz,
  • >10dB from 1.5GHz to 3GHz
  • Automatic cable EQ (Belden 1694A):
    340m@270Mbit/s
    [email protected]/s
    [email protected]/s

    SDI Output
  • Analog bi-level (SDTV) or ri-level (HDTV), cross lock capability
  • Timing jitter:
    < 0.2 UI @ 270Mbit/s
    < 1.0 UI @ 1.5Gbit/s
    < 2.0 UI @ 2.97Gbit/s
  • Alignment jitter:
    < 0.2 UI @ 270Mbit/s
    < 0.2 UI @ 1.5Gbit/s
    < 0.3 UI @ 2.97Gbit/s
  • Return Loss:
    >15dB from 5MHz to 1.5GHz
    >10dB from 1.5GHz to 3GHz

    HDMI
  • 1x Input 10 bit HDMI 1.4b (up to 3G)
  • 1x Output 10 bit HDMI 1.4b (up to 3G)

    Optical I/O (Optional)
  • 1x 3G SDI SFP Transceiver (SMPTE 297M - 2006)

    Ethernet (LAN)
  • 1x 10/100/1000 BaseT RJ45 Connector

    Optical Ethernet (Optional)
  • IEEE 802.3z
  • 1000Base-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)

    GPI I/O
  • 4x general purpose inputs (RJ45 Connector)
  • 4x general purpose outputs (RJ45 Connector)

    Reference Input
  • 1x analog video reference on 75 Ohm BNC connector
  • Analog bi-level (SDTV) or tri-level (HDTV) auto detect

    Reference Output
  • 1x analog video reference on 75 Ohm BNC connector

    Serial Data
  • EIA/ETA RS232C / RS422 /RS 485 (selectable through
  • greenGUI) - RJ45 connector
  • ESD protection for up to 16kV

    Audio I/O
  • 4x input and 4x output on Sub-D 25 female connector
  • Analog: input impedance >10k Ohm, Output Impedance 150 Ohm
  • Analog I/O full scale level: selectable 12, 15, 18, 20, 22, 24 dBu
  • Digital: AES3 balanced transformer isolated; Digital output level: 4V peak to peak nom
  • 64 channel MADI supported on selected constellations (optional MADI SFP reqired for this)

    General
  • Power:
    12VDC @ 45W nominal (supports 7 - 24VDC input range)
    2x power connections for redundant power supply
  • Dimensions (WxHxD): 1/2 19 x 1.75 x 8.86" (218 x 44 x 225mm) - including connectors.
  • Weight: 1.28kg (2.82lb)
  • Ambient Temperature: 5° to 40°C (41° to 104°F)
  • Humidity: 90% maximum, non-condensing


• Warranty:

  • 3 YEARS


• GTIN:

  4250479328556
