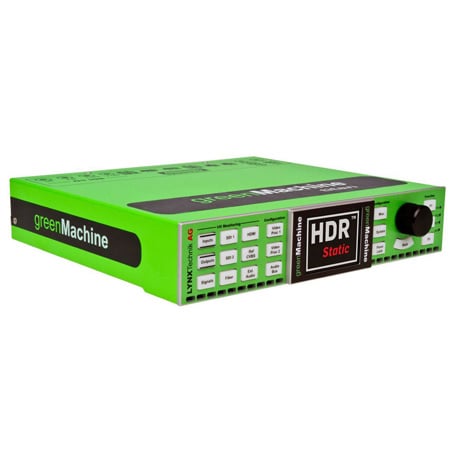

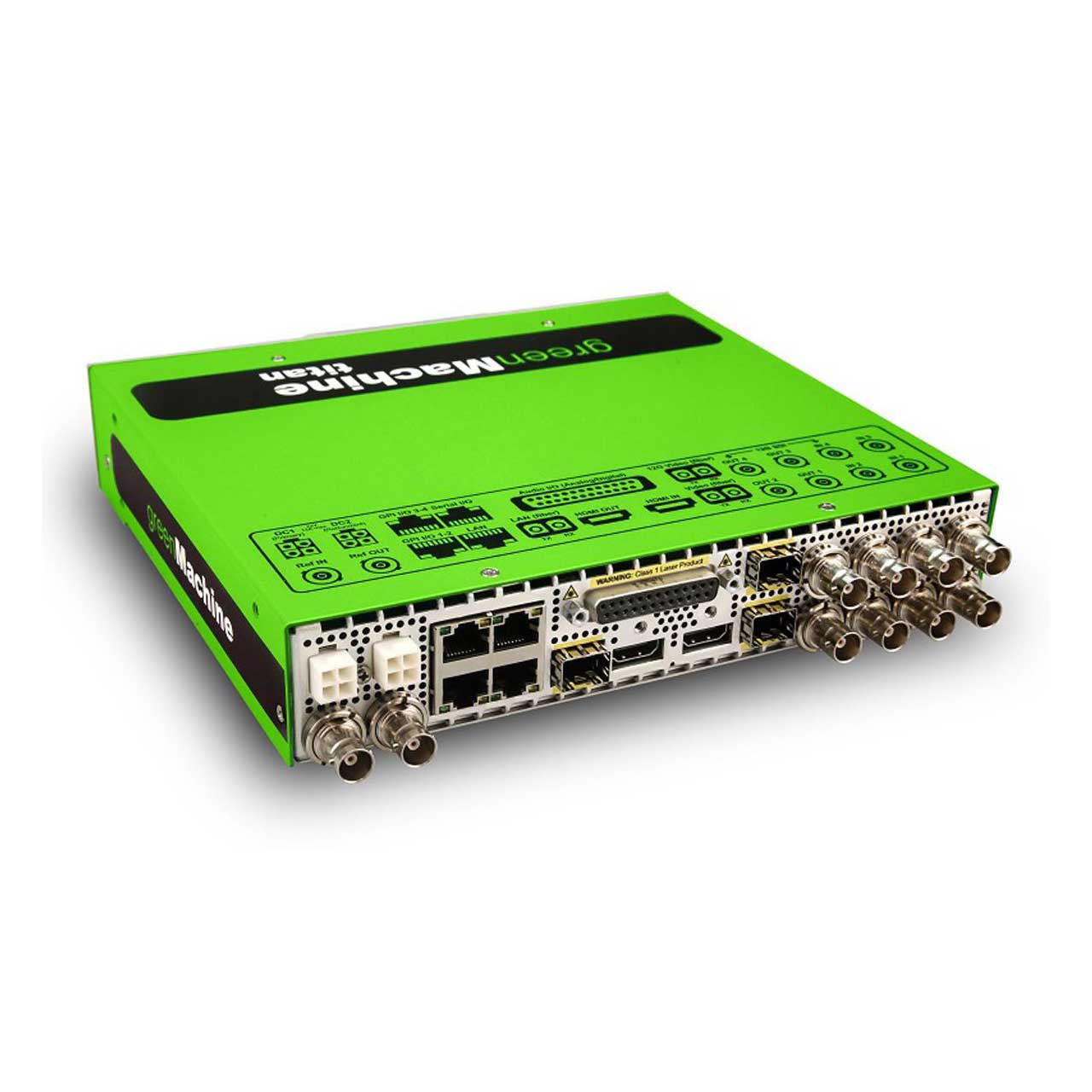

LYNX Technik GMPT HDRS US 4K UHD or 4 x 3G SDI Static HDR Processor

ITEM #: LNX-GMPT-HDRS-US MFG #: GMPT HDRS US

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$8,900.00

Our Price:

$8,455.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

GMPT HDRS US - Overview

The LYNX Technik HDR STATIC greenMachine is a fully featured broadcast quality HDR to SDR, SDR to HDR or cross standard HDR to HDR converter, with a frame sync and up/down/cross converters supporting formats up to 4K UHD (3840x2169).

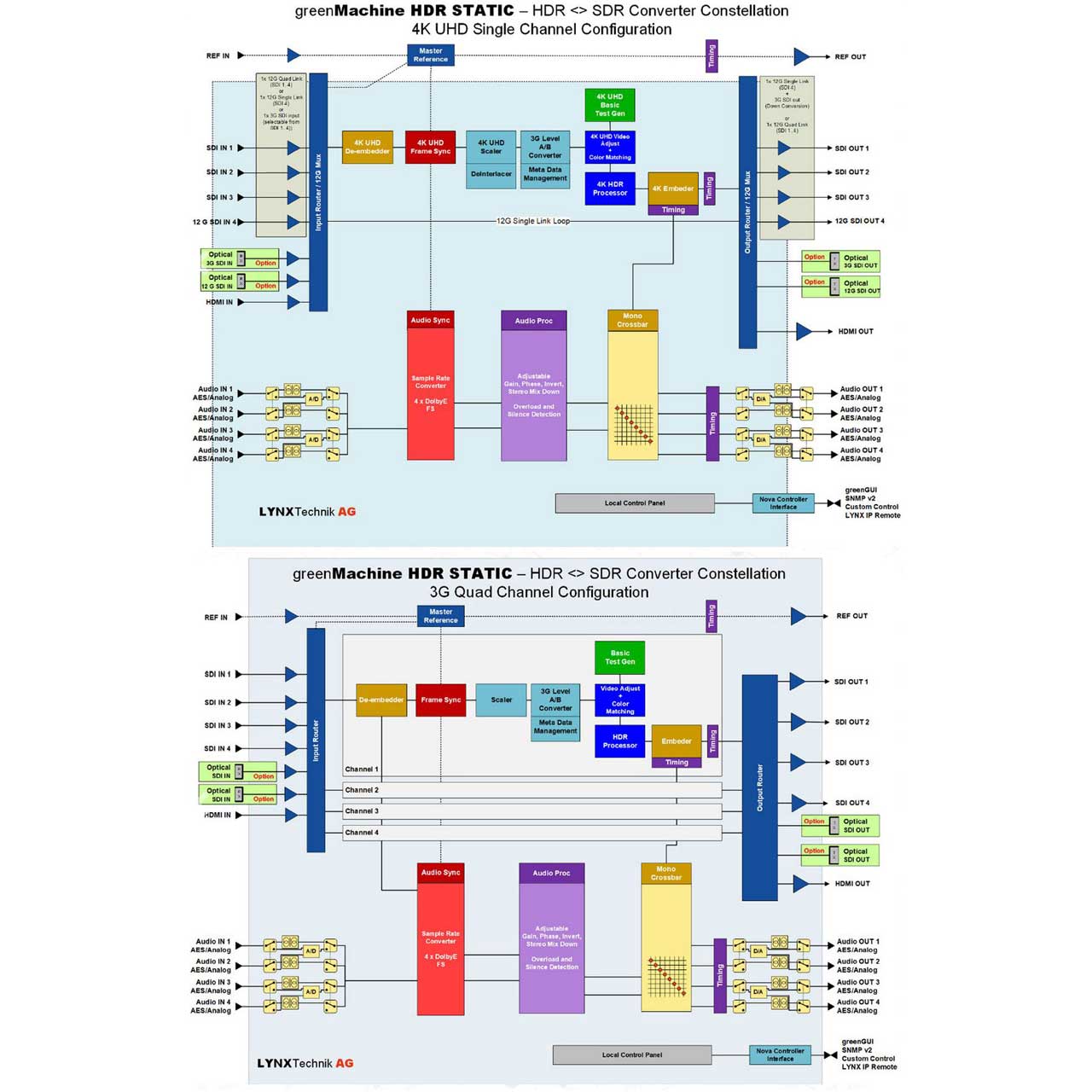

The static conversion process applies color and contrast conversion parameters equally throughout the entire program. There are two modes of operation, the greenMachine will function as a single 12G 4K-UHD processing channel, or four independent processing channels for SDI signals up to 3G (1080p/60).

The conversion is simultaneously combined it with a static (real time) tone mapping algorithm. This allows the user to perform up, down and cross-conversions between common input and output curves including Gamma, PQ, HLG and Slog3 and conversions between full and narrow ranges through appropriate static tone mapping. Conversion between color spaces including Rec. 601, Rec. 709 and Rec. 2020 are also possible. HDR content can also be displayed, by contrast compression, on non HDR-capable TV monitors thus producing a high level of HDR-enhanced image quality for all possible display types.

Input for processing can be BNC, Fiber or HDMI. Output can also be BNC, fiber or HDMI For 4k UHD signals the module accommodates 4x3G SDI (2SI Quad Link) or 12G SDI (Single Link) input and outputs. Signals can also be converted between single link and 2SI quad link. Multiple additional processing features allows for adjustments of the video content, e.g. gain, hue etc. A basic test pattern generator is also available (per channel) providing the most common line & full field patterns such as color bars, pathological test pattern, full field colors etc.

Each greenMachine is preloaded with all the available constellations (configurations). This package has the GMC-HDR-STATIC constellation installed and licensed. You can freely load any of the available constellations (configurations) for testing and evaluation at any time, the video and audio will be watermarked until licensed. You can have multiple constellations licensed for the same machine and switching between configurations takes only a few seconds. Constellations can also be shared if you have more than one greenMachine on the network.
Please Note! For more information, visit the Data Sheets Tab

  • Features:

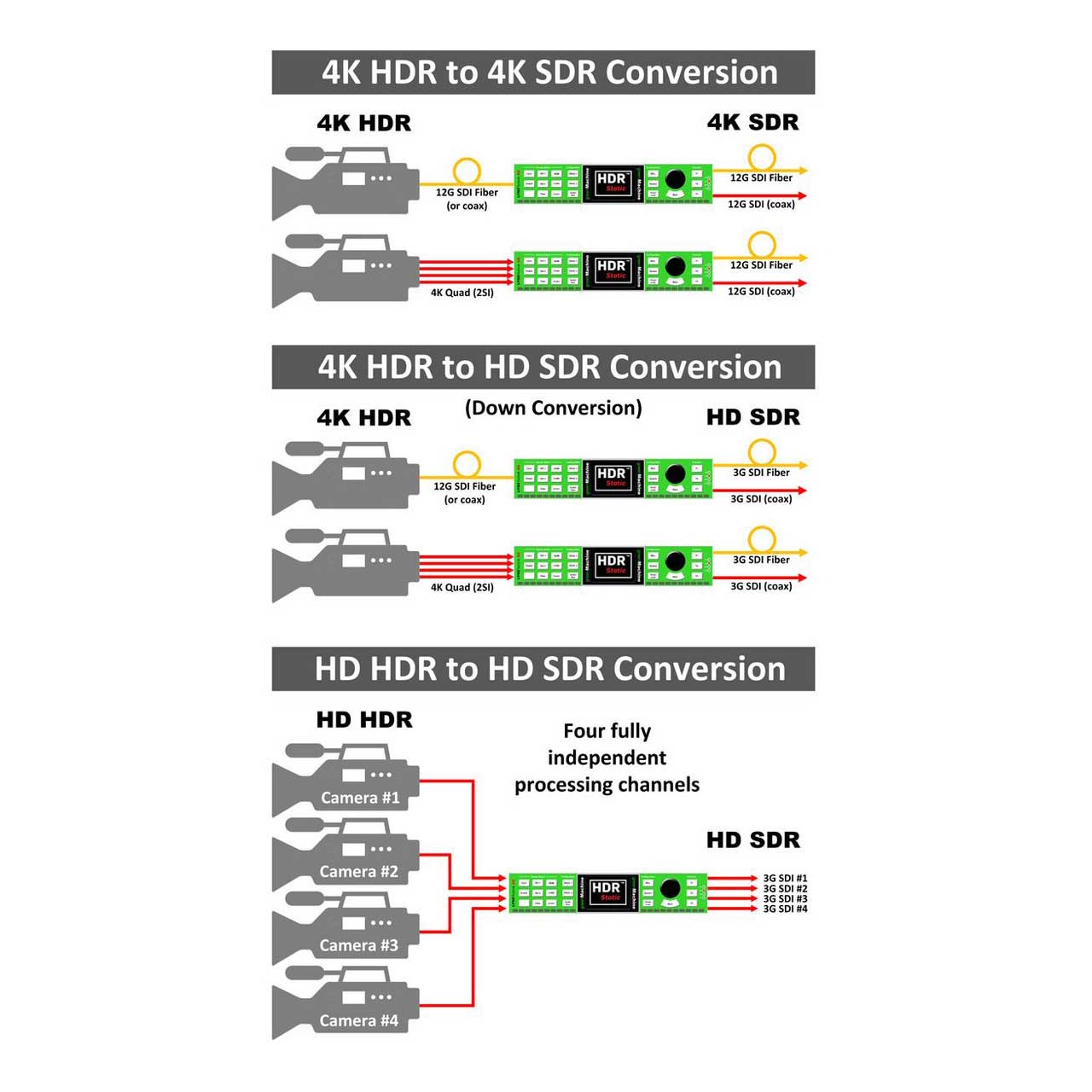

    • Static HDR to SDR / SDR to HDR and HDR to HDR cross conversion
    • Supports Gamma, PQ, HLG and SLog3
    • Supports color spaces Rec.601, Rec. 709 and Rec. 2020
    • Single channel 4K UHD or four channel 3G SDI modes of operation
    • 12G/6G/3G/HD/SD SDI Up/Down/Cross Conversion plus frame Synchronizer
    • High quality scaler with Region of Interest Selection (ROI)
    • 3G Level A / Level B conversion
    • Fully featured audio embedder / de-emebdder compatible with DolbyE maintaining guard-band
    • Extensive audio matrix / crossbars for audio shuffle
    • Audio processing: Each [mono] channel has mute, inversion, stereo to mono mix down plus silence and overload monitoring
    • MADI I/O capability
    • Metadata management for all embedded metadata in the video signals
    • Video adjustments include gain, black, hue and saturation plus blanking interval deletion and more
    • Color matching functionality providing gain and offset adjustments for Red, Green, Blue, Yellow, Cyan, Magenta and Black
    • Basic audio and video test generators
    • Extensive timing adjustments. Each video and AES audio channel can be individually delayed. Max 30 frames video, 1.3 seconds for audio
    • Internal input and output signal routers
    • Small footprint: 1RU high x half 19" rack width

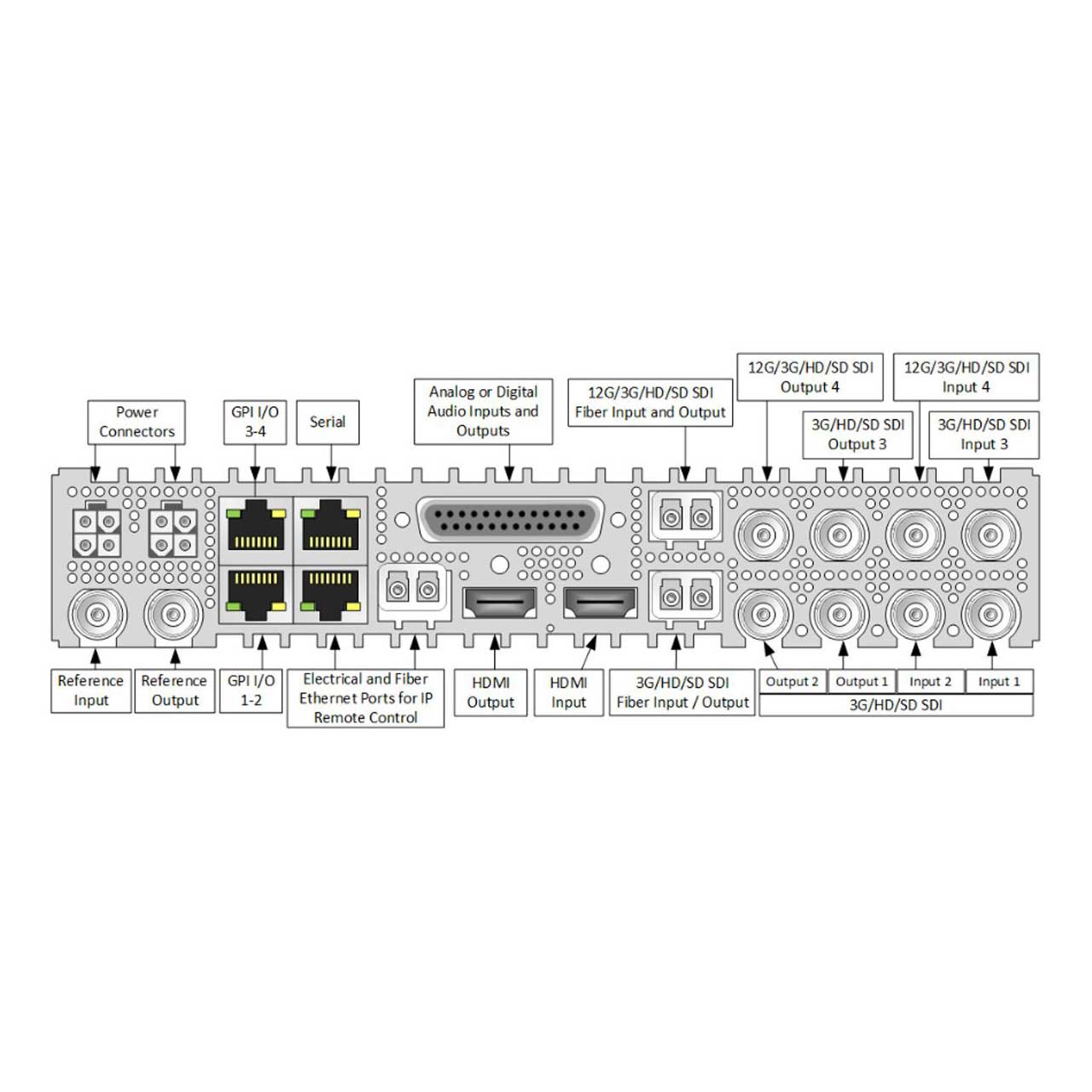

    • 3x electrical SD/HD/3G SDI inputs. Level A and Level B DL
    • 3x electrical SD/HD/3G SDI outputs. Level A and Level B DL
    • 1x electrical SD/HD/3G/12G SDI Input. 12G Single Link / Quad Link 2SI Level A / BDL
    • 1x electrical SD/HD/3G/12G SDI Output. 12G Single Link / Quad Link 2SI Level A /BDL
    • 1x 4k/UHD HDMI input (1.4b) and 1x 4k/UHD HDMI output (1.4b)
    • 1 x Analog reference input and output (bi-level or tri-level sync)
    • 1 x Electrical LAN I/O connection
    • 4 x Balanced analog audio or digital AES Audio inputs
    • 4 x Balanced analog audio or digital AES Audio outputs
    • 4 x GPI inputs and 4x GPI outputs
    • Full remote control using greenGUI control software


  • Specifications:

    • SDI Inputs
    • 3x 3G SDI video on 75 Ohm BNC connector - SMPTE, 292M, 424M, 259M with automatic video format and standard detection
    • Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz. Automatic cable EQ (Belden 1694A): 340m@270Mbit/s, [email protected]/s, [email protected]/s
    • 12G SDI Input: 1x 12G SDI video on 75 Ohm BNC connector - SMPTE 292M, 424M, 259M, 2081, 2082. with automatic video format and standard detection
    • 12G Return Loss: same as 3G SDI; >7dB to 6GBit/s; >4dB to 12GBit/s
    • HDMI Input / Output: 1x 10 bit HDMI 4k/UHD 1.4b
    • Optical I/O (Optional): 1x 3G SDI SFP Transceiver (SMPTE 297M - 2006) / 1x 12G SDI SFP Transceiver (SMPTE 292M, 424M , 2081 2082) - no SD SDI (270MBit)
    • Ethernet (LAN): 1x 10/100/1000 BaseT RJ45 Connector

      GPI I/O
    • 4x general purpose inputs + 4x general purpose outputs - RJ45 Connectors
    • Reference Input: 1x analog video reference on 75 Ohm BNC connector. Analog bi-level (SDTV) or tri-level (HDTV) auto detect
    • SDI Outputs: 3x SDI video on 75 Ohm BNC connector (SMPTE, 292M, 424M, 259M)
    • Timing jitter: < 0.2 UI @ 270Mbit/s, < 1.0 UI @ 1.5Gbit/s, < 2.0 UI @ 2.97Gbit/s
    • Alignment jitter: < 0.2 UI @ 270Mbit/s, < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @ 2.97Gbit/s
    • Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
    • 12G SDI Output: 1x 12G SDI video on 75 Ohm BNC connector - SMPTE 292M, 424M, 259M, 2081, 2082
    • Return Loss: same as 3G SDI; >7dB to 6GBit/s; >4dB to 12GBit/s
    • Serial Data: EIA/ETA RS232C / RS422 /RS 485 (selectable through greenGUI) - RJ45 connector. ESD protection for up to 16kV
    • Reference Output: 1x analog video reference on 75 Ohm BNC connector. Analog bi-level (SDTV) or ri-level (HDTV), cross lock capability

      Audio I/O
    • 4x input and 4x output on Sub-D 25 female connector
    • Analog Audio: input impedance >10k Ohm, Output Impedance 150 Ohm Analog I/O full scale level: selectable 12, 15, 18, 20, 22, 24 dBu
    • Digital Audio: AES3 balanced transformer isolated; Digital output level: 4V peak to peak nom

      Physical
    • Power: 12VDC @ 45W nominal (supports 7 - 24VDC input range). 2x power connections for redundant power supply
    • Size (WxHxD): 218 x 44 x 225mm(1/2 19 x 1.75 x 8.86") - including connectors.
    • Weight: 1.4kg (3.09lb)
    • Ambient: 41°F to 104°F maintaining specification.
    • Humidity: 90% maximum, non-condensing


  • Item Includes:

    • greenMachine titan
    • Primary power supply
    • AC power cord
    • SubD 25 audio adapter PCB
    • Quick reference guide
    • (APPs not included - purchased separately)


  • GTIN:

    4250479326255
