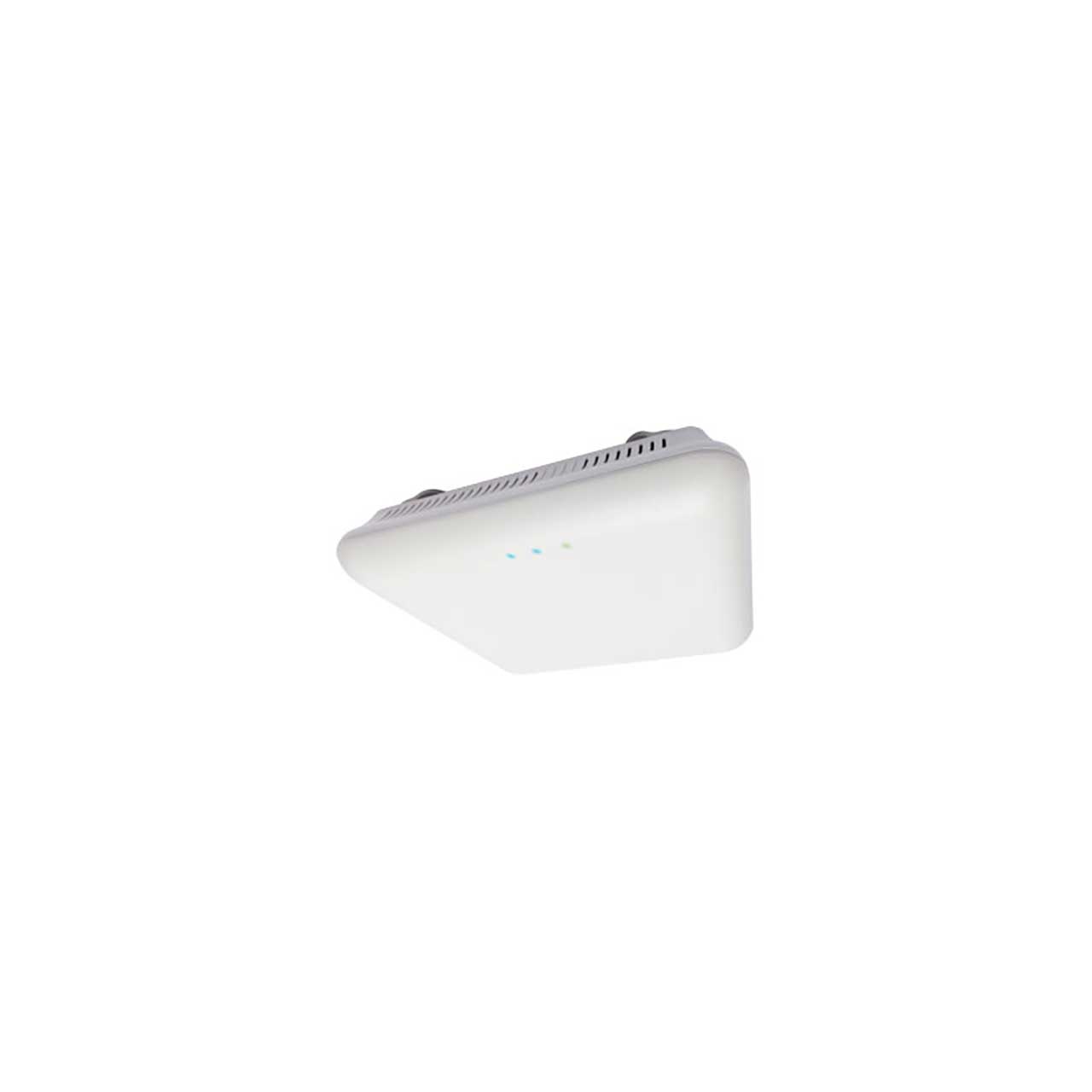

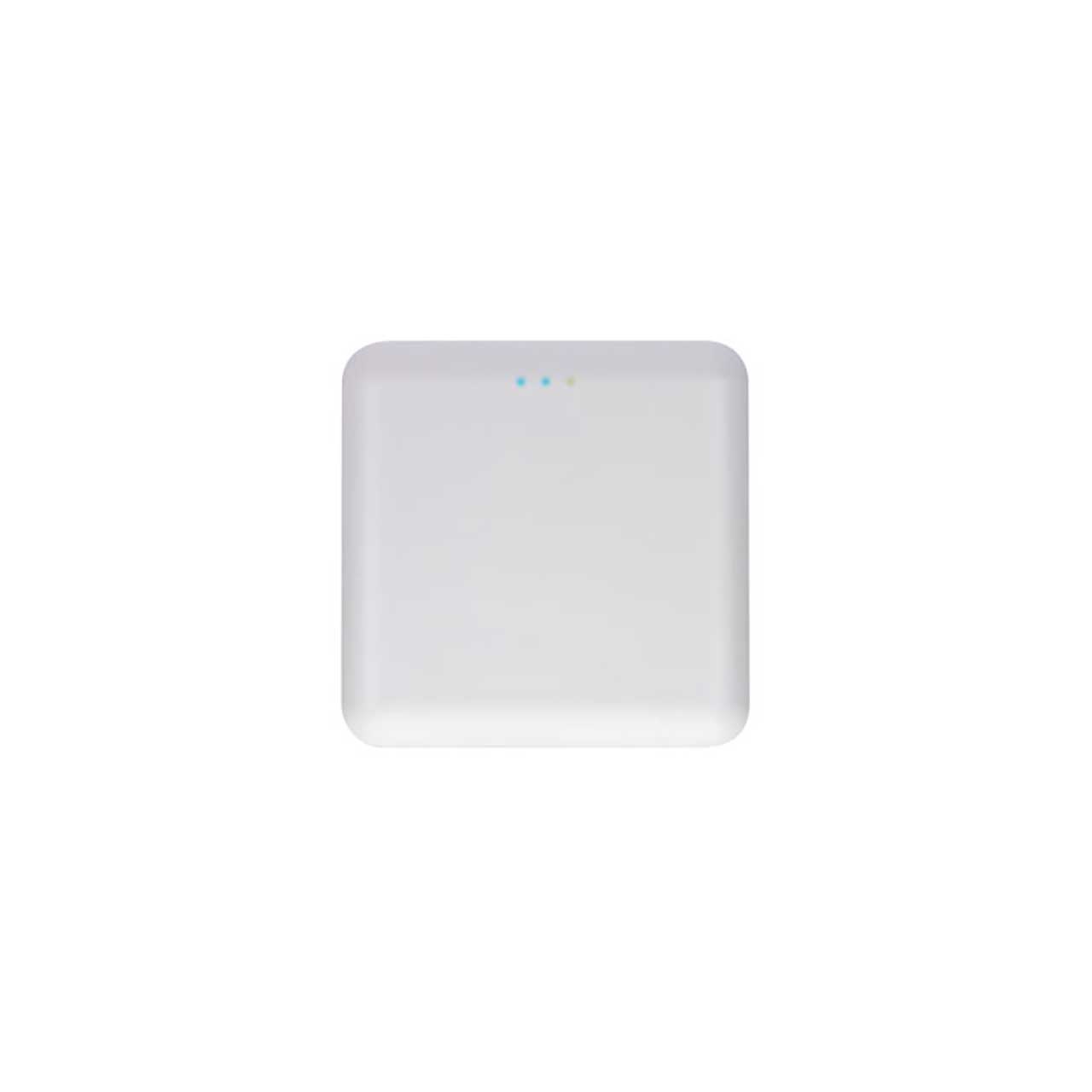

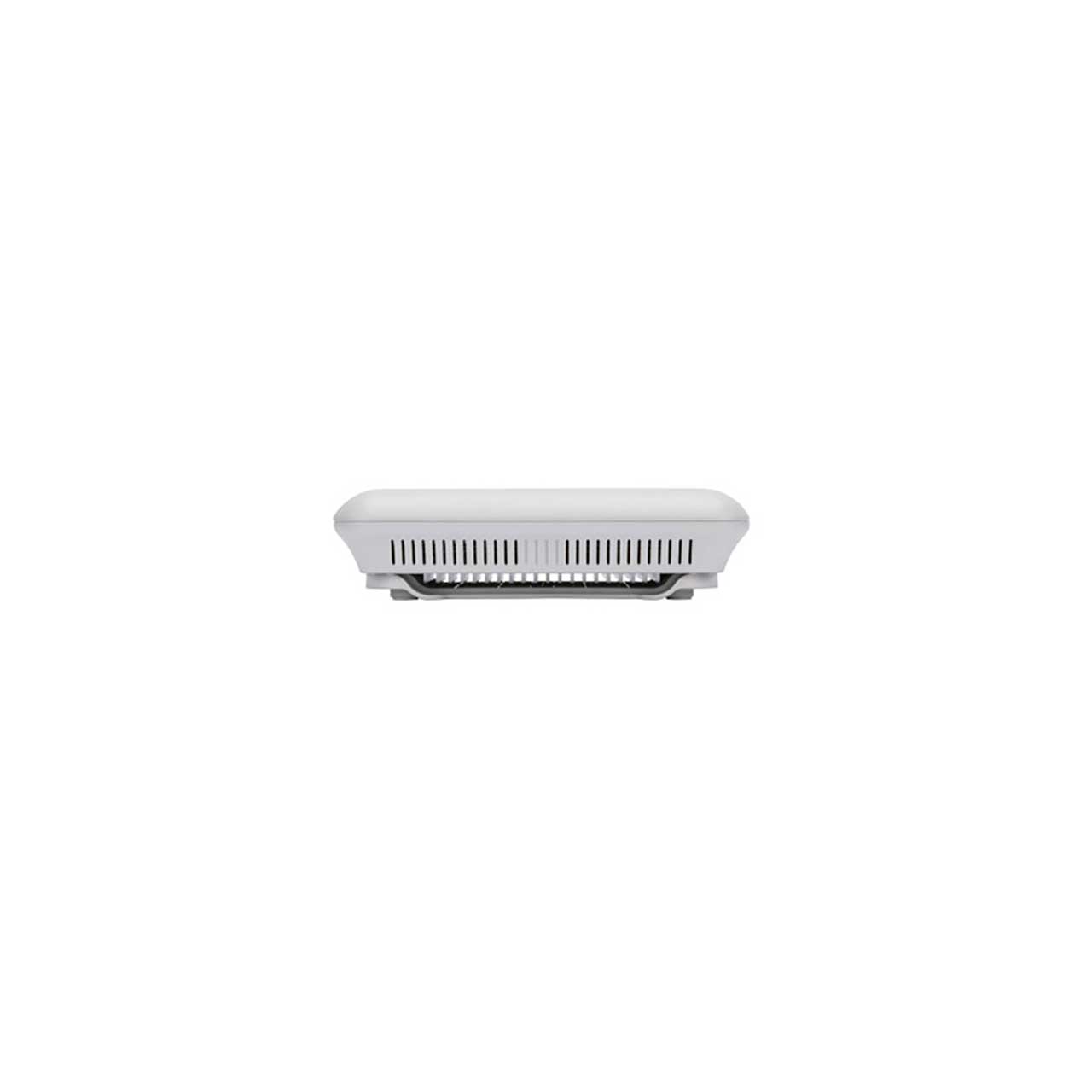

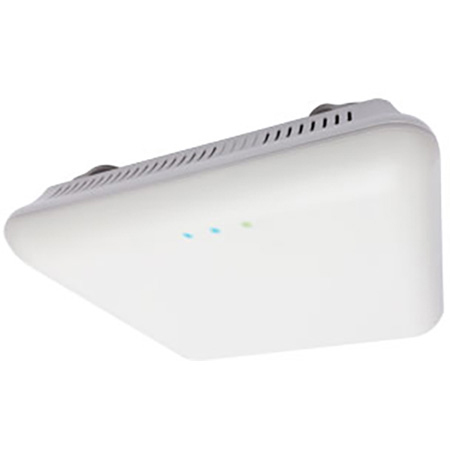

Luxul Apex Wave 2 AC3100 Dual-Band Access Point with Power Cord

ITEM #: LUXU-XAP-1610 MFG #: XAP-1610

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$536.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


XAP-1610 - Overview

The Luxul XAP-1610 is built with leading edge 802.11ac Wave 2 technology which offers support for more connected devices and increased data rates, delivering outstanding WiFi performance. It is compatible with all Luxul WiFi controllers, both standalone and embedded, and can be used standalone or as part of a multi- AP deployment. Installation is simple, requiring only a single Ethernet cable that delivers both power and data through the integrated PoE+ port.

  • Features:

    • High performance 802.11ac WiFi (data transfers up to 3167Mbps)
    • Concurrent Dual-Band Wireless AC
    • 2.4 and 5GHz Beamforming
    • High output power for maximum coverage
    • Compatible with Luxul Roam Assist™ Wireless Controllers
    • VLAN support for creating a secure guest network
    • Simple and discreet installation
    • Up to 4 SSIDs per band for a total of 8 SSIDs
    • Single cable installation with PoE (Injector included)
    • Great for streaming media or other demanding applications
    • Installs on ceiling or wall; or use as a desktop AP
    • Three-year limited warranty
    • Supports 128 clients
    • Wave 2 technology (MU-MIMO)

  • Specifications:

    • Standards Compliance: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
    • Interface: Two 10/100/1000M ports
    • Antenna: Four dual-band antennas
    • Button: Reset button
    • Power: PoE (injector included)
    • Power Consumption: 18W Avg
    • Max Power Consumption: 26W
    • Environmental Temperatures: 0-50°C (32-122°F)
    • Dimensions WxHxD in. (mm): 7.28"x1.71"x7.28" (185 x 43.5 x 185)
    • Weight lbs (kg): 1.50 (.68)
    • LEDs: Power, 2.4GHz, 5GHz (can be turned off/on via user interface)
    • Frequency: Concurrent 2.4GHz and 5GHz with Beamforming
    • Wireless Speed: 2.4GHz: 1.0Gbps; 5GHz: 2.167Gbps
    • Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2
    • Operating Modes: Wireless AP
    • Certifications: FCC, IC, CE, RCM, RoHS

  • Item Includes:

    • Wave 2 AC3100 Dual-Band Wireless AP (1)
    • Mounting kit
    • Rubber feet
    • PoE injector and power cord
    • Ethernet cable
    • Quick Install Guide

  • Warranty:

    • 3-year limited warranty
