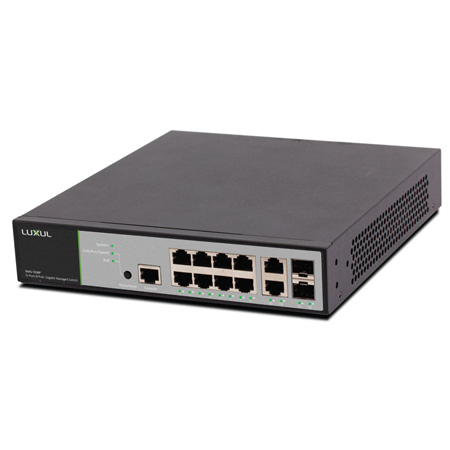

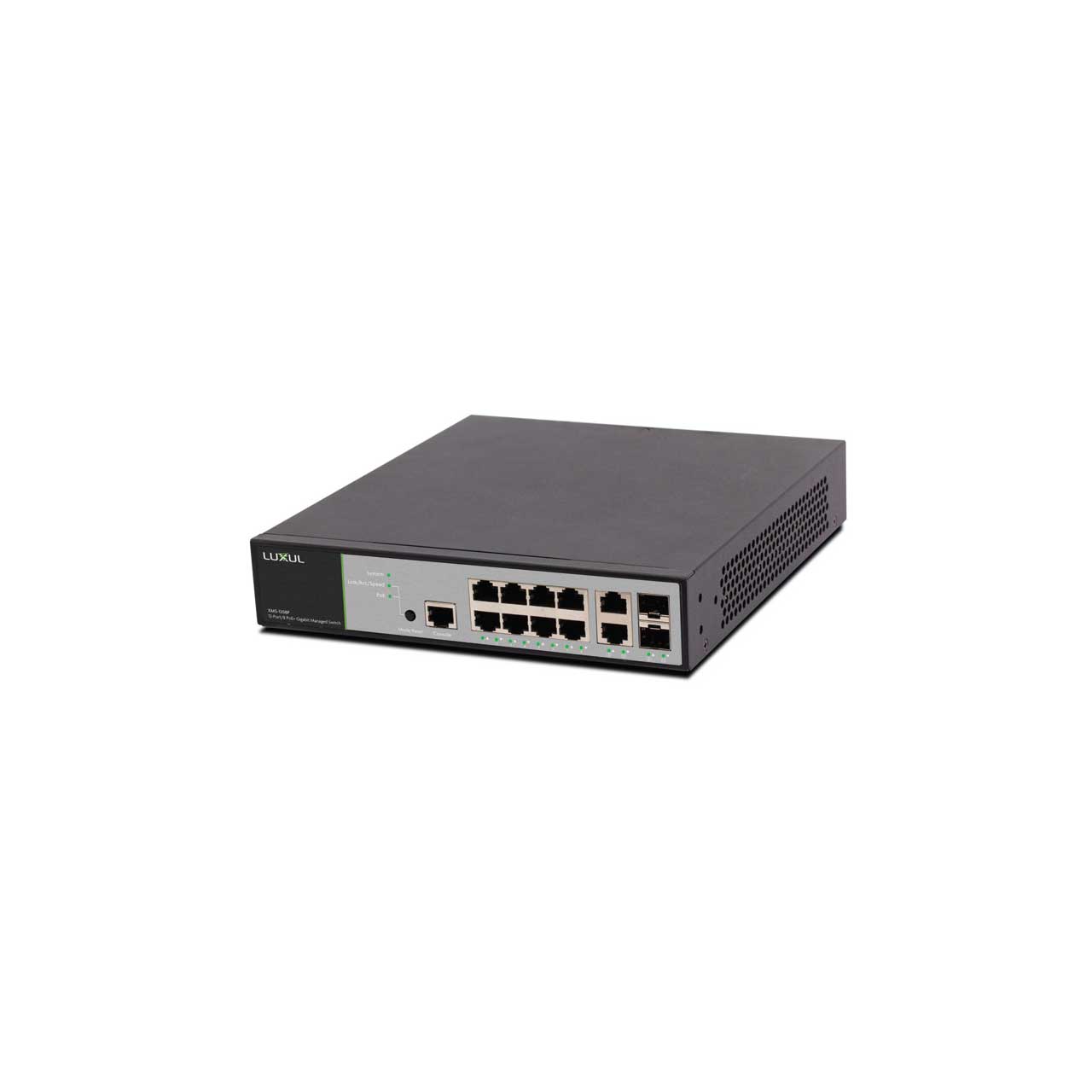

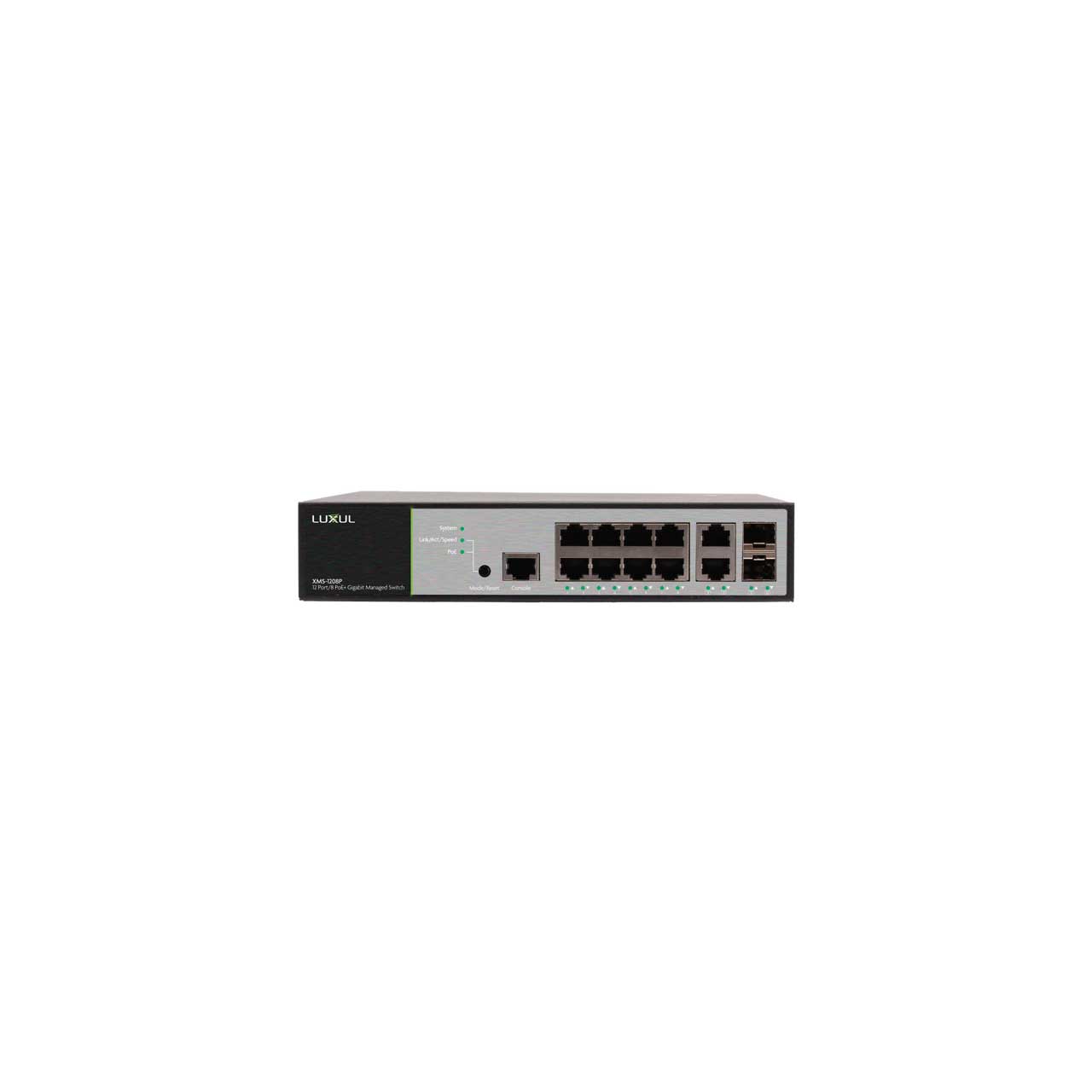

Luxul 12-Port / 8-Port PoE+ Gigabit Switch with Power Cord - Front-Facing Rackmount

XMS-1208P - Overview

• Features:

  • PoE Self-Healing with auto-recovery and power scheduling
  • 8 Gigabit 802.3af/at PoE+ ports
  • 130W power budet
  • 2 Gigabit ethernet uplink ports
  • 2 Gigabit SFP uplink ports
  • 24 Gbps switching capacity
  • Layer 3 static routing
  • 802.1Q VLAN (with trunking) and QoS support
  • Simple power management of PoE-enabled devices
  • User selectable green or blue front facing LEDs
  • Fanless for silent operation
  • Standard 19" rack-mount kit
  • Three-year limited warranty


• Specifications:

  • Standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1D, IEEE 802.3x

    Interface
  • RJ-45
  • 10 Base-T: Cat.5 UTP/STP
  • 100 Base-TX: Cat.5 UTP/STP
  • 1000 Base-T: Cat.5, Cat.5e, or Cat.6 UTP/STP
  • Gigabit fiber uplinks on SFP ports
  • Ethernet cable recognition for straight-through or crossover cables

    Surge Protection The RJ45 port surge protection is tested to: EN61000-4-5 (for
  • RJ45 port, surge 6KV)

    LEDs
  • Per unit: System, Link/Act/Speed/PoE
  • Per port: Link/Activity

    Power
  • Power Supply: Internal switched, AC 100-240V, 50-60Hz input
  • PoE Power Budget: 130 watts maximum
  • Max Power Consumption: 170W

    VLAN
  • 802.1Q max 4094 VIDs
  • Supports 1 management VLAN

    Quality of Service (QoS)
  • 4 queues per port
  • Queue handling: Strict, Weighted Round Robin (WRR)
  • CoS based on DCSP, 802.1P, and port-based priority queues
  • Port- based bandwidth control

    Network Data Transfer Rate
  • Ethernet: 10Mbps (half-duplex)
  • Ethernet: 20Mbps (full-duplex)
  • Fast Ethernet: 100Mbps (half-duplex)
  • Fast Ethernet: 200Mbps (full-duplex)
  • Gigabit Ethernet: 2000Mbps (full-duplex)
  • Layer 3: Layer 3 static routing

    Physical Characteristics
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 10% to 90% (non-condensing)
  • Dimensions LxWxH in. (mm): 9.45"(240) x 8.66"(220) x 1.73"(44)
  • Weight lbs (kg): 4.6 (2.1)
  • Certification: FCC, IC, CE-EMC, CE-LVD, and RoHS


• Item Includes:

  • XMS-1208P Switch
  • Power cord
  • Rack mount kit
  • Quick Install Guide


• Warranty:

  • 3-year limited warranty


• GTIN:

  0655003921137
