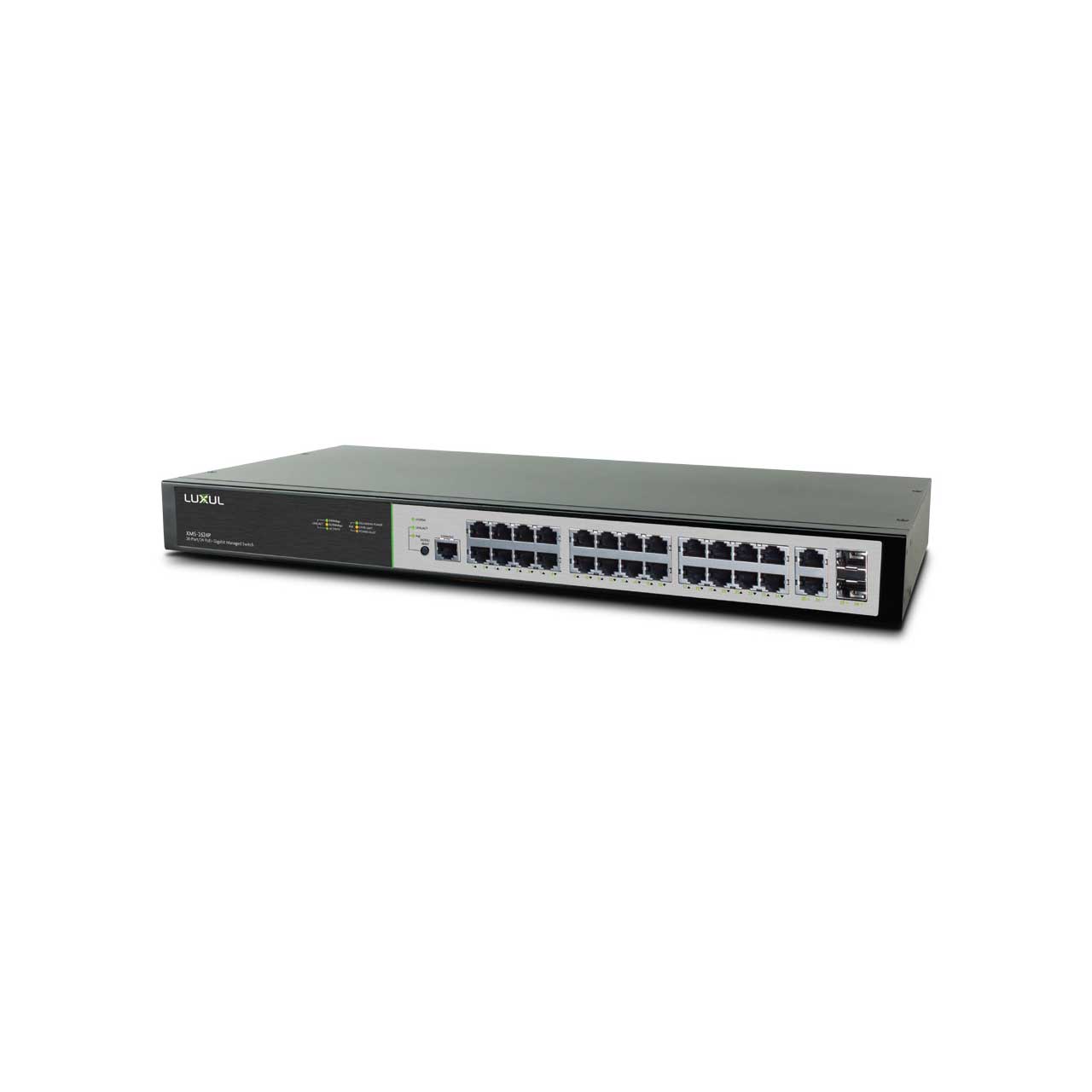

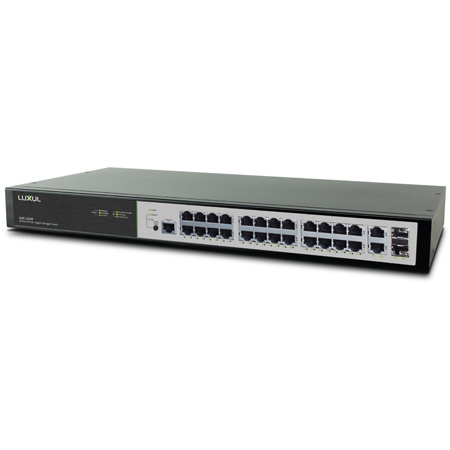

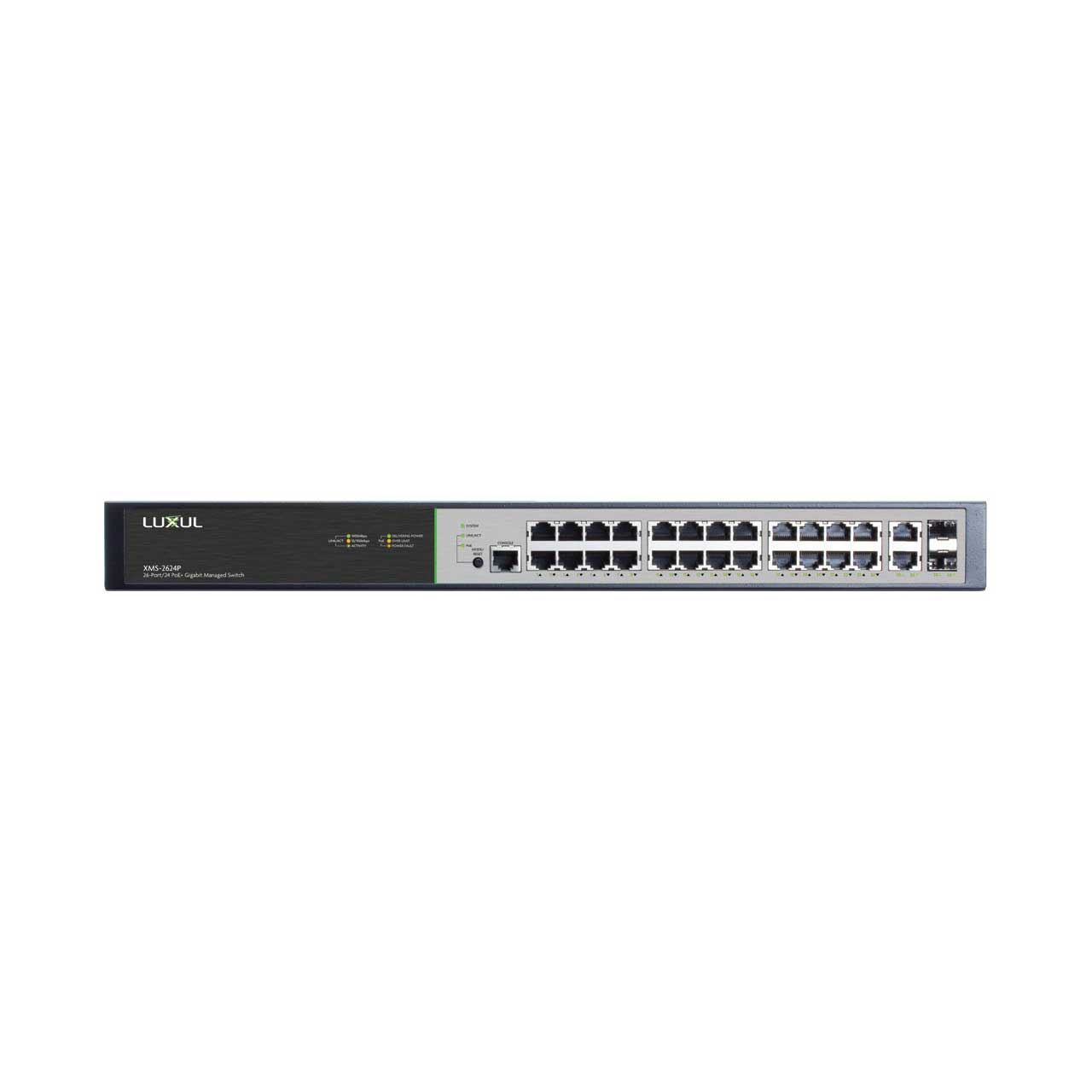

Luxul 26-Port Gigabit Managed Switch - 24-PoE+ Ports and 2 RJ45 Uplink Ports

XMS-2624P - Overview

• Features:

  • PoE Self-Healing with auto-recovery and power scheduling
  • 24 Gigabit RJ45 802.3af/at PoE+ Ports
  • 2 Gigabit RJ-45 uplink ports with 2 shared SFP ports (combo ports)
  • 370 Watt Power Budget
  • 52Gbps Switching Capacity
  • Layer 3 Static Routing
  • 802.1Q VLAN (with Trunking) and QoS Support
  • Plug-and-Play Installation with Intuitive Management
  • Simple Power Management of PoE-Enabled Devices
  • Variable Speed Fans for Quiet Operation
  • Standard 19" Rack-Mount
  • Three Year Limited Warranty
  • The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)


• Specifications:

  • Protocols and Standards
  • IEEE 802.3,IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
  • IEEE 802.3af/at, IEEE 802.3x, IEEE 802.1P, IEEE 802.1Q
  • IEEE 802.1X, IEEE 802.1D STP, 802.1w

    Interface Options
  • RJ-45
  • 10 Base-T: Cat.5 UTP /STP
  • 100 Base-TX: Cat.5 UTP /STP
  • 1000Base-T: Cat.5, Cat.5e or Cat.6 UTP/STP
  • Gigabit fiber uplinks on SFP ports
  • Cable Recognition for Straight-through or Crossover Cables
  • Surge Protection: The RJ45 port surge protection is tested to: EN61000-4-5 (for RJ45 Port, Surge 6KV)

    VLAN
  • 802.1Q max 4094 VIDs & VLAN Trunking
  • Supports 1 Management VLAN

    Quality of Service (QoS)
  • 4 Queues per port
  • Queue handling: Strict, Weighted Round Robin (WRR), Strict+WRR, and Equal
  • CoS based on DCSP, 802.1P and Port Based Priority Queues
  • Port based bandwidth control

    Network Data Transfer Rate
  • Ethernet: 10Mbps (Half-duplex)
  • Ethernet: 20Mbps (Full-duplex)
  • Fast Ethernet: 100Mbps (Half-duplex)
  • Fast Ethernet: 200Mbps (Full-duplex)
  • Gigabit Ethernet: 1000Mbps (Half-duplex)
  • Gigabit Ethernet: 2000Mbps (Full-duplex)

    LED
  • Per Unit: Power, System
  • Per Port: Link/Activity

    Power
  • Power Budget 370W
  • Max Power Consumption 470W
  • Power Supply Internal Switched Power, AC 100-240V, 50-60Hz input

    Physical Characteristics
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 10% to 90% (Non-condensing)
  • Dimensions L xWxH in. (mm): 17.3"(439.5) x 8.25"(209.55) x 1.75"(44.5)
  • Weight lbs (kg): 11.9 (4.1)
  • Certifications: FCC, CE, RoHS10 Base-T: Cat.5 UTP /STP


• Item Includes:

  • 26 Port/24 PoE+ Gigabit Managed Switch Rack Mount Kit
  • Rubber Feet
  • Power Cord
  • Quick Install Guide


• Warranty:

  • 3-year limited warranty
