Canare MJ2-M32 CKA-1U-BLK 32 Ch Unloaded Mid-Size Video Jack Panel for 32MCKA Series - 1RU - Black

Name: Canare MJ2-M32 CKA-1U-BLK 32 Ch Unloaded Mid-Size Video Jack Panel for 32MCKA Series - 1RU - Black
Brand: Canare
SKU: MJ2-M32CKA1UBLK
Price: 242.85 USD
Availability: PreSale

ITEM #: MJ2-M32CKA1UBLK MFG #: MJ2-M32CKA1UBLK

Canare

List Price:

$295.90

Our Price:

$242.85

Quantity Pricing

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MJ2-M32CKA1UBLK - Overview

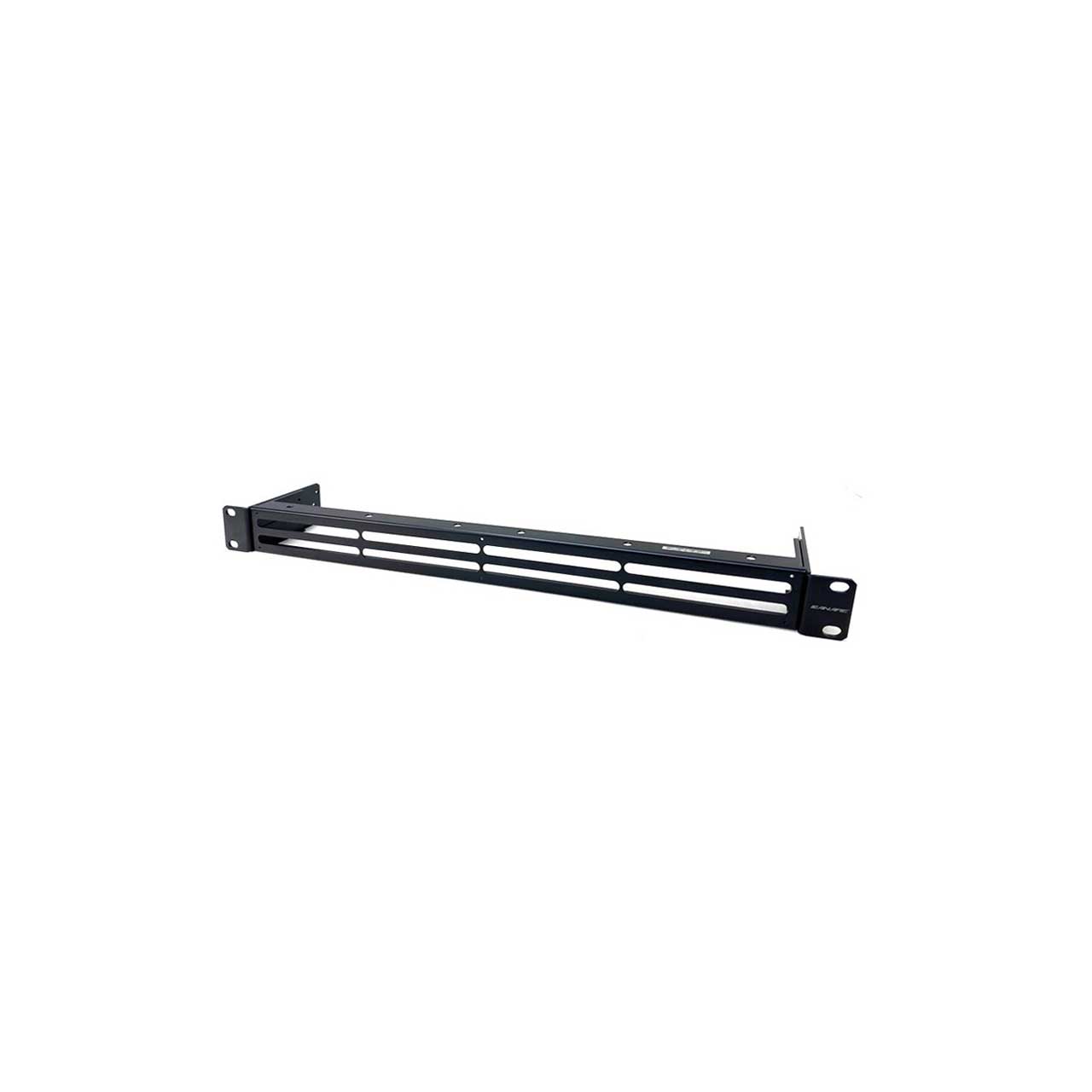

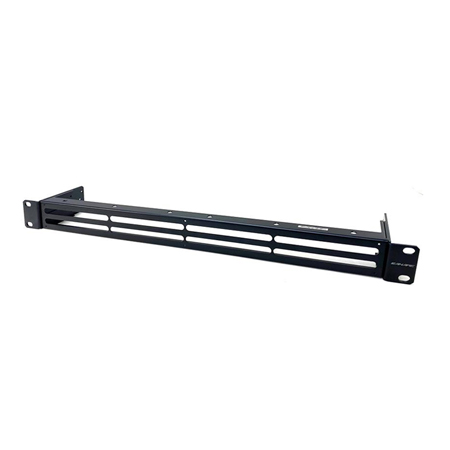

Canare MJ2-M32CKA-1U-BLK is an unloaded 1RU panel for use with Canare dual video jacks.

Note1: Be sure to use with Canare Micro Video Patch Cords.
Note2: Not compatible with other plug/patch cables.
Note3: 32MCKA series cannot be used with dual video jack `MCVJK-STW/STS'. Be sure to use with `MCVJKA-STW/S'

Features:
- Easy Front Mount Assembly
- Designation Strips
- Black finish
Specifications:
- Applicable Standards: ANSI/EIA-310-D, EIA 1 Rack Unit 19 x 1.75in (482.6 x 44.45mm)
- Designation Strips: Size: 426 x 8.5mm x t0.2 / Channel Pitch: 13.05mm
- Jack Loadable: MCVJKA-STW, MCVJKA-STS
- Loadable Pieces: 32pcs
- Environment: RoHS2 Category 11 Compliant
- Product Weight: 0.6kg
- Package Weight: 1.4kg
- Dimensions: 24.60 x 7.48 x 2.75" (625 x 190 x 70mm)
Item Includes:
- 1x Unloaded Video Jack Panel
