Our new Connect-N-Go Series AV over Cat5 reels are designed to deliver all of today's most popular video & audio media over long distances while offering fast plug and play tangle-free deployment. AV balun systems reduce cost, reduce weight and extend distances. Each reel supports point to point connections over CAT5 for any application from Component HD to balanced audio. Typical applications include live video for ENG and sports events, house of worship AV, live sound security video, digital signage, classroom training, boardroom systems and video kiosks. Each Connect-N-Go offers the best value in the industry when compared to full size reels.

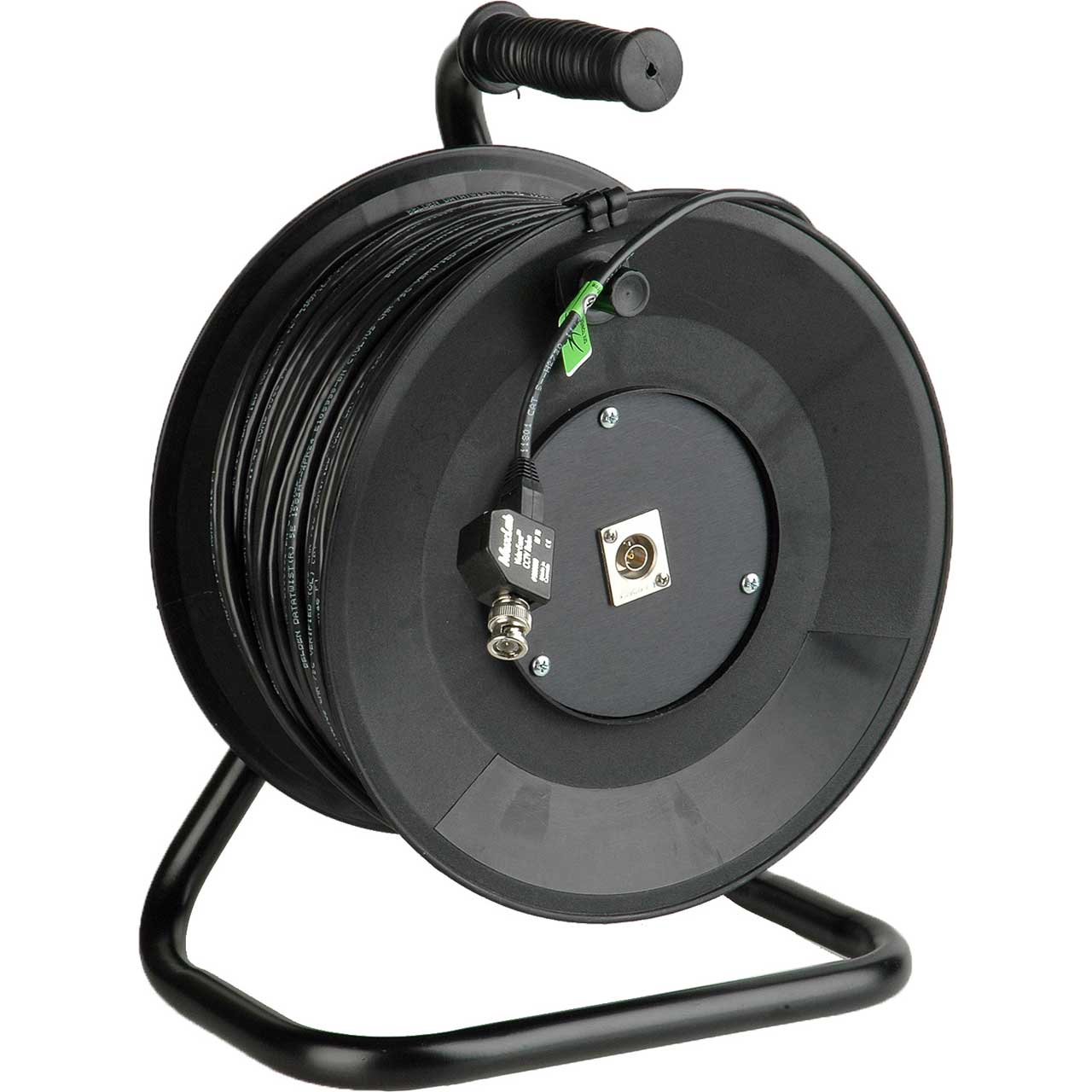

The reel sits 15" tall and has a 10.75" O.D. reel with an inner hub that's 4.75" in Diameter x 5" Deep with cable port holes on the side of the drum and on the reel face.
This Connect-N-Go reel allows a single video signal to be transmitted via cost-effective unshielded twisted pair (UTP) cable for composite video & CCTV applications. Video Bandwidth is DC to 8 MHz via BNC connectors. Connect-N-Go reels are designed with today most proven technologies from Belden and MuxLabs. Reels will interface with existing MuxLabs family products.
