MPA1-SOLO-SDI-1 - Overview

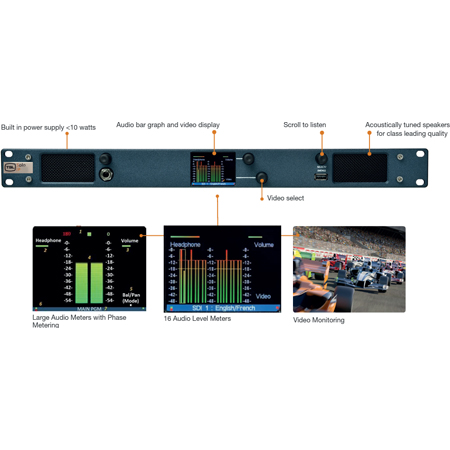

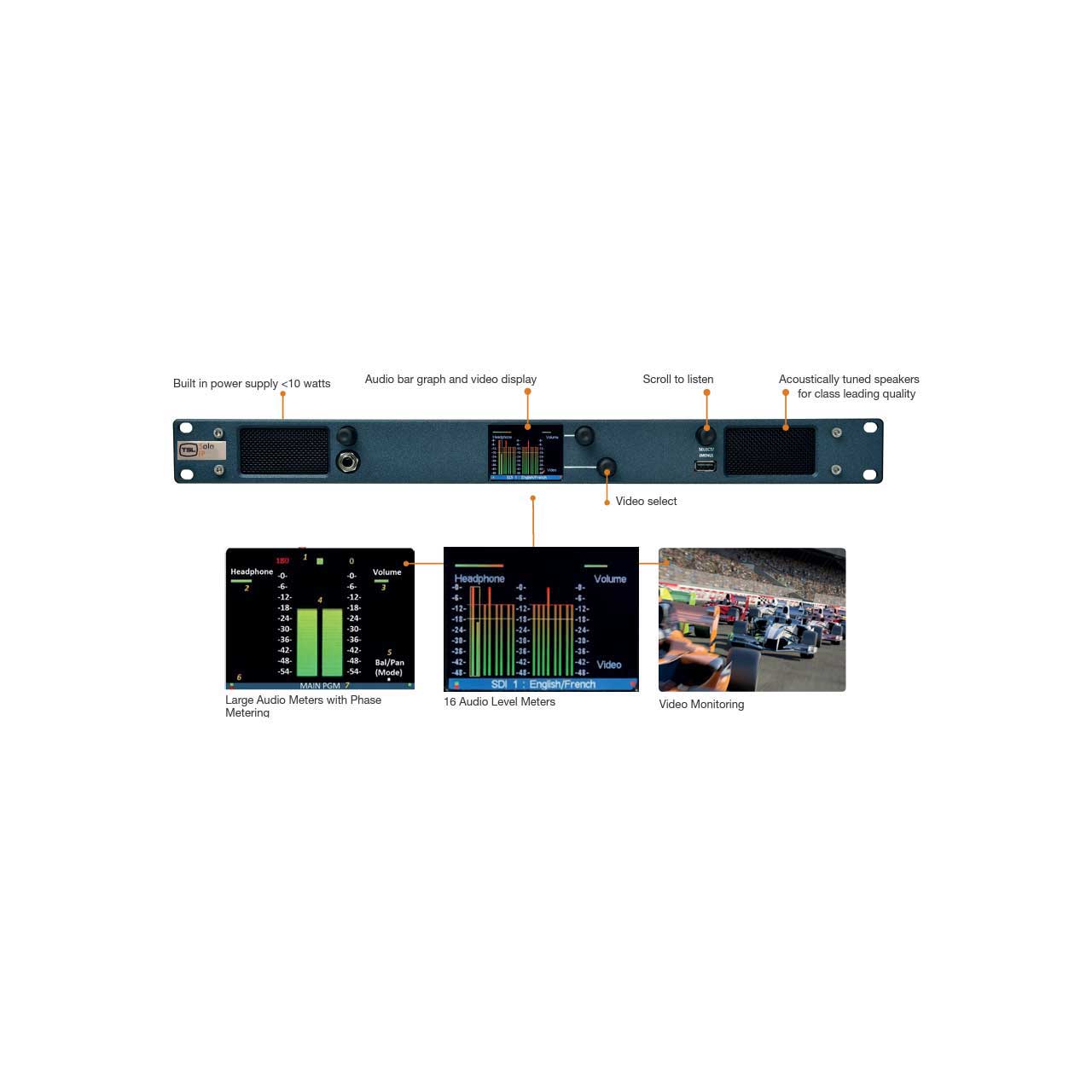

The powerful and intuitive MPA1-SOLO-SDI-1 Rackmount presents users with instant `at-a-glance' notification of all 16 SDI embedded audio channels on its front panel display, as well as those derived from its dedicated AES and analogue inputs. The unique 'scroll to hear' function allows users to scroll through all available audio channels, either individually or as stereo pairs, whilst the Select feature allows the front panel to display audio level meters, phase metering and video monitoring modes. As a member of the MPA1 range of audio monitors, the MPA1 SOLO-SDI-1 comes complete with a comprehensive web page and SNMP support, allowing remote configuration and control.

  • Features:

    • 1x auto-sensing, SD/HD/3G-SDI (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz) video input
    • De-embedded audio monitoring from video (SD/HD/3GSDI) with intuitive `scroll to hear' of all 16 embedded audio channels
    • Video display of SD/HD/3G-SDI sources

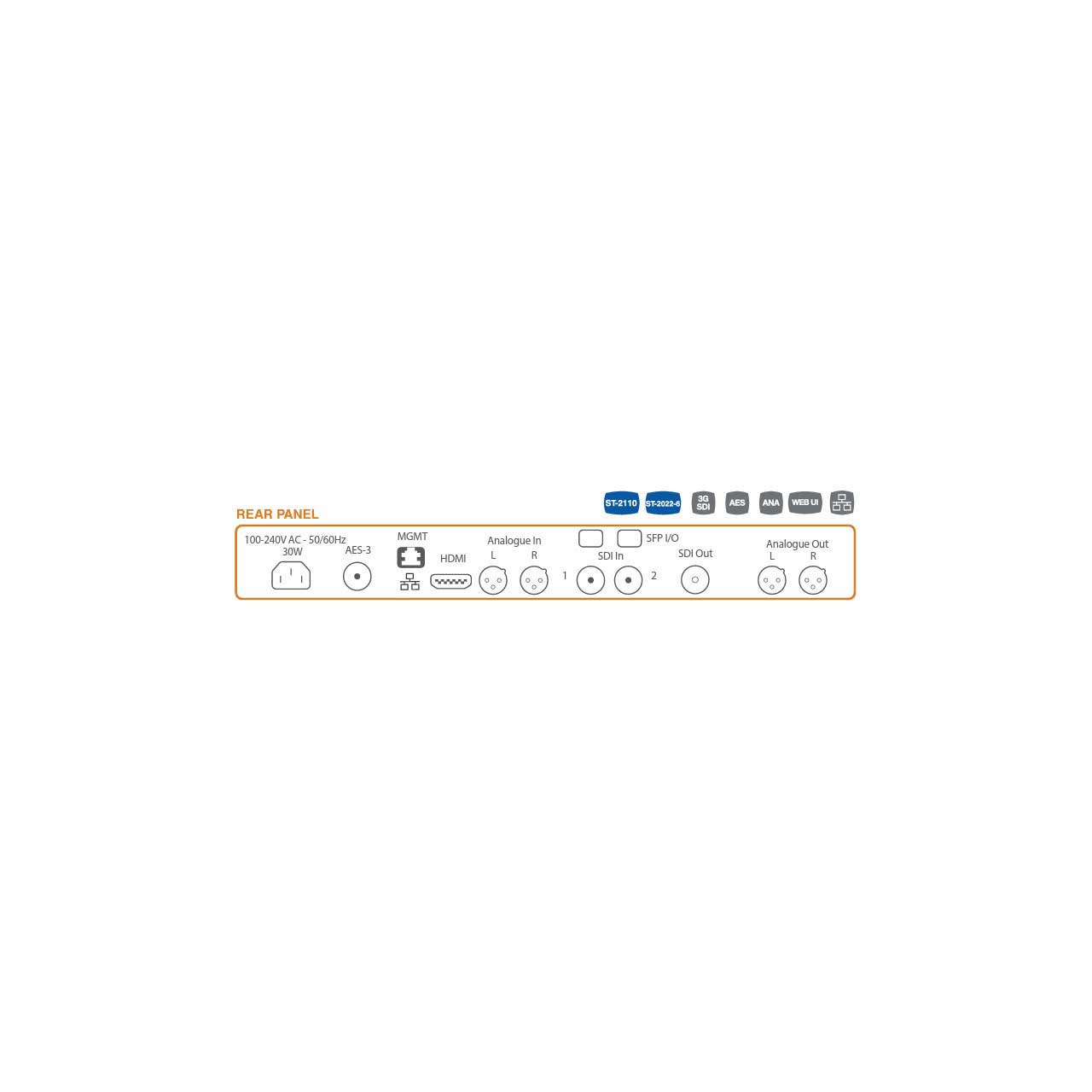

    • 2x balanced analogue inputs on XLR connectors
    • 1x AES-3id input on BNC
    • 1x Ethernet connection for web page and SNMP control
    • 1x front panel USB connector for system updates
    • 2x line level balanced analogue outputs for connection to external loudspeakers. Line level with selectable mute and -20 dB attenuation
    • 1x HDMI output

  • Specifications:

    • Power: 85-264V ~ 50/60Hz, 0.75A - 0.5A Max 30W
    • Display: Single 2.4"
    • Audio Channels 16
    • Unit Control: SNMP, Webpage
    • SDI Input: 3G/HD/SD-SDI (SMPTE 424M, 292M, 259M)
    • AES-3id: SMPTE 276M
    • Analogue Inputs: >60k Ohms
    • Analogue Outputs: Stereo, Balanced, Fixed or Variable Level
    • Signal to Noise Ratio: 72dB (+4dBu input level, THD+NA weighted)
    • Peak Acoustic Output: 90dB @ 1 Foot

      Physical Dimensions:
    • Height: 44mm (1RU)
    • Width: 483mm (19")
    • Depth: 100mm
    • Weight: 1.4kg
