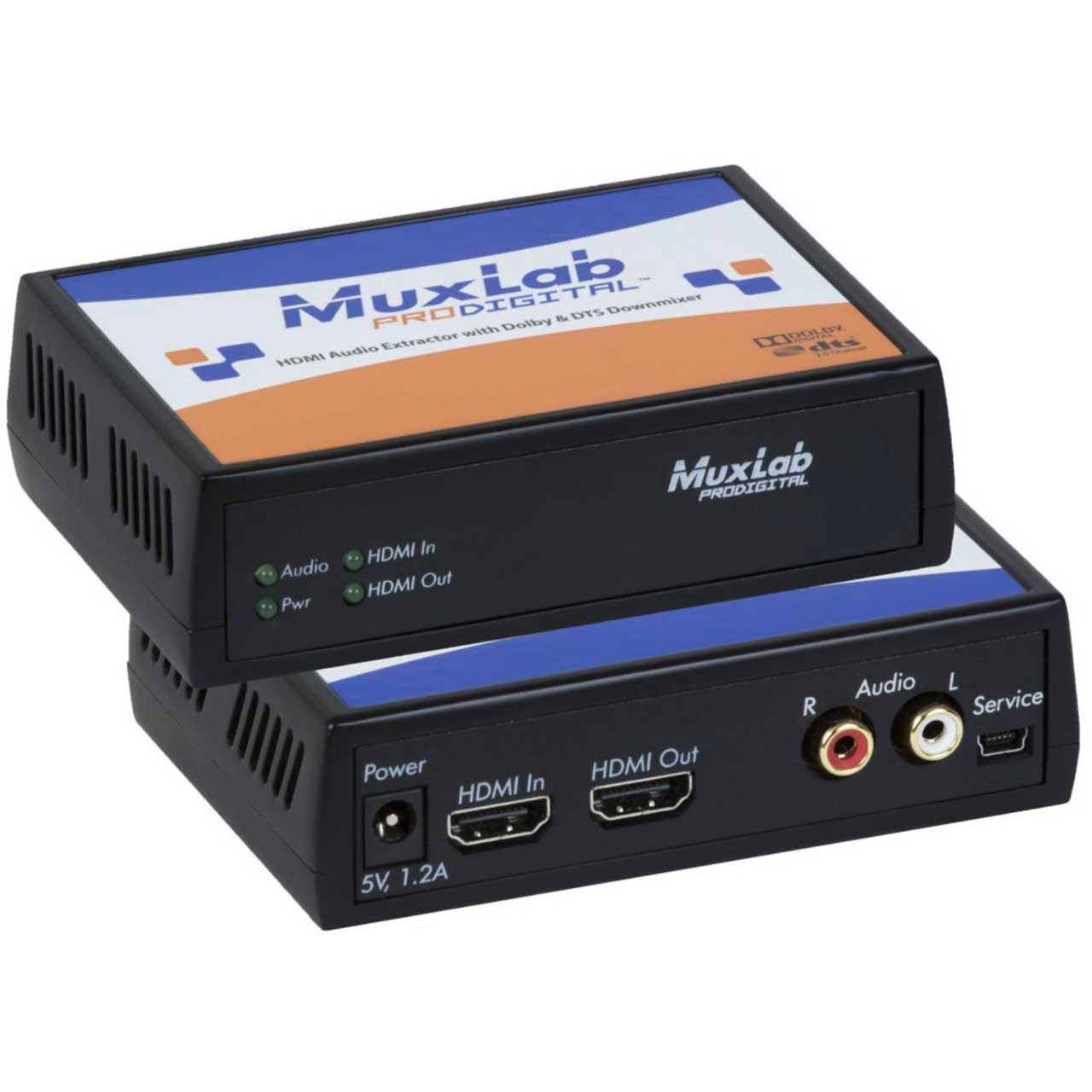

MuxLab 500439 HDMI Audio Extractor with Dolby & DTS Downmixer

500439 - Overview

• Features:

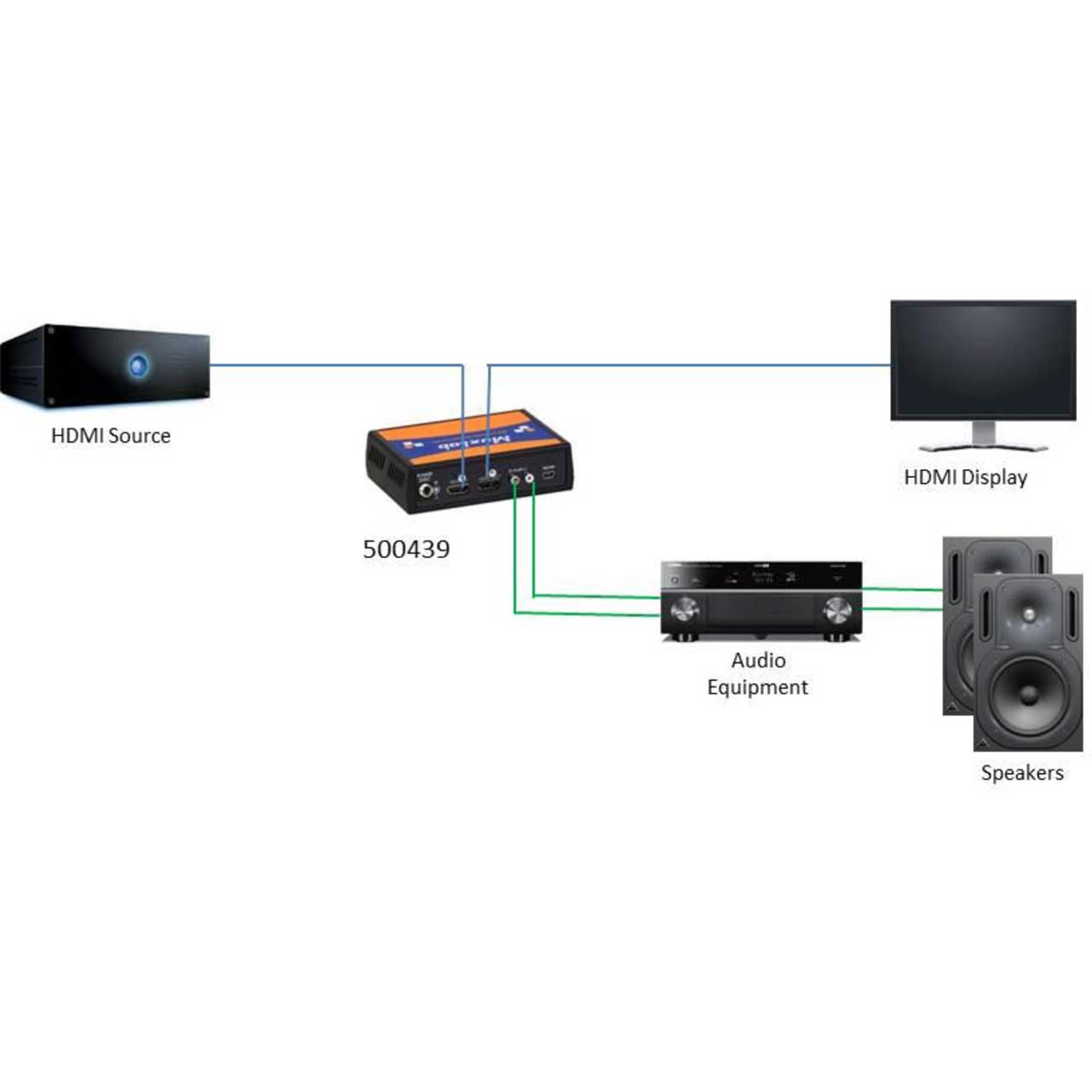

  • HDMI In with HDMI Loop Out
  • Supports HDMI 2.0 4K/60 (4:4:4)
  • HDCP 1.4 and 2.2 Compliant
  • Supports down-mixing of digital audio up to Dolby TrueHD and DTS-HD Master Audio to 2CH analog audio
  • Extracted 2CH audio available via L/R RCA jacks


• Specifications:

  • Environment Video: Up to HDMI 2.0a (4K/60), and Dolby Vision
  • Audio: Up to Dolby Atmos, DTS:X and LPCM 7.1 channels
  • Devices: Cable/Satellite Set-Top Box, DVD, Blu-Ray, TV, PC, laptops.
  • Video Bandwidth: 18 Gbps
  • Frequency Range: 25 to 600 MHz
  • Signals: HDMI 2.0a protocol (4K/60) and Dolby Vision, Dolby Digital, Doby Digital Plus, Dolby, TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DTS:X and LPCM up to 7.1 channels. HDCP Revision 1.4 & 2.2 compliant.
  • Connectors: Two (2) HDMI connectors Two (2) RCA Connectors One (1) Mini-USB (for firmware updates) Note: Audio cables not included.
  • Distortion: <0.001% @ 1KHz
  • SNR: > 90 dB (20Hz - 20 KHz)
  • Sample Rate: 32, 44.1, 48, 96 and 192 KHz
  • Power Supply: One (1) 110-240V/5VDC power supply
  • Power Consumption: 3.20 Watt
  • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
  • Humidity: Up to 95% non-condensing
  • Enclosure: Metal with ABS fire retardant plastic panel
  • Dimensions: 4.50" x 3.00" x 1.25" (114 x 76 x 32 mm)
  • Weight: 1.0 lb (0.45 kg)
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0


• GTIN:

  0627699004395
