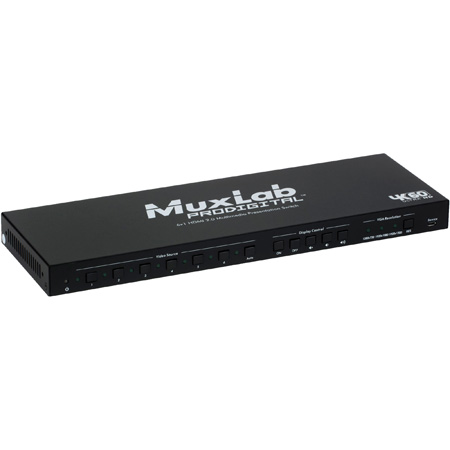

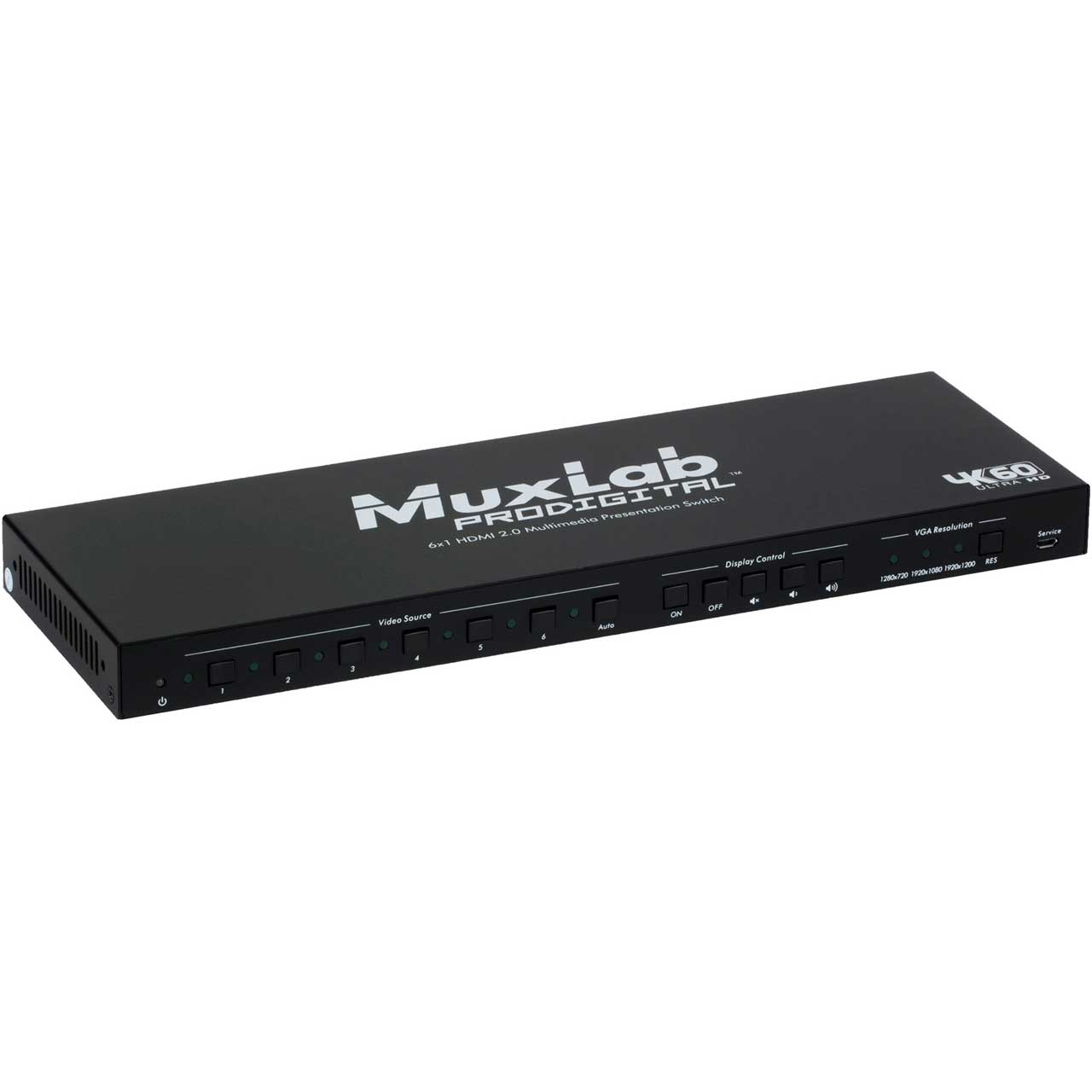

MuxLab 500445 6x1 HDMI 2.0 Multimedia Presentation Switch

500445 - Overview

• Features:

  • Supports video source auto-switching function
  • Supports 6 inputs, including 3 HDMI, DisplayPort 1.2a, USB Type-C, and VGA inputs
  • Supports resolutions up to 4K/60 (4:4:4) 8 bit, 1080p/60 3D, and HDR 10
  • Compliant with HDCP 2.2
  • Supports audio pass-through up to Dolby Atmos and DTS:X
  • Supports 2CH analog audio extract, and 5.1CH Digital (Dolby and DTS) audio extract
  • Supports CEC command for remote control of end devices
  • Controllable via "Auto" mode, and manually via push button, IP, RS232 and IR
  • Firmware may be updated over the LAN port


• Specifications:

  • Environment: HDMI 2.0, DisplayPort 1.2a, USB Type-C and VGA

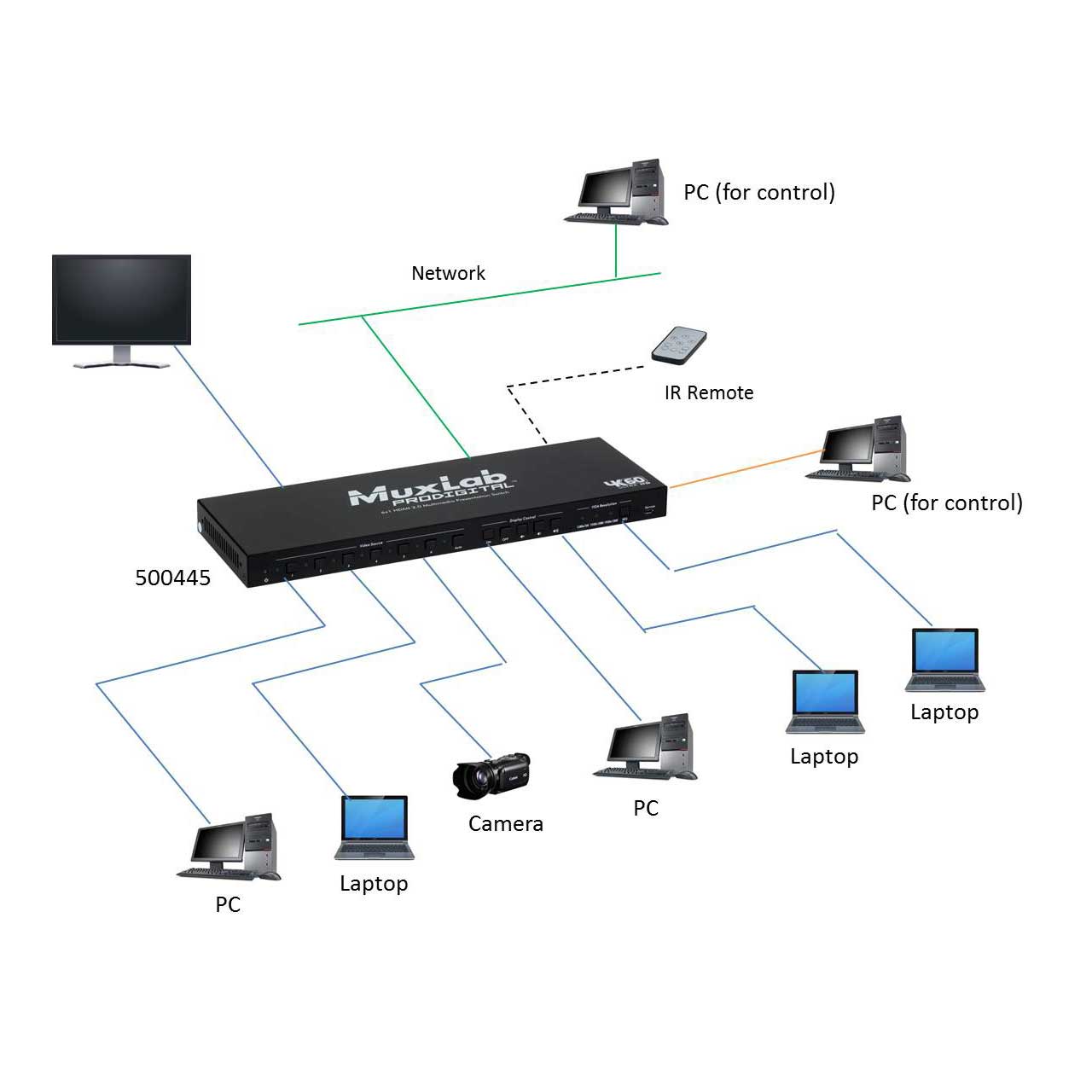

  • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, and servers.
  • Transmission: Transparent to the user
  • Video Bandwidth: Up to 18 Gbps
  • Video Resolution: HDMI and DisplayPort Input: Up to 4K/60 (4:4:4) 8 bit
  • USB-Type C Input: Up to 4K/30
  • VGA Input: Up to 1920x1200 @ 50/60 Hz
  • HDMI Output: 4K/60 (4:4:4) 8 bit
  • Audio Bandwidth: 20Hz to 20KHz
  • Stereo Channel Separation: >70dB @1KHz
  • Signals: HDMI 2.0, DisplayPort 1.2a, USB Type-C and VGA (1920 x 1200), and HDCP 2.2 compliant

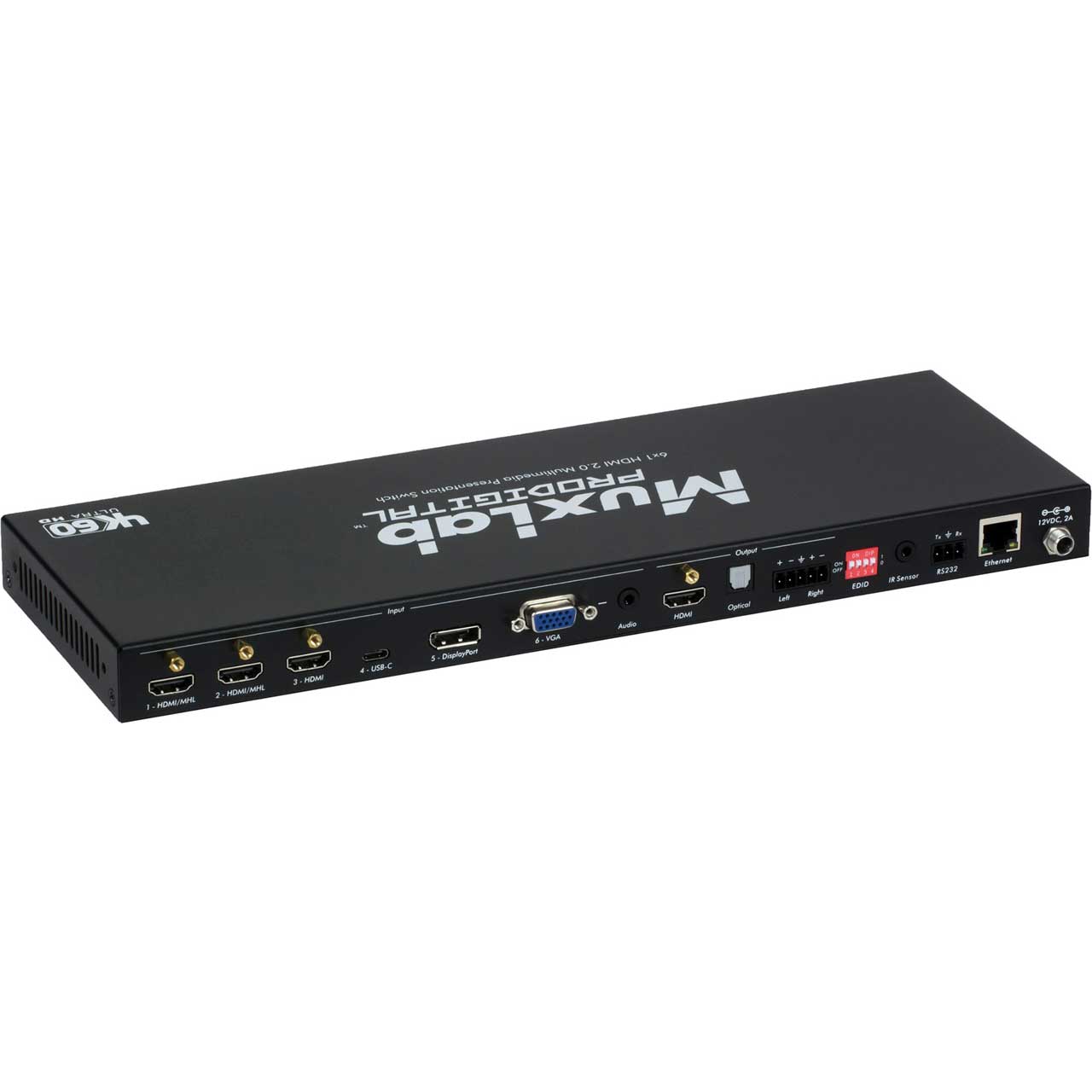

    Connectors
  • Four (4) HDMI connectors; Three (3) Inputs and One (1) Output.
  • One (1) DisplayPort connector (input).
  • One (1) USB Type-C connector (input).
  • One (1) 15 Pin VGA connector (Input).
  • One (1) RJ45S for LAN unit control and firmware updates.
  • One 3-Pin Phoenix connector for RS232 unit control.
  • One (1) IR input jack for unit control.
  • One 3.5mm output jack for 2CH audio-in (for VGA port)
  • One 5 pin Phoenix connector for balanced audio-out
  • One TosLink Optical port for Digital audio extract (5.1CH Dolby and DTS) of selected input
  • One (1) 2.1mm barrel jack for Power.
    Note: HDMI cables not included.


  • Power Supply: One (1) 110-240V/12VDC @ 2A power supply with interchangeable blades (locking PSU connector)
  • Power Consumption: 10Watts (Max)
  • Temperature Operating: -10° to 55°C Storage: -25° to 70°C
  • Humidity: Up to 90% non-condensing
  • Enclosure: Metal
  • Dimensions: 13.46" x 4.53" x 1.02" (342mm x 115mm x 26mm)
  • Weight: 1.36lb (0.62kg)
  • Compliance Regulatory: FCC, CE, RoHS
  • Warranty: 2 years


• Item Includes:

  • 1 6x1 HDMI Multimedia Presentation Switch
  • 2 Mounting brackets
  • 4 Plastic cushions
  • 1x IR Receiver
  • 1x RS232 cable
  • 1x IR remote (Two AAA batteries needed, not included)
  • 1x 1 x 3 pin Terminal Block
  • 1x 1 x 5 pin Terminal Block
  • 1x 12VDC, 2A Power Adapter with interchangeable blades


• Warranty:

  • 2 years


• GTIN:

  0627699004456
