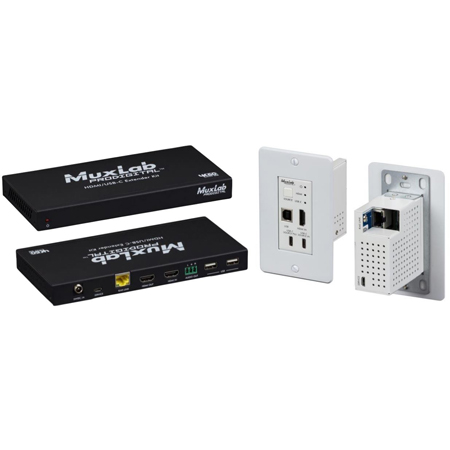

MuxLab 500452 4K/60 HDBaseT HDMI/USB-C KVM Extender Kit with Wallmount Brackets

500452 - Overview

• Features:

  • Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
  • Supports 18Gbps video bandwidth
  • 4K @ 60Hz (4:4:4) to distances of up to 131ft (40m) over single Cat6/6a/7 cable
  • 1080p @ 60Hz to distances of up to 230ft (70m) over single Cat6/6a/7 cable
  • Supports all digital audio modes
  • Supports HDMI and USB-C input
  • USB2.0 extension with Receiver
  • Input signal selection supports automatic or manual mode
  • USB-C charging port


• Specifications:

  • HDMI Compliance: HDMI 2.0b, DisplayPort 1.2a
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18 Gbps
  • Video Resolution: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
  • Color Depth: 8/10/12-bit
  • HDR: HDR10, HDR10+
  • HDMI Audio Formats: Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
  • Transmission Distance: Max distance (1080p): 230ft / 70m over CAT6/6a/7. Max distance (4K): 131ft / 40m over CAT6/6a/7
  • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
  • Connectors (Transmitter):
    - Inputs: 1x HDMI Type A (19-pin female), 1x USB-C
    - Outputs: 1x HDBaseT Out (RJ45, 8-pin female), 1x USB-C (only for charging)
    - Control: 1x USB-B (Micro USB, Update port)
  • Connectors (Receiver):
    - Inputs: 1x HDMI IN (Type A, 19-pin female), 1x HDBaseT IN (RJ45, 8-pin female)
    - Outputs: 1x HDMI OUT (Type A, 19-pin female), 1x AUDIO OUT (Phoenix jack)
    - Control: 2x USB (USB A Type), 1x FW (Micro USB, Update port)
  • Power Supply:
    - Receiver: 1x 110-240V/24VDC Power supply with interchangeable blades
    - Transmitter: Powered by the Receiver via PoC (Note: only one power supply is required if USB devices are being powered)
  • Housing: Metal Enclosure
  • Dimensions (WxDxH):
    - Wall Plate: 1.31" x 2.58" x 2.70" (33.3mm x 65.7mm x 68.7mm)
    - Face Plate: 2.75" x 0.11" x 4.5" (69.9mm x 3mm x 114.3mm)
    - Receiver: 7.87" x 3.85" x 0.90" (200mm x 98mm x 23mm)
  • Weight:
    - Wall Plate: 0.43lbs (0.196kg)
    - Receiver: 1.12lbs (0.511kg)
  • Shipping Weight: 2.67lbs (1.21kg)


• Item Includes:

  • 1x HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Transmitter
  • 1x HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Receiver
  • 1x Power supply
  • 2x Wall Mount Brackets
  • 1x User manual (available via download)


• Warranty:

  • 2 Year Warranty

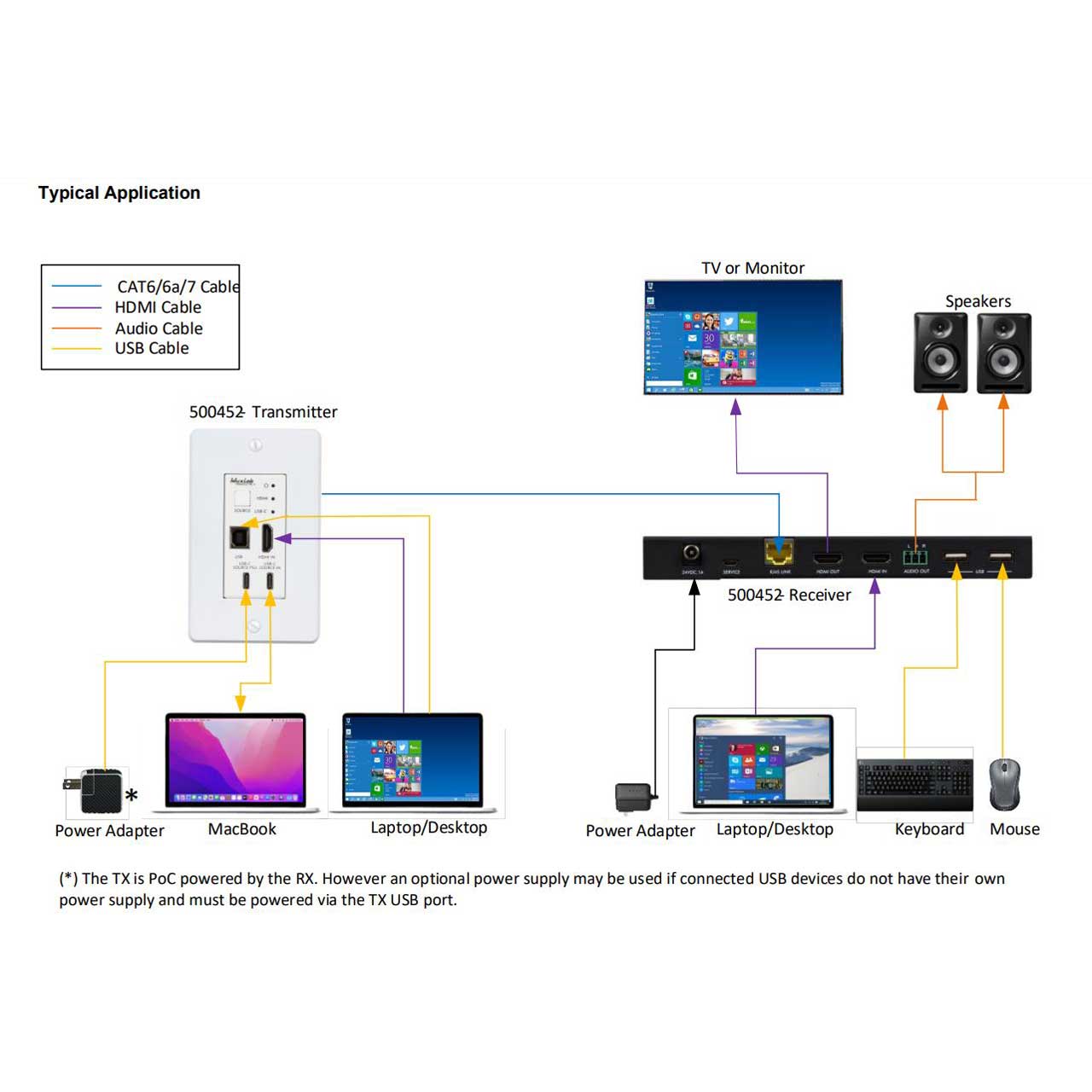

• Applications:

  • KVM/AV Systems
  • Classroom projector systems
  • Digital signage
  • Boardroom systems
  • Collaborative PC systems
  • Medical information systems


• GTIN:

  0627699004524
