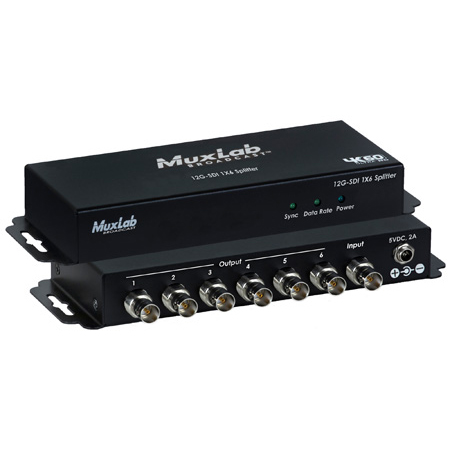

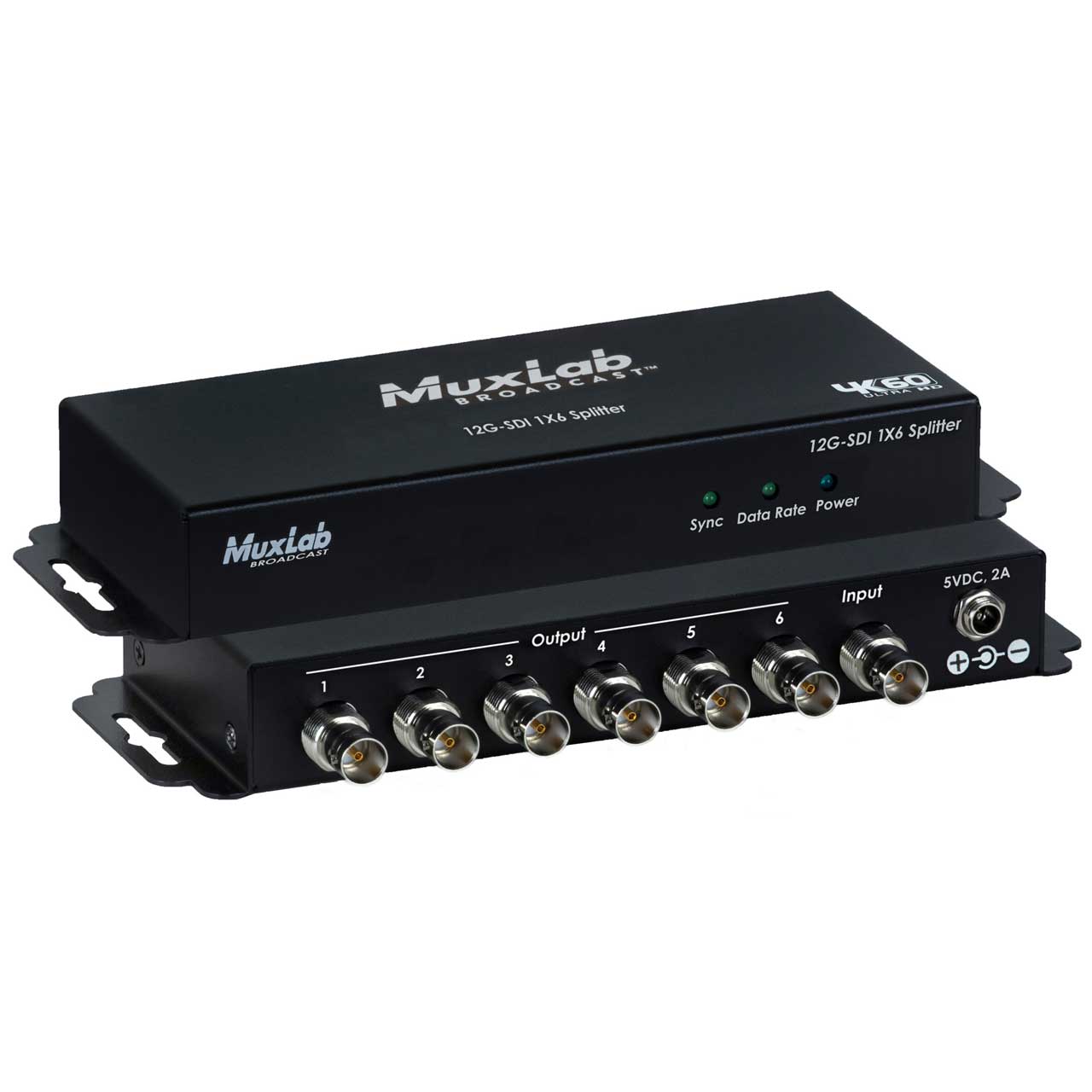

MuxLab 500718 12G-SDI 1x6 Splitter 4K60

500718 - Overview

• Features:

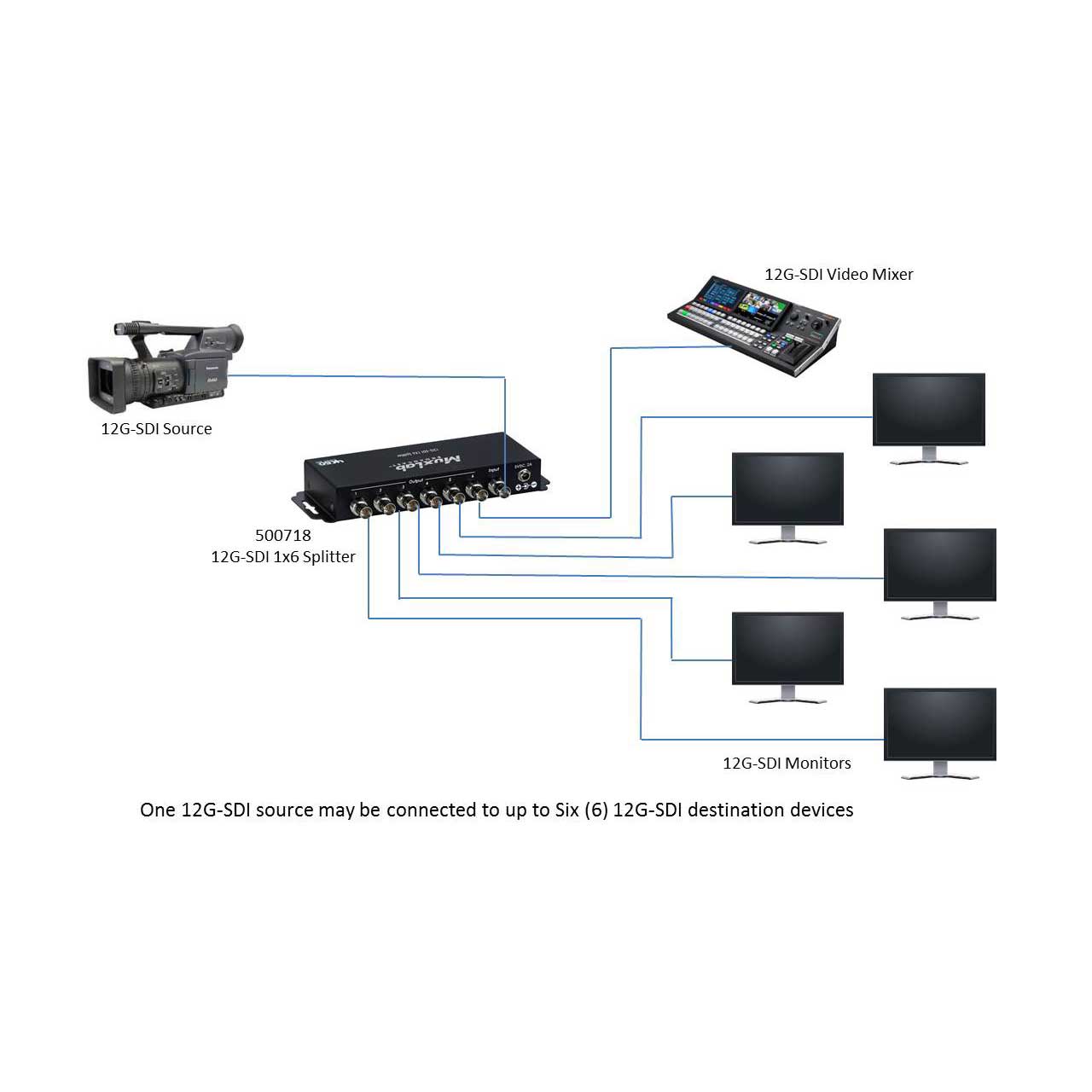

  • Distribute one 12G-SDI source to six displays
  • Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
  • Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
  • LED diagnostic
  • Connectors on rear for neater cabling


• Specifications:

  • Environment: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI.
  • Devices: Camera, projectors, monitors, TV.
  • Transmission: Transparent to the user.
  • Detection: Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal.
  • Bandwidth: 11.88Gbps & 11.88/1.001Gbps
  • Data Rates: 1.485, 2.97, 5.96 & 11.88 Gbps
  • Output Impedance: 75Ω
  • Signals: SDI protocol.
  • Supported Resolution:
  • 12G-SDI: 2160p50/59.94/60Hz (4:2:2)
  • 6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2)
  • 3G-SDI: 1080p50/59.94/60Hz (4:2:2)
  • HD-SDI: 1080p/23.98/24/25/29.97/30Hz, 720p/50/59.94/60Hz, 1080i/50/59.94/60Hz
  • SD-SDI: NTSC (59.94Hz), PAL (50Hz)
  • Audio: Up to 8 Audio Channels.
  • Ancillary Data: Supported
  • Input Signal -
  • 12G-SDI : SMPTE ST2082
  • 6G-SDI : SMPTE ST2081
  • 3G-SDI: SMPTE 424M, 425M
  • HD-SDI: SMPTE 292M, 296M
  • SD-SDI : SMPTE 259M, 344M
  • Connectors -
  • One BNC Female 75 Ohms, Gold Plated for input.
  • Six BNC Female 75 Ohms, Gold Plated for outputs.
  • One Locking Barrel Jack 2.1mm Power Connector.
  • Cable Equalization:
  • 12G-SDI up to 150ft (45m)
  • 6G-SDI up to 300ft (90m)
  • 3G-SDI up to 300ft (90m)
  • HD-SDI up to 500ft (150m)
  • SD-SDI up to 1000ft (300m)
  • Cable: RG-59 or better cable required. Note: RG59 coaxial cables not included.
  • Power Supply: One 110-240V/5VDC power supply with interchangeable blades.
  • Power Consumption: 5.0 Watt (Max)
  • Operating Temp.: 0° to 40°C
  • Storage: -20° to 60°C
  • Humidity: Up to 90% non-condensing
  • Enclosure: Metal
  • Dimensions: 7.1" x 3.1" x 1.1" (180mm x 78mm x 27mm)
  • Weight: 1.7lbs (0.78kg)
  • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0


• Warranty:

  • 2 Years


• GTIN:

  0627699007181
