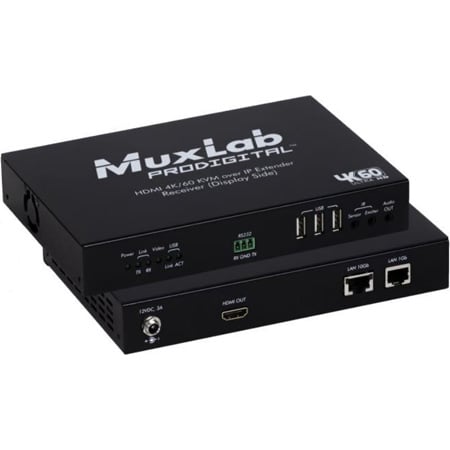

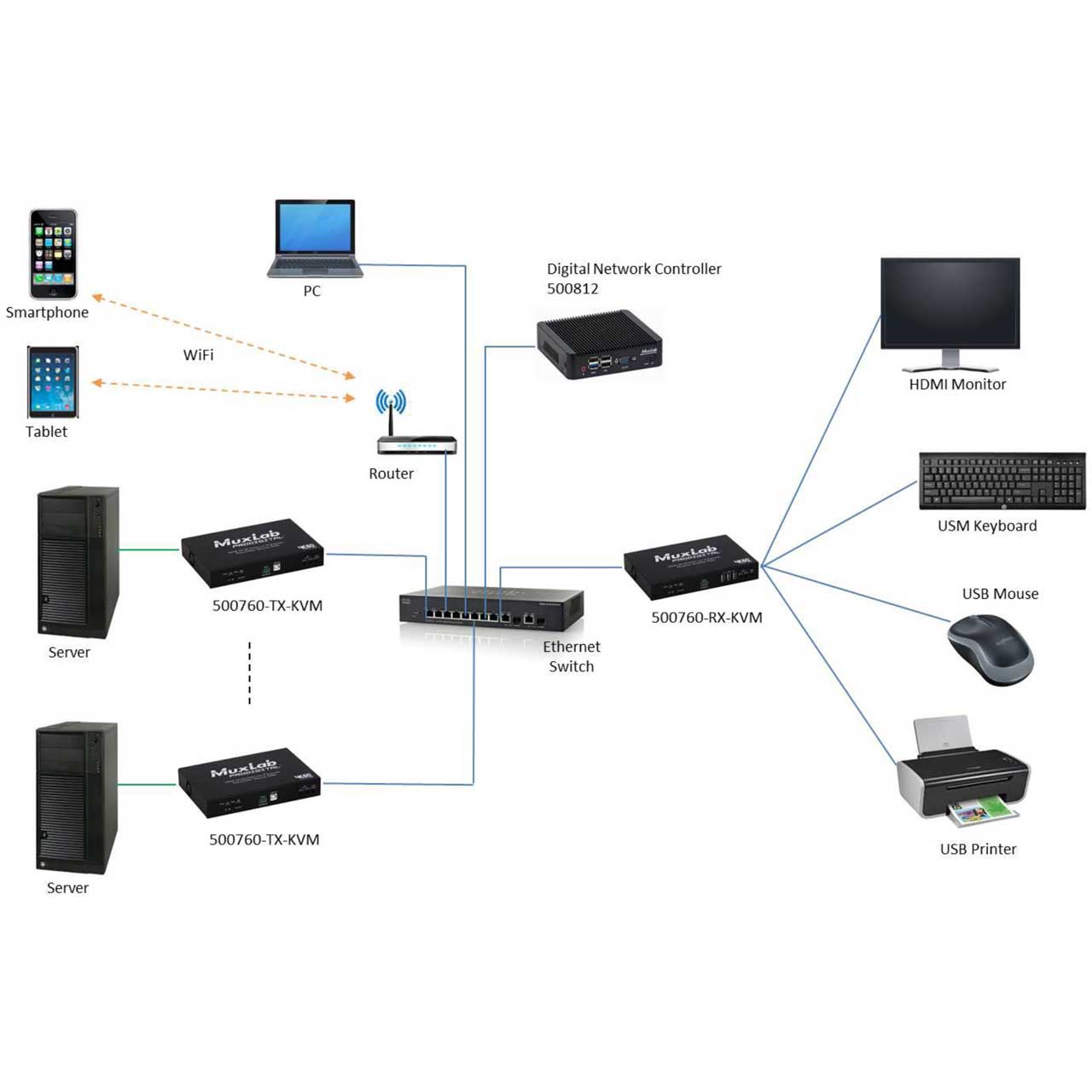

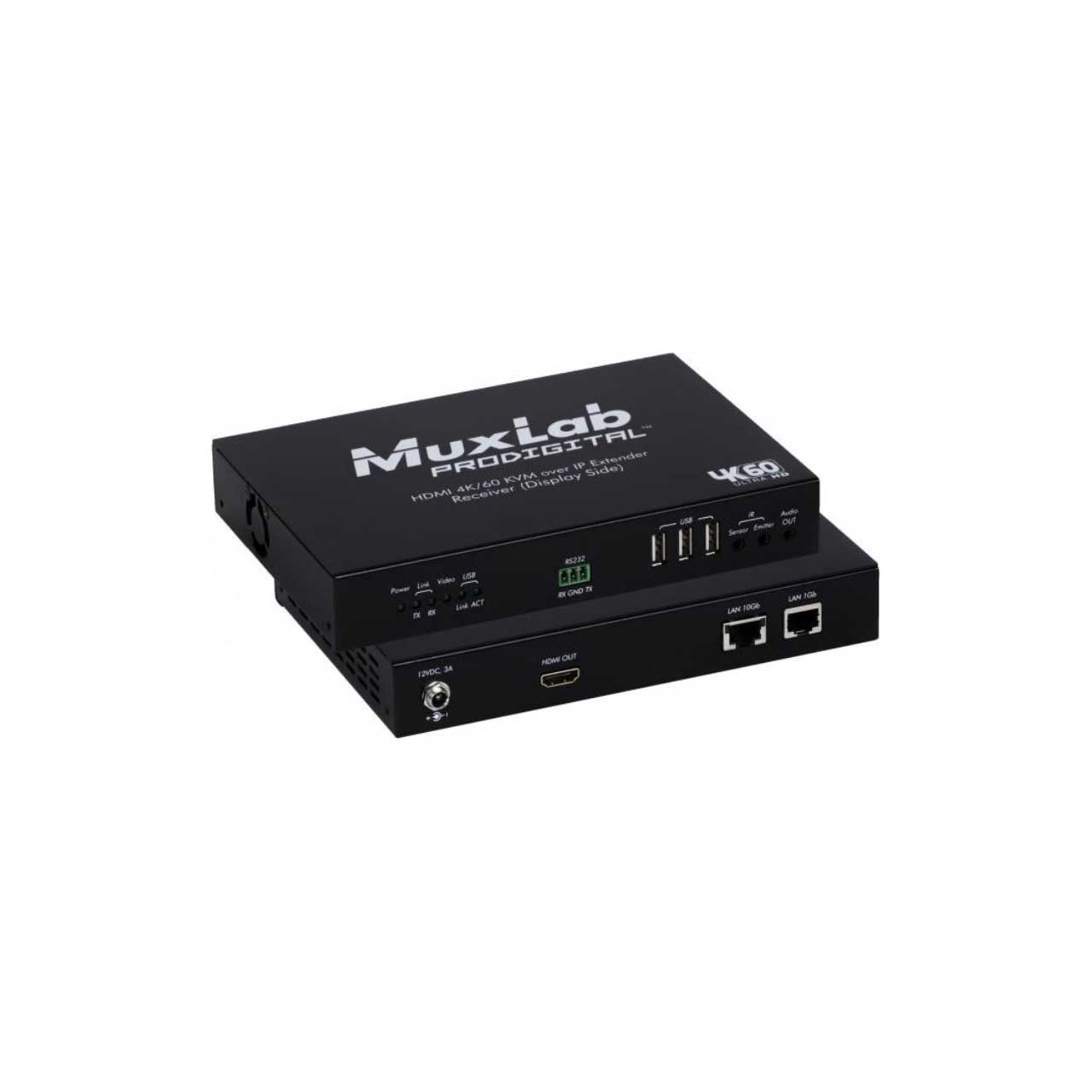

The MuxLab 500760-RX-KVM HDMI 4K/60 KVM over IP Extender is based on SDVoE Technology and allows HDMI based servers/workstations supporting up to 4K @ 60Hz resolution to be connected and extended to one or more operators that can connect with and manage any of the servers/workstations in a KVM application. The operator may connect a remote monitor, keyboard & mouse and powered audio speakers to any of the servers/workstations being managed. This system also supports Smart Whiteboard applications via the HDMI and USB ports. 100's of servers/workstations may be managed, depending on network bandwidth, utilizing one Receiver for each operator and one Transmitter per server/workstation. Each Transmitter (500760-TX-KVM) and Receiver (500760-RX-KVM) can be connected via Cat5e/6 cable up to 330ft (100m) from a 10Gig Ethernet Switch. The HDMI 4K/60 KVM over IP Extender also supports Rs232 and 2-way IR for remote management of end devices.
Each unit comes with a 12VDC @ 3A power supply, with multi-blades for North America, UK, Europe and Australia, and also includes a wall mount bracket kit, and IR sensor & emitter for remote management of end devices.
The MuxLab Pro Digital Network Controller is available to simplify centralized configuration and control, software updates and allows for connectivity management from MuxControl and other third party applications running on smartphones and tablets.
