MuxLab 500791-NDI Full HD 1080p USB/NDI/HDMI/IP PTZ Camera with 12x Zoom - PoE

ITEM #: MUX-500791NDI MFG #: 500791-NDI

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,522.00

Our Price:

$1,218.00

Availability: In Stock
iAvailability Description Popup


500791-NDI - Overview

USB/NDI/IP PTZ Camera 12X Zoom, PoE
The MuxLab 500791-NDI USB/NDI/IP PTZ Camera 12X Zoom PoE is a full HD 1080p HDMI, USB and IP streaming camera with Pan, Tilt, and Zoom capability for extreme flexibility and reach. The camera supports uncompressed video via an HDMI or USB outport for local connectivity, and H.264/H.265 compressed video for streaming over the Internet, while supporting a 12X optical zoom.

The USB/NDI/IP PTZ Camera 12X Zoom PoE features an advanced AI algorithm that allows it to provide precise body tracking, supports PoE for convenience when powering the device, and a 1/2.8", 2.07 million effective pixels high-quality CMOS sensor to capture video. The camera supports a focal length of f3.5mm to 42.3mm, an aperture of F1.8 to 2.8, a shutter speed of 1/30s to 1/10000s, and a minimum illumination of 0.05 Lux for low-light conditions.

The USB/NDI/IP PTZ Camera 12X Zoom PoE may be remotely managed via IP and RS232 for added convenience.

Applications:
- Local AV capture and monitoring
- Live AV presentation broadcasts over the Internet
- Live AV streaming to YouTube, Facebook, and Wowza
- Streaming to OBS and Wirecast AV content production tools
- Ideal for House of Worship, Fitness Training, Cooking Classes, etc

  • Features:

    • Maximum resolution of 1920 x 1080 (Full HD) at 60Hz
    • Supports SDI, HDMI, USB 3.0 and network audio-visual output
    • Built-in advanced AI algorithm that enables precise body tracking
    • Supports 12x optical zoom and 72.5° horizontal field of view
    • Supports Full NDI protocol
    • Advanced Auto-focusing Technology Built-in dual microphone to capture sound Provides an economical solution for live streaming, conferencing and education

  • Specifications:

      Camera
    • Video System (HDMI, 3G-SDI):
      - 1080P60
      - 1080P59.94
      - 1080P50
      - 1080I60
      - 1080I59.9
      - 1080I50
      - 1080P30
      - 1080P29.97
      - 1080P25
      - 720P60
      - 720P59.94
      - 720P50
    • Sensor: 1/2.8 inches, CMOS, Effective Pixels: 2.07 Megapixels
    • Scanning Mode: Progressive
    • Lens: 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
    • Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
    • Electronic Shutter: 1/30s ~ 1/10000s
    • White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
    • Digital Noise Reduction: 2D, 3D digital noise reduction
    • Backlight Compensation: Supported
    • SNR: ≤55dB
    • Horizontal Angle of View: 72.5° - 6.9°
    • Vertical Angle of View: 44.8° - 3.9°
    • Horizontal Rotation Range: ±170°
    • Vertical Rotation Range: -30° - +90°
    • Pan Speed Range 1.7° - 100°/s
    • Tilt Speed Range 1.7° - 69.9°/s
    • H & V Flip: Supported
    • Image Freeze: Supported
    • Number of Presets: 255
    • Preset Accuracy: 0.1°

      Audio
    • Microphone Array: Built-in dual microphone, 100Hz to 16KHz frequency response
    • Analog Audio Input: Supported 3.5mm Line-In
    • Digital Audio Output: Supported HDMI, USB, LAN, 3G-SDI
    • Analog Audio Output: Supported 3.5mm Line-Out

      USB Features
    • Operating System:
      - Windows® 7, Windows 8.1, Windows 10 and up
      - macOS™ 10.10 and up
      - Google™ Chromebook™ Version 29.0.1547.70 and up
      - Linux (only for UVC)
    • Hardware Requirement:
      - 2.4 GHz Intel® Core 2 Duo processor and up
      - 2 GB internal storage and up
      - USB 2.0 interface
    • Color System / Compression: YUY2/MJPEG/H.264
    • Video Format: Video format of multi frame rate and resolution ratio, up to 1080P60 YUY2
    • USB Video Communication Protocol: UVC 1.1 or UV C1.5
    • Audio on USB: 32K sampling frequency, supported UAC2.0
    • UVC PTZ Control: Supported

      IP Camera
    • Video Compression: H.264
    • Video Stream: First and second streaming
    • Main Stream Resolution: 920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
    • Sub Stream Resolution: 1280x720, 1024x576, 720x576, 720x480, 720x408, 640x360, 480x270, 320x240, 320x180
    • Video Bit Rate: 32Kbps ~ 102400Kbps
    • Bit Rate Control: VBR, CBR
    • Frame Rate: 1fps ~ 60fps
    • Audio Compression: AAC
    • Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps
    • Supported Protocols: FULL NDI, NDI/HX, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, SRT, GB/T28281

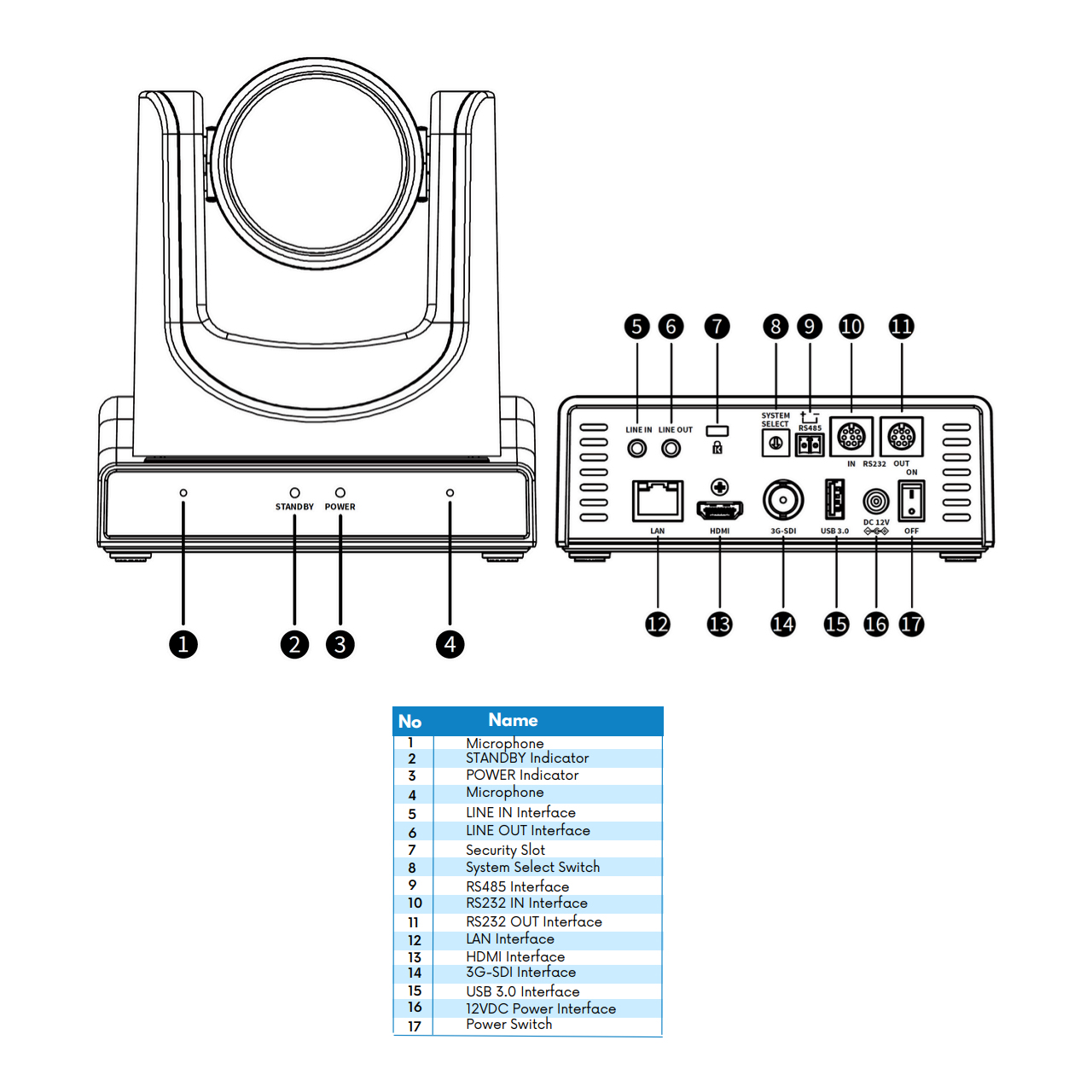

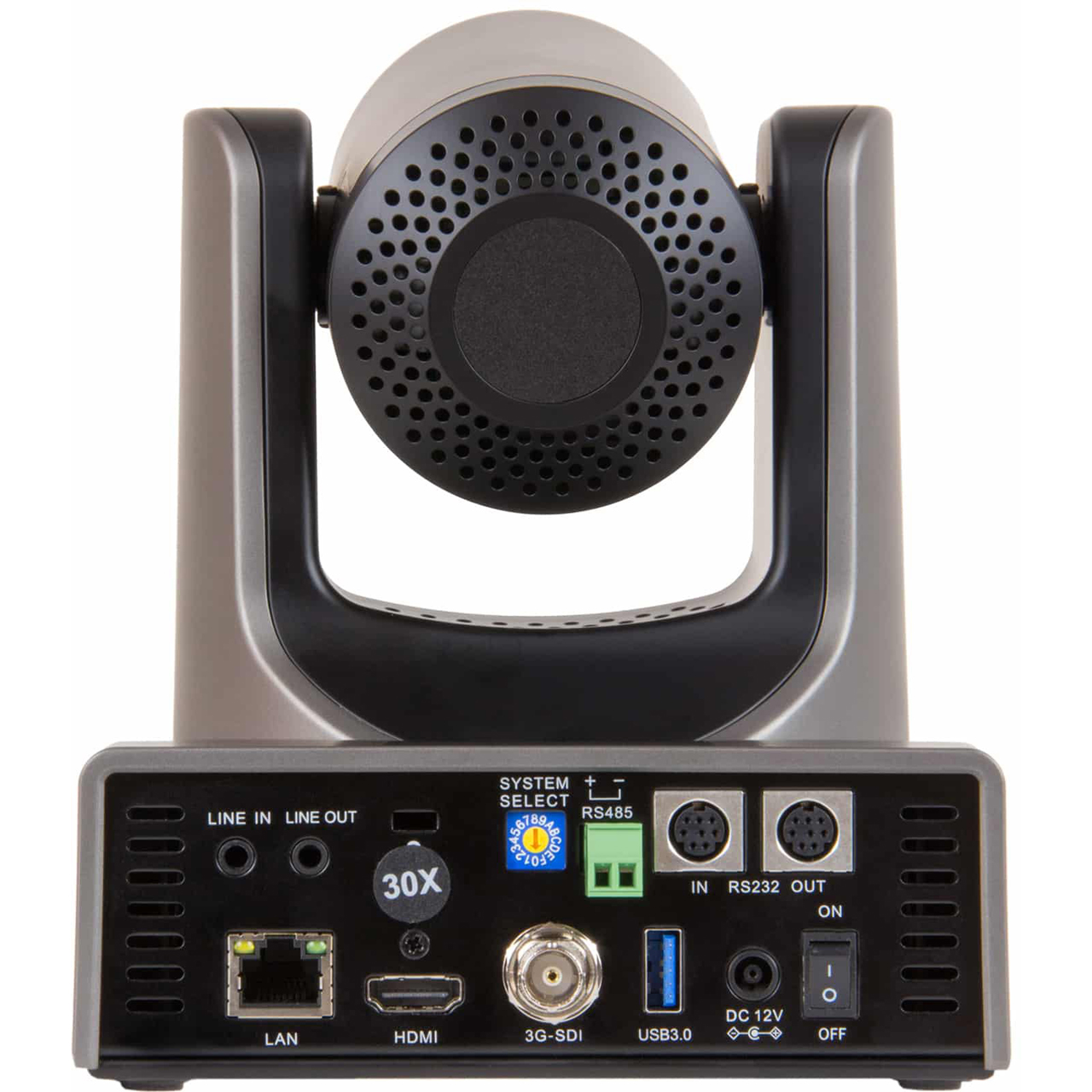

      Input/Output Interface
    • USB: 1-ch, USB 3.0: Type-A
    • HD Output:
      - 1x HDMI: V 1.3
      - 1x 3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424M standard
    • Network Interface: 1x RJ45:10M/100M/1000M Adaptive Ethernet, supported PoE
    • Audio interface:
      - 1x Line In, 3.5mm Jack
    • Control Interface:
      - 1x RS232 In: 8pin Min DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P
      - 1x RS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA only
      - 1x RS485: 2pin phoenix port, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P
    • Power Jack: JEITA Type (Input 12VDC)

      Generic Specifications
    • Input Voltage: 12VDC,PoE(802.3af)
    • Input Current: 1.5A (Max)
    • Operating Temperature 0°F - 104°F (0°C - 40°C)
    • Storage Temperature 14°F - 122°F (-10°C - 50°C)
    • Power Consumption: 15W
    • Weight: 7.32lbs (3.320kg)
    • Dimensions: 3.72" H x 3.87" W (9.84cm x 9.45cm)

  • Item Includes:

    • 1x USB/NDI/IP PTZ Camera 30x Zoom.
    • 1x 100~240V AC 50/60Hz 24V-6.5A Power adapter
    • 1x RS232 Cable
    • 1x Remote Control
    • 1x Wall mount Bracket

  • Warranty:

    • 2 years
