    500850-RX - Overview

    The MuxLab 500850 KVM HDMI over IP PoE Extender Deluxe, 4K/30 allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supports HDMI up to 4K @ 30Hz (4:4:4)and 4K @ 60Hz (4:2:0) via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500850-TX) and Receiver (500850-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.

    The Transmitter terminates to a computer server/workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, etc., via a 4 port USB hub. In addition, The Transmitter features an HDMI loop out for connecting a local TV and the Receiver features an HDMI input for connecting a local video source.

    • Features:

      • Supports HDMI up to 4K @ 30Hz (4:4:4) and4K @ 60Hz (4:2:0)
      • Up to 330ft (100m) over Cat5e/6
      • One operator can manage multiple servers/workstations
      • Receiver side includes a 4-port USB hub for KVM applications
      • HDMI loop out on TX (model 500850-TX)
      • HDMI local input on RX
      • 100 channel selector

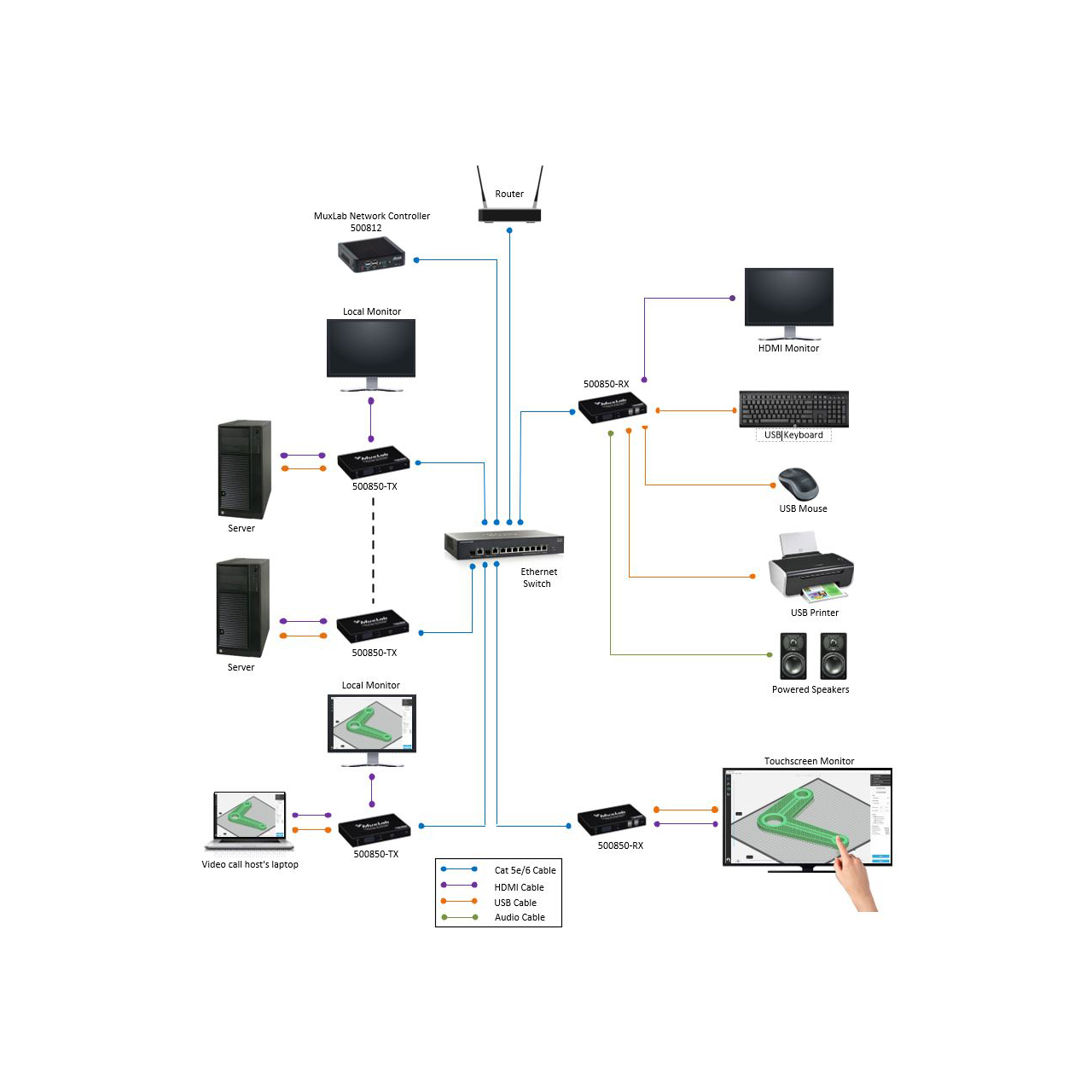

      • Supports multiple point-to-point, and point-to-multipoint applications
      • Supports PoE powered
      • Supports balanced/unbalanced audioinsert (TX), and balanced/unbalancedaudio extract (RX)


    • Specifications:

      • Environment: HDMI 2.0a
      • HDCP Compliance: HDCP 1.4, HDCP 2.2
      • Bandwidth (HDMI): 297 MHz
      • Video Resolution: Up to 4K/30Hz (4:4:4) or 4K/60Hz (4:2:0)
      • Compression: JPEG 2000
      • Maximum Distance (Cat5e/6): 330' (100m)
      • Latency (Typical One Frame): 16ms for 60Hz, 33ms for 30Hz
      • Bandwidth: Up to 500
      • Network Requirement: 1000BaseT with PoE
      • HDR Color: HDR10
      • RS-232: Up to 115k Baud
      • IR: Bi-Directional

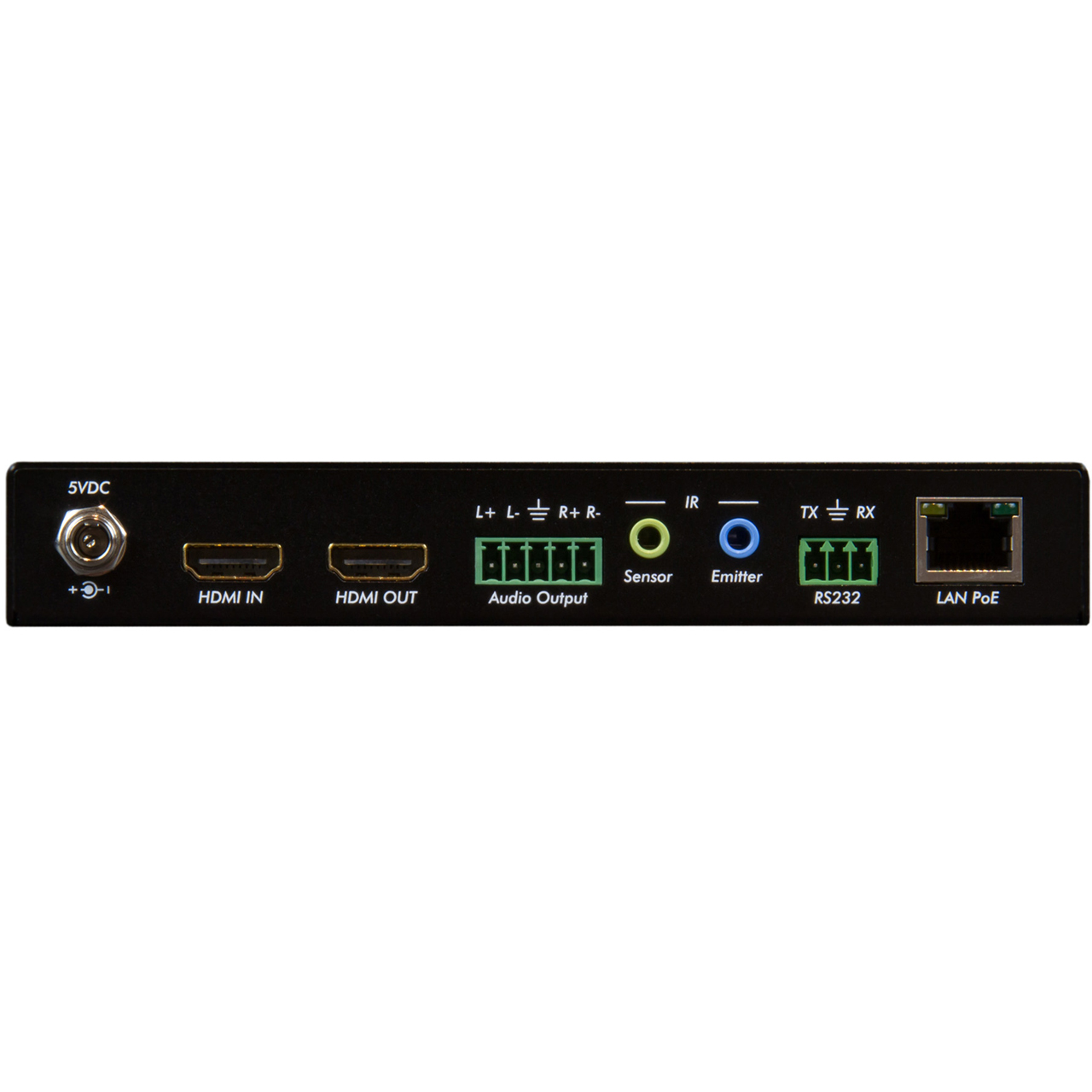

      • Receiver Input:
        - 1x HDMI IN (Type A, 19-pin female)
        - 1x Ethernet LAN port (RJ45, 8-pin female)
      • Receiver Output:
        - 1x HDMI OUT (Type A, 19-pin female)
        - 1x Audio Output (5pin-3.81mm Phoenix jack)

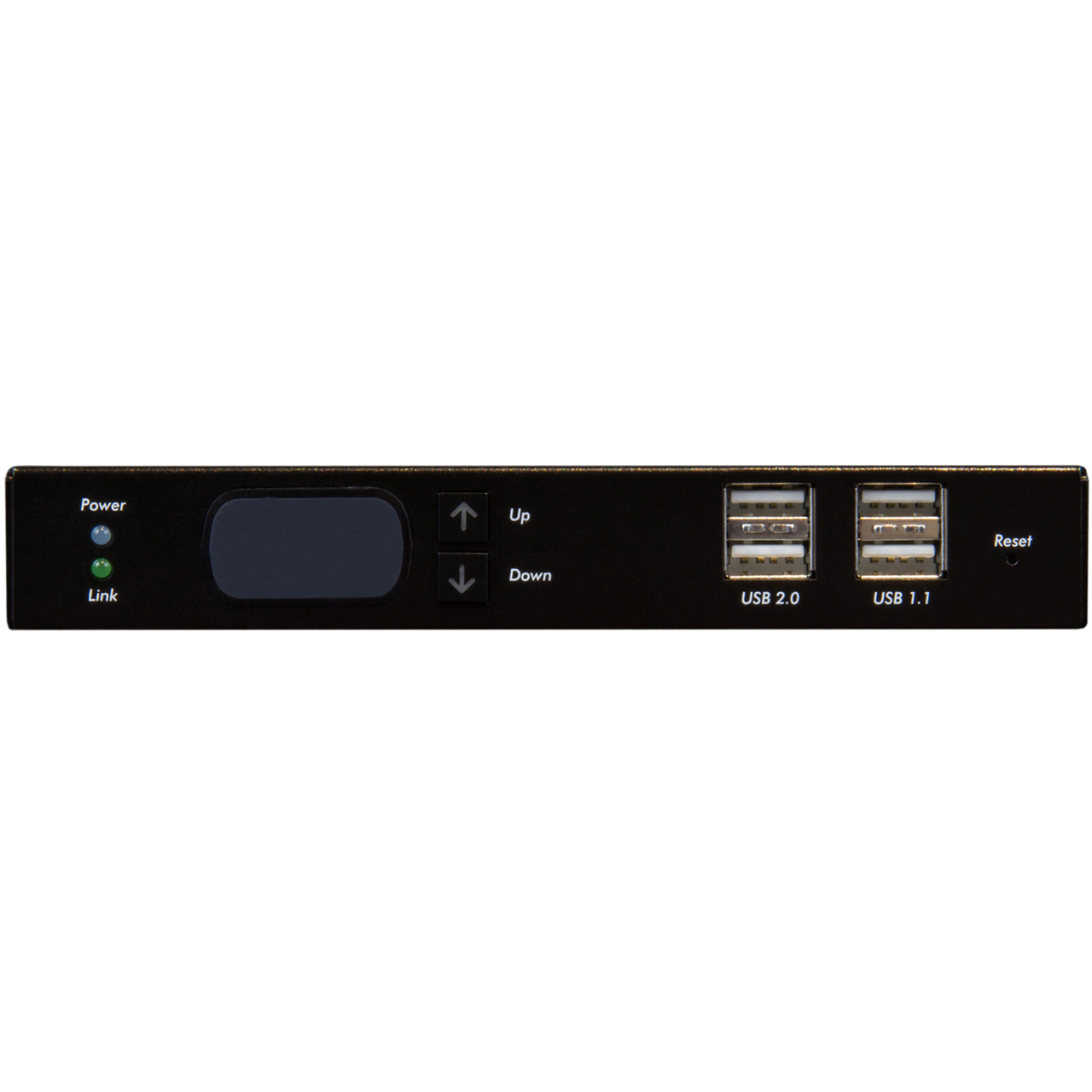

      • Receiver Controls:
        - 1xIR Sensor (3.5mm Stereo Mini-jack)
        - 1xIR Emitter (3.5mm Stereo Mini-jack)
        - 1xRS-232 (3-pin-3.81mm Phoenix jack)
        - 4x USB DEVICES (USB Type A)
      • Housing: Black Metal Enclosure
      • Dimensions: 6.42" 4.21" x 0.91" (163mm x 107mm x 23mm)
      • Weight: 17.44oz (494.4g)
      • Power Consumption: 6 Watt
      • PoE Standard: IEEE 802.3af
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
      • Relative Humidity: 20% - 90% RH (non-condensing)


    • Item Includes:

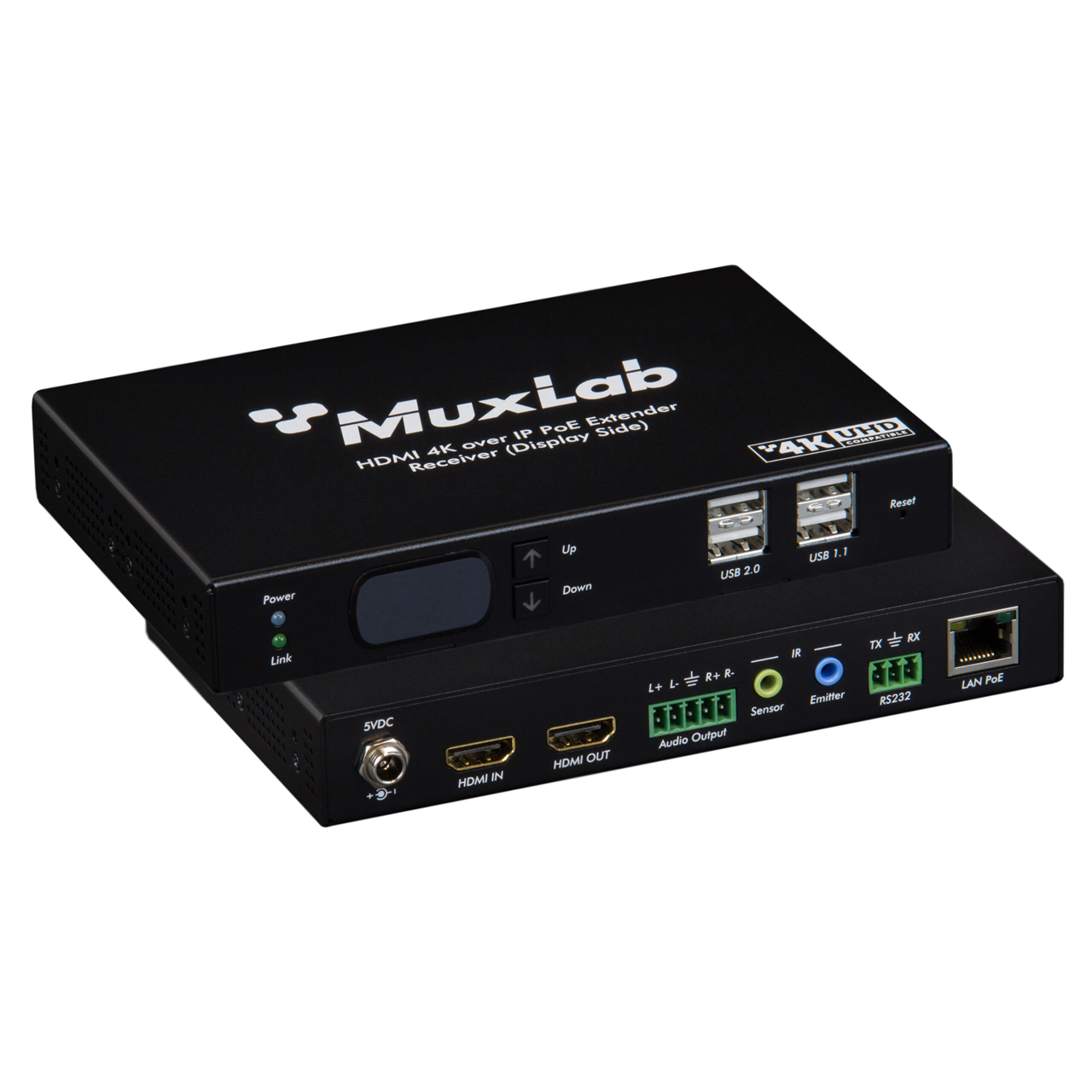

      • 1x KVM HDMI over IP PoE Extender Deluxe, 4K30 (Receiver)
      • 1x IR Sensor
      • 1x IR Emitter
      • 1x User manual (available via download)


    • Warranty:

      • 3 Year Warranty


    • Applications

      :

      • KVM /AV Systems
      • Classroom training systems
      • Digital signage
      • Boardroom systems
      • Collaborative PC systems
      • Medical information systems


    • GTIN:

      0627699808504
